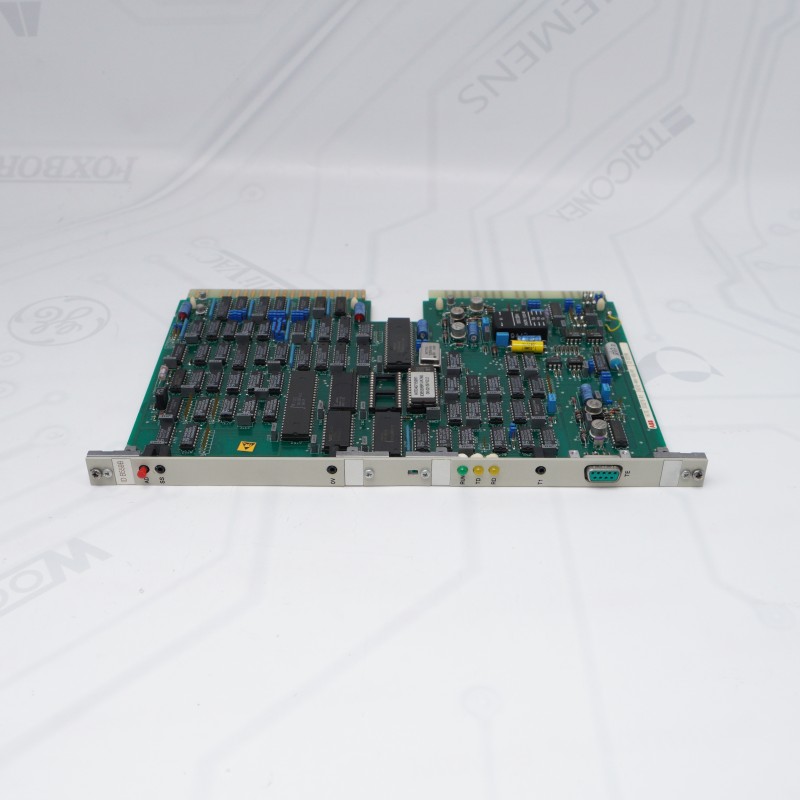

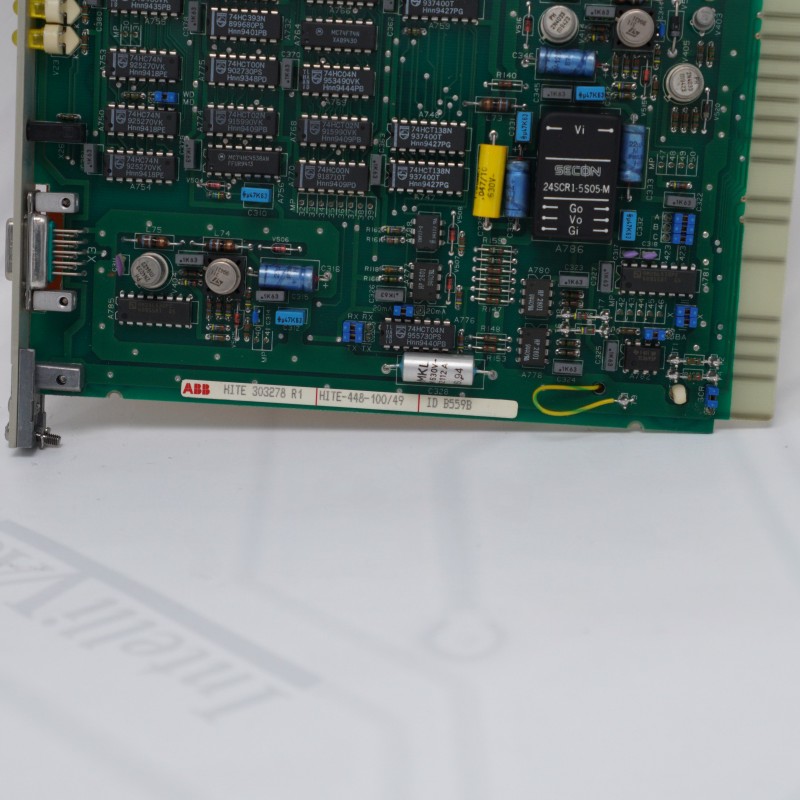

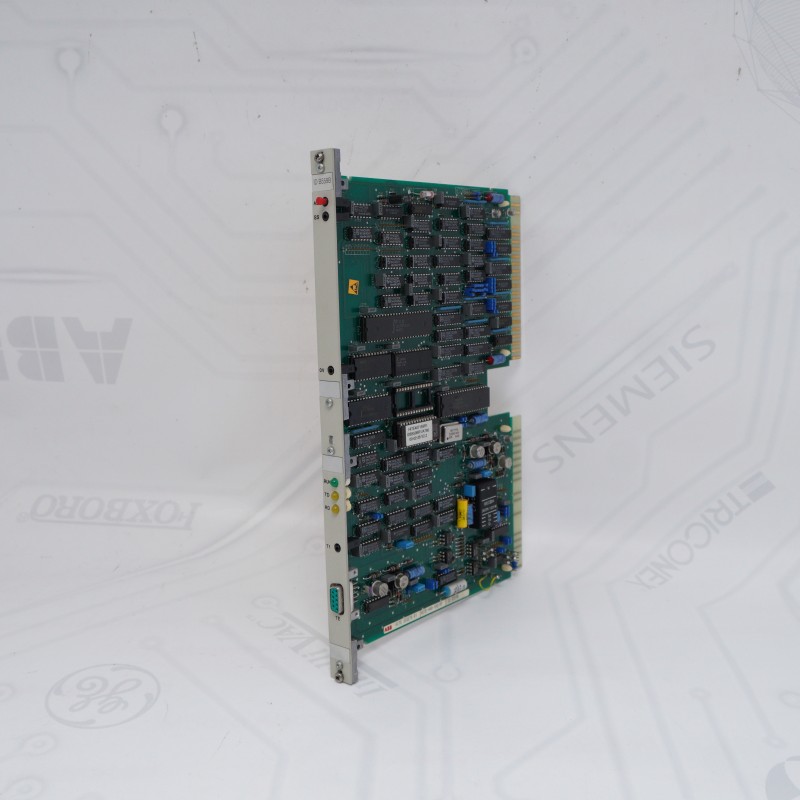

HITE303278R1 HITE-448-100-49 IDB559B ABB control board

HITE303278R1 Manufacturer: ABB

System: Procontic DCS / PLC

Model ID: IDB559B

Revision: HITE-448-100-49

HITE303278R1 Mounting: Slide-in rack

HITE303278R1 Diagnostics: Onboard LED indicators

HITE303278R1 Lifecycle: Obsolete / Legacy

ABB HITE-448-100-49 Visual Check: Inspect the HITE303278R1 PCB for burns, cracks, or corrosion; clean the HITE-448-100-49 layout connector pins.

ABB control board Power-On Test: Install the module in a Procontic test rack; verify the Power LED lights up without overheating.

control board Functional Test: Connect the HITE303278R1 to a CPU; cycle I/O signals to check data processing accuracy.

control board Status Monitor: Verify Fault LEDs remain off on the HITE-448-100-49 board during data transmission.

Burn-In Test: Run a simulated load loop for 2 hours to confirm the thermal stability of the module.

Expertise: Over a decade of experience with legacy PLC, DCS, and safety systems.

Specialty: Expert in sourcing, cross-referencing, and testing obsolete industrial hardware.

Quality Focus: Writes precise technical guides backed by real-world workshop testing.

A: The primary function of the HITE303278R1 architecture is to process localized digital/analog I/O logic and handle backplane system bus communication. Operating within the Procontic distributed control series, the HITE303278R1 layout facilitates high-speed, deterministic data telemetry between field instruments and the central processing unit.

A: Engineers must verify compatibility by matching both the system designator and the specific firmware trace revision of the ABB control board specification. Ensuring a precise match with the ABB control board standard guarantees correct physical pin alignment on the rack backplane and prevents communication mismatches with the master PLC.

A: A solid red Fault LED signifies a critical hardware failure during the power-on self-test (POST) sequence of the internal ABB control board circuitry. This behavior typically points to a localized short circuit on the power rail, memory corruption inside the chip, or a total breakdown of backplane bus communication on the ABB control board.

A: Validating the technical integrity of an ABB control board unit requires a strict protocol: visual inspection, resistance measurement, rack power-on check, I/O loop testing, and a 2-hour burn-in stress test. This entire functional verification sequence must be executed using a dedicated test rack configured to handle the exact parameters of the ABB control board layout.

A: Because the official ABB control board platform is no longer in active production, you can safely purchase fully tested and certified replacements directly from our spare center. We maintain an active inventory of both "New In Box" (NIB) old stock and fully refurbished ABB control board units to guarantee immediate shipping, minimal facility downtime, and full operational warranty support.
