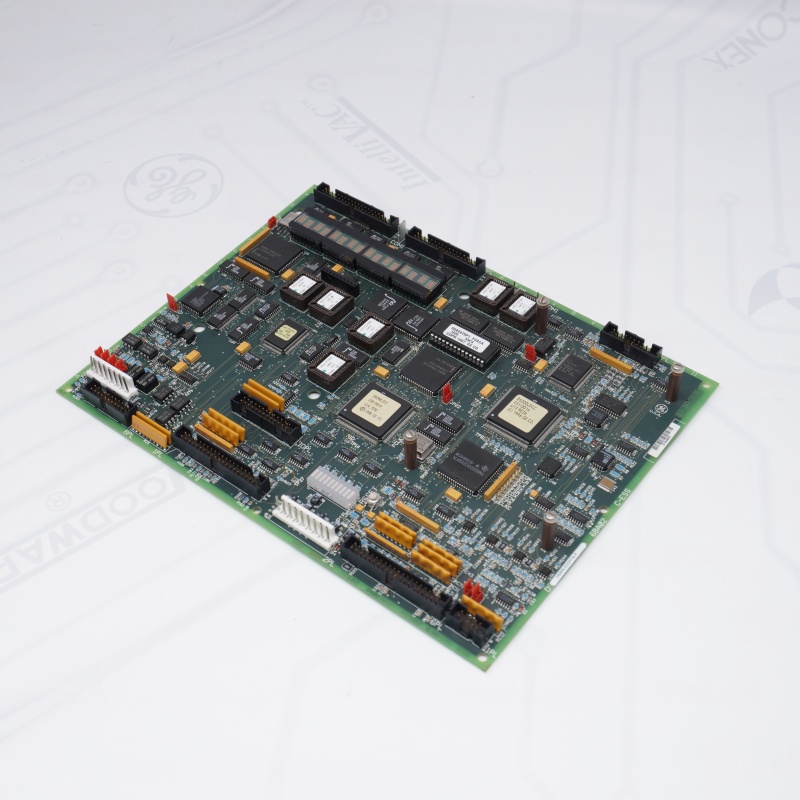

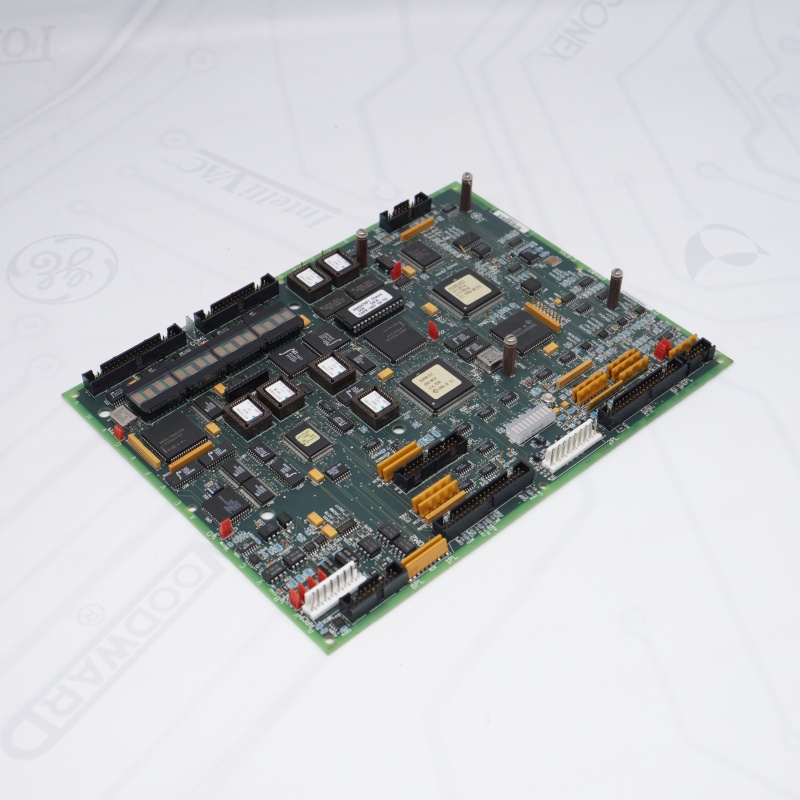

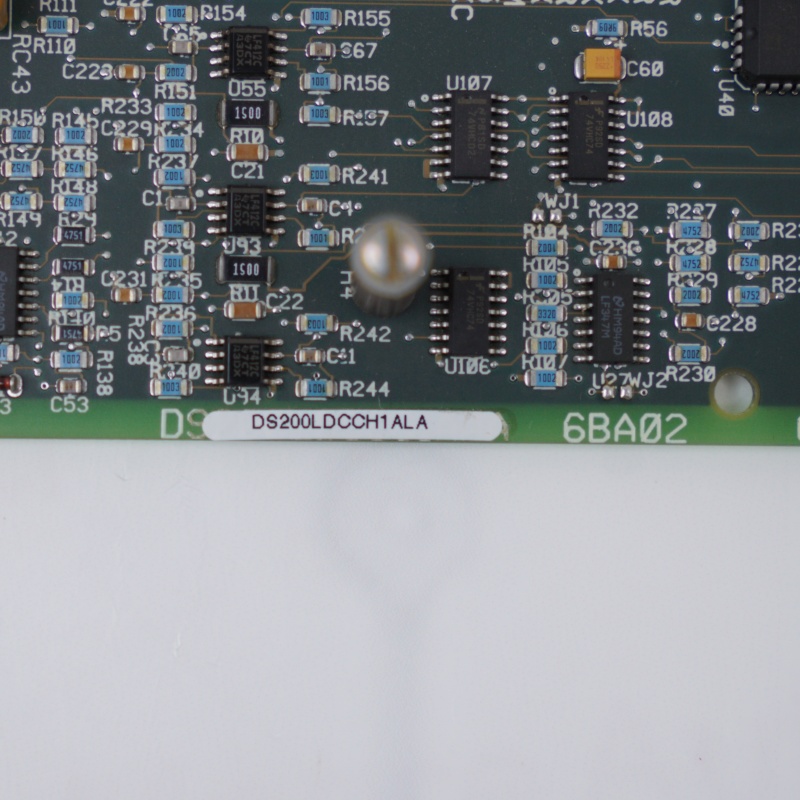

General Electric DS200LDCCH1ALA Specification
| Manufacturer | General Electric |
| Product no. | DS200LDCCH1ALA |
| Product type | Drive Control and LAN Communications Board |
| Operating Temp | -30 to 65 ºC |
| Dimensions | 33.0 cm x 17.8 cm |
General Electric DS200LDCCH1ALA Details
| Key Features | Application |
| General Electric Drive Control and LAN Communications Board: Multi-Protocol Connectivity: Supports high-speed industrial communication via DLAN+, Genius I/O, and C-Bus for seamless integration between the drive and the control network. | Gas and Steam Turbine Control: Serves as the primary controller in GE Mark V Speedtronic systems to regulate turbine speed, load, and fuel flow. |
| General Electric Drive Control and LAN Communications Board: Local Interface Support: Features a dedicated header for an alphanumeric keypad, allowing for direct on-site parameter adjustment and system diagnostics without external software. | EX2000 Excitation Systems: Manages field current and voltage regulation for large-scale power plant generators to ensure grid stability. |
| DS200LDCCH1A Drive Control and LAN Communications Board:Hardware Diagnostics: Includes 8 integrated test points for real-time signal measurement and non-volatile EEPROM for secure storage of mission-critical configuration data. | Industrial Drive Systems: Provides precision motor control for heavy-duty GE Directo-Matic 2000 drives used in steel mills, paper plants, and mining. |
| General Electric Drive Control and LAN Communications Board: Quad-Processor Architecture: Utilizes four dedicated microprocessors (DCP, LCP, MCP, CMP) to manage drive logic, LAN communications, and motor I/O tasks in parallel. | Network Communication Gateway: Acts as a central hub for data exchange between individual drives and plant-wide control networks via DLAN+ and Genius I/O. |
If you want to more details about General Electric DS200LDCCH1ALA，please contact me without hesitate.Email：sales@sparecenter.com
DS200LDCCH1ALA FAQ
1. What does the ALA suffix in DS200LDCCH1ALA signify?
Drive Control and LAN Communications Board indicates the specific hardware revision level. This DS200LDCCH1ALA version includes cumulative factory updates for improved stability and noise immunity compared to earlier base models.2. Why does the DS200LDCCH1ALA require four microprocessors?
The DS200LDCCH1ALA partitions tasks (DCP for drive logic, LCP for networking, MCP/CMP for motor I/O) to ensure high-speed parallel processing and prevent control loop latency.3. Can the DS200LDCCH1ALA board be hot-swapped?
No. System power must be disconnected before replacing the DS200LDCCH1ALA. Post-replacement, you must verify that the site-specific configuration in the DS200LDCCH1ALA EEPROM matches existing drive parameters.4. What is the most common cause of DS200LDCCH1ALA communication errors?
Failures in the DS200LDCCH1ALA are typically linked to incorrect jumper settings for bus termination, faulty ribbon cables, or power rail fluctuations measurable at the board's test points.5. Is the alphanumeric keypad mandatory for DS200LDCCH1ALA(DS200LDCCH1A Drive Control and LAN Communications Board) operation?
No. The keypad is only required for manual parameter entry and real-time diagnostics on the DS200LDCCH1ALA; the board functions independently once the configuration is saved to memory.
