GE DS200TCQAG1ADC Specification
| Category | Details |
|---|---|
| Model Number | DS200TCQAG1ADC |
| Control System | Speedtronic Mark V |
| Board Type | Analog I/O Board |
| Primary Function | Signal scaling and conditioning for R1, R2, and R3 I/O cores |
| Board Dimensions | 13.5 in x 9.0 in (Standard Mark V Form Factor) |
| Revision Level | ADC (Compatible with Major Revision E) |
| Input Support | LVDT/LVDR position, Thermocouples, 4–20 mA, Pulse rate, Vibration |
| Output Support | Servo valve outputs, Relay drivers, Scaled mA outputs |
| Hardware Jumpers | J1, J2, J5, J6 (Used for mA output range configuration up to 200mA) |
| Key Connectors | 2PL (Power), 3PL (STCA interface), JE (TCQC interface), JG (±10 VDC/Vib) |
| Operating Temp | 0°C to 60°C (32°F to 140°F) |
| Applications | Gas/Steam turbine control, valve tracking, temperature monitoring |
2
Our Services
Why Choose AMIKON LIMITED?
When sourcing critical industrial automation components such as the DS200TCQAG1ADC Analog I/O Board, selecting a reliable supplier is essential to ensure operational stability and reduce downtime. AMIKON is a trusted global supplier of industrial automation spare parts, serving customers with fast, professional, and dependable service.
✔ Extensive Inventory, Fast Fulfillment
With a large inventory of over 30,000+ industrial automation spare parts, AMIKON helps customers significantly reduce lead times and avoid costly production downtime.
✔ Expertise in Obsolete & Hard-to-Find Parts
AMIKON specializes in sourcing discontinued and hard-to-find components. Even if the DS200TCQAG1ADC is not immediately available, our global sourcing network enables fast and efficient procurement.
✔ Dedicated Account Support
Each customer is assigned a dedicated sales representative to ensure clear communication, accurate quotations, and smooth order processing from inquiry to delivery.
✔ Competitive and Flexible Pricing
We offer tailored pricing solutions based on project requirements, helping customers maintain competitiveness in bidding and procurement processes.
✔ Fast Global Shipping
We cooperate with international logistics partners such as DHL, UPS, and FedEx to ensure fast and reliable worldwide delivery, even for urgent requirements.
✔ Quality Assurance You Can Trust
All products are carefully inspected to ensure performance reliability and compatibility with demanding industrial environments.
Simplify Your Procurement Process
Whether you require immediate stock availability of DS200TCQAG1ADC Analog I/O Board or a long-term supply partner, AMIKON provides:
Fast quotation response (usually within hours)
Competitive pricing support
Reliable global sourcing channels
Professional technical assistance
👉 Contact us today to receive the latest price and availability. Email: sales@sparecenter.com
3
GE DS200TCQAG1ADC Application
A. GE DS200TCQAG1ADC Precision Turbine Control and Feedback
Serving as the primary "sensory interface" of the Mark V system, the DS200TCQAG1ADC Analog I/O Board is responsible for converting raw analog signals from the field into digital data for the control processors.
Serving as the primary "sensory interface" of the Mark V system, the DS200TCQAG1ADC Analog I/O Board is responsible for converting raw analog signals from the field into digital data for the control processors.
Valve Positioning: The DS200TCQAG1ADC Analog I/O Board provides real-time monitoring of the physical position of gas turbine inlet valves or steam valves via LVDT/LVDR interfaces, enabling high-precision closed-loop servo control.
Fuel Regulation: GE DS200TCQAG1ADCs 4-20mA fuel pressure and flow signals, allowing the DS200TCQAG1ADC(GE Analog I/O Board) to ensure stable power delivery during turbine startup and transient load conditions.
B. GE DS200TCQAG1ADC Critical Operating Parameter Monitoring
In demanding power generation environments, the DS200TCQAG1ADC Analog I/O Board carries out essential safety functions by monitoring high-risk variables.
In demanding power generation environments, the DS200TCQAG1ADC Analog I/O Board carries out essential safety functions by monitoring high-risk variables.
Temperature Monitoring: The DS200TCQAG1ADC(GE Analog I/O Board) directly reads Thermocouple signals to monitor Exhaust Gas Temperature (EGT) or bearing temperatures, preventing turbine damage due to over-temperature conditions.
Vibration and Speed Sensing: By processing vibration sensor data and pulse signals, the DS200TCQAG1ADC Analog I/O Board captures the rotor's mechanical status in real-time. The system triggers immediate protective actions if the board detects abnormal vibration or compressor stall signals.
C. GE DS200TCQAG1ADC TMR (Triple Modular Redundant) Safety Deployment
Within the TMR architecture, the DS200TCQAG1ADC Analog I/O Board is strategically installed across the R, S, and T cores to eliminate single points of failure.
Within the TMR architecture, the DS200TCQAG1ADC Analog I/O Board is strategically installed across the R, S, and T cores to eliminate single points of failure.
Signal Voting Mechanism: Three identical DS200TCQAG1ADC Analog I/O Board process the same set of sensor data simultaneously. GE DS200TCQAG1ADC(GE Analog I/O Board) utilizes a 2-out-of-3 logic voting mechanism based on the inputs from each DS200TCQAG1ADC Analog I/O Board. This ensures that an A/D conversion error on a single board will not cause an unscheduled shutdown of the entire generator set.
4
GE DS200TCQAG1ADC Images

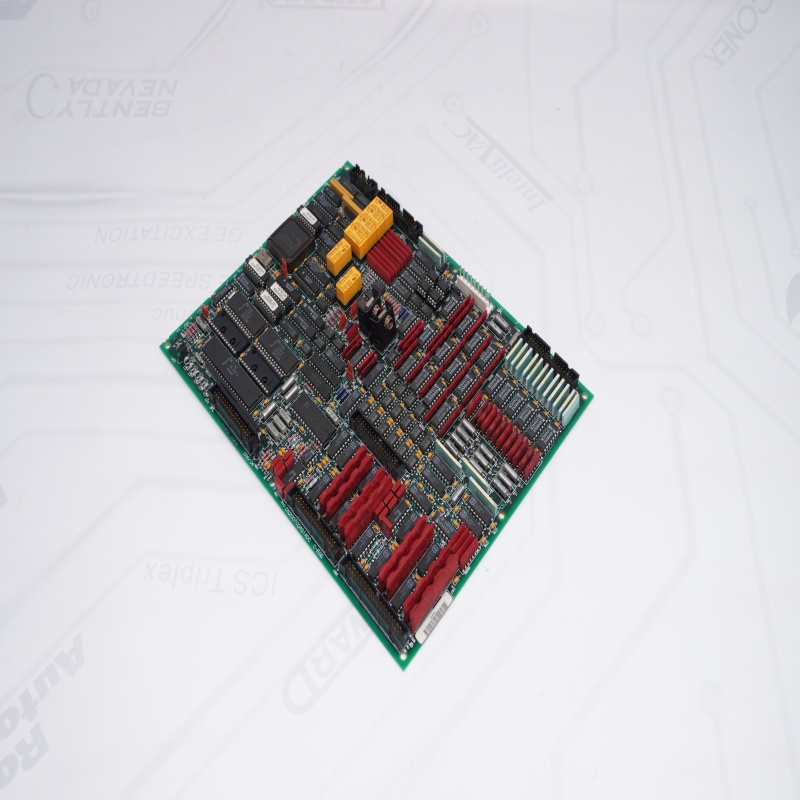

GE DS200TCQAG1ADC(GE Analog I/O Board)

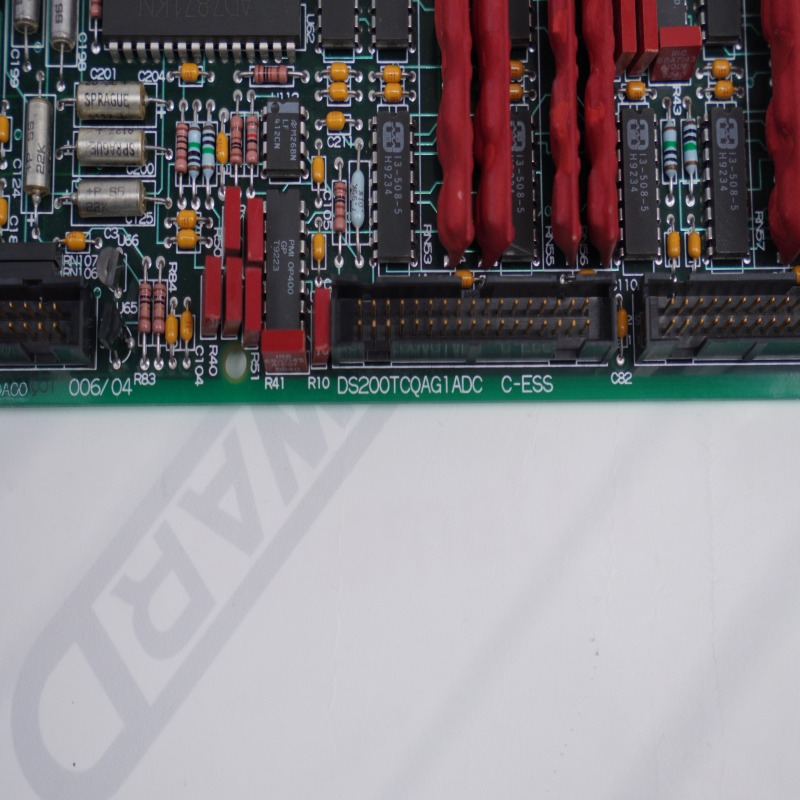

GE DS200TCQAG1ADC(GE Analog I/O Board)

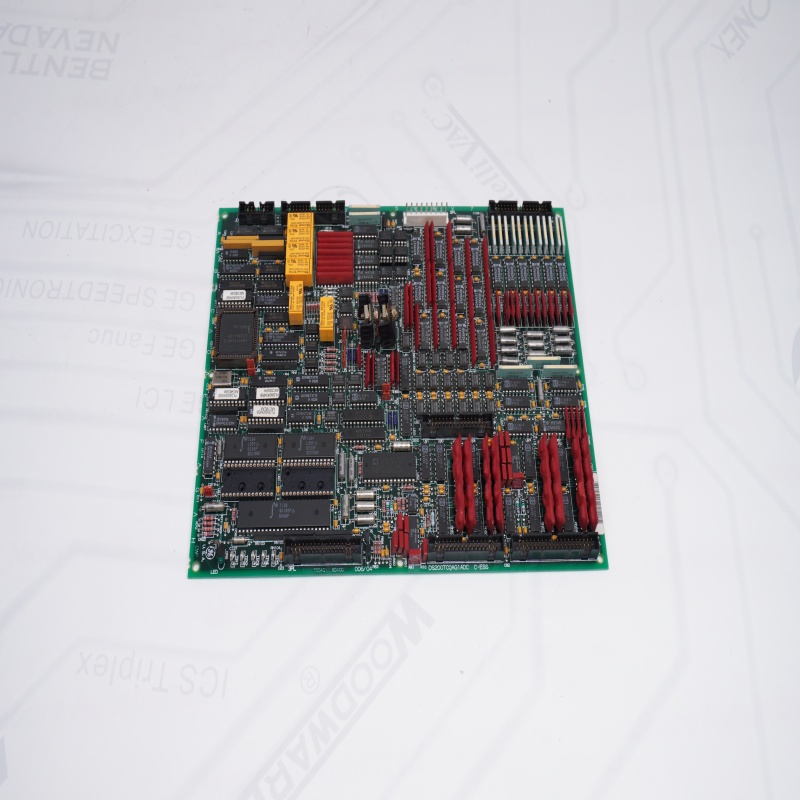

GE DS200TCQAG1ADC(GE Analog I/O Board)

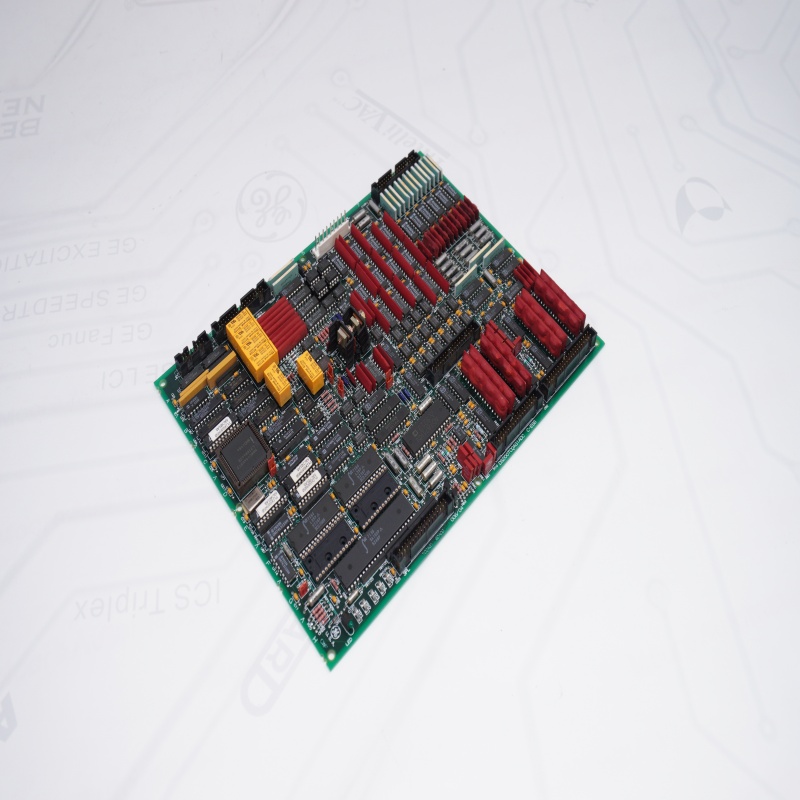

GE DS200TCQAG1ADC(GE Analog I/O Board)
5
GE DS200TCQAG1ADC FAQ
1. What is the primary function of the GE Analog I/O Board within the Mark V system?
The DS200TCQAG1ADC serves as the primary Analog I/O board, functioning as the interface between field devices and the control cores. The GE Analog I/O Board scales and conditions a wide variety of analog signals, such as LVDT positions and thermocouple inputs, ensuring they are converted into a digital format that the Speedtronic Mark V processors can interpret.
The DS200TCQAG1ADC serves as the primary Analog I/O board, functioning as the interface between field devices and the control cores. The GE Analog I/O Board scales and conditions a wide variety of analog signals, such as LVDT positions and thermocouple inputs, ensuring they are converted into a digital format that the Speedtronic Mark V processors can interpret.
2. How does the DS200TCQAG1ADC support Triple Modular Redundancy (TMR)?
In a TMR configuration, one DS200TCQAG1ADC board is typically installed in each of the three control cores (R, S, and T). The system performs a "two-out-of-three" logic vote on the data processed by each DS200TCQAG1ADC, allowing the turbine to continue operating safely even if one GE Analog I/O Board unit encounters a hardware or signal failure.
In a TMR configuration, one DS200TCQAG1ADC board is typically installed in each of the three control cores (R, S, and T). The system performs a "two-out-of-three" logic vote on the data processed by each DS200TCQAG1ADC, allowing the turbine to continue operating safely even if one GE Analog I/O Board unit encounters a hardware or signal failure.
3. Which types of sensors can be directly connected to the DS200TCQAG1ADC?
The DS200TCQAG1ADC is designed to handle multiple signal types, including Thermocouples for temperature monitoring, LVDT/LVDR for valve position feedback, and vibration sensors. Additionally, the DS200TCQAG1ADC processes standard 4–20 mA instrument loops and pulse rate inputs for monitoring turbine speed and fuel flow.
The DS200TCQAG1ADC is designed to handle multiple signal types, including Thermocouples for temperature monitoring, LVDT/LVDR for valve position feedback, and vibration sensors. Additionally, the DS200TCQAG1ADC processes standard 4–20 mA instrument loops and pulse rate inputs for monitoring turbine speed and fuel flow.
4. What do the jumpers on the DS200TCQAG1ADC board control?
The hardware jumpers on the DS200TCQAG1ADC (specifically J1, J2, J5, and J6) are used to configure the milliamp (mA) output current ranges. When installing a replacement GE Analog I/O Board, it is critical to match these jumper settings to the original board to ensure the DS200TCQAG1ADC provides the correct scaling for servo drives or other actuators.
The hardware jumpers on the DS200TCQAG1ADC (specifically J1, J2, J5, and J6) are used to configure the milliamp (mA) output current ranges. When installing a replacement GE Analog I/O Board, it is critical to match these jumper settings to the original board to ensure the DS200TCQAG1ADC provides the correct scaling for servo drives or other actuators.
5. Is the DS200TCQAG1ADC compatible with earlier versions of the TCQA board?
The DS200TCQAG1ADC is part of the "ADC" revision level, which is generally backward compatible with earlier major revision E versions. However, when replacing an older unit with a GE Analog I/O Board, you must verify that the Mark V software configuration and EEPROM settings recognize the specific revision of the DS200TCQAG1ADC to prevent I/O mismatch alarms.
The DS200TCQAG1ADC is part of the "ADC" revision level, which is generally backward compatible with earlier major revision E versions. However, when replacing an older unit with a GE Analog I/O Board, you must verify that the Mark V software configuration and EEPROM settings recognize the specific revision of the DS200TCQAG1ADC to prevent I/O mismatch alarms.
6. What are the essential maintenance precautions for the DS200TCQAG1ADC?
The DS200TCQAG1ADC contains highly sensitive CMOS components that are vulnerable to static discharge. Therefore, an ESD wrist strap must be worn whenever handling theGE Analog I/O Board. Furthermore, before removing a GE Analog I/O Board, ensure that all power to the core is disconnected via the TCPS board to prevent electrical damage to the DS200TCQAG1ADC connectors.
The DS200TCQAG1ADC contains highly sensitive CMOS components that are vulnerable to static discharge. Therefore, an ESD wrist strap must be worn whenever handling theGE Analog I/O Board. Furthermore, before removing a GE Analog I/O Board, ensure that all power to the core is disconnected via the TCPS board to prevent electrical damage to the DS200TCQAG1ADC connectors.
