GE DS200DCFBG1BNC Specification
| Category | Technical Specifications |
|---|---|
| Model Number | DS200DCFBG1BNC |
| Series | Speedtronic Mark V |
| Product Type | DC Power Supply and Feedback Board |
| Input Voltage | 38V to 115V AC |
| Output Voltages | +5V, ±15V, ±24V DC (Control); 115V AC (Fan Power) |
| Frequency Range | 0 to 500 kHz (Voltage dependent) |
| Hardware Components | 13 Jumpers, 7 DIP Switches, 5 Test Points |
| Protection | 3 On-board Fuses (with LED/Neon indicators) |
| Compatibility | GE DC2000, AC2000, CB2000, ME2000, FC2000, EX2000 |
| Coating | Normal Industrial Protective Coating |
| Feedback Monitoring | AC Line (Magnitude/Phase) & DC Armature (V/I) |
| Revision Level | G1BNC (Specific Revision Group) |
2
GE DS200DCFBG1BNC Details
GE DS200DCFBG1BNC Description
The DS200DCFBG1BNC（DS200DCFBG1BNC GE） is a DC Power Supply and Feedback board manufactured by General Electric (GE) as part of the Mark V Speedtronic control system series. GE Power Supply and Feedback board is primarily designed to deliver regulated, stable power to critical drive components and provide feedback signals to monitor system operating status in industrial turbine control and drive applications.
GE DS200DCFBG1BNC Features
GE Power Supply and Feedback board Multi-Voltage Power Supply: Converts 38V–115V AC input into regulated control-level outputs: +5V, ±15V, and ±24V DC, plus a dedicated 115V AC fan output.
GE Power Supply and Feedback board Comprehensive Signal Feedback: Integrated circuits for monitoring AC line magnitude/phase and DC motor armature voltage/current.
DS200DCFBG1BNC Power Supply and Feedback board Triple-Fuse Protection: Equipped with three on-board fuses (FU1, FU2, FU3) to safeguard against electrical surges and short circuits.
DS200DCFBG1BNC Power Supply and Feedback board Visual Diagnostics: On-board LED and neon indicators provide immediate visual alerts for fuse failures or power status.
DS200DCFBG1BNC Power Supply and Feedback board Enhanced Scaling Options: Features 13 configurable jumpers (including the JP13 Scaling Select) and 7 DIP switches for precise voltage and feedback calibration.
DS200DCFBG1BNC Power Supply and Feedback board System Integrity Monitoring: Generates the /PSEN signal to trigger a hardware reset if the +5V DC supply falls out of regulation.
DS200DCFBG1BNC Power Supply and Feedback board Industrial-Grade Build: Features a standard protective coating to resist dust and moisture, designed for high-heat turbine control environments.
DS200DCFBG1BNC Power Supply and Feedback board Broad System Compatibility: Specifically engineered for GE Mark V Speedtronic series, supporting DC2000, AC2000, and EX2000 drives/exciters.
GE DS200DCFBG1BNC Application
DS200DCFBG1BNC GE Turbine Control Systems: Serves as a critical power and feedback interface within the GE Mark V Speedtronic system for gas and steam turbine management.
DS200DCFBG1BNC GE Industrial Drive Power Management: Provides regulated DC control power (+5V, ±15V, ±24V) and AC fan power for heavy-duty industrial drives.
DS200DCFBG1BNC GE Motor/Exciter Feedback: Used in GE EX2000 and DC2000 exciters to monitor armature current and voltage for precise motor speed and torque control.
DS200DCFBG1BNC GE AC/DC Signal Monitoring: Acts as a bridge to track AC line phases and magnitudes, ensuring synchronized operation between the control system and the power grid.
DS200DCFBG1BNC GE System Protection & Reset: Functions as a safety watchdog that triggers system-wide resets via the /PSEN signal if power regulation fails, preventing equipment damage.
DS200DCFBG1BNC GE Harsh Environment Deployment: Specifically applied in power plants, oil & gas refineries, and manufacturing facilities where industrial-grade PCB coating is required for reliability.
3

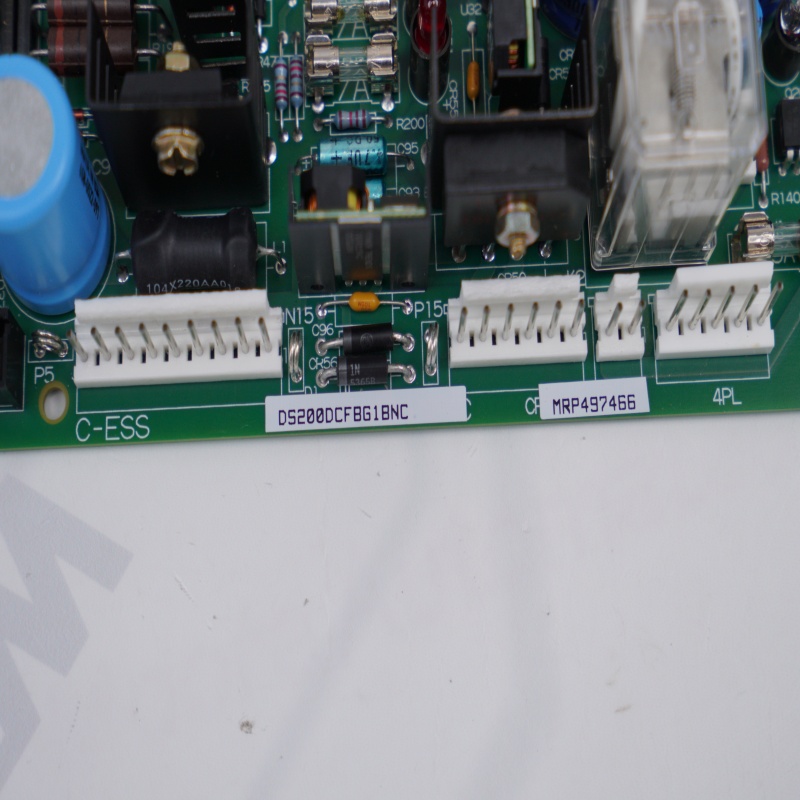

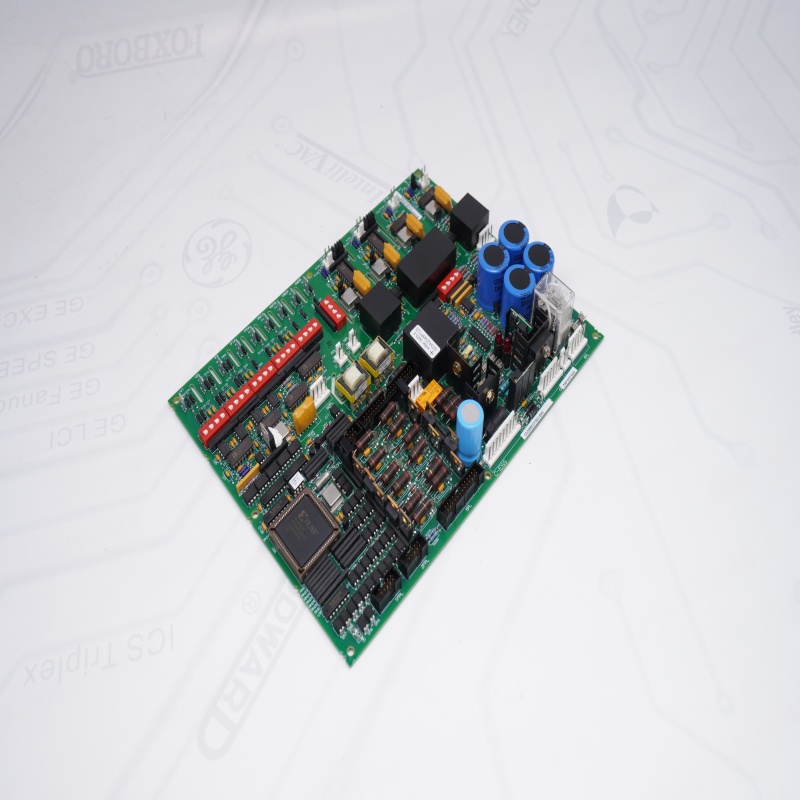

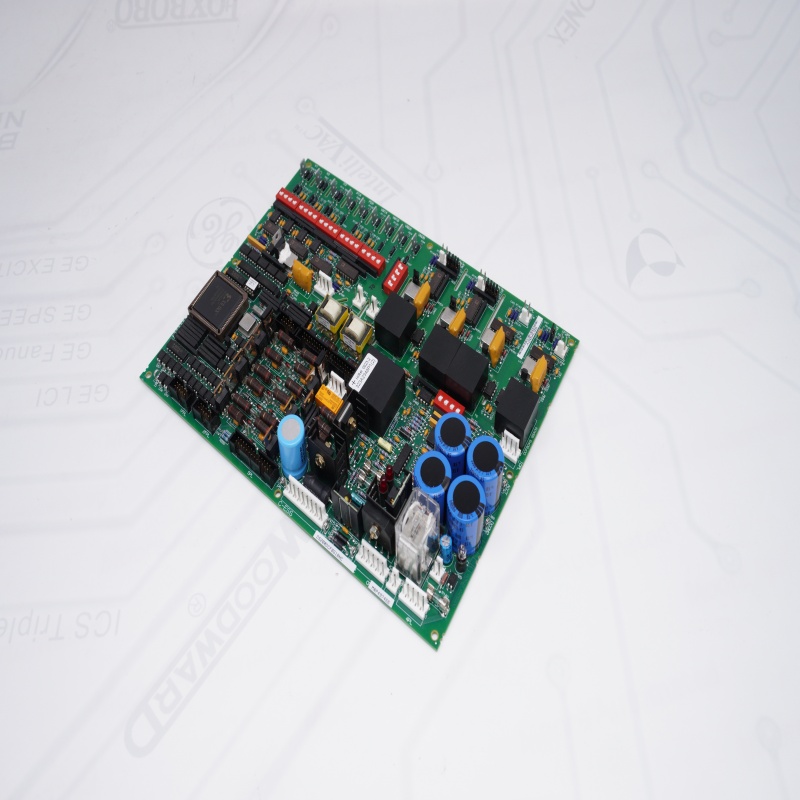

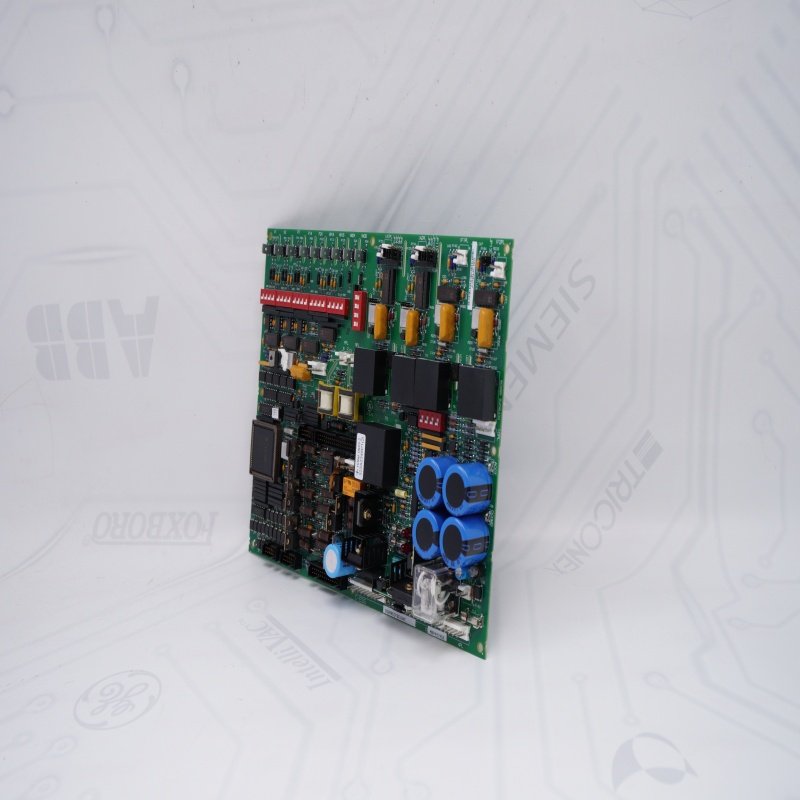

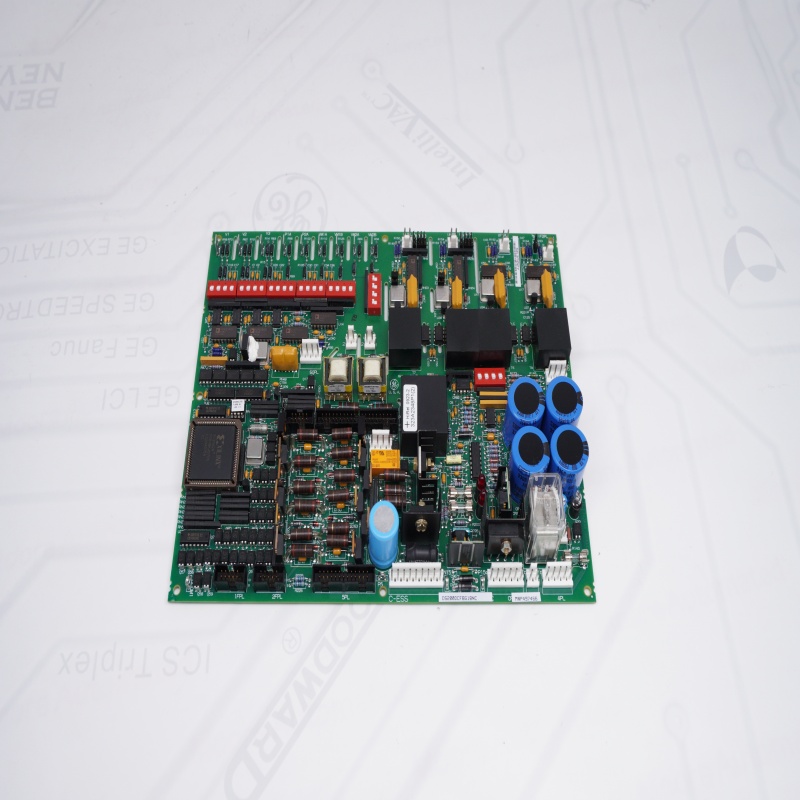

GE DS200DCFBG1BNC Images
1
2
3
4
GE DS200DCFBG1BNC FAQ
1. What is the primary function of the DS200DCFBG1BNC（GE DS200DCFBG1BNC）?
The GE Power Supply and Feedback board（DS200DCFBG1BNC GE） serves as a dual-purpose board within the GE Mark V Speedtronic system. GE DS200DCFBG1BNC（DS200DCFBG1BNC GE） functions both as a regulated DC power supply (providing +5V, ±15V, and ±24V DC) and as a feedback interface that monitors AC line and DC motor armature signals.
2. Which GE control systems are compatible with the DS200DCFBG1BNC（GE DS200DCFBG1BNC）?
This board is specifically designed for the Mark V Speedtronic series. GE Power Supply and Feedback board is commonly used in various GE industrial drives and exciters, including the DC2000, AC2000, EX2000, ME2000, and FC2000 models.
This board is specifically designed for the Mark V Speedtronic series. GE Power Supply and Feedback board is commonly used in various GE industrial drives and exciters, including the DC2000, AC2000, EX2000, ME2000, and FC2000 models.
3. How do the onboard indicators help with troubleshooting the DS200DCFBG1BNC（DS200DCFBG1BNC GE）?
The DS200DCFBG1BNC features diagnostic LEDs and neon lamps. If one of the three onboard fuses (FU1, FU2, or FU3) blows due to a power surge or short circuit, these indicators will illuminate to provide an immediate visual alert for maintenance teams.
The DS200DCFBG1BNC features diagnostic LEDs and neon lamps. If one of the three onboard fuses (FU1, FU2, or FU3) blows due to a power surge or short circuit, these indicators will illuminate to provide an immediate visual alert for maintenance teams.
4. What does the "BNC" suffix in the DS200DCFBG1BNC model number represent?
The BNC suffix denotes a specific revision group. Compared to earlier versions, the DS200DCFBG1BNC includes an additional 13th jumper (JP13) used for Scaling Select, which allows for more precise calibration of shunt feedback signals.
The BNC suffix denotes a specific revision group. Compared to earlier versions, the DS200DCFBG1BNC includes an additional 13th jumper (JP13) used for Scaling Select, which allows for more precise calibration of shunt feedback signals.
5. Can the DS200DCFBG1BNC be configured manually for different voltages?
Yes. The DS200DCFBG1BNC（DS200DCFBG1BNC GE） contains 7 DIP switches and 13 jumpers that allow technicians to manually scale the AC line voltage and bridge voltage feedback, ensuring the board matches the specific requirements of the drive GE Power Supply and Feedback board is installed in.
Yes. The DS200DCFBG1BNC（DS200DCFBG1BNC GE） contains 7 DIP switches and 13 jumpers that allow technicians to manually scale the AC line voltage and bridge voltage feedback, ensuring the board matches the specific requirements of the drive GE Power Supply and Feedback board is installed in.
6. What safety precautions should be taken when replacing a DS200DCFBG1BNC?
Before handling the DS200DCFBG1BNC（DS200DCFBG1BNC GE）, ensure all AC and DC power sources are disconnected. GE Power Supply and Feedback board is critical to verify that the DC bus capacitors have fully discharged, as the board manages high-voltage feedback and control power that can remain energized.
Before handling the DS200DCFBG1BNC（DS200DCFBG1BNC GE）, ensure all AC and DC power sources are disconnected. GE Power Supply and Feedback board is critical to verify that the DC bus capacitors have fully discharged, as the board manages high-voltage feedback and control power that can remain energized.
