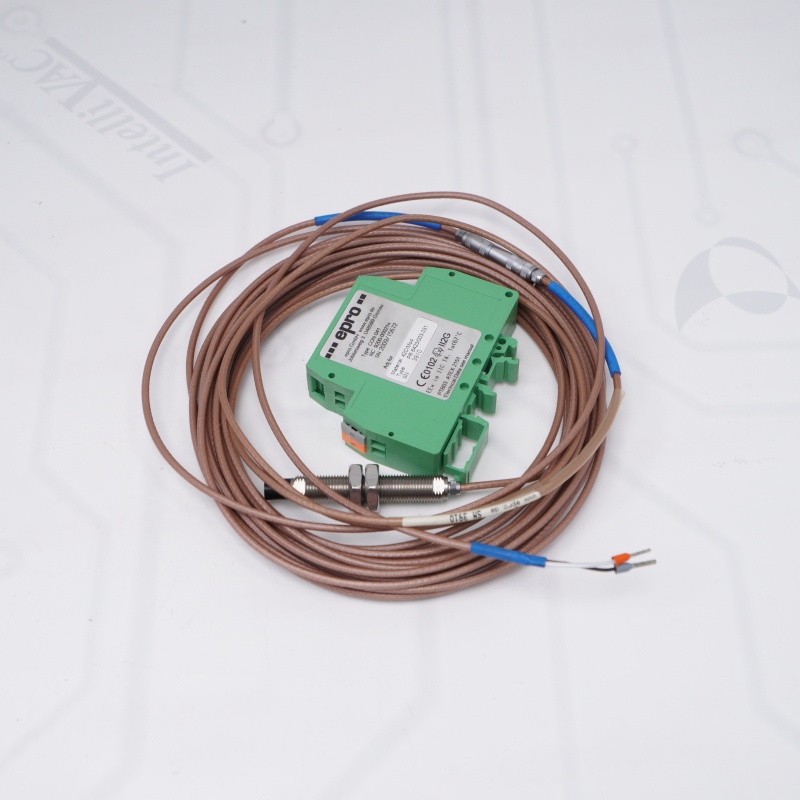

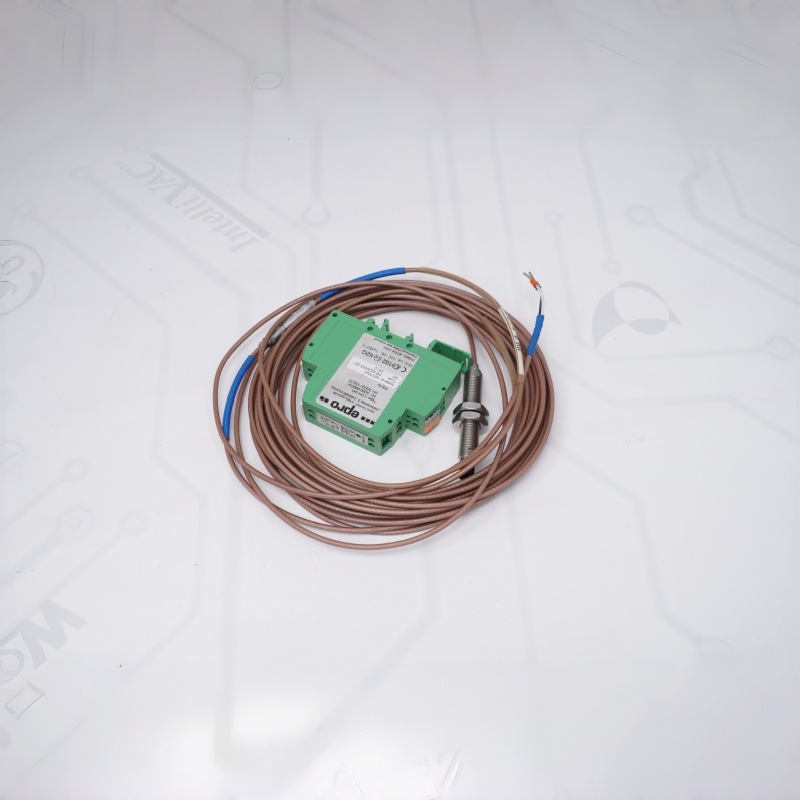

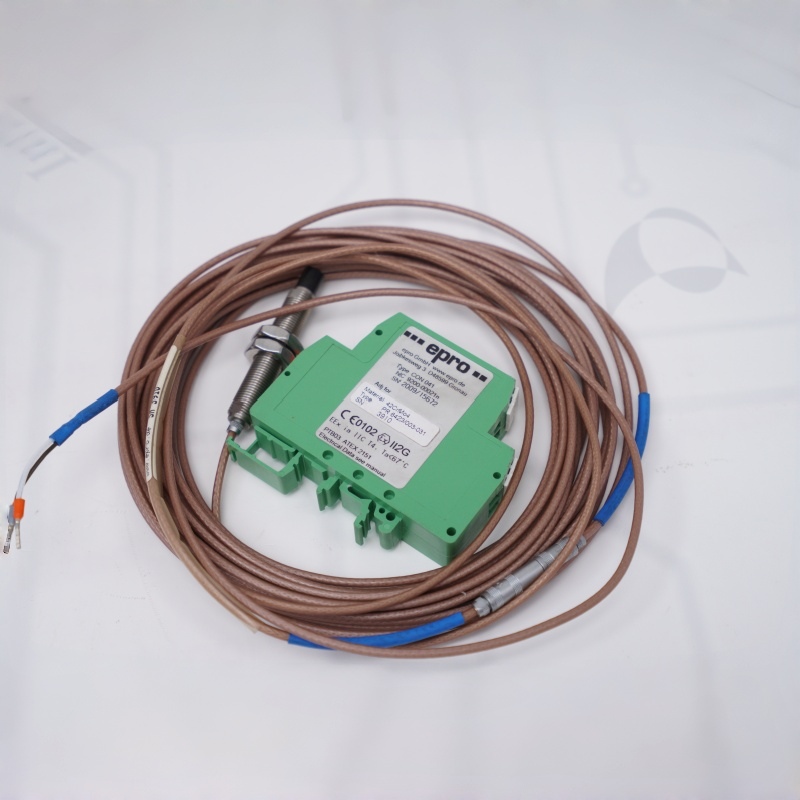

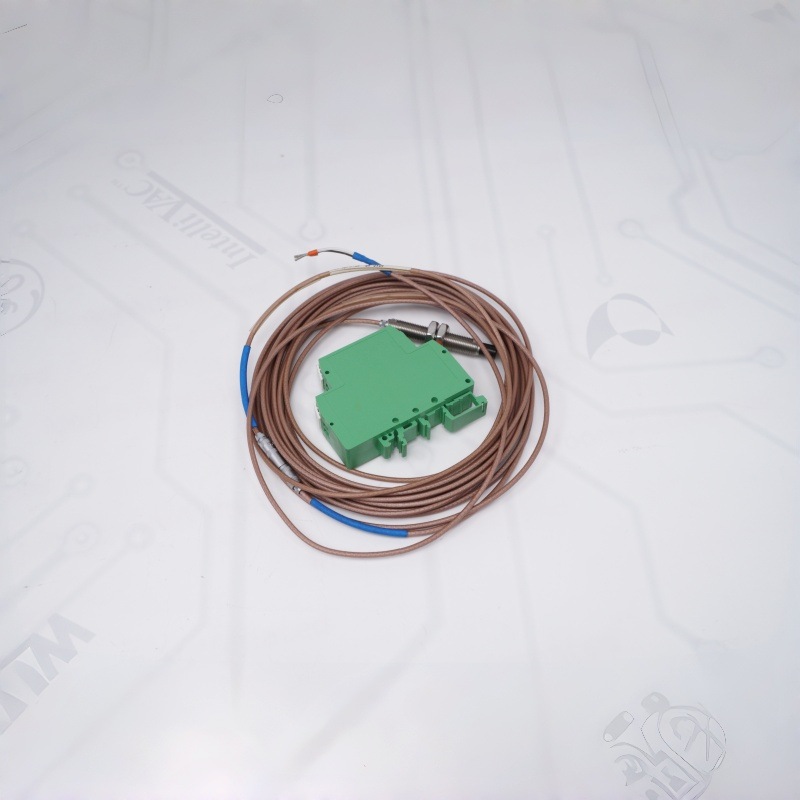

EPRO CON041 PR6423-003-031 Eddy Current Sensor

High-Precision Non-Contact Sensing: EPRO Current Sensor utilizes advanced eddy current technology to provide accurate measurements of shaft displacement and vibration without any mechanical wear.

Robust Industrial Design: The PR6423 transducer is IP68-rated and built to withstand harsh environments, including high pressure and exposure to industrial lubricants.

Wide Temperature Range: CON041 PR6423-003-031 Eddy Current Sensor is engineered for reliability in extreme conditions, with the sensor head capable of operating in temperatures ranging from -35°C to +150°C.

Stable Signal Processing: The CON041 converter ensures high linearity and a strong signal-to-noise ratio across the entire 2.0 mm measuring range.

Versatile System Integration: CON041 PR6423-003-031 Eddy Current Sensor supports standard output signals for direct connection to DCS, PLC, or specialized machinery protection systems like the AMS 6500.

Efficient DIN Rail Mounting: EPRO CON041 PR6423-003-031 driver unit is designed for easy 35mm DIN rail installation within control cabinets.

Material Specific Calibration: Factory-calibrated for standard ferromagnetic steel (42CrMo4) to ensure maximum sensitivity and measurement accuracy.

Critical Machinery Protection: EPRO CON041 PR6423-003-031 provides essential real-time data for predictive maintenance and automatic safety shutdowns of turbines, compressors, and pumps.

Q1: What is the primary function of the CON041 PR6423-003-031 EPRO measurement chain?
A: The CON041 PR6423-003-031 EPRO is a non-contact eddy current sensor system designed to monitor critical machine parameters, such as radial shaft vibration, axial displacement, and eccentricity in high-speed rotating equipment.

Q2: Which target materials are compatible with the CON041 PR6423-003-031 EPRO system?
A: The CON041 PR6423-003-031 EPRO is factory-calibrated for standard ferromagnetic steel (specifically 42CrMo4); using other materials may require recalibration to maintain the specified 8.0 V/mm sensitivity.

Q3: How should the CON041 PR6423-003-031 EPRO be mounted for optimal performance?
A: The PR6423 sensor head of the CON041 PR6423-003-031 EPRO set should be installed via its M10x1 thread with a specific air gap (typically at the center of the 2.0 mm linear range), while the CON041 converter must be securely snapped onto a 35mm DIN rail.

Q4: What are the power requirements for the CON041 PR6423-003-031 EPRO (EPRO Current Sensor)signal converter?
A: The EPRO Current Sensor requires a stable -24 V DC power supply (operating within a range of -18 V to -32 V DC) to ensure accurate signal processing and output consistency.

Q5: Can the CON041 PR6423-003-031 EPRO be used in high-temperature environments?
A: Yes, the transducer component of the EPRO Current Sensor is designed to operate in temperatures up to +150°C, making it suitable for deployment near turbine bearings and other high-heat zones.

Q6: What type of output signal does the CON041 PR6423-003-031 EPRO provide to a DCS?
A: The EPRO Current Sensor typically provides a raw negative voltage signal proportional to the distance, which can be configured for 4-20 mA current loops depending on the internal jumper settings of the CON041 driver.

If you want to more details about EPRO CON041 PR6423-003-031，please contact me without hesitate.

Email：sales@sparecenter.com

CON041 PR6423-003-031 Eddy Current Sensor

CON041 PR6423-003-031 Eddy Current Sensor

CON041 PR6423-003-031 Eddy Current Sensor

CON041 PR6423-003-031 Eddy Current Sensor

EPRO Current Sensor Steam and Gas Turbines: Monitoring radial shaft vibration and axial thrust position to prevent rotor-to-stator contact during high-speed operation.

EPRO Current Sensor Centrifugal Compressors: Continuous displacement measurement to detect surge conditions or bearing wear in oil and gas processing environments.

EPRO Current Sensor Industrial Pumps and Fans: Real-time vibration monitoring of large-scale boiler feed pumps, cooling tower fans, and ventilation systems.

EPRO Current Sensor Gearbox Monitoring: Detection of shaft eccentricity and gear mesh alignment issues in heavy-duty industrial transmissions.

EPRO Current Sensor Hydroelectric Generators: Measuring shaft runout and guide bearing clearance to ensure structural integrity and operational efficiency.

EPRO Current Sensor Predictive Maintenance Programs: Providing high-fidelity waveform data for spectrum analysis to identify early-stage mechanical faults before failure occurs.

EPRO Current Sensor Machinery Protection Systems (MPS): Serving as the primary input sensor for automated emergency trip systems to protect capital-intensive assets from catastrophic damage.

EPRO Current Sensor Thermal Expansion Measurement: Tracking the relative movement of machine components caused by thermal growth during start-up and shutdown cycles.
