EMERSON PR6424-000-110 Specification
| Model Number | PR6424/000-110 |
| Manufacturer | Emerson (Epro series) |
| Type | 16mm Eddy Current Displacement Sensor |
| Measurement Range | 8.0 mm |
| Mounting Thread | M18 x 1.5 |
| Cable Length | 5.0 Meters |
| Cable Type | Coaxial, without armor |
| Connector | LEMO miniature connector |
| Sleeve Length | 50 mm |
| Operating Temp | -35°C to +150°C |
| Protection | IP66 |
| Compatibility | CON021 / CON041 Signal Converters |
EMERSON PR6424-000-110 Features
PR6424-000-110 Sensor Non-Contact Measurement: High-precision sensing of shaft displacement, vibration, and eccentricity without physical contact, eliminating wear and tear.
PR6424-000-110 Sensor Large Measurement Range: PR6424-000-110 Sensor is specifically designed for 16mm probe heads, offering a standard 8mm linear range, ideal for large-scale turbomachinery where smaller sensors (5mm/8mm) lack sufficient clearance.
PR6424-000-110 EMERSON Robust Industrial Design: PR6424-000-110 Sensor features a hermetically sealed probe head and a stainless steel body, providing high resistance to oil, water, steam, and chemical contaminants.
PR6424-000-110 EMERSON Wide Temperature Range: Stable operation in extreme environments ranging from -35°C to +150°C, making it suitable for hot-running turbine bearings.
PR6424-000-110 EMERSON High Sensitivity & Linearity: PR6424-000-110 Sensor delivers excellent signal-to-noise ratios and minimal linearity error when paired with Emerson’s CON021/041 signal converters.
PR6424-000-110 EMERSON EMI/RFI Protection: PR6424-000-110 Sensorensure high immunity to electromagnetic interference, critical for accurate readings in power plants and industrial facilities.
PR6424-000-110 EMERSON Standardized Integration: The M18x1.5 threading and LEMO connector system allow for straightforward replacement and compatibility with standard API 670 monitoring systems.
PR6424-000-110 EMERSON Long-Distance Transmission: PR6424-000-110 Sensor provides flexibility for routing signals from the machine casing to a safe junction box location.
EMERSON PR6424-000-110 FAQ
Q1: What is the primary function of the PR6424-000-110(PR6424-000-110 EMERSON) in industrial environments?
A1: The EMERSON Eddy Current Sensor(PR6424-000-110 EMERSON) is a non-contact eddy current displacement sensor designed to measure shaft vibration, axial position, and eccentricity in critical turbomachinery such as steam turbines and compressors.
A1: The EMERSON Eddy Current Sensor(PR6424-000-110 EMERSON) is a non-contact eddy current displacement sensor designed to measure shaft vibration, axial position, and eccentricity in critical turbomachinery such as steam turbines and compressors.
Q2: Which signal converters are compatible with the PR6424-000-110 sensor?
A2: The EMERSON Eddy Current Sensor is engineered to work seamlessly with Emerson/EPRO CON021 and CON041 signal converters, which translate the eddy current signals into standard voltage or current outputs.
A2: The EMERSON Eddy Current Sensor is engineered to work seamlessly with Emerson/EPRO CON021 and CON041 signal converters, which translate the eddy current signals into standard voltage or current outputs.
Q3: What does the "-110" suffix signify in the PR6424-000-110 part number?
A3: In the Emerson ordering matrix, the suffix of the EMERSON Eddy Current Sensor indicates a 1.0m or 5.0m integrated cable length (depending on the specific revision), a standard 50mm sleeve length, and a LEMO miniature connector.
A3: In the Emerson ordering matrix, the suffix of the EMERSON Eddy Current Sensor indicates a 1.0m or 5.0m integrated cable length (depending on the specific revision), a standard 50mm sleeve length, and a LEMO miniature connector.
Q4: How should the air gap be set during the installation of the PR6424-000-110?
A4: For the EMERSON Eddy Current Sensor, the gap is typically set by monitoring the DC output voltage; for a standard 8mm range, the electrical center is usually found at -10V DC (using a CON021 converter), ensuring the sensor operates within its linear range.
A4: For the EMERSON Eddy Current Sensor, the gap is typically set by monitoring the DC output voltage; for a standard 8mm range, the electrical center is usually found at -10V DC (using a CON021 converter), ensuring the sensor operates within its linear range.
Q5: Can the PR6424-000-110 be used in high-temperature areas?
A5: Yes, the EMERSON Eddy Current Sensor is built for extreme conditions, with a probe head and cable rated for operating temperatures ranging from -35°C to +150°C, making it suitable for hot-running bearing housings.
A5: Yes, the EMERSON Eddy Current Sensor is built for extreme conditions, with a probe head and cable rated for operating temperatures ranging from -35°C to +150°C, making it suitable for hot-running bearing housings.
Q6: What mounting thread is used for the EMERSON PR6424-000-110?
A6: The PR6424-000-110 EMERSON features a standard M18 x 1.5 metric mounting thread, allowing it to be securely installed into pre-drilled bearing pedestals or mounting brackets.
A6: The PR6424-000-110 EMERSON features a standard M18 x 1.5 metric mounting thread, allowing it to be securely installed into pre-drilled bearing pedestals or mounting brackets.
Q7: Is the PR6424-000-110 resistant to industrial contaminants?
A7: Absolutely; the PR6424-000-110 EMERSON features an IP66-rated hermetically sealed tip that is resistant to oil, water, and steam, ensuring long-term reliability in harsh industrial atmospheres.
A7: Absolutely; the PR6424-000-110 EMERSON features an IP66-rated hermetically sealed tip that is resistant to oil, water, and steam, ensuring long-term reliability in harsh industrial atmospheres.
If you want to more details about EMERSON PR6424-000-110(PR6424-000-110 Sensor)，please contact me without hesitate.
Email：sales@sparecenter.com
EMERSON PR6424-000-110 Images

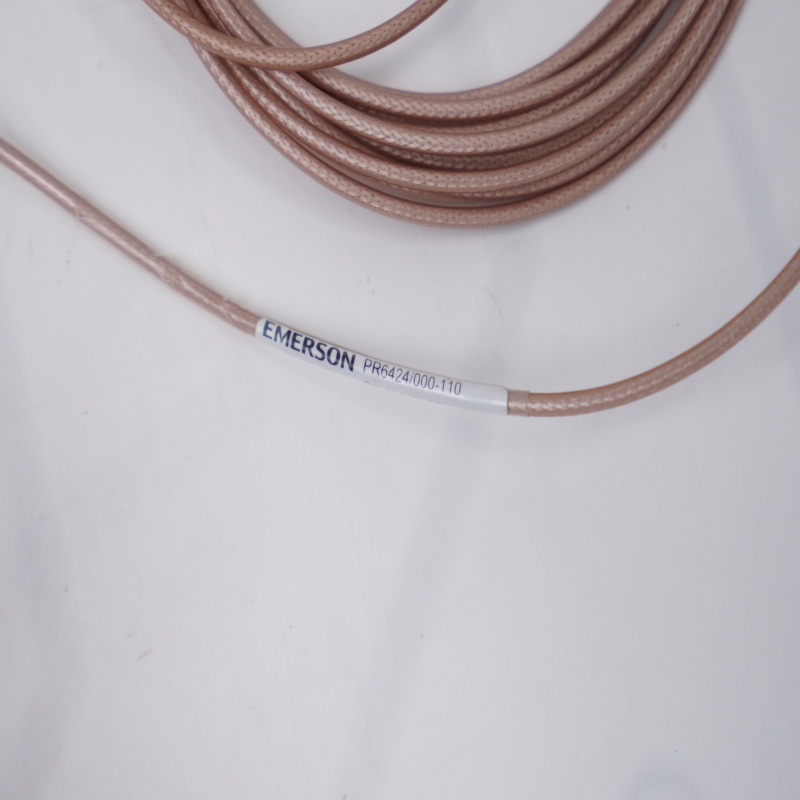

EMERSON PR6424-000-110

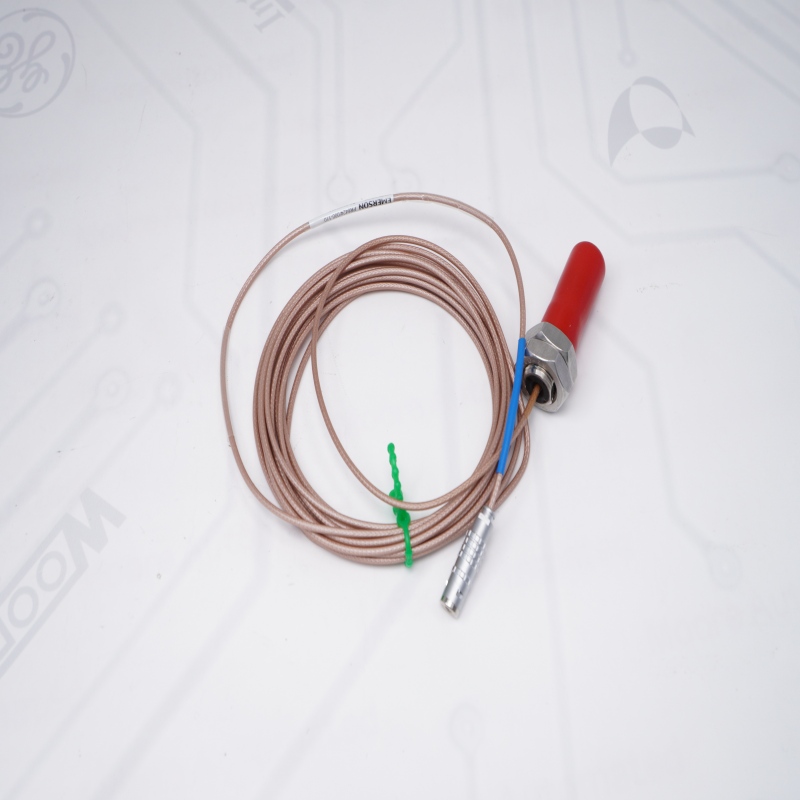

EMERSON PR6424-000-110

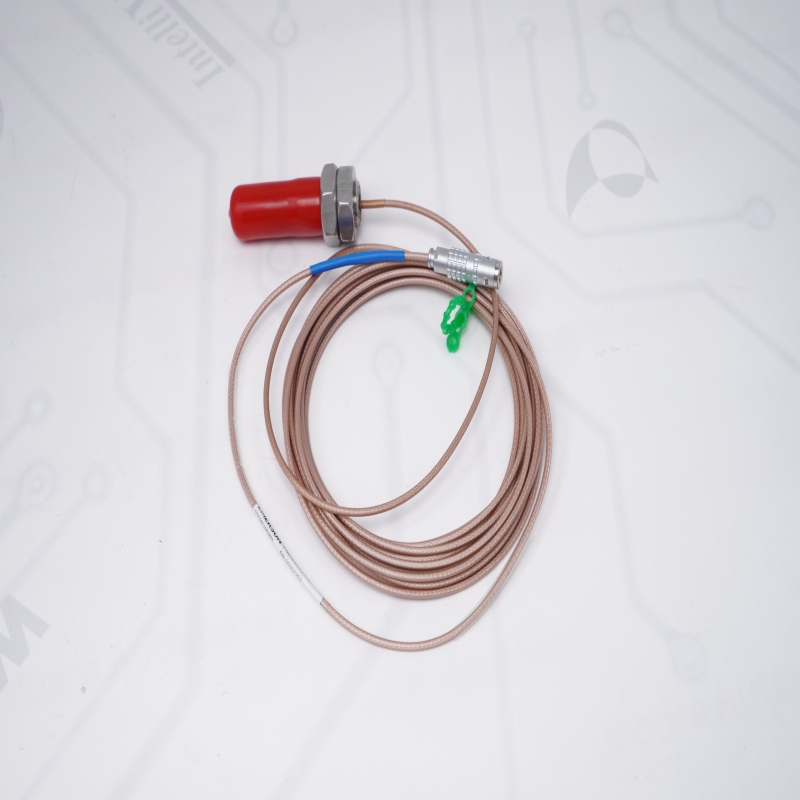

PR6424-000-110 Sensor

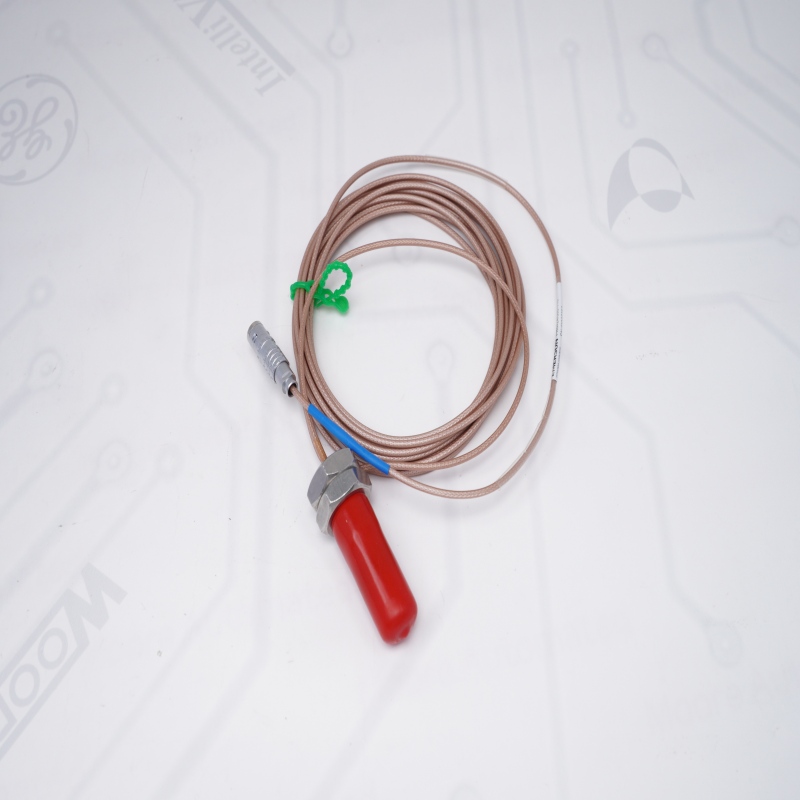

PR6424-000-110 Sensor
EMERSON PR6424-000-110 Application Scenarios
Critical Turbomachinery Protection: EMERSON Eddy Current Sensor is specifically designed for continuous condition monitoring of steam turbines, gas turbines, large centrifugal compressors, and high-capacity axial fans.
Radial Shaft Vibration Monitoring: EMERSON Eddy Current Sensor measure the dynamic motion and orbital path of the shaft within sleeve bearings to evaluate rotational stability and detect unbalance or misalignment.
Axial Thrust & Position Measurement: EMERSON Eddy Current Sensor track the longitudinal movement of the rotor relative to the thrust bearing to prevent catastrophic internal contact during high-load operations.
Shaft Eccentricity Sensing: EMERSON Eddy Current Sensor Monitor shaft bow or thermal warping during start-up and slow-roll sequences to ensure the rotor is straight before reaching full operational speed.
Differential Expansion Tracking: EMERSON Eddy Current Sensor Measure the relative thermal growth difference between the machine casing and the rotor to maintain safe internal clearances.
Safety System Integration: EMERSON Eddy Current Sensor Serve as the primary sensing element for TSI (Turbine Supervisory Instrumentation), DCS, and PLC systems to trigger automated alarms or emergency machinery trips.
