Supply CONTROL TECHNIQUES Midi-Maestro 140X8/16 DC servo drive Wholesale Factory

Midi-Maestro 140X8/16 DC servo drive Specification

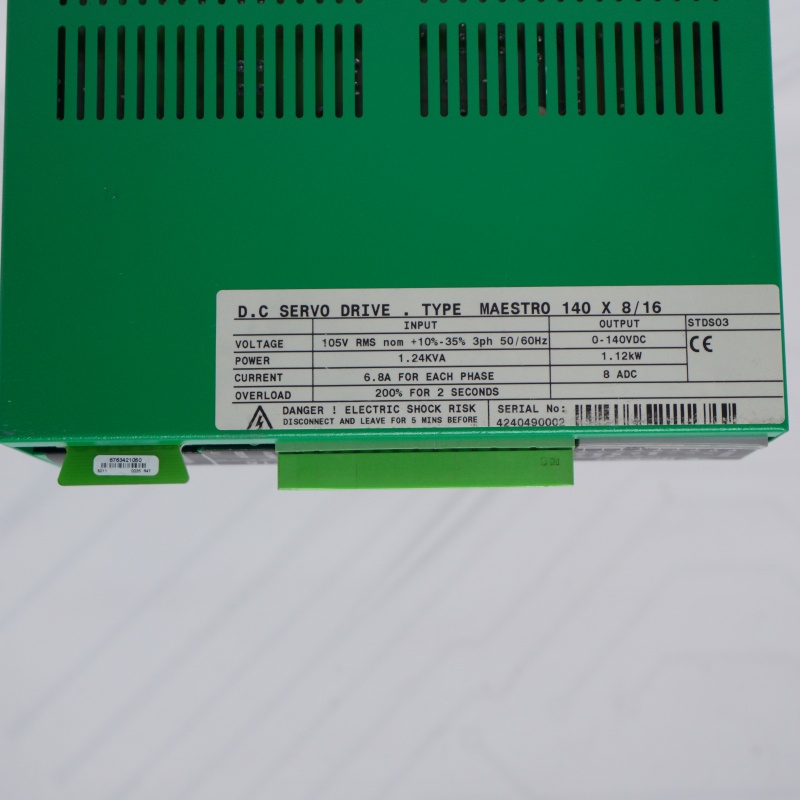

Model	Control Techniques Midi-Maestro 140X8/16 DC Servo Drive
Manufacturer	Control Techniques
Country of Origin	United Kingdom
Input Voltage	3-Phase, 80 V AC to 115 V AC, 50/60 Hz
Input Phase Current	6.8 A
Output Voltage	0 to 140 V DC
Continuous Output Current	8 A DC
Peak Output Current	16 A DC
Peak Current Duration	2 seconds
Power Rating	1.12 kW
Speed Reference Input	+/-10 V DC
Feedback Modes	Tachogenerator feedback or Armature feedback
Operating Temperature	-10°C to +50°C

Your Edge Our Mission

Express Worldwide Shipping: We ensure ultra-fast logistics with same-day dispatch and overnight delivery options to minimize your factory downtime.

Customer-First Service: Our dedicated support team handles every inquiry with extreme care, ensuring a helpful, smooth, and friendly purchasing experience.

Instant Response Times: We respect your urgency, providing official technical quotes and answering availability questions within minutes of your request.

Certified Technical Experts: Our team consists of seasoned automation engineers capable of diagnosing faults and confirming system compatibility.

Premium Quality Assurance: Every item undergoes rigorous diagnostic, load, and functional testing before shipment to ensure 100% operational readiness.

Obsolete Component Specialization: We maintain an extensive inventory of rare, legacy, and discontinued hardware that is otherwise unavailable on the market.

Cost-Effective Solutions: We offer highly competitive pricing on both new-surplus and fully refurbished parts to help optimize your maintenance budget.

If you want to more details about Midi-Maestro 140X8/16 DC servo drive，please contact me without hesitate.Email：sales@sparecenter.com

Midi-Maestro 140X8/16 DC servo drive Features

4-Quadrant Control: Full driving and braking control in both forward and reverse directions.

Dual Feedback: Switch-selectable operation for tachogenerator or armature voltage feedback.

High Overload: 8A DC continuous output with 16A DC peak capability for 2 seconds.

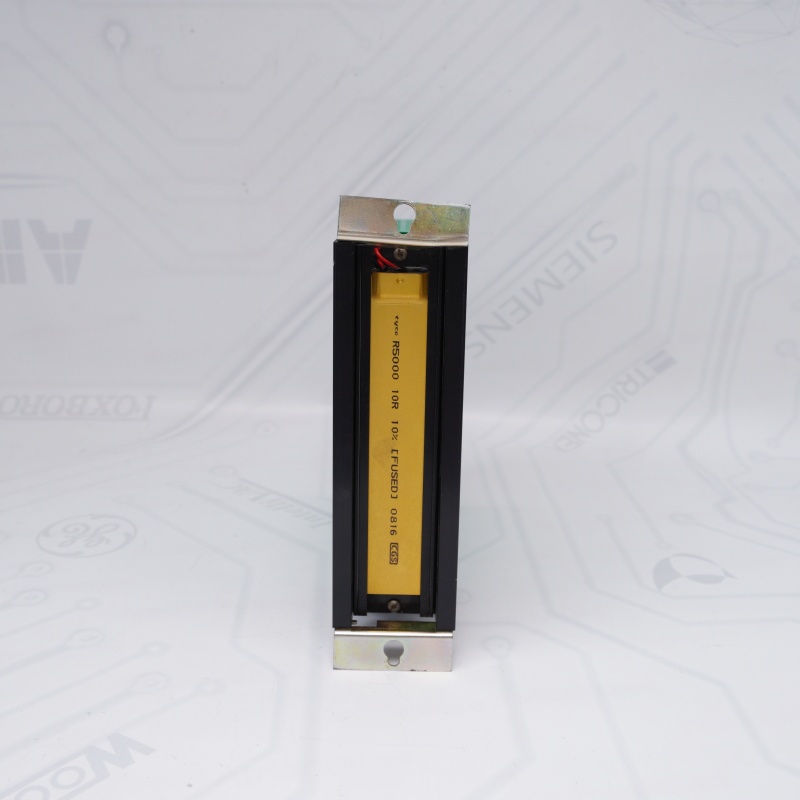

Dynamic Braking: Built-in 200W resistor to safely handle regenerative energy.

Runaway Protection: Integrated tachogenerator loss detection for automatic shutdown safety.

Hardware Tuning: Plug-in module with potentiometers for speed, current, and gain adjustments.

Ramp Management: Independently adjustable acceleration and deceleration ramp gradients.

LED Diagnostics: Onboard visual indicators for drive status, faults, and I2t thermal limits.

Midi-Maestro 140X8/16 DC servo drive FAQ

Q: What is the primary industrial application of the Control Techniques Midi-Maestro 140X8/16?
A: The CONTROL TECHNIQUES DC servo drive is an industrial 4-quadrant DC brushed servo drive designed for high-precision speed and torque control in legacy automated machinery.

Q: What are the exact input power supply requirements for the Midi-Maestro 140X8/16 CONTROL TECHNIQUES?
A: The CONTROL TECHNIQUES DC servo drive requires a 3-phase AC input voltage ranging from 80 V AC to 115 V AC at a frequency of 50/60 Hz.

Q: What are the continuous and peak output current ratings for the Midi-Maestro 140X8/16 CONTROL TECHNIQUES?
A: The CONTROL TECHNIQUES DC servo drive delivers a continuous output current of 8 A DC and can handle a peak current of 16 A DC for a maximum duration of 2 seconds.

Q: What speed feedback options are supported by the Midi-Maestro 140X8/16 CONTROL TECHNIQUES hardware configuration?
A: The CONTROL TECHNIQUES DC servo drive features a switch-selectable control loop that supports either analog tachogenerator feedback or armature voltage feedback.

Q: How does the Midi-Maestro 140X8/16 CONTROL TECHNIQUES protect the motor from dangerous runaway conditions?
A: The CONTROL TECHNIQUES DC servo drive integrates an automatic tachogenerator loss-protection circuit that immediately disables the drive if the feedback signal fails.

Q: How is dynamic parameters calibration performed on the Midi-Maestro 140X8/16?
A: Fine-tuning of the CONTROL TECHNIQUES DC servo drive is handled via onboard potentiometers located on its plug-in customization module, allowing manual adjustment of gain, limits, and ramps.

Q: How does the Midi-Maestro 140X8/16 CONTROL TECHNIQUES manage regenerative energy during deceleration?
A: The Midi-Maestro 140X8/16 CONTROL TECHNIQUES is fitted with an internal 200W dynamic braking resistor as a standard hardware component to safely dissipate absorbed energy.

Q: What built-in diagnostic systems are available on the Midi-Maestro 140X8/16 CONTROL TECHNIQUES chassis?
A: The Midi-Maestro 140X8/16 CONTROL TECHNIQUES utilizes physical chassis LEDs to provide real-time status monitoring for drive readiness, fault conditions, and I2t thermal over-current limits.

CONTROL TECHNIQUES Midi-Maestro 140X8/16 DC servo drive Images

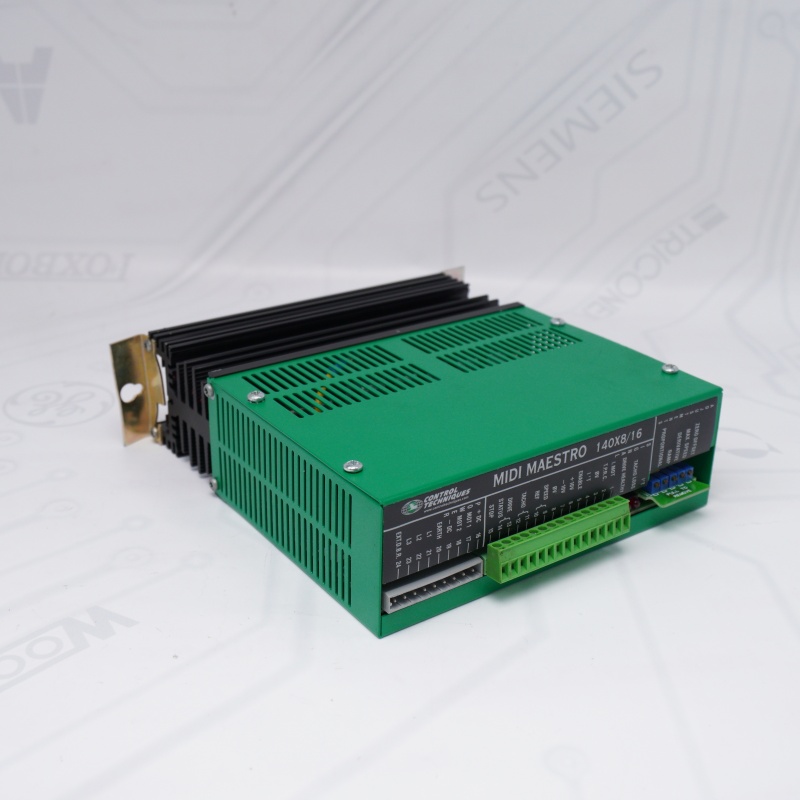

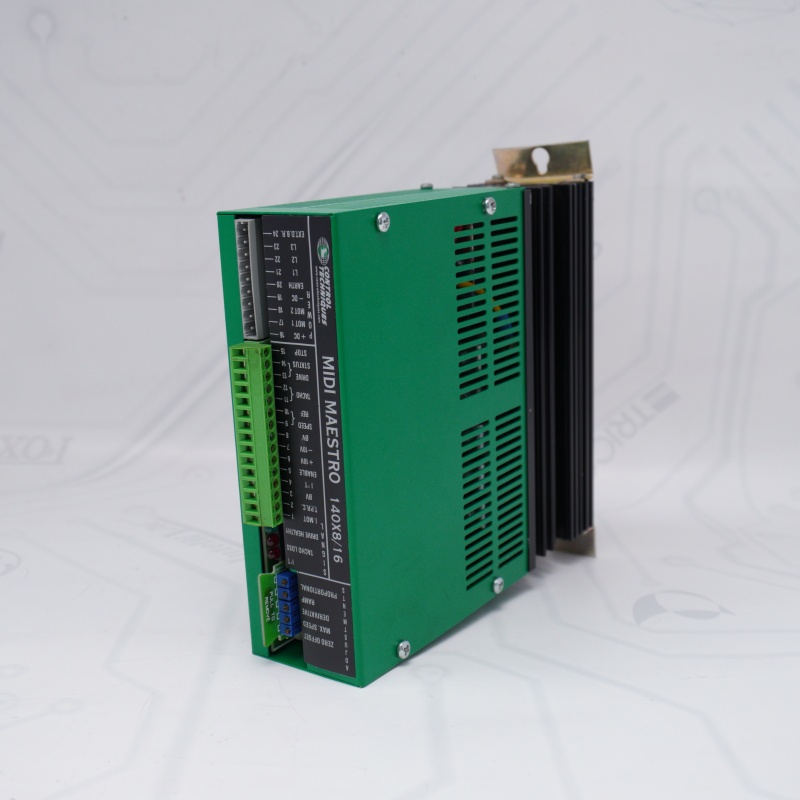

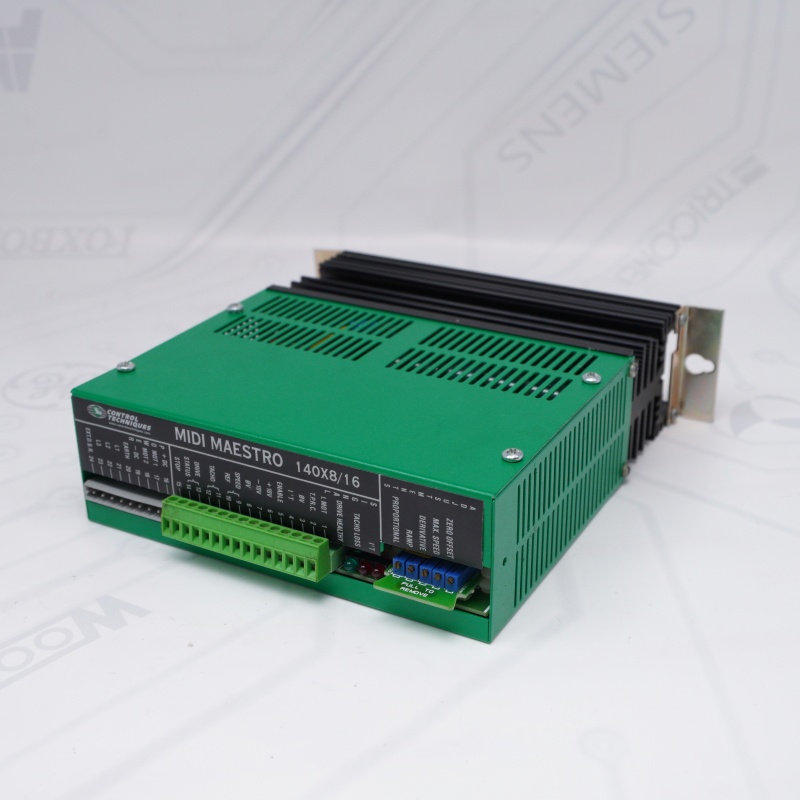

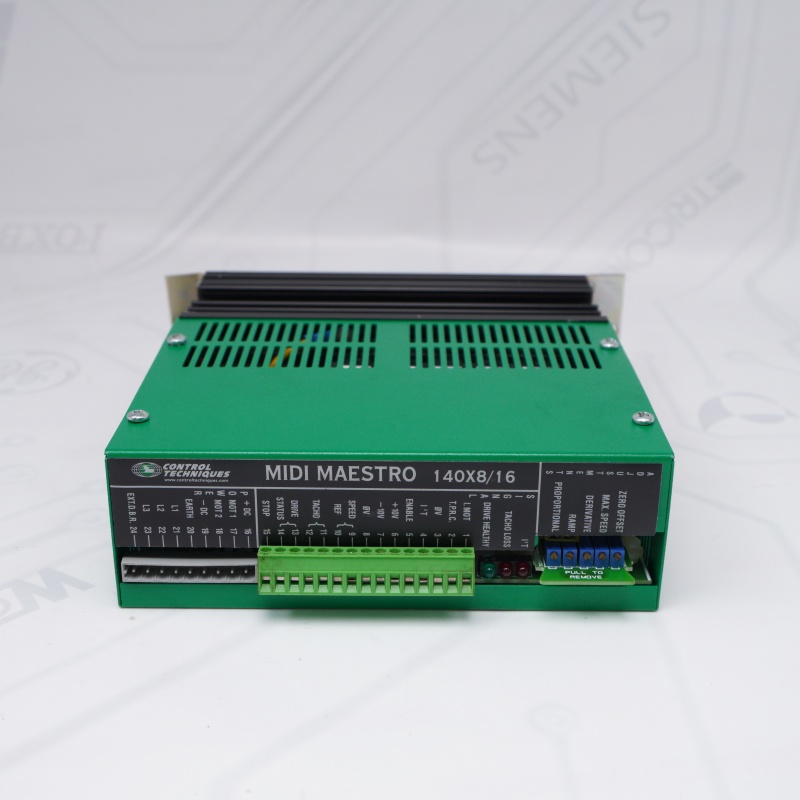

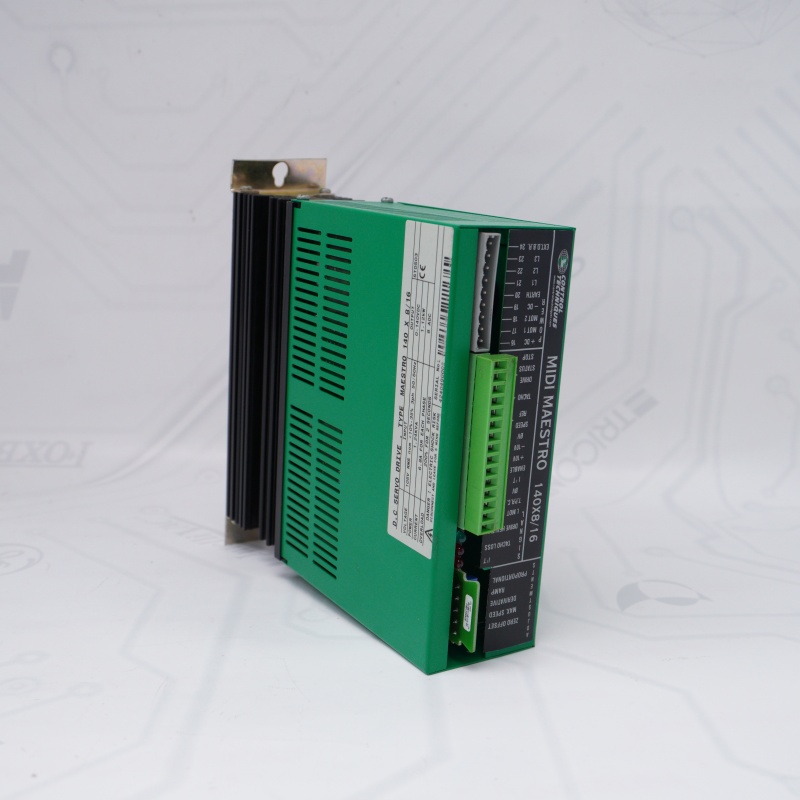

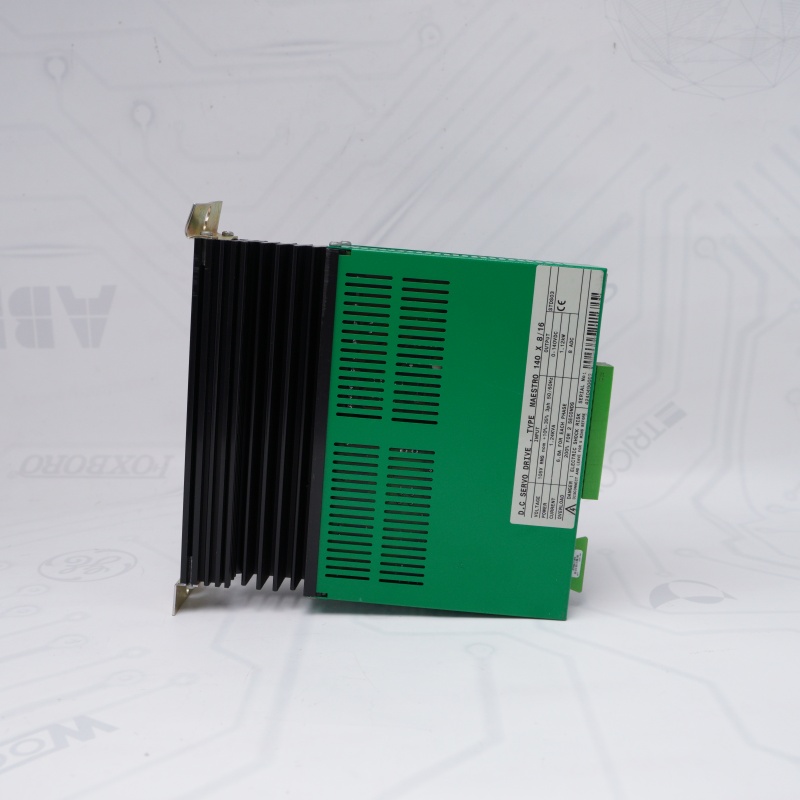

CONTROL TECHNIQUES Midi-Maestro 140X8/16

CONTROL TECHNIQUES Midi-Maestro 140X8/16
