Bently Nevada 330104-03-06-10-02-00 Specification
| Parameter | Specification |
| Model | 3300 XL 8 mm Probe, M10 x 1 thread |
| Unthreaded Length(03) | 30 mm |
| Overall Case Length(06) | 60 mm |
| Total Length(10) | 1.0 meter (3.3 feet) |
| Connector Type(02) | Miniature coaxial ClickLoc™ |
| Agency Approval(00) | No approvals required |
| Scale Factor | 7.87 V/mm (200 mV/mil) |
| Operating Temp | -51 °C to +177 °C |

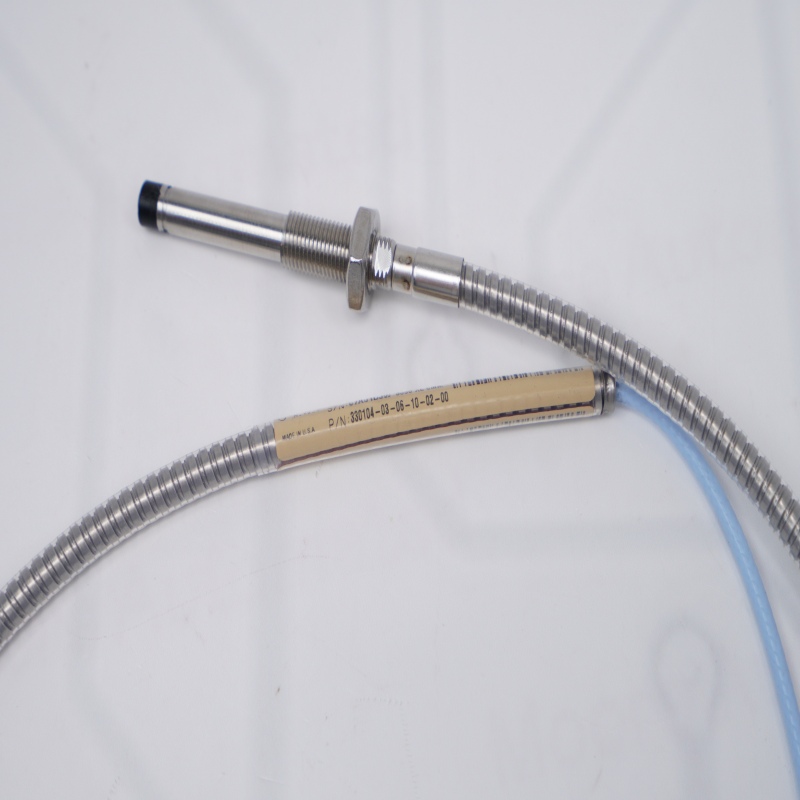

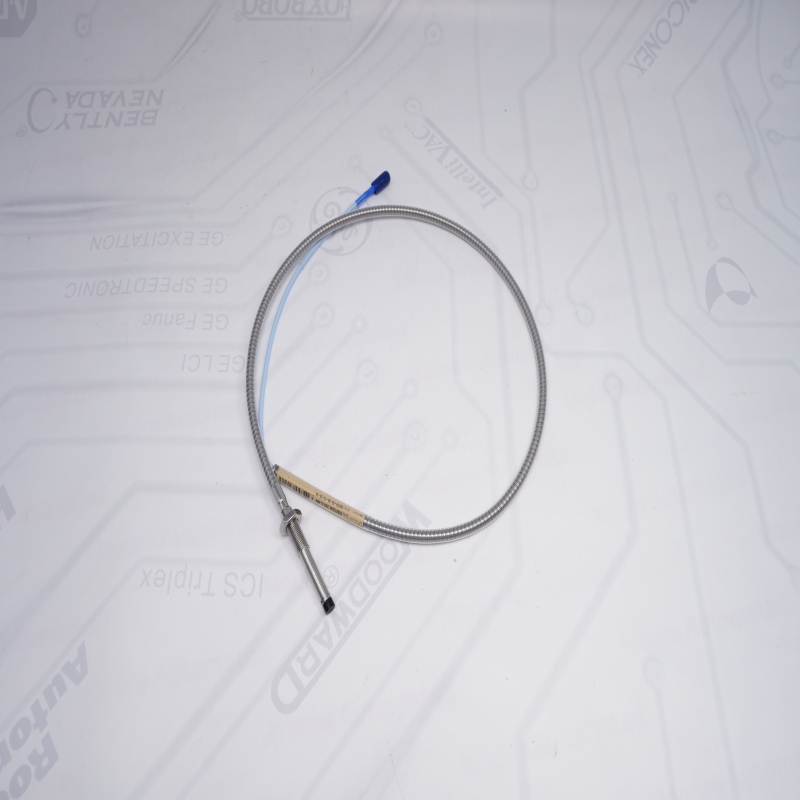

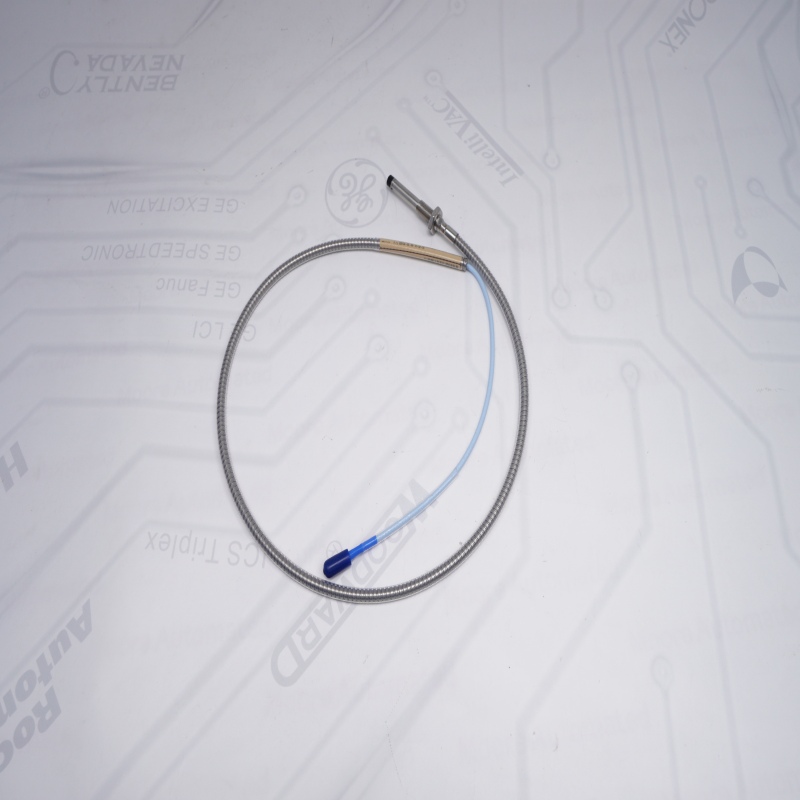

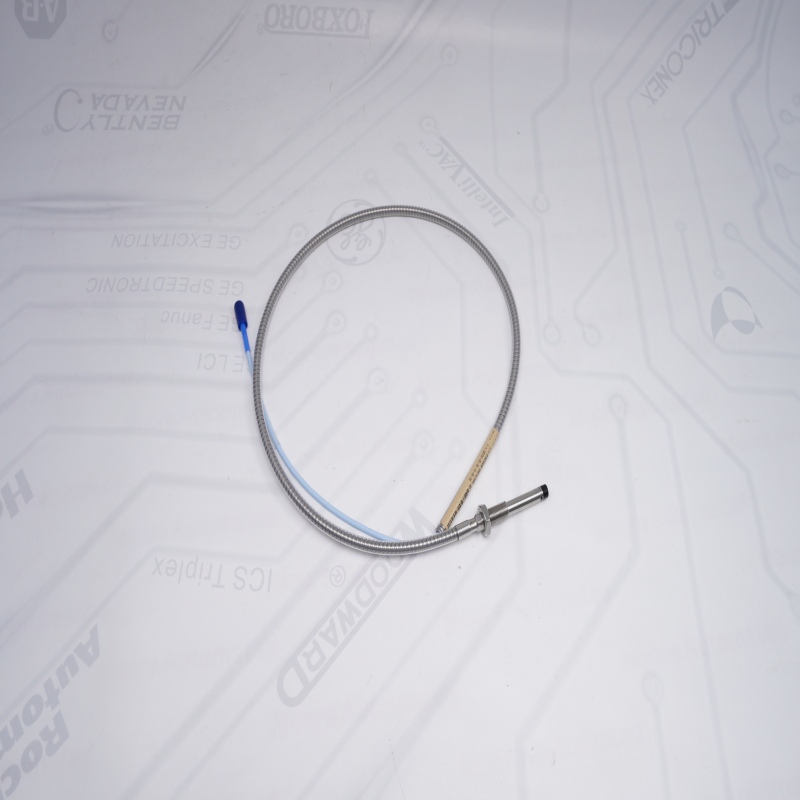

Bently Nevada 330104-03-06-10-02-00 Images
Bently Nevada 330104-03-06-10-02-00
330104-03-06-10-02-00 Bently Nevada
Bently Nevada 330104-03-06-10-02-00
Bently Nevada 330104-03-06-10-02-00
Bently Nevada 330104-03-06-10-02-00 Details
Description
The 330104-03-06-10-02-00 Bently Nevada is a 3300 XL 8 mm Proximity Probe designed for non-contact displacement and vibration monitoring. Bently Nevada Proximity Probe features an M10 x 1 metric thread with a 30 mm unthreaded length and a 60 mm overall case length, making it ideal for specific mounting depths in industrial machinery.
Bently Nevada Proximity Probeis equipped with a 1.0-meter integrated cable and a vibration-resistant ClickLoc™ connector. Built for extreme environments, it operates from -51 °C to +177 °C and provides a standard scale factor of 7.87 V/mm (200 mV/mil). As part of the 3300 XL series, it is fully interchangeable with other system components without requiring recalibration, ensuring reliable performance for critical machinery protection.
Key Characteristics
Bently Nevada Proximity Probe non-contact eddy current technology for high-precision displacement sensing without mechanical wear.
Metric M10 x 1 threaded body for standard industrial mounting compatibility.
Bently Nevada Proximity Probe specific 30mm unthreaded and 60mm overall case lengths for precise gapping in diverse housings.
Bently Nevada Proximity Probe gold-plated ClickLoc connector providing a vibration-resistant and secure locking connection.
Bently Nevada Proximity Probe integrated 1.0-meter 75-ohm coaxial cable with durable FEP insulation.
Bently Nevada Proximity Probe wide operating temperature range from -51 C to +177 C for extreme industrial environments.
Bently Nevada Proximity Probe full interchangeability with any 3300 XL Proximitor sensor without needing recalibration.
Bently Nevada Proximity Probe polyphenylene Sulfide (PPS) probe tip for high chemical and pressure resistance.
Bently Nevada Proximity Probe API 670 compliant design ensuring maximum reliability for machinery protection.
Application
Radial vibration monitoring on high-speed rotating shafts to detect rotor imbalances or bearing wear.
Axial thrust position measurement to track shaft float and prevent internal machinery contact.
Keyphasor and speed sensing for accurate RPM tracking and phase angle measurements.
Monitoring of fluid-film bearing machines such as steam turbines, gas turbines, and centrifugal compressors.
Machinery protection in critical power generation, oil and gas, and petrochemical facilities.
Real-time condition monitoring of industrial pumps, fans, and motors in harsh environments.
API 670 compliant installations where high-reliability displacement sensing is required.
Deployment in high-pressure or chemically aggressive locations requiring durable PPS probe tips.
If you want to more details about Bently Nevada 330104-03-06-10-02-00，please contact me without hesitate.Email：sales@sparecenter.com
330104-03-06-10-02-00 Proximity Probe FAQ
Q: What is the primary function of the 330104-03-06-10-02-00 Proximity Probe?
A: The Bently Nevada Proximity Probe is a non-contact eddy current sensor used to measure radial vibration, axial position, and shaft speed on high-speed rotating machinery.
A: The Bently Nevada Proximity Probe is a non-contact eddy current sensor used to measure radial vibration, axial position, and shaft speed on high-speed rotating machinery.
Q: What do the dimensions in the part number 330104-03-06-10-02-00 Proximity Probe(330104-03-06-10-02-00 Bently Nevada) represent?
A: In the Bently Nevada Proximity Probe configuration, "03" specifies a 30 mm unthreaded length, "06" indicates a 60 mm overall case length, and "10" denotes a 1.0-meter total cable length.
A: In the Bently Nevada Proximity Probe configuration, "03" specifies a 30 mm unthreaded length, "06" indicates a 60 mm overall case length, and "10" denotes a 1.0-meter total cable length.
Q: Is the 330104-03-06-10-02-00 Proximity Probe(330104-03-06-10-02-00 Bently Nevada) compatible with other Bently Nevada systems?
A: Yes, it is part of the 3300 XL series and is fully interchangeable with any 3300 XL Proximitor Sensor without the need for bench calibration.
A: Yes, it is part of the 3300 XL series and is fully interchangeable with any 3300 XL Proximitor Sensor without the need for bench calibration.
Q: What type of connector is used on the 330104-03-06-10-02-00 Proximity Probe(330104-03-06-10-02-00 Bently Nevada)?
A: The 330104-03-06-10-02-00 Bently Nevada features a gold-plated ClickLoc miniature coaxial connector, designed to provide a secure, vibration-resistant link to the extension cable.
A: The 330104-03-06-10-02-00 Bently Nevada features a gold-plated ClickLoc miniature coaxial connector, designed to provide a secure, vibration-resistant link to the extension cable.
Q: What is the operating temperature range for the330104-03-06-10-02-00 Proximity Probe?
A: The Bently Nevada Proximity Probe is engineered to operate reliably in extreme industrial environments ranging from -51 °C to +177 °C (-60 °F to +350 °F).
A: The Bently Nevada Proximity Probe is engineered to operate reliably in extreme industrial environments ranging from -51 °C to +177 °C (-60 °F to +350 °F).
Q: Does the 330104-03-06-10-02-00 Proximity Probe meet industry safety and performance standards?
A: Yes, the Bently Nevada Proximity Probe is designed to comply with API 670 standards for machinery protection systems, ensuring high reliability in critical applications.
A: Yes, the Bently Nevada Proximity Probe is designed to comply with API 670 standards for machinery protection systems, ensuring high reliability in critical applications.
Q: What is the thread specification for the 330104-03-06-10-02-00 Proximity Probe housing?
A: The Bently Nevada Proximity Probe is manufactured with a metric M10 x 1 thread, which is a standard mounting interface for international industrial equipment.
A: The Bently Nevada Proximity Probe is manufactured with a metric M10 x 1 thread, which is a standard mounting interface for international industrial equipment.
Q: Can the 330104-03-06-10-02-00 Proximity Probe withstand high-pressure environments?
A: Yes, the Bently Nevada Proximity Probe features a Polyphenylene Sulfide (PPS) probe tip that provides superior resistance to chemicals and high pressure commonly found in bearing housings.
A: Yes, the Bently Nevada Proximity Probe features a Polyphenylene Sulfide (PPS) probe tip that provides superior resistance to chemicals and high pressure commonly found in bearing housings.
