BENTLY NEVADA 3300 XL Proximity Probe Specification
| Parameter | Details |
|---|---|
| Model Number | 330103-10-14-10-02-CN |
| Product Series | 3300 XL 8 mm Proximity Probe |
| Thread Type | Metric M10 x 1 (Reverse Mount) |
| Unthreaded Length | 100 mm |
| Overall Case Length | 140 mm |
| Total Cable Length | 1.0 Metre (3.3 feet) |
| Connector Type | Miniature coaxial ClickLoc connector (with insulator) |
| Agency Approvals | CN: NEPSI (China) Hazardous Area Approval |
| Operating Temp (Probe) | -51 °C to +177 °C (-60 °F to +351 °F) |
| Linear Range | 2 mm (80 mils), starting at approx. 0.25 mm (10 mils) |
| Scale Factor (ISF) | 7.87 V/mm (200 mV/mil) |
| Probe Tip Material | Polyphenylene sulfide (PPS) |
| Country of Origin | United States (USA) |

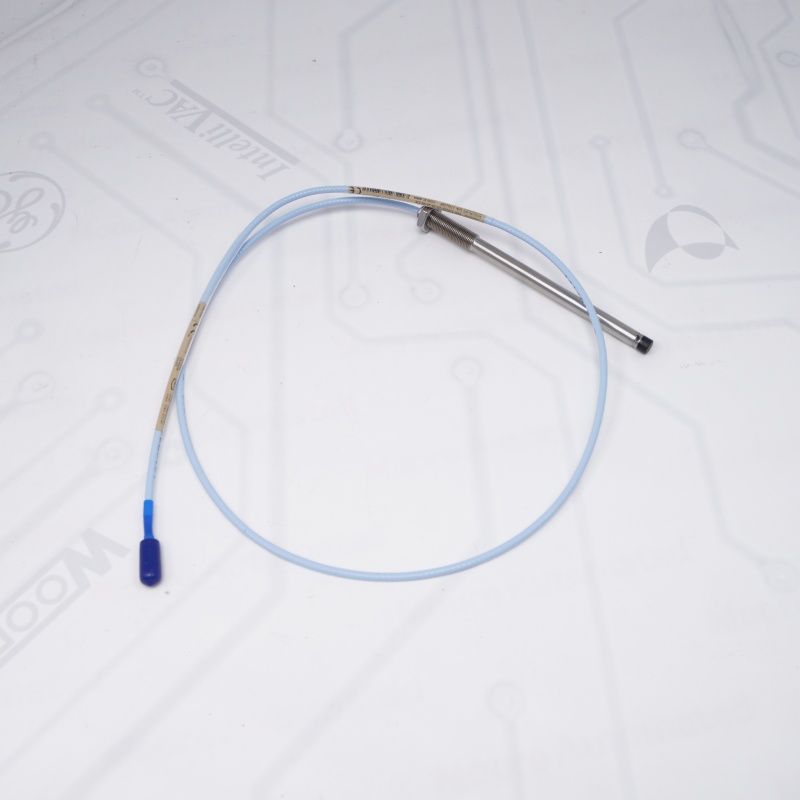

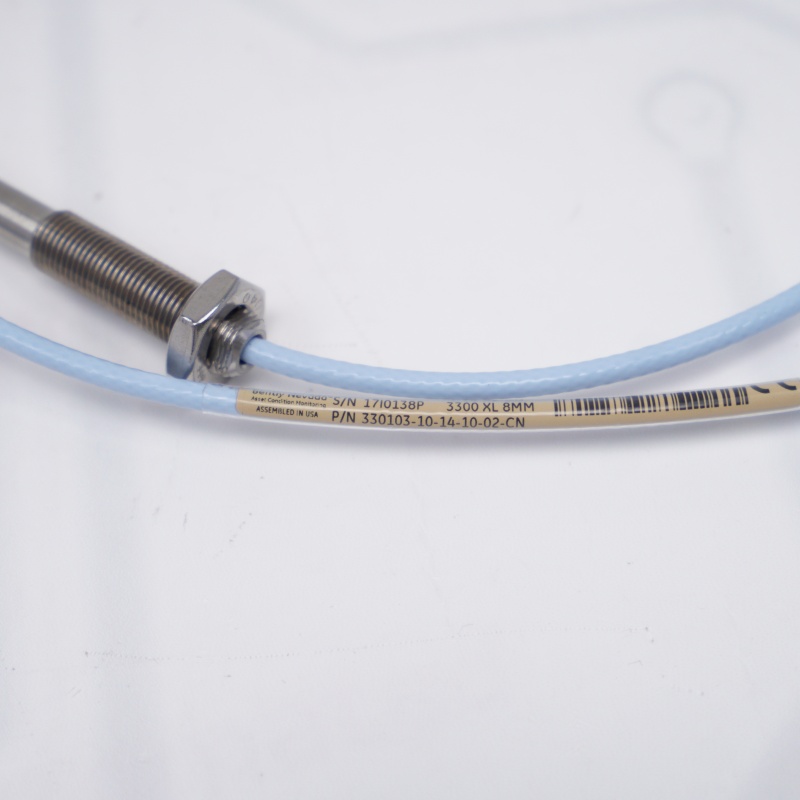

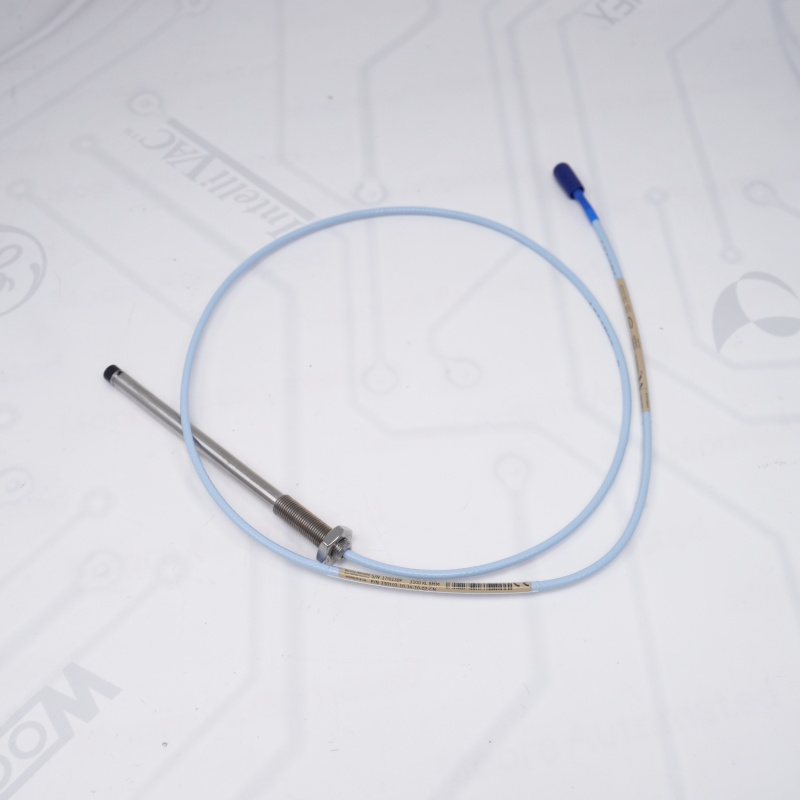

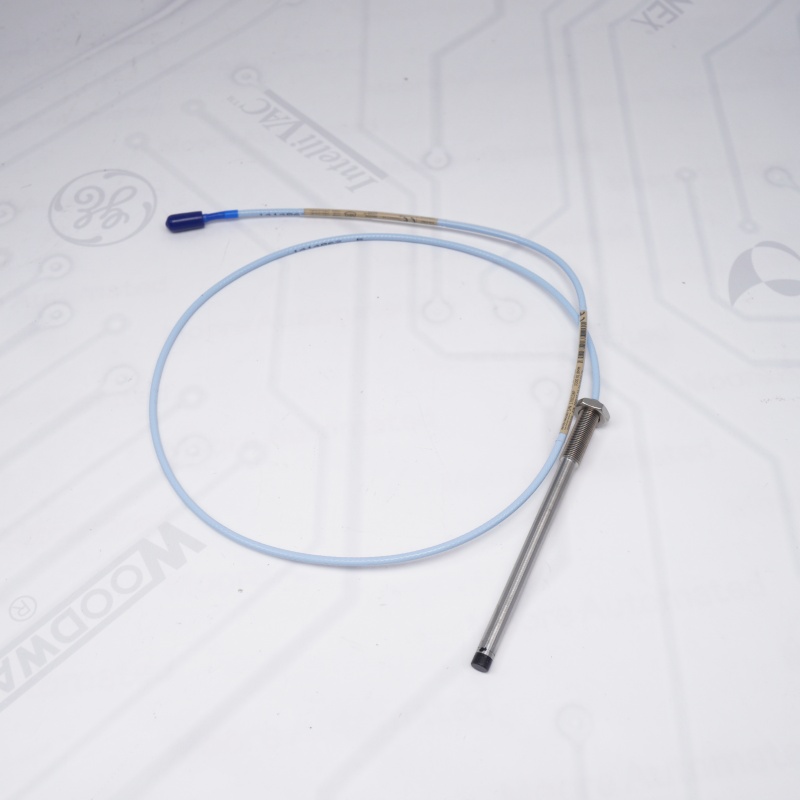

BENTLY NEVADA 3300 XL Proximity Probe Images
BENTLY NEVADA 3300 XL Proximity Probe
BENTLY NEVADA 3300 XL Proximity Probe
BENTLY NEVADA 3300 XL Proximity Probe
BENTLY NEVADA 3300 XL Proximity Probe
330103-10-14-10-02-CN Probe Application
3300 XL 8 mm Proximity Probe Radial Vibration Monitoring: Measuring the shaft's dynamic movement (orbit) within its fluid-film bearings to detect imbalances or misalignments.
3300 XL 8 mm Proximity Probe Axial (Thrust) Position: Tracking the longitudinal position of a shaft to prevent catastrophic contact between rotor and stator components.
3300 XL 8 mm Proximity Probe Keyphasor® & Speed Measurement: Providing a once-per-revolution pulse for phase reference or measuring rotational speed (RPM) using a notch or keyway on the shaft.
3300 XL 8 mm Proximity Probe Shaft Centerline Analysis: Observing how the shaft sits in the bearing during startup and steady-state operation to assess bearing integrity.
3300 XL 8 mm Proximity Probe Turbines: Steam and gas turbines in power plants.
3300 XL 8 mm Proximity Probe Compressors: Centrifugal, axial, and reciprocating compressors.
3300 XL 8 mm Proximity Probe Pumps & Motors: High-speed industrial pumps and large electric motors.
3300 XL 8 mm Proximity Probe Generators: Large-scale power generation units.
If you want to more details about 330103-10-14-10-02-CN Probe，please contact me without hesitate.Email：sales@sparecenter.com
330103-10-14-10-02-CN Probe FAQ
1. What is the primary function of the 330103-10-14-10-02-CN probe?
The 330103-10-14-10-02-CN（BENTLY NEVADA 330103-10-14-10-02-CN） is a non-contact eddy current sensor designed to measure shaft vibration, radial position, and axial thrust in high-speed rotating machinery. 330103-10-14-10-02-CN Probe allows operators to monitor the health of critical assets like turbines and compressors without making physical contact with the shaft.
The 330103-10-14-10-02-CN（BENTLY NEVADA 330103-10-14-10-02-CN） is a non-contact eddy current sensor designed to measure shaft vibration, radial position, and axial thrust in high-speed rotating machinery. 330103-10-14-10-02-CN Probe allows operators to monitor the health of critical assets like turbines and compressors without making physical contact with the shaft.
2. What does the "CN" suffix signify in this BENTLY NEVADA 330103-10-14-10-02-CN?
The "CN" suffix indicates that the 330103-10-14-10-02-CN has been specifically certified for use in hazardous areas within China. 330103-10-14-10-02-CN Probe carries NEPSI (National Supervision and Inspection Centre for Explosion Protection and Safety of Instrumentation) approval, ensuring it meets local safety standards for explosive environments.
The "CN" suffix indicates that the 330103-10-14-10-02-CN has been specifically certified for use in hazardous areas within China. 330103-10-14-10-02-CN Probe carries NEPSI (National Supervision and Inspection Centre for Explosion Protection and Safety of Instrumentation) approval, ensuring it meets local safety standards for explosive environments.
3. Can the 330103-10-14-10-02-CN be used in high-temperature environments?
Yes. The 3300 XL 8 mm Proximity Probe（BENTLY NEVADA 330103-10-14-10-02-CN） is engineered for industrial durability, featuring a probe tip made of Polyphenylene Sulfide (PPS). 330103-10-14-10-02-CN Probe can operate reliably in temperatures ranging from -51 °C to +177 °C (-60 °F to +351 °F).
Yes. The 3300 XL 8 mm Proximity Probe（BENTLY NEVADA 330103-10-14-10-02-CN） is engineered for industrial durability, featuring a probe tip made of Polyphenylene Sulfide (PPS). 330103-10-14-10-02-CN Probe can operate reliably in temperatures ranging from -51 °C to +177 °C (-60 °F to +351 °F).
4. Does the 330103-10-14-10-02-CN require a specific cable for installation?
Yes, the 3300 XL 8 mm Proximity Probe（BENTLY NEVADA 330103-10-14-10-02-CN） has a total cable length of 1.0 metre. For a complete 3300 XL transducer system (usually 5 or 9 metres total), you must connect it to a compatible 3300 XL Extension Cable and a 3300 XL Proximitor Sensor.
Yes, the 3300 XL 8 mm Proximity Probe（BENTLY NEVADA 330103-10-14-10-02-CN） has a total cable length of 1.0 metre. For a complete 3300 XL transducer system (usually 5 or 9 metres total), you must connect it to a compatible 3300 XL Extension Cable and a 3300 XL Proximitor Sensor.
5. What are the mechanical dimensions for mounting the 330103-10-14-10-02-CN（BENTLY NEVADA 330103-10-14-10-02-CN）?
330103-10-14-10-02-CN Probel features a Metric M10 x 1 thread. The configuration includes a 100 mm unthreaded length and a 140 mm overall case length, which is critical for ensuring the probe is positioned correctly within the machine housing to reach the shaft.
330103-10-14-10-02-CN Probel features a Metric M10 x 1 thread. The configuration includes a 100 mm unthreaded length and a 140 mm overall case length, which is critical for ensuring the probe is positioned correctly within the machine housing to reach the shaft.
6. Is the 330103-10-14-10-02-CN（BENTLY NEVADA 330103-10-14-10-02-CN） interchangeable with other 8 mm probes?
While it is part of the 3300 XL 8 mm series, the 330103-10-14-10-02-CN must be matched with a Proximitor that is calibrated for a 1.0-metre system length. Using it with a Proximitor calibrated for a different length or a different series (like the 7200 series) will result in inaccurate voltage readings.
