330103-05-10-10-12-05 Proximity Probe Details

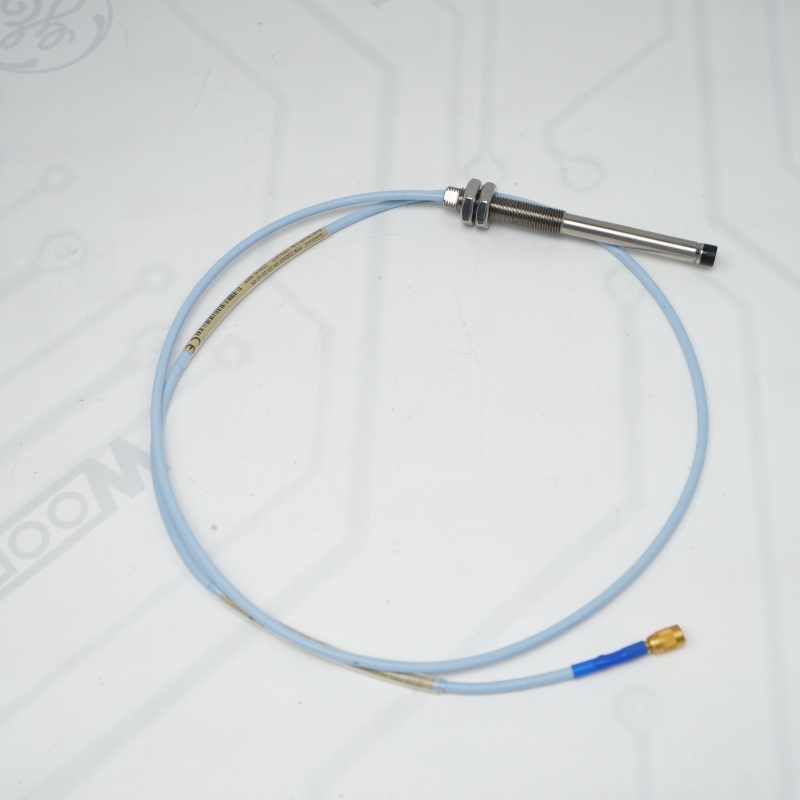

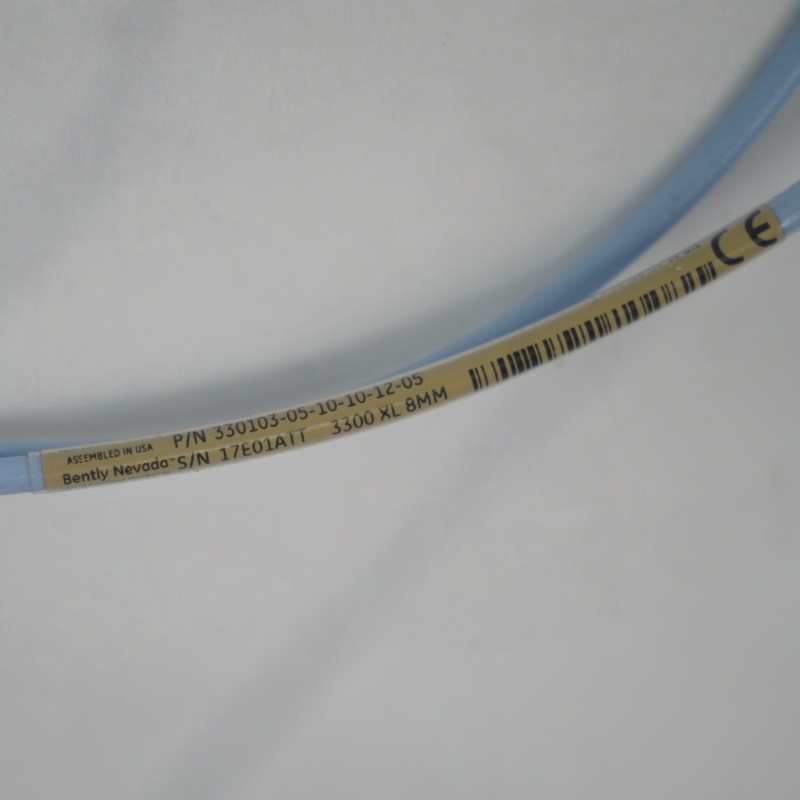

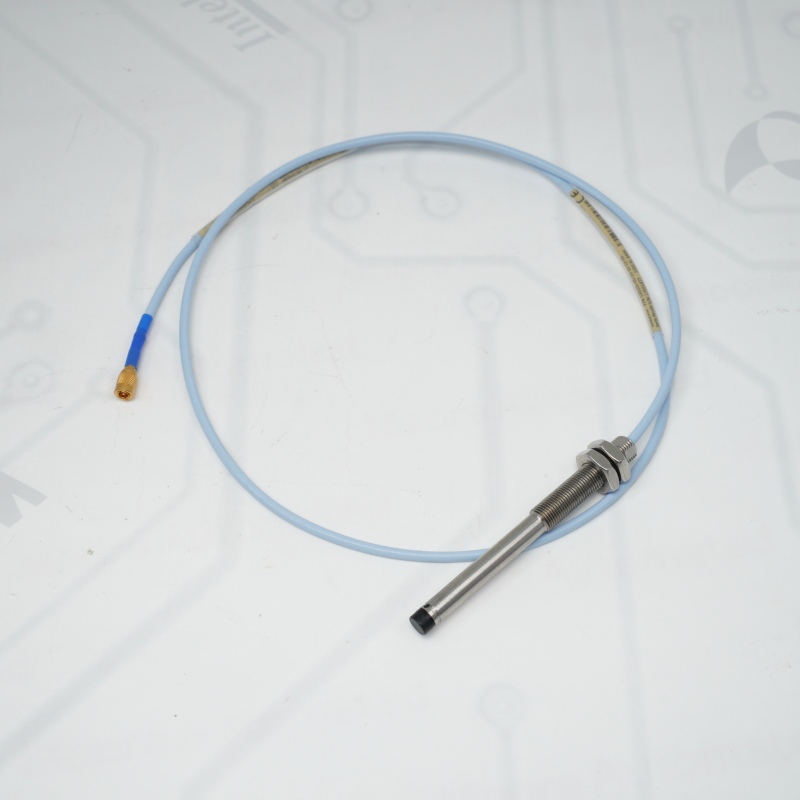

330103-05-10-10-12-05 Proximity Probe: 3300 XL 8 mm Proximity Probe (M10 x 1 Metric Thread, No Armor).
05: 50 mm Unthreaded Case Length
10: 100 mm Overall Case Length
10: 1.0 Metre Total Cable Length
12: ClickLoc Connector (No Protector) and FluidLoc Cable
05: CSA, ATEX, and IECEx Hazardous Area Approvals
Linear Range: 2 mm (80 mils)
Scale Factor: 7.87 V/mm (200 mV/mil) calibrated to AISI 4140 steel
Standard Gap: minus 9 Vdc (approximately 1.27 mm or 50 mils)
Operating Temp: minus 52 to plus 177 degrees Celsius (minus 62 to plus 350 degrees Fahrenheit)
Installation Torque: 7.5 N m recommended (22.6 N m max)
If you want to more details about 330103-05-10-10-12-05 Proximity Probe，please contact me without hesitation. Email：sales@sparecenter.com
330103-05-10-10-12-05 Proximity Probe Application
Radial Vibration Monitoring: The Bently Nevada 330103-05-10-10-12-05 measures dynamic shaft motion inside fluid-film bearings on high-speed turbines, compressors, and motors.
Axial Thrust Position: Plant operators deploy the Bently Nevada 330103-05-10-10-12-05 to track static rotor displacement and prevent catastrophic internal contact.
Keyphasor Phase Reference: The Bently Nevada 330103-05-10-10-12-05 provides precise once-per-turn timing signals crucial for machinery speed tracking and diagnostics.
Oil-Submerged Environments: Featuring an integrated FluidLoc cable, the Bently Nevada 330103-05-10-10-12-05 blocks lubricating oil from escaping through the cable interior.
Hazardous Area Deployments: Backed by CSA, ATEX, and IECEx certifications, the Bently Nevada 330103-05-10-10-12-05 operates safely within classified explosive environments.
Top Brand We Offer
Bently Nevada: 3500 and 3300 machinery monitoring systems.
Allen-Bradley: Rockwell ControlLogix, CompactLogix, and SLC 500 PLC modules.
ABB: AC800M, AC800F, and 800xA control systems.Honeywell: Experion PKS, TDC3000, and TPS DCS hardware.
Invensys Triconex: Triple modular redundant safety systems.
Emerson: Ovation, DeltaV, and Woodward control parts.GE Fanuc: Series 90-30 and 90-70 PLC assemblies.
HIMA: Safety-related programmable electronic controllers.
Yokogawa: Centum DCS system parts.Foxboro: I/A Series system cards.
BENTLY NEVADA Proximity Probe FAQ
Q1: What specific mounting profile does the part number 330103-05-10-10-12-05 represent?
A1: The model BENTLY NEVADA Proximity Probe defines a Bently Nevada 3300 XL 8 mm standard forward-mount proximity probe. It features an M10 x 1 metric thread housing without stainless steel armor. Mechanically, this exact configuration provides a 100 mm overall case length alongside a 50 mm unthreaded sleeve area.
Q2: How does the FluidLoc option impact the cable performance on the 330103-05-10-10-12-05?
A2: The 12 connector option in BENTLY NEVADA Proximity Probe indicates a miniature coaxial ClickLoc connector paired with a FluidLoc triaxial cable. This specialty FluidLoc construction prevents lube oil or process liquids from wicking out of the machine casing along the internal gaps of the cable core.
Q3: Does the 330103-05-10-10-12-05 require a separate extension cable to complete the loop?
A3: No, the 10 length code in BENTLY NEVADA Proximity Probe specifies a 1.0-metre total system length. According to the manufacturer engineering specifications, 1-meter proximity systems bypass the standard extension cable entirely and must wire directly into a dedicated 1.0-meter Proximitor Sensor.
Q4: What are the hazardous area classification capabilities of the 330103-05-10-10-12-05?
A4: The 05 approval suffix certifies that the BENTLY NEVADA Proximity Probe complies with multiple international safety regulations, specifically CSA, ATEX, and IECEx certifications. This allows the transducer tip and lead to operate safely in intrinsically safe Zone 0 or Class I Division 1 environments when isolated properly.
Q5: What is the optimal field calibration and voltage output for the 330103-05-10-10-12-05?
A5: The BENTLY NEVADA Proximity Probe delivers a standard Incremental Scale Factor of 7.87 V/mm or 200 mV/mil when target surfaces consist of AISI 4140 steel. For accurate dynamic vibration and static position monitoring, the physical gap must be adjusted to a nominal -9 Vdc bias point, which equals roughly 1.27 mm of physical gap distance.
