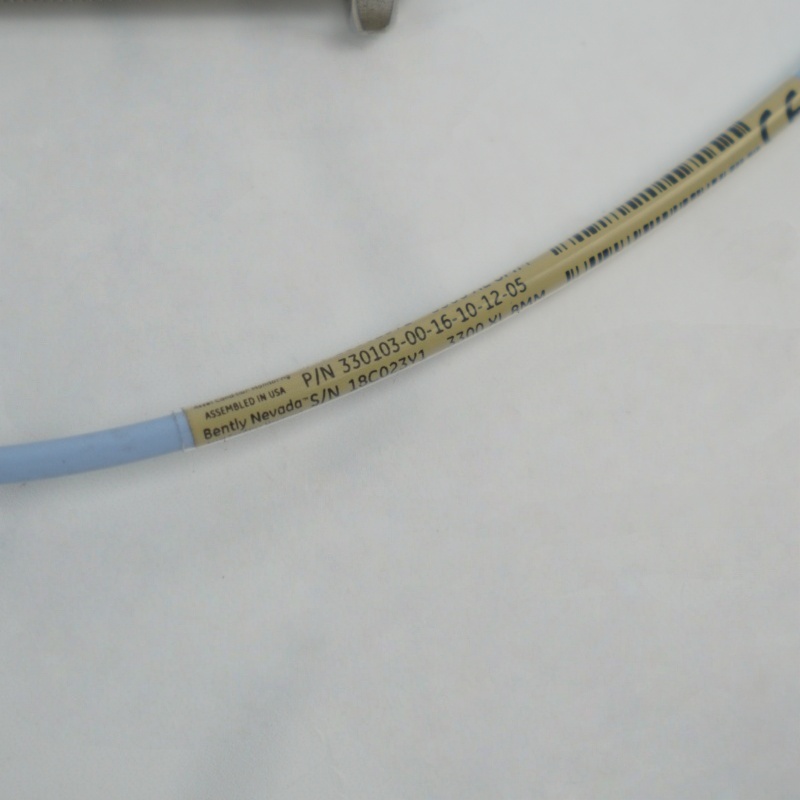

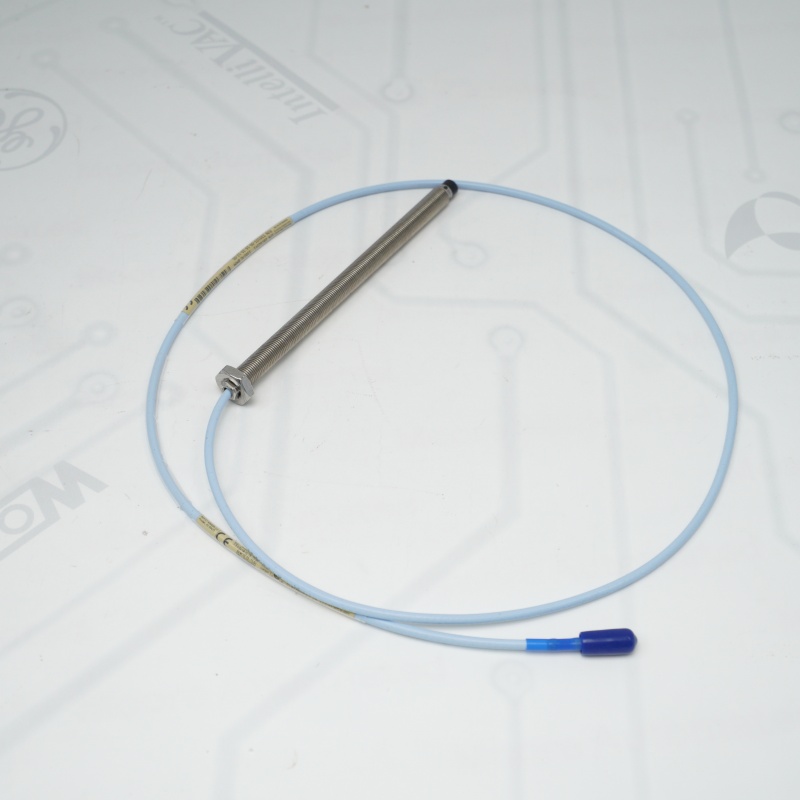

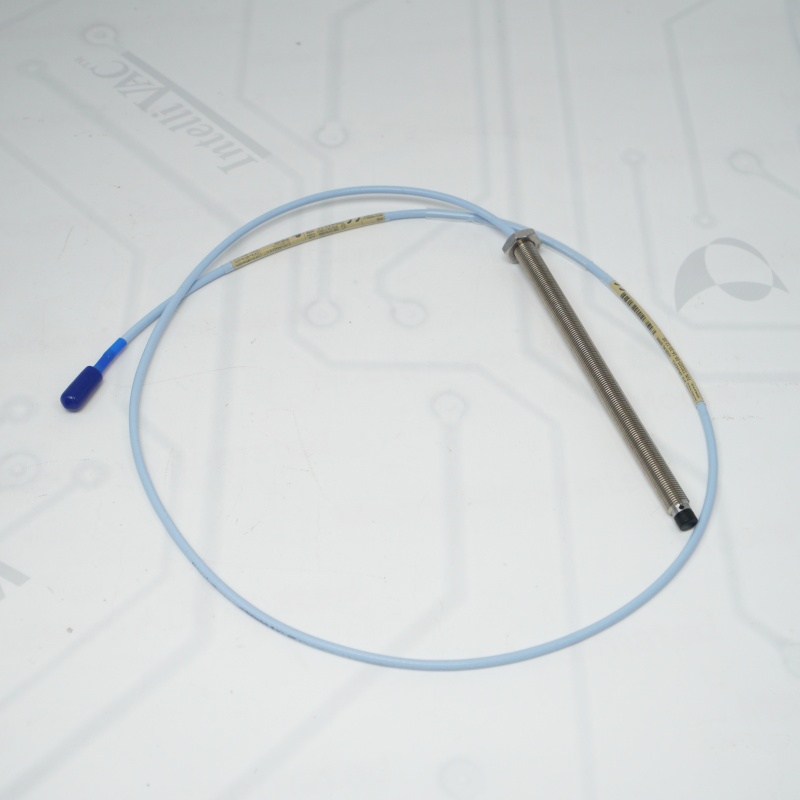

330103-00-16-10-12-05 Proximity Probes Ordering Information Breakdown
Base Model (330103): 3300 XL 8 mm Probe, M10 x 1 thread, fully threaded case. | Unthreaded Length (00): 0 mm (fully threaded probe case). |
| Overall Case Length (16): 160 mm total probe housing length. | Total System Length (10): 1.0 meter (3.3 ft) cable length. |
| Connector/Cable Type (12): Miniature coaxial ClickLoc connector with FluidLoc cable (prevents oil migration through the cable core). | Agency Approvals (05): CSA, ATEX, and IECEx hazardous area approvals. |
| Operating & Storage Temperature: -52°C to +177°C (-62°F to +350°F). | Connector Material: Gold-plated brass or gold-plated beryllium copper. |
If you want to more details about BENTLY NEVADA Proximity Probe，please contact me without hesitation.Email：sales@sparecenter.com
Value We Bring To You
Hard-to-Find Specialists: Rapid sourcing of rare, new, and obsolete PLCs, DCS modules, and servo controls.
100% Quality Guaranteed: All parts are thoroughly inspected, fully certified, and backed by a solid warranty.
Minimize Factory Downtime: Fast global shipping to get your production lines up and running quickly.
Top Brands, Better Prices: Highly competitive pricing on leading brands like Allen Bradley, ABB, and Siemens.
330103-00-16-10-12-05 Proximity Probes Factory Workflow Guide
1. Verification
Visual Check: Inspect the BENTLY NEVADA 330103-00-16-10-12-05 PPS tip and M10 threads.
Resistance Test: Measure between the coaxial center pin and outer shell.
Pass Criteria: Confirm the reading is 7.59 ± 0.50 Ω before installation.
2. Gapping
Mechanical Mount: Thread the 160 mm probe body into the bearing housing.
Direct Connection: Hook the Bently Nevada Proximity Probe directly to a 1m Proximitor.
Voltage Setting: Screw in under -24 Vdc power until output hits -9.0 Vdc.
Final Lock: Torque the M10 nut to 7.5 N·m with safety wire.
3. Operation
Live Monitoring: The Bently Nevada Proximity Probe streams 7.87 V/mm vibration data.
Oil Sealing: The integrated FluidLoc cable stops bearing oil from leaking out.
4. Diagnostics
Fault Check: If a "Not OK" alarm triggers on the channel, check the voltage:
Near 0 Vdc: Bently Nevada Proximity Probe tip is touching the shaft or shorted.
Near -24 Vdc: Probe is too far away or cable is broken.
330103-00-16-10-12-05 Proximity Probes FAQ
Q1: What target material and nominal scale factor are calibrated for the BENTLY NEVADA 330103-00-16-10-12-05 proximity probe?
Answer: The 330103-00-16-10-12-05 Proximity Probes is factory-calibrated by default to AISI 4140 steel target material.
When paired with a matching 3300 XL Proximitor Sensor, it delivers a precise nominal Incremental Scale Factor (ISF) of 7.87 V/mm (200 mV/mil) over its 2.0 mm (80 mils) linear range.
Q2: Does the BENTLY NEVADA 330103-00-16-10-12-05 require an external extension cable during installation?
Answer: No, the 330103-00-16-10-12-05 Proximity Probes features a 1.0 m (3.3 ft) integral total system length (Option 10).
According to the manufacturer’s documentation, 1-meter proximity systems are designed to connect directly from the probe to the Proximitor sensor and do not use an extension cable.
Q3: What are the exact structural housing and thread specifications for the BENTLY NEVADA 330103-00-16-10-12-05?
Answer: The 330103-00-16-10-12-05 Proximity Probes is configured with an unarmored, metric M10 x 1 case thread (Base Model 330103).
It features a 0 mm unthreaded length (Option 00) and an overall threaded case length of 160 mm (Option 16).
Q4: How does the FluidLoc cable option on the BENTLY NEVADA 330103-00-16-10-12-05 protect machinery environments?
Answer: The Bently Nevada Proximity Probe incorporates a specialized FluidLoc cable configuration (Option 12).
This design structurally seals the internal core of the 75Ω triaxial cable, preventing pressurized machine lubrication oil or other hazardous liquids from leaking out through the interior of the cable housing.
Q5: Which global safety certifications govern the deployment of the BENTLY NEVADA 330103-00-16-10-12-05 in explosive atmospheres?
Answer: The Bently Nevada Proximity Probe is ordered with the hazardous area approval designation Option 05.
This certifies the sensor assembly under cNRTLus, ATEX, and IECEx standards for safe operations within intrinsically safe (ia) Zone 0/Class I Division 1 and non-incendive (nA/ec) Zone 2/Class I Division 2 environments.
