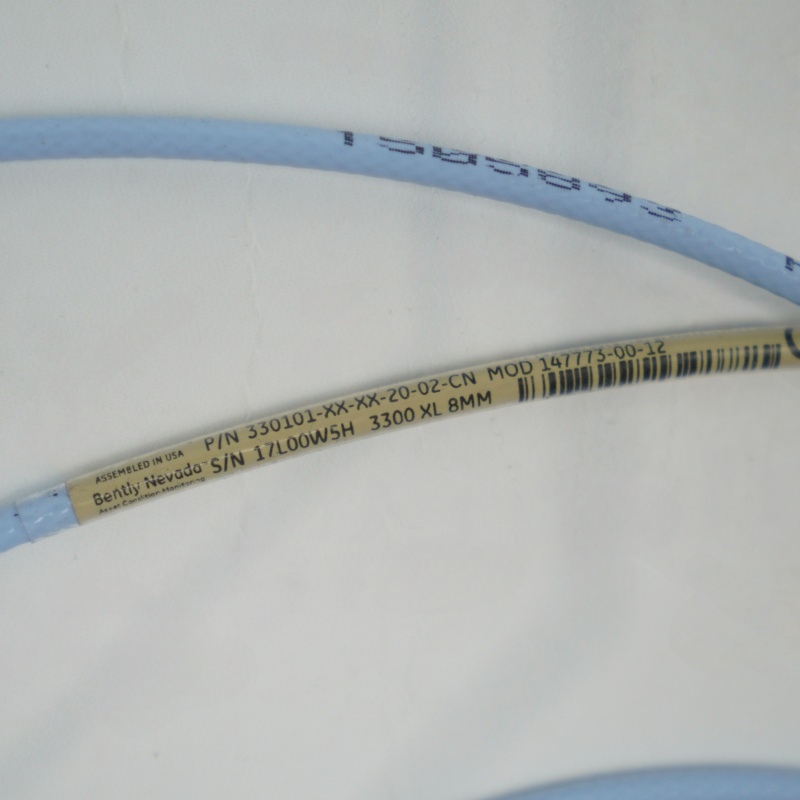

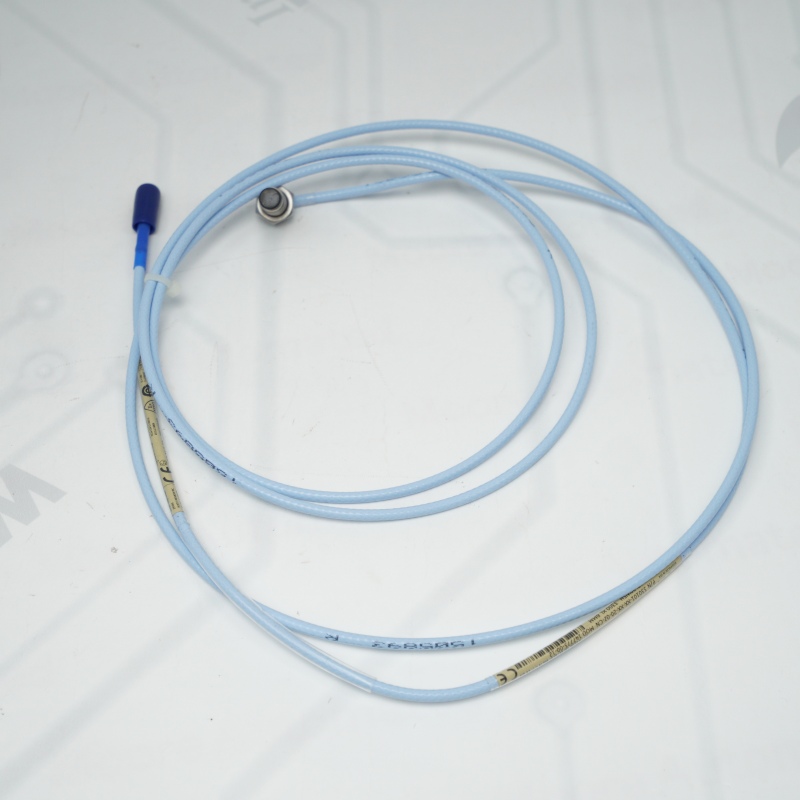

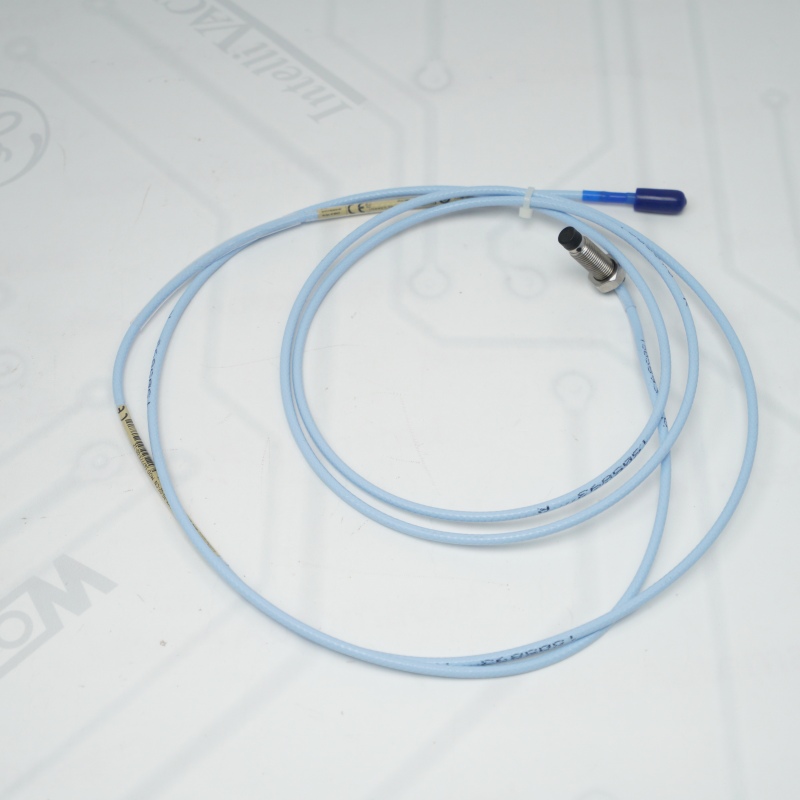

BENTLY NEVADA 330101-XX-XX-20-02-CN 3300 XL 8 mm Proximity Probe

  • Bently Nevada
  • USA
  • 2024
  • In Stock
The part number 330101-XX-XX-20-02-CN represents a Bently Nevada 3300 XL 8 mm Proximity Probe. BENTLY NEVADA 330101-XX-XX-20-02-CN is specifically designed for non-contacting, continuous vibration, axial position, and keyphasor measurements on high-speed rotating machinery like turbines, compressors, and pumps.
Annex

BENTLY NEVADA 330101-XX-XX-20-02-CN Real Application Scenarios


Steam & Gas Turbines: Deploying the 330101-XX-XX-20-02-CN Proximity Probe for real-time shaft axial displacement, radial vibration, and Keyphasor speed phase referencing.

Industrial Compressors: Integrating the 330101-XX-XX-20-02-CN Proximity Probe for continuous bearing clearance and rotor dynamics tracking under high-speed, high-pressure loads.

Critical Pumps & Fans: Utilizing the 330101-XX-XX-20-02-CN Proximity Probe system for heavy-duty process pump monitoring and unbalance detection in large industrial blowers.

Generators & Large Motors: Installing the 330101-XX-XX-20-02-CN Proximity Probe transducer for misalignment and shaft runout detection in power plants and petrochemical facilities.


If you want to more details about BENTLY NEVADA Proximity Probe，please contact me without hesitation.Email：sales@sparecenter.com

Premium Automation Solutions: Why Choose Spare Center?


Global Components Access: Instant procurement of rare, obsolete, and leading-edge industrial automation parts.

Rapid Global Logistics: Fast-track international shipping minimize your unexpected plant downtime.

Strict Quality Controls: All components undergo rigorous inspection to guarantee certified performance.

Dedicated Account Experts: Multilingual specialist support ensures smooth, accurate technical transactions.


BENTLY NEVADA Proximity Probe Snapshot


Product Type: 3300 XL 8 mm Proximity Probe (Unarmored, 3/8-24 UNF thread)

Core Function: Non-contact measurement of shaft vibration and axial displacement

Cable Length: 2.0 meters (6.6 feet) integrated FEP cable with ClickLoc connector

Scale Factor: 7.87 V/mm (200 mV/mil) linear electrical output

Compliance: Fully API 670 compliant with CN-specific explosion-proof approvals

Application: Critical protection for high-speed turbines, compressors, and pumps


BENTLY NEVADA Proximity Probe FAQ

Q1: What is the primary function of the BENTLY NEVADA 330101-XX-XX-20-02-CN proximity probe?

A1: The 330101-XX-XX-20-02-CN is an 8 mm unarmored eddy-current sensor designed for non-contact, high-precision measurement of static displacement (axial thrust position) and dynamic fluid-film bearing vibration in rotating machinery.
Q2: What specific physical dimensions do the "XX-XX" placeholders in the 330101-XX-XX-20-02-CN part number represent?
A2: In the 330101-XX-XX-20-02-CN part number, the first "XX" indicates the unthreaded length of the probe case, and the second "XX" indicates the overall case length, both configurable in 0.1-inch increments.
Q3: What does the "20" option define in the BENTLY NEVADA 330101-XX-XX-20-02-CN configuration?
A3: The "20" designation specifies that this particular BENTLY NEVADA Proximity Probe has a total integrated cable length of 2.0 meters (6.6 feet) using a standard FEP-insulated coaxial line.
Q4: What is the connector type and electrical output scale of the 330101-XX-XX-20-02-CN sensor?
A4: The 330101-XX-XX-20-02-CN features a Miniature Coaxial ClickLoc connector ("02" option) and yields a scale factor of 7.87 V/mm (200 mV/mil) when matched with a 3300 XL Proximitor sensor loop.
Q5: What is the significance of the "CN" suffix on the 330101-XX-XX-20-02-CN part number?
A5: The "CN" suffix ensures that the BENTLY NEVADA Proximity Probe carries country-specific hazardous area and explosion-proof approvals required for legal compliance and deployment within mainland China.
Q6: Can the 330101-XX-XX-20-02-CN probe be connected directly to a machinery monitoring system?

A6: No, the BENTLY NEVADA Proximity Probe must be connected via a matching 3300 XL extension cable to a 3300 XL Proximitor Sensor to convert the gap changes into a linear voltage signal.
