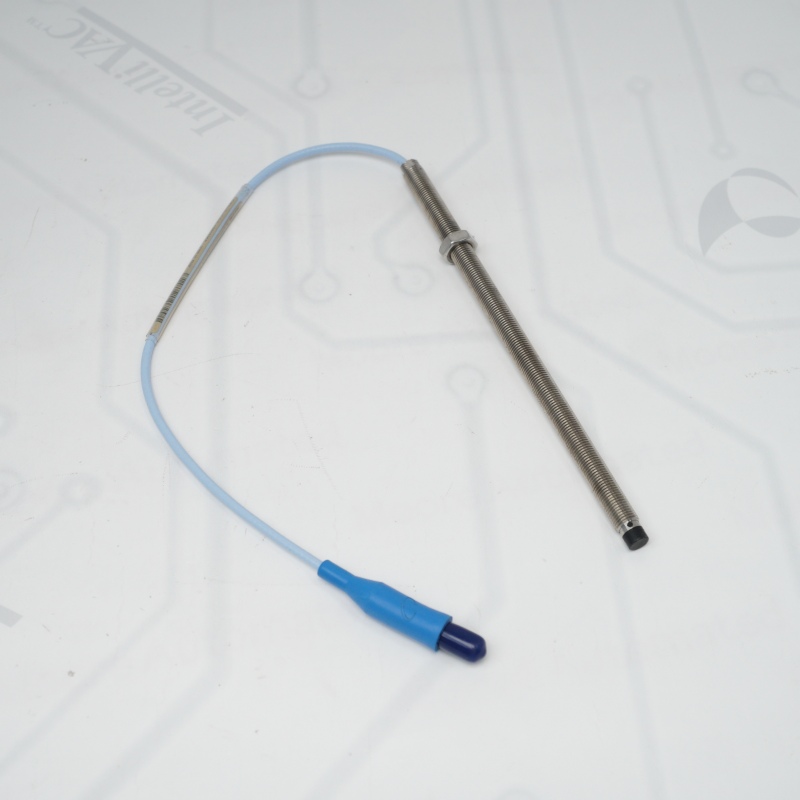

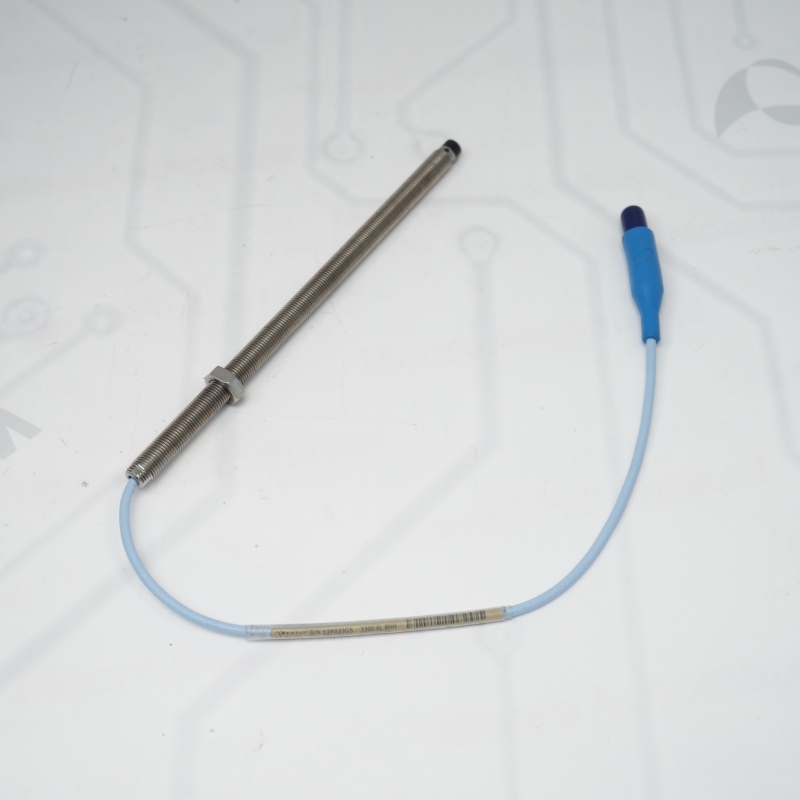

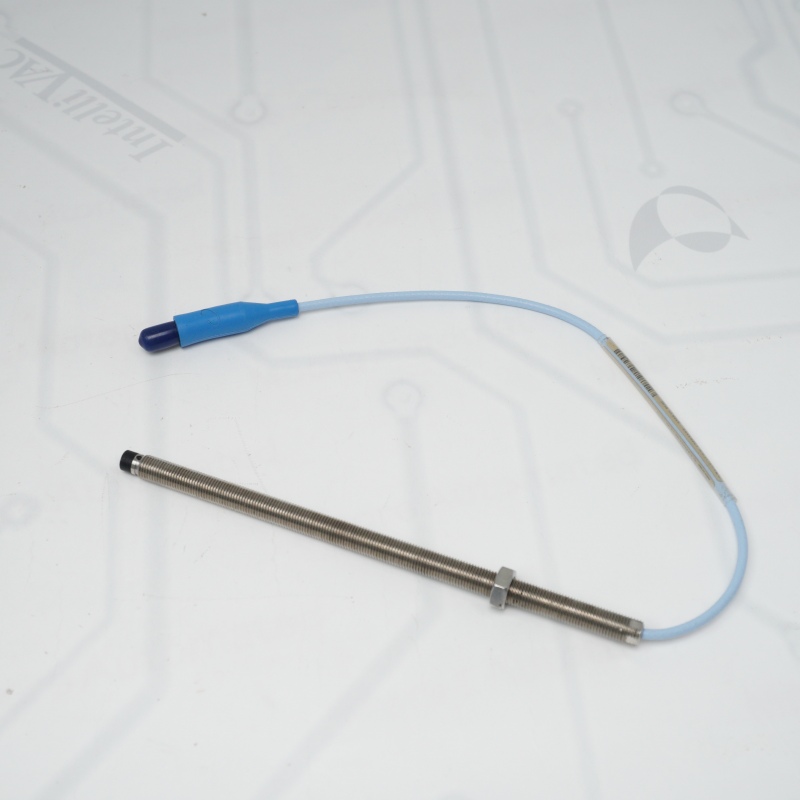

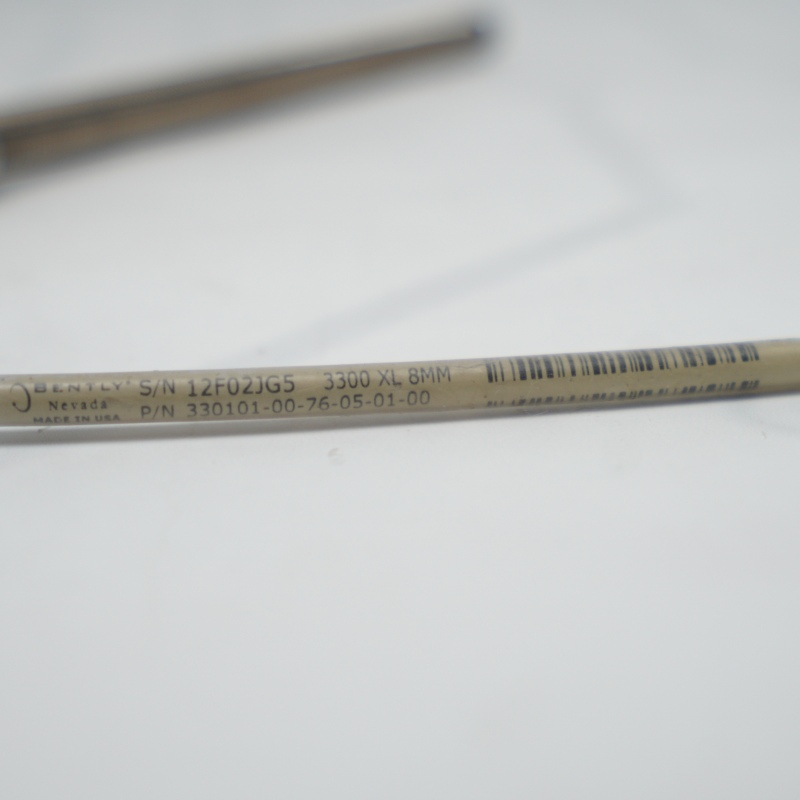

330101-00-76-05-01-00 Proximity Probe Key Features
Eddy Current Technology: The Bently Nevada 330101-00-76-05-01-00 provides high-precision, non-contact measurement for vibration, speed, and shaft position.
Deep Mounting Design: This model features a 7.6-inch extra-long fully threaded case optimized for deep housing installations.
ClickLoc Connector: The Bently Nevada 330101-00-76-05-01-00 utilizes a miniature coaxial connector equipped with an integrated connector protector.
Robust Build: Engineered with a rugged PPS tip and stainless steel body, it is designed for harsh, high-temperature turbomachinery environments.
3300 XL Compatibility: The Bently Nevada 330101-00-76-05-01-00 seamlessly integrates into any standard 3300 XL 8 mm transducer system.
If you want to more details about BENTLY NEVADA Proximity Probe，please contact me without hesitate.Email：sales@sparecenter.com
BENTLY NEVADA Proximity Probe FAQ
Q1: What is the primary industrial application for the Bently Nevada 330101-00-76-05-01-00 proximity probe?
A1: The BENTLY NEVADA Proximity Probe is primarily utilized in critical turbomachinery for continuous, non-contact measurement of fluid-film bearing clearance, shaft dynamic vibration, axial thrust position, and rotational speed.
A1: The BENTLY NEVADA Proximity Probe is primarily utilized in critical turbomachinery for continuous, non-contact measurement of fluid-film bearing clearance, shaft dynamic vibration, axial thrust position, and rotational speed.
Q2: What do the specific configuration digits in the part number 330101-00-76-05-01-00 indicate?
A2: In the part number 330101-00-76-05-01-00, the prefix 330101 specifies an unarmored 3300 XL 8 mm probe with 3/8-24 UNF threads, 00 indicates zero unthreaded length, 76 signifies a 7.6-inch overall case length, 05 indicates a 0.5-meter cable length, 01 designates a ClickLoc coaxial connector with a connector protector, and the final 00 indicates standard non-hazardous agency approval.
A2: In the part number 330101-00-76-05-01-00, the prefix 330101 specifies an unarmored 3300 XL 8 mm probe with 3/8-24 UNF threads, 00 indicates zero unthreaded length, 76 signifies a 7.6-inch overall case length, 05 indicates a 0.5-meter cable length, 01 designates a ClickLoc coaxial connector with a connector protector, and the final 00 indicates standard non-hazardous agency approval.
Q3: Which extension cable length must be paired with the Bently Nevada 330101-00-76-05-01-00 to achieve a standard system calibration?
A3: Because the BENTLY NEVADA Proximity Probe has an onboard cable length of 0.5 meters, it must be paired with a 4.5-meter extension cable to create a 5.0-meter system, or a 9.0-meter extension cable to create a 9.5-meter system, ensuring proper electrical matching with the Proximitor sensor.
A3: Because the BENTLY NEVADA Proximity Probe has an onboard cable length of 0.5 meters, it must be paired with a 4.5-meter extension cable to create a 5.0-meter system, or a 9.0-meter extension cable to create a 9.5-meter system, ensuring proper electrical matching with the Proximitor sensor.
Q4: What is the recommended mechanical installation gap voltage for the Bently Nevada 330101-00-76-05-01-00 during machinery commissioning?
A4: When installing the BENTLY NEVADA Proximity Probe, the mechanical gap must be calibrated using a voltmeter to read approximately -10.0 Vdc, which positions the probe tip exactly at the midpoint of its 80-mil (2.0 mm) linear operational range.
A4: When installing the BENTLY NEVADA Proximity Probe, the mechanical gap must be calibrated using a voltmeter to read approximately -10.0 Vdc, which positions the probe tip exactly at the midpoint of its 80-mil (2.0 mm) linear operational range.
Q5: Is the Bently Nevada 330101-00-76-05-01-00 probe compatible with standard AISI 4140 target materials?
A5: Yes, the BENTLY NEVADA Proximity Probe is factory calibrated to standard AISI 4140 steel by default, providing a nominal scale factor of 200 mV/mil (7.87 V/mm) when detecting a target made from this material composition.
A5: Yes, the BENTLY NEVADA Proximity Probe is factory calibrated to standard AISI 4140 steel by default, providing a nominal scale factor of 200 mV/mil (7.87 V/mm) when detecting a target made from this material composition.
Details
330101 (Probe Type): 3300 XL 8 mm Probe, 3/8-24 UNF thread, without armor.
00 (Unthreaded Length): 0.0 inches (fully threaded body).
76 (Overall Case Length): 7.6 inches (extra long body for deep mounting configurations).
05 (Total Length): 0.5 metres (1.6 feet).
01 (Connector & Cable Type): Miniature coaxial ClickLoc connector with a connector protector, standard cable.
00 (Agency Approval): No specific safety or hazardous area approvals required.
