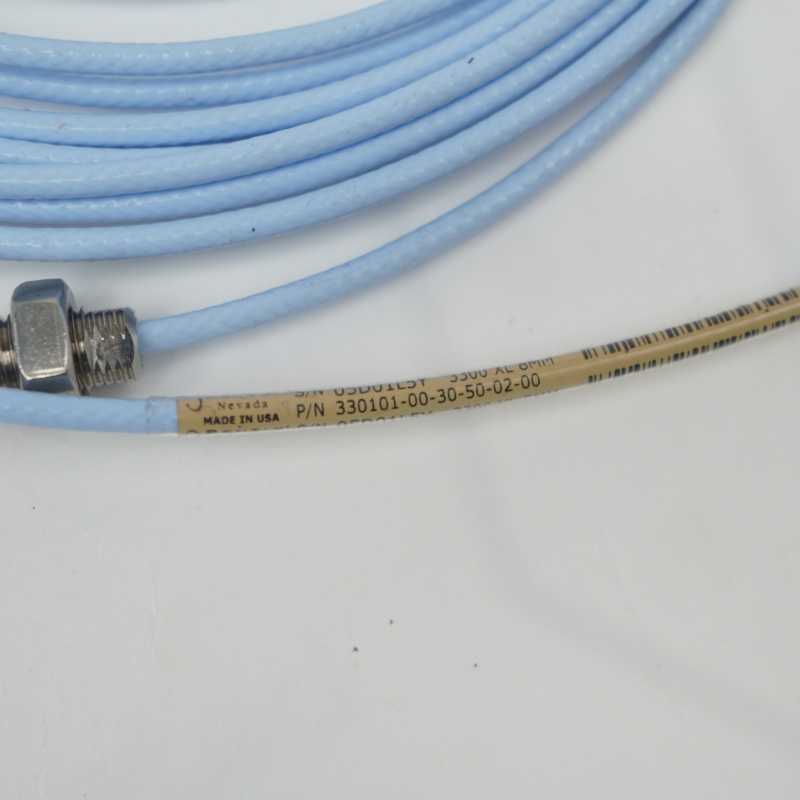

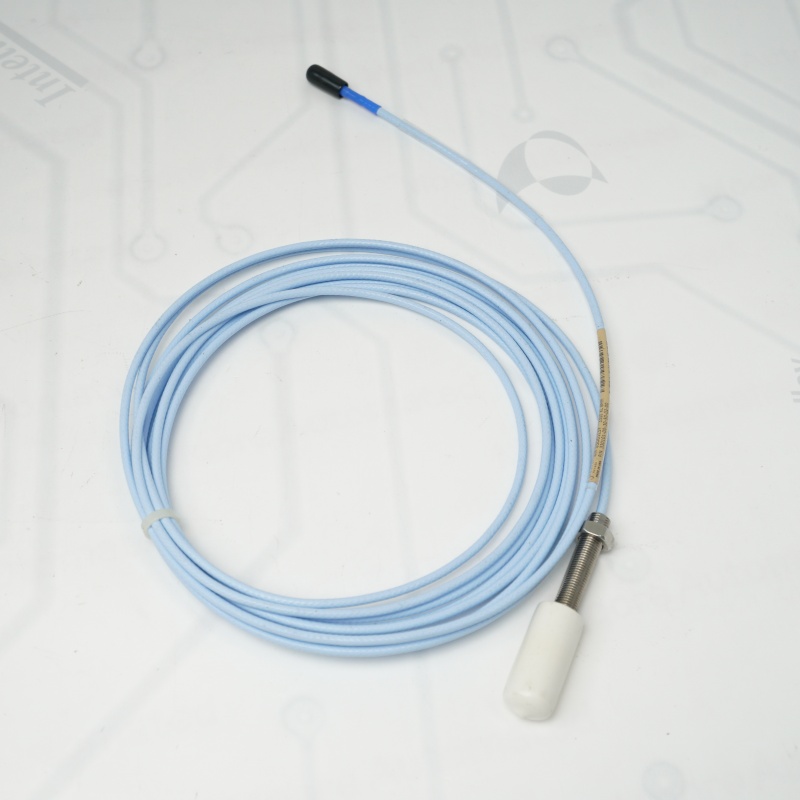

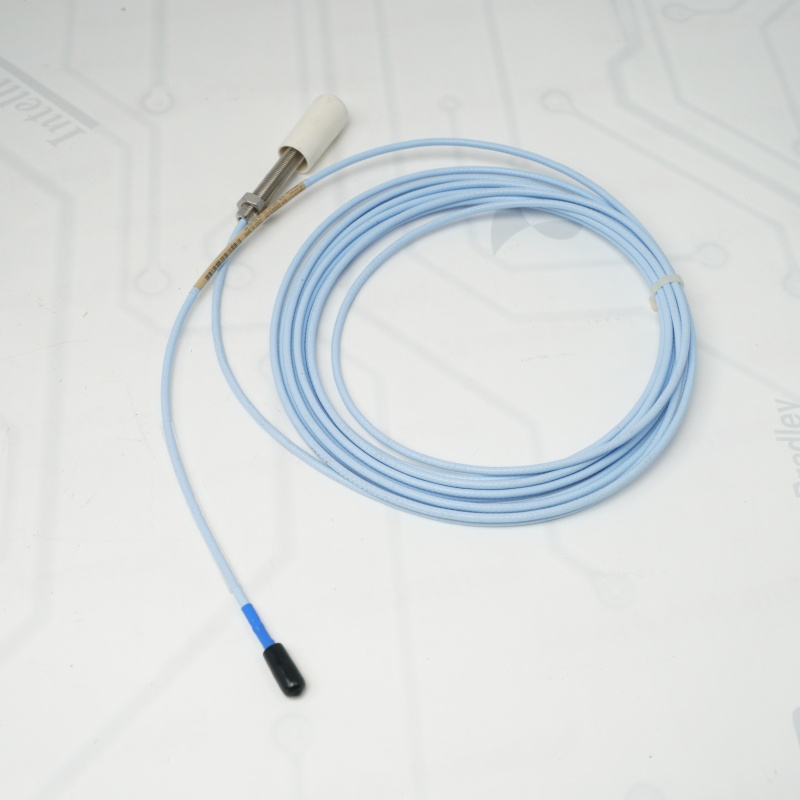

BENTLY NEVADA 330101-00-30-50-02-00 3300 XL 8 mm Proximity Probe

  • Bently Nevada
  • USA
  • 2024
  • In Stock
The part number 330101-00-30-50-02-00 corresponds to a Bently Nevada 3300 XL 8 mm Proximity Probe. Bently Nevada Proximity Probe precisely measures non-contact shaft vibration and displacement in critical rotating machinery.
Annex

BENTLY NEVADA 330101-00-30-50-02-00 Part Number Breakdown


330101: 3300 XL 8 mm Proximity Probe (Standard 3/8-24 UNF thread, no armor)

00: Unthreaded length is 0.0 inches

30: Overall case length is 3.0 inches

50: Total cable length is 5.0 meters (16.4 feet)

02: ClickLoc miniature coaxial connector, standard cable

00: No agency approvals


BENTLY NEVADA 330101-00-30-50-02-00 FAQ

Q1: What exactly does the part number 330101-00-30-50-02-00 represent in a Bently Nevada system?
A: The part number Bently Nevada Proximity Probe represents a 3300 XL 8 mm eddy current proximity probe featuring a standard 3/8-24 UNF threaded body. Specifically, this configuration specifies 0.0 inches of unthreaded length, a 3.0-inch overall case length, an integrated 5.0-meter standard cable, a ClickLoc miniature coaxial connector, and no hazardous area agency approvals.
Q2: Can I connect the 330101-00-30-50-02-00 probe directly to a 9.0-meter Proximitor sensor?
A: No, the Bently Nevada Proximity Probe has an integrated 5.0-meter cable and is calibrated exclusively for a 5.0-meter total system length. Connecting the Bently Nevada Proximity Probe to a 9.0-meter Proximitor sensor or mixing it with 9.0-meter extension cables will severely alter the electrical impedance, corrupting the scale factor and rendering the vibration or position measurements inaccurate.
Q3: What extension cable is required to achieve the correct system length for the 330101-00-30-50-02-00?
A: Because the Bently Nevada Proximity Probe already contains a 5.0-meter integrated cable, it does not require an extension cable if connected directly to a 5.0-meter Proximitor sensor. If your physical installation layout demands an intermediate connection panel, you must swap your setup to a shorter probe body style, as adding any extension cable to the Bently Nevada Proximity Probe will exceed the mandatory 5.0-meter total system calibration limit.
Q4: What are the primary linear range and sensitivity specifications for the 330101-00-30-50-02-00?
A: When target-matched to standard AISI 4140 steel, the Bently Nevada Proximity Probe delivers a nominal scale factor (sensitivity) of 7.87 V/mm (200 mV/mil). The Bently Nevada Proximity Probe provides a highly accurate linear measurement range of 2.0 mm (80 mils), typically starting at a physical gap distance of 0.25 mm (10 mils) from the target surface.
Q5: Does the 330101-00-30-50-02-00 include physical armor or explosion-proof certifications?

A: No, the Bently Nevada Proximity Probe features a standard unarmored coaxial cable configuration as indicated by the "02" option code. Furthermore, the trailing "00" option code designates that the Bently Nevada Proximity Probe is a standard commercial build supplied without specialized regional ATEX, IECEx, or CSA intrinsic safety certifications for hazardous environments.


How to Use Bently Nevada 330101-00-30-50-02-00

1. BENTLY NEVADA 330101-00-30-50-02-00 Match

Connect 330101-00-30-50-02-00 directly to a 5-meter 3300 XL Proximitor.

No extension cable allowed.

2. BENTLY NEVADA 330101-00-30-50-02-00 Mount

Thread 330101-00-30-50-02-00 into the bracket (3/8-24 UNF).

Torque to 11.2 N·m (100 in·lb) max.

3. 330101-00-30-50-02-00 Proximity Probe Gap

Monitor Proximitor voltage output with a multimeter.

Adjust 330101-00-30-50-02-00 Proximity Probe distance until voltage reads -10.0 VDC.

Tighten the locknut.

4. 330101-00-30-50-02-00 Proximity Probe Connect

Plug the 330101-00-30-50-02-00 Proximity Probe ClickLoc connector into the Proximitor.

Slide the silicone sleeve over the connection to seal out oil.
