BENTLY NEVADA 330101-00-08-05-02-05 Specification
| Parameter | Specification |
|---|---|
| Model Number | 330101-00-08-05-02-05 |
| Product Series | 3300 XL 8 mm Proximity Probe |
| Probe Type | 3/8-24 UNF thread, without armor |
| Unthreaded Length | 0.0 inches |
| Overall Case Length | 0.8 inches |
| Total Length | 0.5 metres (1.6 feet) |
| Connector Option | Miniature coaxial ClickLoc connector with connector protector |
| Agency Approval | Multiple Approvals (CSA, ATEX, IECEx) |
| Measurement Principle | Eddy Current (Non-contact displacement) |
| Standard Compliance | Fully compliant with API 670 Standard |
BENTLY NEVADA 330101-00-08-05-02-05 Images

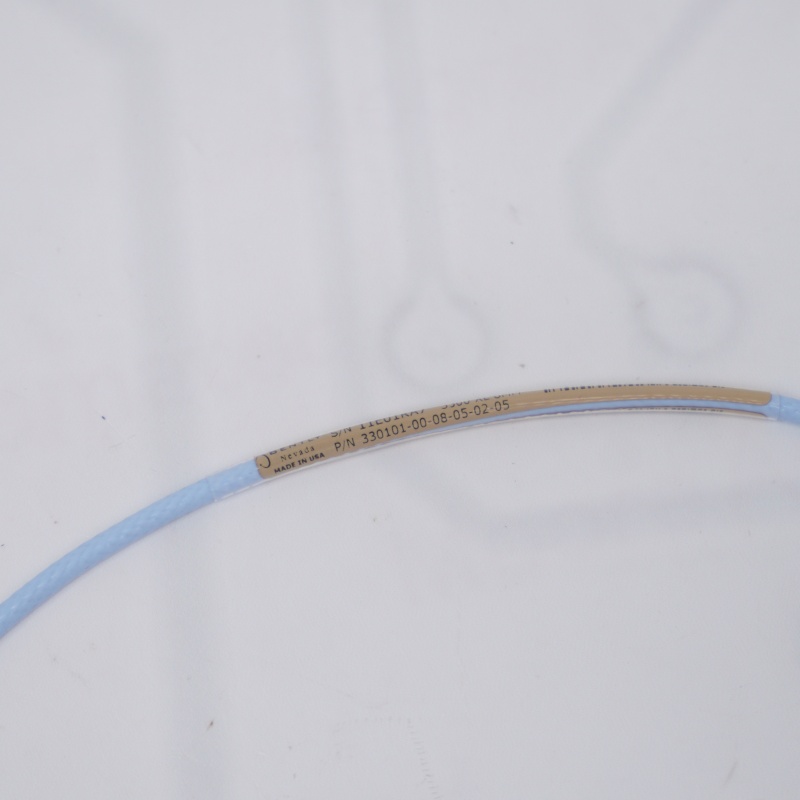

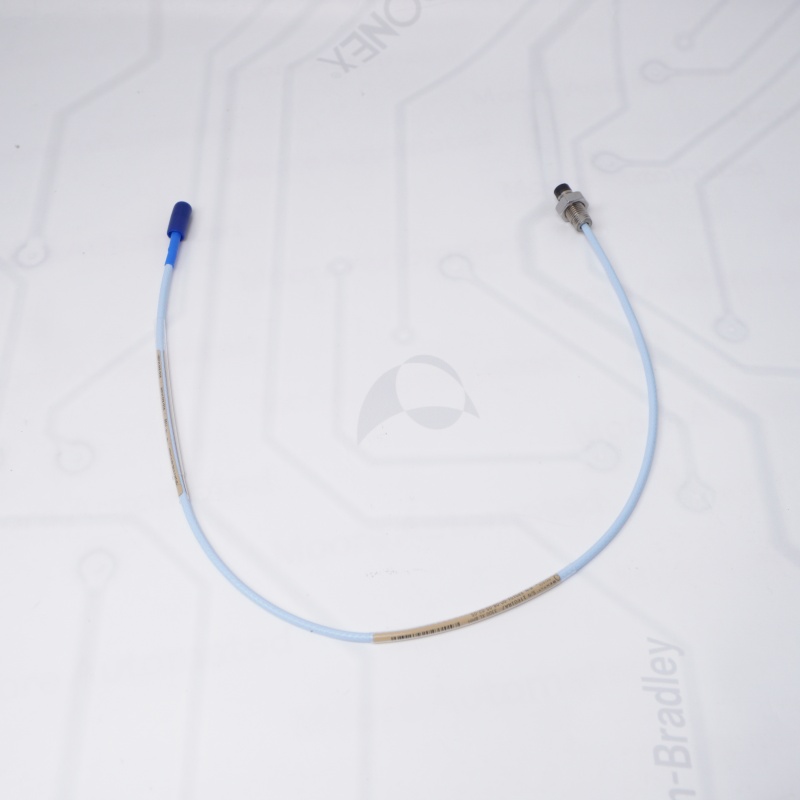

BENTLY NEVADA Proximity Probe

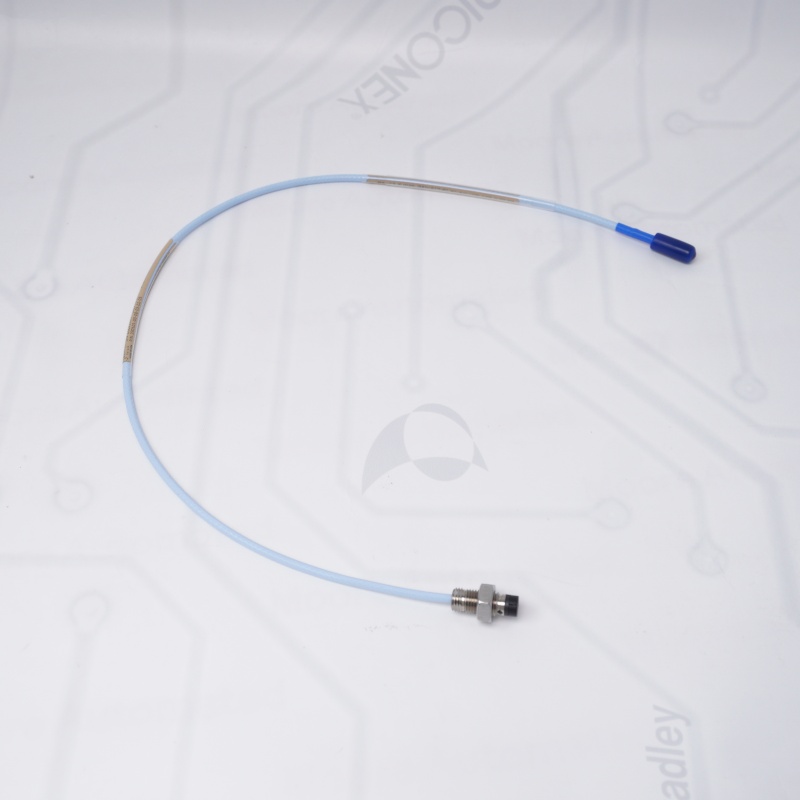

BENTLY NEVADA Proximity Probe

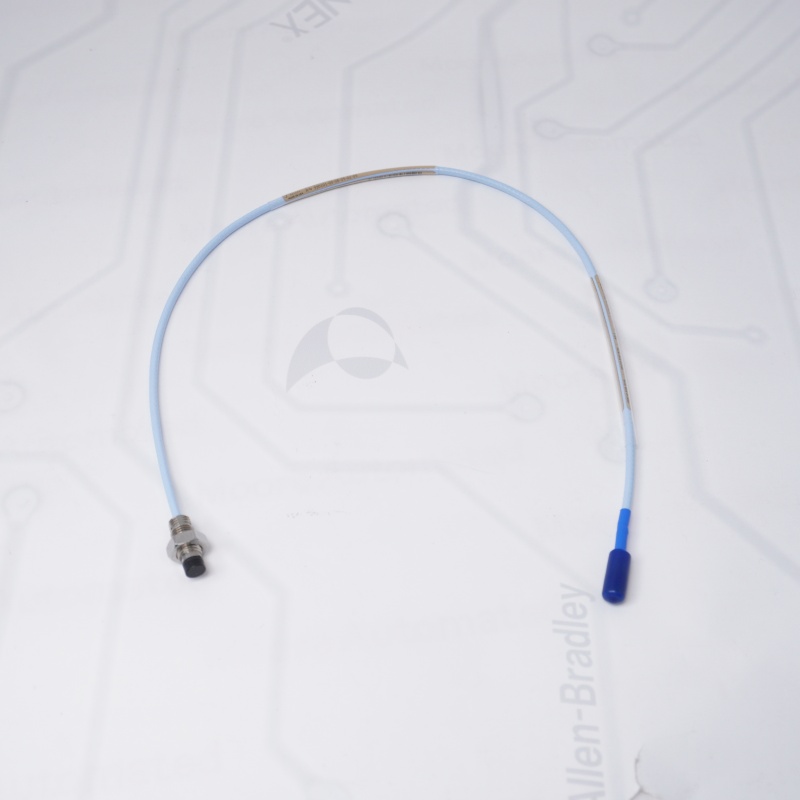

BENTLY NEVADA 330101-00-08-05-02-05

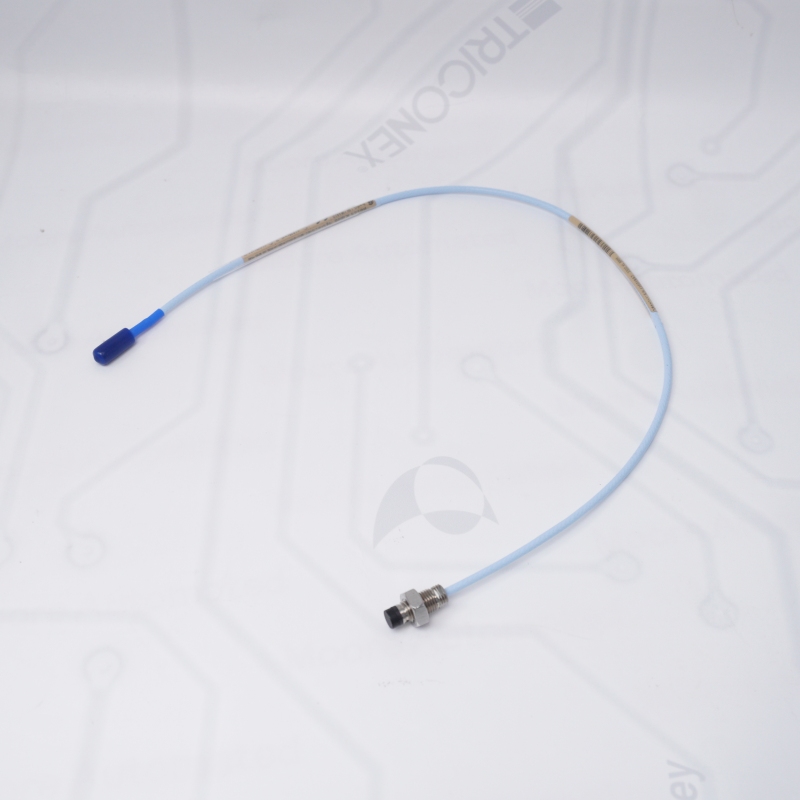

BENTLY NEVADA 330101-00-08-05-02-05
BENTLY NEVADA Proximity Probe Application
1. Radial Vibration
Function: BENTLY NEVADA Proximity Probe measures the dynamic motion of a shaft within its bearings.
Purpose: To detect imbalances, misalignments, or bearing wear. Usually, two probes are mounted at 90° (X-Y configuration) at each bearing to track the shaft's orbit.
2. Axial Position (Thrust)
Function: BENTLY NEVADA Proximity Probe monitors the longitudinal "float" or movement of the shaft relative to the thrust bearing.
Purpose: To prevent catastrophic metal-to-metal contact between the rotor and stator. This is often used as a "trip" (automatic shutdown) signal.
3. Speed & Keyphasor® Measurements
Function: BENTLY NEVADA Proximity Probe detects a once-per-turn mark (like a keyway or notch) on the shaft.
Purpose: To calculate RPM and provide a phase reference for vibration analysis, which helps engineers identify exactly where an imbalance occurs on the rotor.
4. Typical Equipment Applications
3300 XL 8 mm Proximity Probe is designed for high-reliability environments (API 670 standard) and is found in:
Steam & Gas Turbines: Monitoring high-speed rotors in power generation.
Centrifugal Compressors: Critical for oil and gas processing.
Large Pumps & Motors: Ensuring stability in heavy-duty fluid handling.
5. Hazardous Area Use
Because BENTLY NEVADA Proximity Probe ends in -05, it carries Multiple Agency Approvals (such as ATEX, IECEx, and CSA). This makes 3300 XL 8 mm Proximity Probe suitable for "Core Applications" in explosive or volatile environments, such as refineries and chemical plants.
If you want to more details about 3300 XL 8 mm Proximity Probe，please contact me without hesitate.Email：sales@sparecenter.com
330101-00-08-05-02-05 Proximity Probe FAQ
1. What is the total physical length of the 330101-00-08-05-02-05 probe?
The 3300 XL 8 mm Proximity Probe features a 0.8-inch (approx. 20 mm) case length. Additionally, the "-05" in the middle of the code indicates it has a 0.5-meter (1.6 feet) integrated cable, which is designed to be connected to an extension cable to reach a total system length of 5 or 9 meters.
The 3300 XL 8 mm Proximity Probe features a 0.8-inch (approx. 20 mm) case length. Additionally, the "-05" in the middle of the code indicates it has a 0.5-meter (1.6 feet) integrated cable, which is designed to be connected to an extension cable to reach a total system length of 5 or 9 meters.
2. Can the 330101-00-08-05-02-05 be used in explosive environments?
Yes. The final suffix "-05" in 330101-00-08-05-02-05 signifies "Multiple Approvals." This means 3300 XL 8 mm Proximity Probe is certified for use in hazardous areas under various international standards, including ATEX, IECEx, and CSA, making 330101-00-08-05-02-05 Proximity Probe safe for refineries and chemical plants.
Yes. The final suffix "-05" in 330101-00-08-05-02-05 signifies "Multiple Approvals." This means 3300 XL 8 mm Proximity Probe is certified for use in hazardous areas under various international standards, including ATEX, IECEx, and CSA, making 330101-00-08-05-02-05 Proximity Probe safe for refineries and chemical plants.
3. Does the 330101-00-08-05-02-05 require a specific extension cable?
To maintain calibration, the BENTLY NEVADA Proximity Probe must be used with a 3300 XL extension cable. Because 3300 XL 8 mm Proximity Probe has a 0.5-meter cable, you would typically pair it with a 4.5-meter or 8.5-meter extension cable to match the requirements of your 3300 XL Proximitor Sensor.
To maintain calibration, the BENTLY NEVADA Proximity Probe must be used with a 3300 XL extension cable. Because 3300 XL 8 mm Proximity Probe has a 0.5-meter cable, you would typically pair it with a 4.5-meter or 8.5-meter extension cable to match the requirements of your 3300 XL Proximitor Sensor.
4. What mounting thread does the 330101-00-08-05-02-05 use?
The 330101-00-08-05-02-05 uses a standard 3/8-24 UNF thread. The "-00" option in the part number indicates that 330101-00-08-05-02-05 Proximity Probe case is fully threaded (0.0 inches of unthreaded length), allowing for maximum flexibility when adjusting the gap in a threaded port.
The 330101-00-08-05-02-05 uses a standard 3/8-24 UNF thread. The "-00" option in the part number indicates that 330101-00-08-05-02-05 Proximity Probe case is fully threaded (0.0 inches of unthreaded length), allowing for maximum flexibility when adjusting the gap in a threaded port.
5. What should I check if my 330101-00-08-05-02-05 signal is intermittent?
Check the ClickLoc connector at the end of the BENTLY NEVADA Proximity Probe cable. Ensure 3300 XL 8 mm Proximity Probe is free of oil and debris, and that 330101-00-08-05-02-05 Proximity Probe has been clicked firmly into the extension cable. You should also verify that the probe tip is not physically touching the shaft, as this can cause "flat-lining" or signal clipping.
Check the ClickLoc connector at the end of the BENTLY NEVADA Proximity Probe cable. Ensure 3300 XL 8 mm Proximity Probe is free of oil and debris, and that 330101-00-08-05-02-05 Proximity Probe has been clicked firmly into the extension cable. You should also verify that the probe tip is not physically touching the shaft, as this can cause "flat-lining" or signal clipping.
6. Is the 330101-00-08-05-02-05 Proximity Probecompatible with older 3300 systems?
While the 330101-00-08-05-02-05 Proximity Probe is part of the 3300 XL series, 3300 XL 8 mm Proximity Probe is backwards compatible with most non-XL 3300 8mm systems. However, for best performance and linear accuracy, it is recommended to use 3300 XL 8 mm Proximity Probe as a complete 3300 XL "set" (Probe + Cable + Proximitor).
While the 330101-00-08-05-02-05 Proximity Probe is part of the 3300 XL series, 3300 XL 8 mm Proximity Probe is backwards compatible with most non-XL 3300 8mm systems. However, for best performance and linear accuracy, it is recommended to use 3300 XL 8 mm Proximity Probe as a complete 3300 XL "set" (Probe + Cable + Proximitor).
