AMETEK solid-state sequencer Specification
| Feature | Specification |
|---|---|
| Input Voltage | 95–265 VAC, 50/60 Hz |
| Number of Outputs | 1 to 10 (Programmable) |
| On-Time Range | 50 ms to 600 seconds |
| Off-Time Range | 1 to 999 seconds |
| Operating Modes | Continuous or On-Demand |
| Display Type | 3-digit, 7-segment green LED |
| Operating Temp | -40°F to 150°F (-40°C to 66°C) |
| Environmental Protection | RTV Conformal Coating |
2
AMETEK solid-state sequencer Features
DNC-T2010-020 solid-state sequencer Digital Programming: Easy keypad setup with a 3-digit LED display for precise timing.
DNC-T2010-020 solid-state sequencer Universal Power: Auto-sensing input (95–265 VAC) fits various power standards without jumpers.
DNC-T2010-020 solid-state sequencer Non-Volatile Memory: Retains all programmed settings automatically during power loss.
Rugged Protection: Conformal RTV coating shields components from moisture, corrosion, and vibration.
On-Demand Cleaning: Supports external pressure switch input for energy-efficient cleaning cycles.
Safety Design: Includes finger-safe terminations to reduce electrical hazards during maintenance.
Flexible Outputs: Fully programmable to use any number of stations from 1 to 10.
3

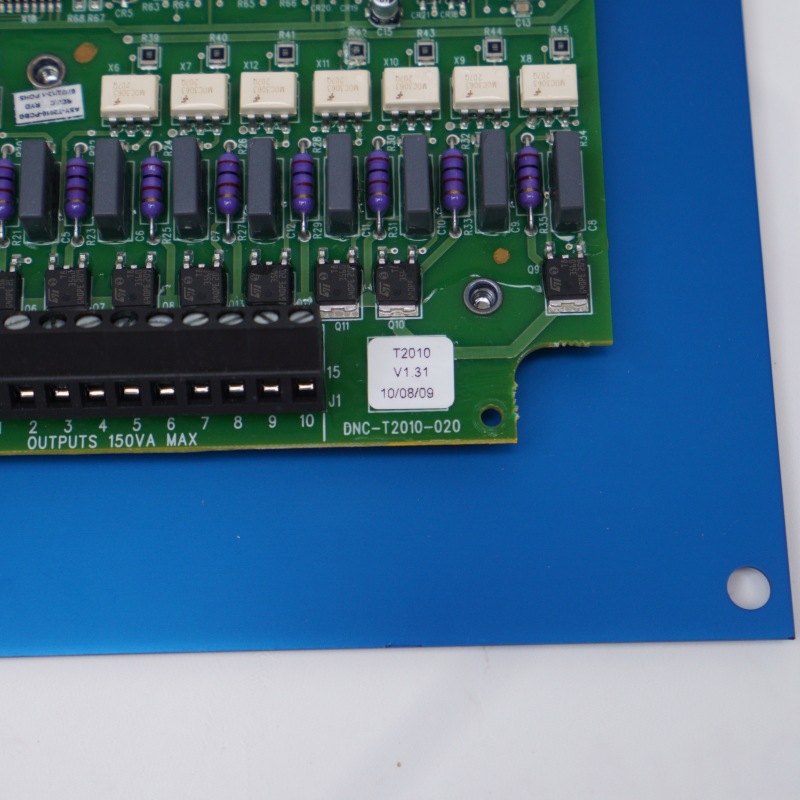

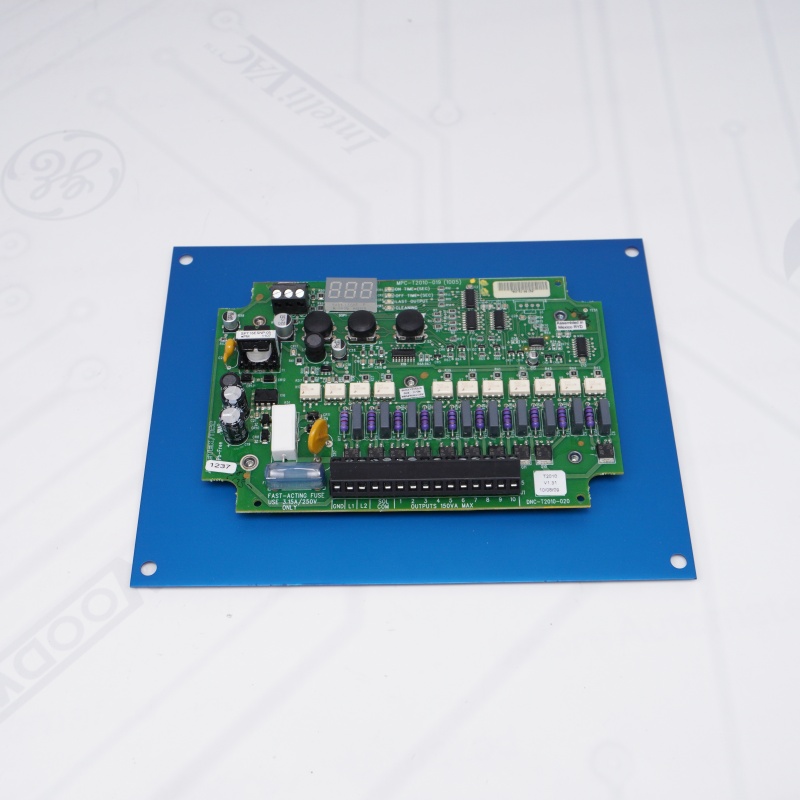

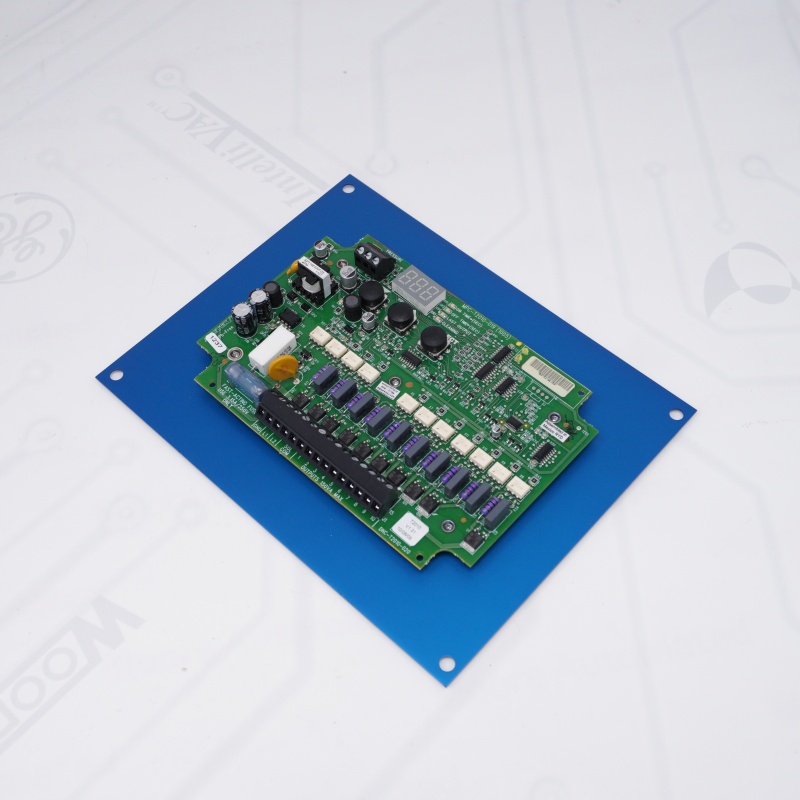

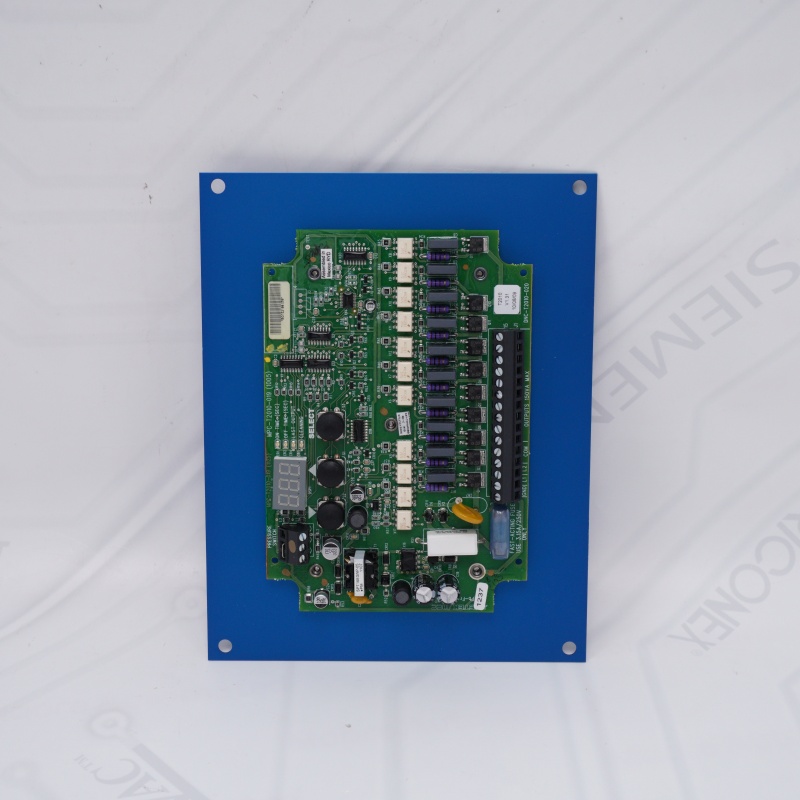

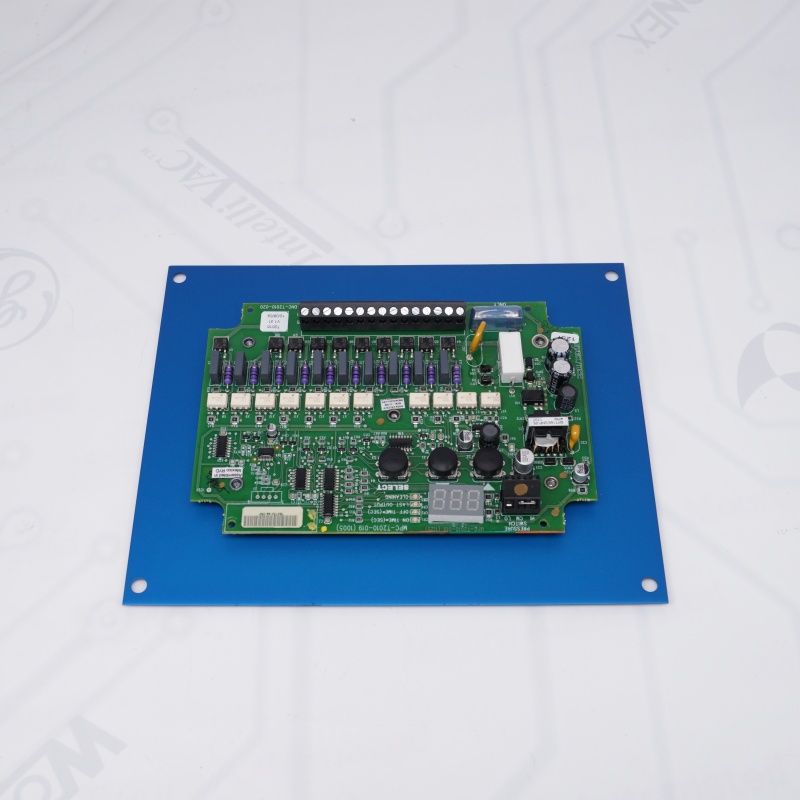

AMETEK solid-state sequencer Images
AMETEK solid-state sequencer
DNC-T2010-020 solid-state sequencer
AMETEK solid-state sequencer
DNC-T2010-020 solid-state sequencer
4
DNC-T2010-020 solid-state sequencer Application
Industrial Dust Collectors: Primary control unit for managing pulse-jet cleaning in baghouses and cartridge filters.
Pneumatic Conveying Systems: Used to regulate air pulses for clearing material blockages or maintaining flow in transport lines.
Cement & Mining: Controls heavy-duty filtration systems in high-dust environments like rock crushing and cement processing.
Grain & Agriculture: Manages dust suppression systems in grain elevators, silos, and milling facilities to prevent combustible dust hazards.
Woodworking & Textiles: Operates exhaust systems for collecting sawdust, wood chips, or fabric fibers.
Chemical Processing: Provides precise pulse timing for specialized air filtration in chemical and pharmaceutical manufacturing.
5
DNC-T2010-020 solid-state sequencer FAQ
1. Does the AMETEK DNC-T2010-020 require hardware jumpers to switch between 120VAC and 240VAC?
No. The AMETEK DNC-T2010-020 is engineered with a universal auto-sensing power supply. It automatically accepts any input voltage ranging from 95 to 265 VAC at 50/60 Hz, eliminating the risk of internal damage caused by incorrect voltage jumper settings.
No. The AMETEK DNC-T2010-020 is engineered with a universal auto-sensing power supply. It automatically accepts any input voltage ranging from 95 to 265 VAC at 50/60 Hz, eliminating the risk of internal damage caused by incorrect voltage jumper settings.
2. How does the AMETEK DNC-T2010-020 facilitate "On-Demand" cleaning versus "Continuous" cleaning?
The AMETEK DNC-T2010-020 features dedicated input terminals for an external pressure switch. When the switch contacts close (indicating high differential pressure), the cleaning cycle initiates. If these terminals are shorted with a jumper wire, the AMETEK DNC-T2010-020 will operate in Continuous mode, cycling indefinitely while powered.
The AMETEK DNC-T2010-020 features dedicated input terminals for an external pressure switch. When the switch contacts close (indicating high differential pressure), the cleaning cycle initiates. If these terminals are shorted with a jumper wire, the AMETEK DNC-T2010-020 will operate in Continuous mode, cycling indefinitely while powered.
3. Can I configure the AMETEK DNC-T2010-020 to operate a system with only 4 or 6 solenoid valves?
Yes. While the AMETEK DNC-T2010-020 has a maximum capacity of 10 outputs, the "Last Output" parameter is fully programmable via the keypad. By setting the last output to the specific number of valves in use, the AMETEK DNC-T2010-020 will immediately reset to the first channel after the final active valve fires, avoiding "blank" cycles.
Yes. While the AMETEK DNC-T2010-020 has a maximum capacity of 10 outputs, the "Last Output" parameter is fully programmable via the keypad. By setting the last output to the specific number of valves in use, the AMETEK DNC-T2010-020 will immediately reset to the first channel after the final active valve fires, avoiding "blank" cycles.
4. What safeguards does the AMETEK DNC-T2010-020 provide against harsh industrial environments?
The AMETEK DNC-T2010-020 circuit board is treated with a rugged RTV conformal coating. This protective layer ensures that the AMETEK DNC-T2010-020 remains resistant to moisture, corrosion, and mechanical vibration, which are common in baghouse and dust collection applications.
The AMETEK DNC-T2010-020 circuit board is treated with a rugged RTV conformal coating. This protective layer ensures that the AMETEK DNC-T2010-020 remains resistant to moisture, corrosion, and mechanical vibration, which are common in baghouse and dust collection applications.
5. Will the AMETEK DNC-T2010-020 lose its timing settings if the facility experiences a power outage?
No. The AMETEK DNC-T2010-020 utilizes non-volatile memory to store all user-programmed logic, including On-Time and Off-Time intervals. Even during prolonged power loss, the AMETEK DNC-T2010-020 retains its configuration without requiring a battery backup.
No. The AMETEK DNC-T2010-020 utilizes non-volatile memory to store all user-programmed logic, including On-Time and Off-Time intervals. Even during prolonged power loss, the AMETEK DNC-T2010-020 retains its configuration without requiring a battery backup.
6. What is the proper procedure for mounting the AMETEK DNC-T2010-020 in an outdoor environment?
The AMETEK DNC-T2010-020 is supplied on an open metal chassis intended for sub-panel mounting. For outdoor or wash-down environments, the AMETEK DNC-T2010-020 must be installed inside a NEMA 4 or NEMA 4X rated enclosure to protect the digital display and terminal strips from direct exposure to the elements.
The AMETEK DNC-T2010-020 is supplied on an open metal chassis intended for sub-panel mounting. For outdoor or wash-down environments, the AMETEK DNC-T2010-020 must be installed inside a NEMA 4 or NEMA 4X rated enclosure to protect the digital display and terminal strips from direct exposure to the elements.
