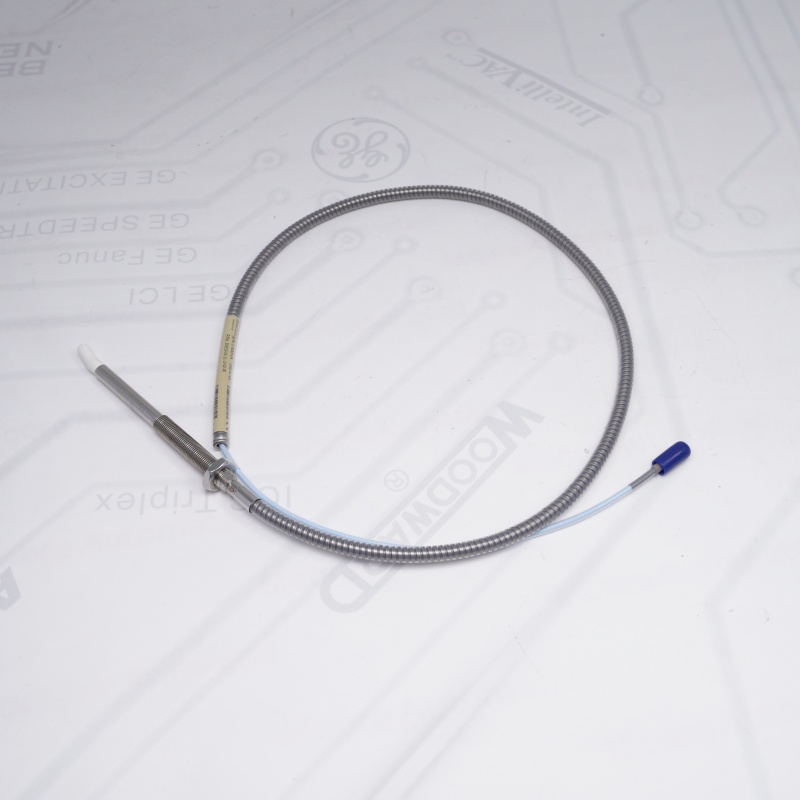

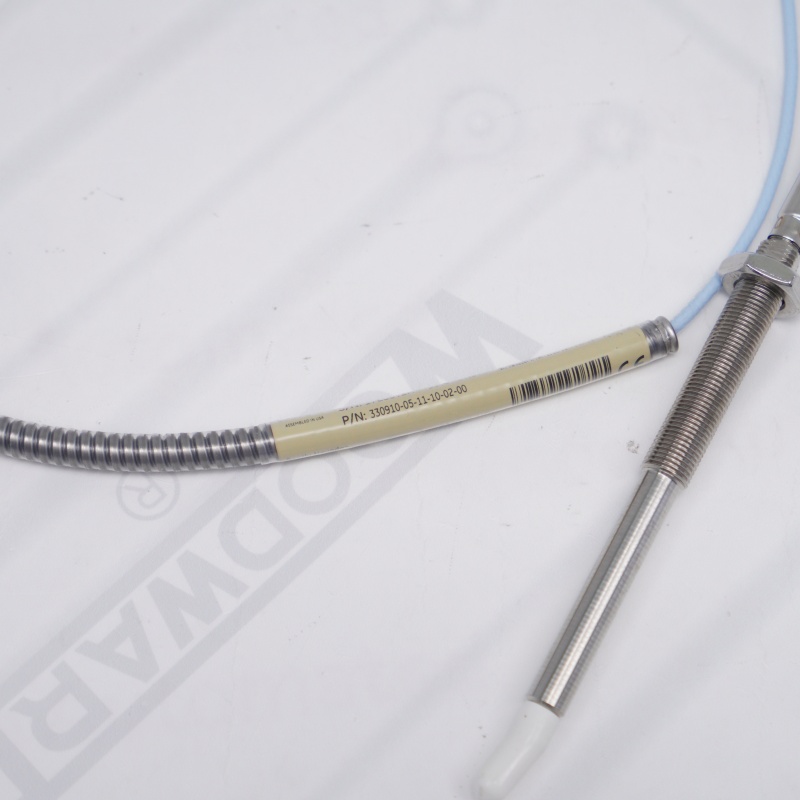

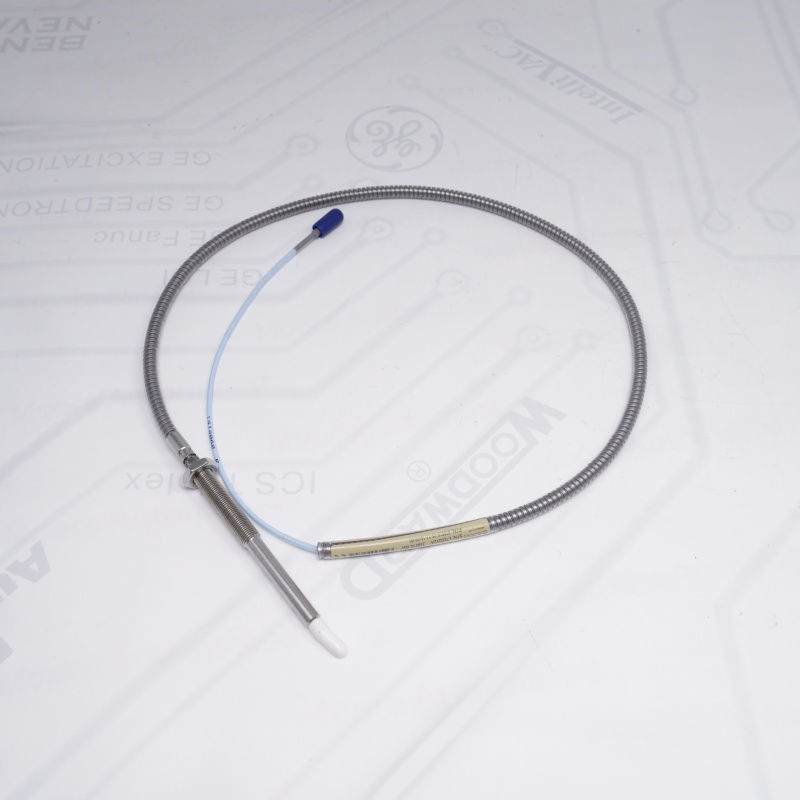

330910-05-11-10-02-00 3300 NSv Probe Features
1
Space-Saving Design
Part of the Narrow Side View (NSv) series, the 330910-05-11-10-02-00 BENTLY NEVADA is optimized for tight spaces, small targets, and small shaft diameters.
2
Heavy-Duty Protection
This specific 330910-05-11-10-02-00 BENTLY NEVADA model is equipped with an integrated stainless steel armor to shield the cable from mechanical damage.
3
High Pull Strength
Built with a CableLoc design, the 330910-05-11-10-02-00 BENTLY NEVADA provides up to 220 N (50 lb) of pull strength between the cable and the probe body.
4
Standard Metric Threads
Designed for straightforward physical installation, this 330910-05-11-10-02-00 BENTLY NEVADA probe uses a metric M10x1 thread configuration.
If you want to more details about 330910-05-11-10-02-00 3300 NSv Probe，please contact me without hesitation.Email：sales@sparecenter.com

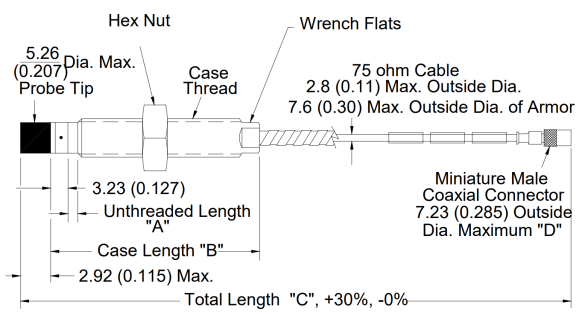

330910-05-11-10-02-00 3300 NSv Probe Technical Data
 | Base Model (330910): 3300 NSv Metric Probe, with stainless steel armor, threaded M10 × 1. Unthreaded Length (Option 05): 50 mm Overall Case Length (Option 11): 110 mm. Total Probe Cable Length (Option 10): 1.0 metre (39 inches). Connector & Cable Type (Option 02): Miniature coaxial ClickLoc connector, standard cable (without connector protector). Agency Approval (Option 00): Not required. |
The Power Of The Spare Center
Massive Stock: Large regional inventory of rare and current industrial automation parts.
Global Shipping: Same-day dispatch via major couriers (DHL, FedEx, UPS).
Guaranteed Quality: 100% genuine products backed by full testing and warranty.
Technical Support: Multilingual product support for seamless cross-border ordering.
Premium Brands: Authorized supply for major lines like Bently Nevada and ABB.
BENTLY NEVADA 3300 NSv Probe FAQ
Q1: What is the exact configuration of the 330910-05-11-10-02-00 probe?
A1: The BENTLY NEVADA 3300 NSv Probe is a Bently Nevada 3300 XL NSv (Narrow Side View) eddy current probe. This specific part number means it has metric M10x1 threads, built-in stainless steel cable armor, a 50mm unthreaded length, a 110mm total case length, a 1.0-meter cable, a standard ClickLoc connector, and no unneeded agency approvals.
A1: The BENTLY NEVADA 3300 NSv Probe is a Bently Nevada 3300 XL NSv (Narrow Side View) eddy current probe. This specific part number means it has metric M10x1 threads, built-in stainless steel cable armor, a 50mm unthreaded length, a 110mm total case length, a 1.0-meter cable, a standard ClickLoc connector, and no unneeded agency approvals.
Q2: What are the target size and shaft diameter limits for the 330910-05-11-10-02-00?
A2: Because space is restricted, the BENTLY NEVADA 3300 NSv Probe handles small measurement areas. It works perfectly for checking radial vibration on shafts down to 30 mm in diameter, or tracking axial position on flat target surfaces down to 13 mm.
A2: Because space is restricted, the BENTLY NEVADA 3300 NSv Probe handles small measurement areas. It works perfectly for checking radial vibration on shafts down to 30 mm in diameter, or tracking axial position on flat target surfaces down to 13 mm.
Q3: What are the main measurement specs for the 330910-05-11-10-02-00?
A3: The BENTLY NEVADA 3300 NSv Probe delivers a tight linear range of 1.5 mm (60 mils). It outputs a standard scale factor of 7.87 V/mm (200 mV/mil), features a core electrical resistance of 4.2 ± 0.5 ohms, and operates best with a 1.0 mm (40 mils) installation gap.
A3: The BENTLY NEVADA 3300 NSv Probe delivers a tight linear range of 1.5 mm (60 mils). It outputs a standard scale factor of 7.87 V/mm (200 mV/mil), features a core electrical resistance of 4.2 ± 0.5 ohms, and operates best with a 1.0 mm (40 mils) installation gap.
Q4: Which system parts must I order to match the 330910-05-11-10-02-00?
A4: To build a working loop, the BENTLY NEVADA 3300 NSv Probe must connect to a 3300 NSv extension cable and a 3300 XL NSv Proximitor. Since this probe cable is 1.0 meter long, pair it with a 4.0m or 6.0m cable to hit the standard 5.0m or 7.0m system lengths.
A4: To build a working loop, the BENTLY NEVADA 3300 NSv Probe must connect to a 3300 NSv extension cable and a 3300 XL NSv Proximitor. Since this probe cable is 1.0 meter long, pair it with a 4.0m or 6.0m cable to hit the standard 5.0m or 7.0m system lengths.
Q5: What are the installation torque and temperature limits for the 330910-05-11-10-02-00?
A5: Tighten the M10x1 housing of the BENTLY NEVADA 3300 NSv Probe to a recommended 11.3 N·m (100 in·lb), keeping it strictly below the 33.9 N·m maximum limit. The probe tip safely withstands extreme temperatures ranging from -52°C to +177°C.
A5: Tighten the M10x1 housing of the BENTLY NEVADA 3300 NSv Probe to a recommended 11.3 N·m (100 in·lb), keeping it strictly below the 33.9 N·m maximum limit. The probe tip safely withstands extreme temperatures ranging from -52°C to +177°C.
