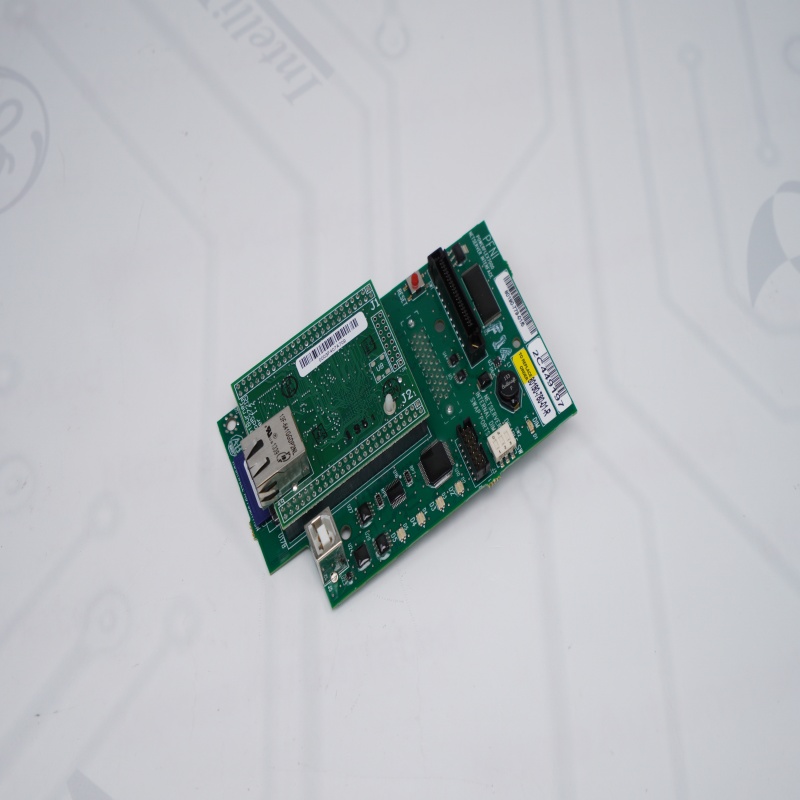

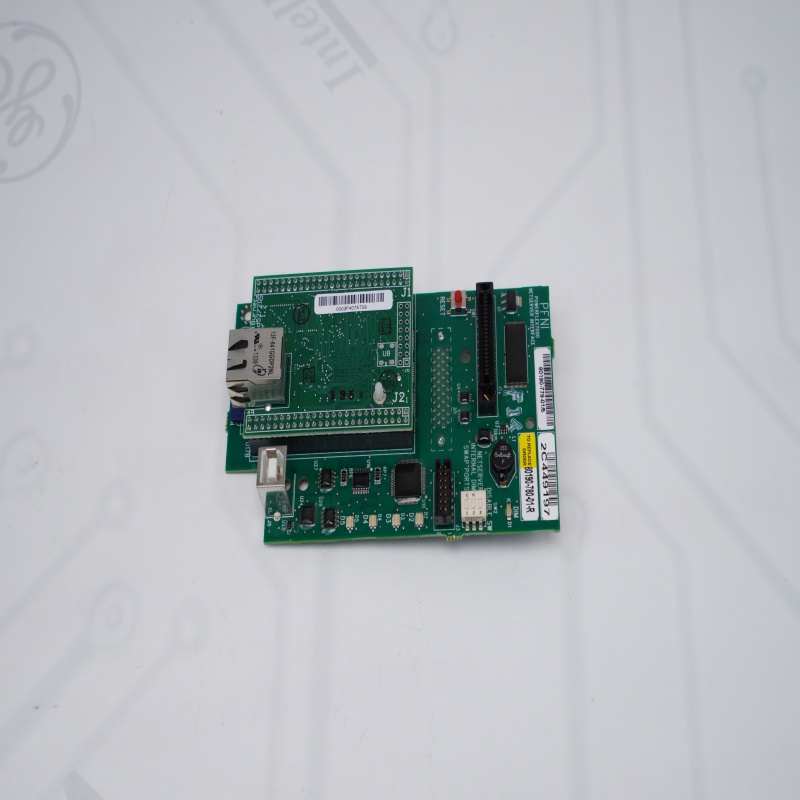

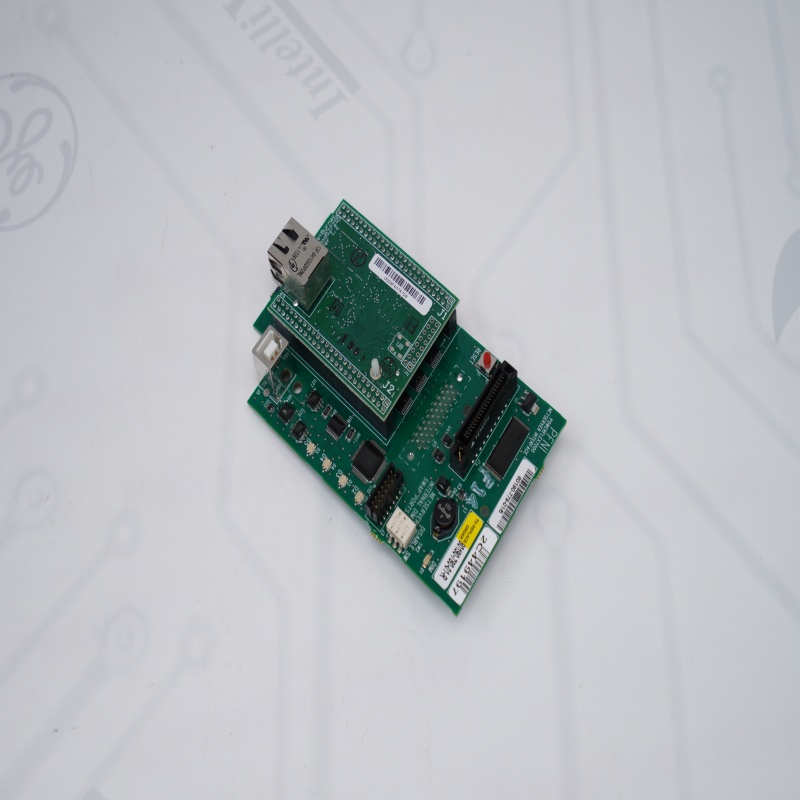

Allen Bradley 80190-780-01-R HMI Interface Board

  • Allen Bradley
  • USA
  • 2024
  • In Stock
The part number 80190-780-01-R(80190-780-01-R HMI Interface Board) refers to an Allen-Bradley HMI Interface Board (also known as a Netserver Interface Board) primarily used with PowerFlex 7000 ForGe medium voltage drives. Allen Bradley 80190-780-01-R connects to the Drive Processor Module (DPM) and is a critical component for the drive's control platform and operator interface.
Annex

1

Allen Bradley 80190-780-01-R Specification


ManufacturerAllen-Bradley
Product NameHMI Interface Assembly
CompatibilityPowerFlex 7000 "ForGe" Medium Voltage Drives
Primary InterfaceDPM (Drive Processor Module) Connection
Network ProtocolsEtherNet/IP, TCP/IP, FTP (Ports 20/21), HTTP (Port 80), CIP (Port 44818)
Hardware Ports1x RJ45 Ethernet Port, 1x USB Port, 1x SD Card Socket
On-board StorageDIM (Drive Identity Module) Socket
DIP Switch (SW2)Port Swapping (Port 0 Diagnostic vs. Runtime), IP Configuration
Lifecycle StatusDiscontinued
Product Number80190-780-01-R


2

Allen Bradley 80190-780-01-R Details


Allen Bradley 80190-780-01-R Description : The part number 80190-780-01-R refers to an Allen-Bradley HMI Interface Board (also known as a Netserver Interface Board) primarily used with PowerFlex 7000 ForGe medium voltage drives. This board connects to the Drive Processor Module (DPM) and is a critical component for the drive's control platform and operator interface.


Allen Bradley 80190-780-01-R Features:

Communication Gateway: Allen Bradley HMI Interface Board acts as the primary bridge between the Drive Processor Module (DPM) and external networks or HMIs.

Dual-Mode Ethernet: Physical DIP switches allow toggling between standard "Runtime" and "Diagnostic" modes for firmware flashing.

Firmware Management: Mandatory hardware for performing system-wide updates via the Rockwell Software Updater utility.

Advanced Storage: Allen Bradley HMI Interface Board features an SD card slot for storing drive parameters, fault logs, and web server files.

High Reliability: Allen Bradley HMI Interface Board is designed for harsh industrial environments with high EMI resistance specifically for Medium Voltage applications.


Allen Bradley 80190-780-01-R Application:

Heavy Industry Control: Allen Bradley HMI Interface Board is used in Oil & Gas, Mining, Power Generation, and Water Treatment for high-power motor control.

Drive Networking: Allen Bradley HMI Interface Board integrates PowerFlex 7000 drives into plant-wide EtherNet/IP control architectures.

Operator Interface Support: Allen Bradley HMI Interface Board provides the communication backbone for door-mounted touchscreen HMI panels.

Maintenance & Retrofit: Allen Bradley HMI Interface Board is essential for drive commissioning, firmware upgrades, and parameter backup/recovery.


3

Allen Bradley 80190-780-01-R Images


Allen Bradley 80190-780-01-R

80190-780-01-R HMI Interface Board

80190-780-01-R

80190-780-01-R HMI Interface Board

80190-780-01-R HMI Interface Board

80190-780-01-R HMI Interface Board

Allen Bradley 80190-780-01-R

80190-780-01-R HMI Interface Board


4

80190-780-01-R HMI Interface Board FAQ


Q: What is the primary function of the Allen-Bradley 80190-780-01-R within a drive system?
A: The 80190-780-01-R serves as the critical HMI Interface and PowerFlex Network Interface (PFNI) assembly, bridging communication between the Drive Processor Module (DPM) and the operator interface or external Ethernet networks in PowerFlex 7000 drives.
Q: Which drive platforms are compatible with the 80190-780-01-R interface board?
A: The 80190-780-01-R is specifically designed for the Allen-Bradley PowerFlex 7000 "ForGe" (Force-Guided) Medium Voltage AC drive platform and is not backward compatible with older non-ForGe control architectures.
Q: Is the 80190-780-01-R required for performing firmware updates?
A: Yes, the 80190-780-01-R is the mandatory gateway for executing system-wide firmware flashes; the drive’s control software can only be updated by connecting a PC to the Ethernet port on this specific assembly while in diagnostic mode.
Q: How do I configure the IP address or diagnostic mode on the 80190-780-01-R?
A: Configuration of the 80190-780-01-R is managed via the onboard SW2 DIP switches, which allow technicians to toggle between static/DHCP IP settings and switch the Ethernet port functionality from Runtime to Diagnostic mode.
Q: How can I acquire a replacement since the 80190-780-01-R is a discontinued legacy item?
A: Although the 80190-780-01-R is no longer in active production by the OEM, you can purchase this unit directly from us; we specialize in providing high-quality, reliable legacy industrial hardware to ensure your operations continue without downtime.
Q: Does the 80190-780-01-R store drive-specific configuration parameters?
A: While the board facilitates data transfer, the actual drive identity and parameters are stored in a Drive Identity Module (DIM) which is plugged into a dedicated socket located directly on the 80190-780-01-R PCB.
Q: What are the meanings of the LED status indicators on the 80190-780-01-R?
A: The LEDs on the 80190-780-01-R provide real-time diagnostics: the Module Status (MS) LED indicates the health of the interface processor, while the Network Status (NS) LED reflects the connectivity state of the EtherNet/IP link.
Q: Can the SD card slot on the 80190-780-01-R be used for troubleshooting?
A: Yes, the SD card slot on the 80190-780-01-R is used to host the drive's internal web pages and can be utilized to capture fault logs and event records for deep-level system troubleshooting.


5
