Case Study Allen Bradley 1785-ME32
Remote Unmanned Water Booster Station (SCADA Integration) of 1785-ME32 memory module
Project Context: A municipal water authority deployed an unmanned water pressure management station on a mountain 50 miles outside the city, utilizing an Allen-Bradley PLC-5/20 controller.
The Engineering Challenge: The mountain site suffered from frequent lightning strikes, brownouts, and severe electromagnetic interference. If the PLC’s internal backup lithium battery drained unnoticed, a sudden power failure would wipe the volatile RAM completely clean. Sending an engineer to drive out and re-flash the logic via a laptop took hours, causing localized water outages.
The 1785-ME32(Allen Bradley 1785-ME32) Solution: Engineers used RSLogix 5 software to burn the finalized pump control and PID loops (approx. 18K words) onto the 1785-ME32 memory module cartridge. They toggled the PLC processor's chassis DIP switches to "Load on Memory Error".
1785-ME32 memory module Project Outcome: During a severe storm, a nearby lightning strike corrupted the PLC's running RAM data. Upon automatic reboot, the PLC detected a checksum error and instantly copied the backup program from the 1785-ME32(Allen Bradley 1785-ME32) to the RAM within milliseconds. The station resumed autonomous operations seamlessly, eliminating emergency service calls.
Automotive Paint Shop (Multi-Line Standardization & Cloning) of 1785-ME32 memory module
Project Context: An automotive manufacturing plant expanded its facility and required four identical skid-conveyor positioning lines to be commissioned simultaneously. Each line ran on a dedicated PLC-5/30 processor.
The Engineering Challenge: Connecting a laptop via Data Highway Plus (DH+) or ControlNet to download, configure, and verify the network node addresses on four individual PLCs sequentially was slow and highly prone to human error (e.g., misconfigured communication bits).
The 1785-ME32(Allen Bradley 1785-ME32) Solution:
The commissioning team thoroughly debugged, tuned, and optimized the logic on Line 1.
They saved and burned this master program directly into a 1785-ME32 EEPROM module.
They duplicated this master card onto three additional 1785-ME32 modules using a benchtop EEPROM programmer.
1785-ME32 memory module Project Outcome: Field technicians plugged the three duplicate modules into the processors of Lines 2, 3, and 4, setting the DIP switches to "Load on Power Up". When the panels were energized, the PLCs cloned their logic directly from the hardware. This eliminated 75% of onsite programming time and guaranteed 100% code consistency across all lines.
Allen Bradley 1785-ME32(1785-ME32 memory module) FAQ
Q1: What is the primary function of the Allen-Bradley 1785-ME32(Allen Bradley 1785-ME32) module in a PLC-5 system?
A: The 1785-ME32(Allen Bradley 1785-ME32) is a 32K-word Electrically Erasable Programmable Read-Only Memory (EEPROM) module. Its primary function is to provide non-volatile backup storage for the PLC-5 processor's user program, configuration data, and bit/integer tables. By utilizing the 1785-ME32(Allen Bradley 1785-ME32), the control system can automatically recover its logic during a total power failure or if the processor's backup lithium battery drains completely.
Q2: Which specific Allen-Bradley PLC-5 processors are fully compatible with the 1785-ME32 memory cartridge?
A: The 1785-ME32 Allen Bradley is compatible with classic and enhanced PLC-5 processors that support external EEPROM expansion. This includes standard models such as the PLC-5/11, PLC-5/20, PLC-5/30, PLC-5/40, and PLC-5/60. However, when using the 1785-ME32 Allen Bradley, the total user memory allocation of the processor logic must not exceed the module's maximum storage boundary of 32,768 (32K) words.
Q3: How do I burn or transfer a ladder logic program from RSLogix 5 into the 1785-ME32 module?
A: To transfer data to the 1785-ME32 Allen Bradley, go online with the PLC-5 processor using RSLogix 5 programming software. Put the processor into Remote Program mode, navigate to the processor status file, access the "Memory Module" tab, and execute the "Store to EEPROM" command. This flashes the current active RAM image directly onto the plugged-in 1785-ME32 Allen Bradley(Allen Bradley memory module) cartridge.
Q4: Can the 1785-ME32 module be inserted or removed while the PLC-5 chassis is powered on?

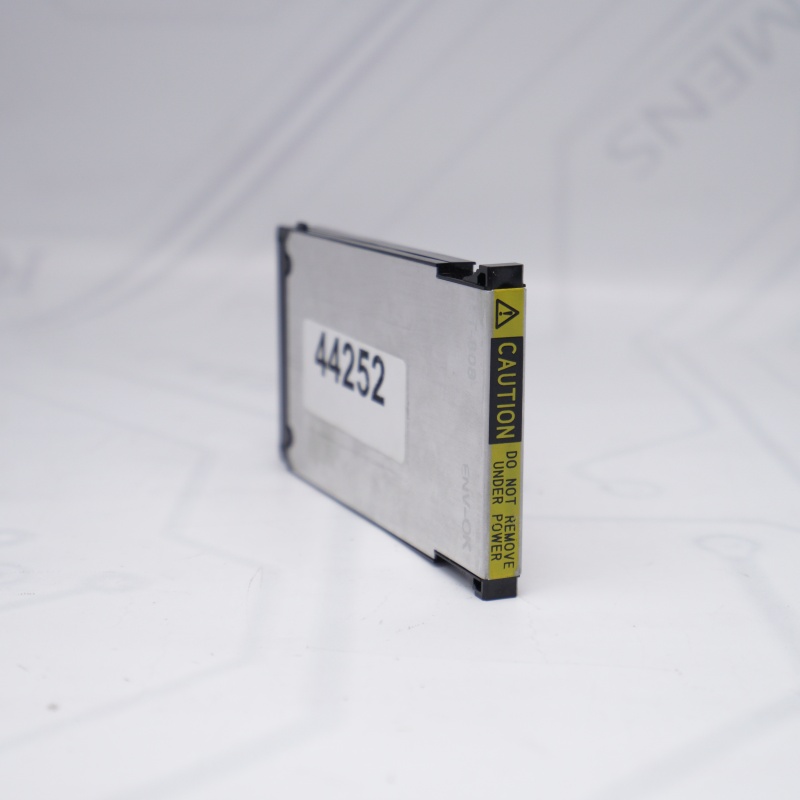

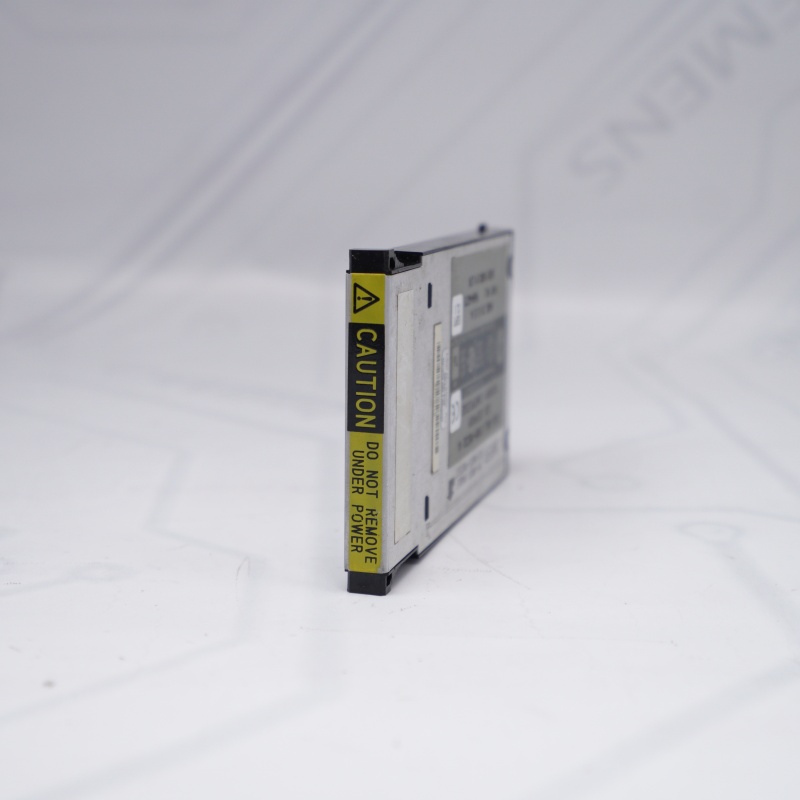

A: No. The 1785-ME32 memory module does not support Hot-Swapping or Insertion and Removal Under Power (RIUP). You must completely shut down the 1771 power supply to the PLC chassis before inserting or extracting the 1785-ME32 Allen Bradley(1785-ME32 memory module) module. Failure to cut the power can result in permanent component damage to the processor’s memory bus or corruption of the data inside the 1785-ME32 memory module.
Q5: How do I configure the PLC-5 processor to automatically boot from the 1785-ME32 memory module upon a power loss?
A: Automatic backup loading is managed via hardware configurations. You must configure the physical DIP switches on the PLC-5 processor chassis backplane. Setting these switches tells the CPU whether to load the program from the Allen Bradley memory module only when a RAM checksum error is detected ("Load on Memory Error"), or to overwrite the RAM with the firmware image inside the 1785-ME32 memory module during every single boot cycle ("Load on Power Up").
Q6: Does the 1785-ME32 feature physical write-protection to prevent accidental overwriting of the backup?

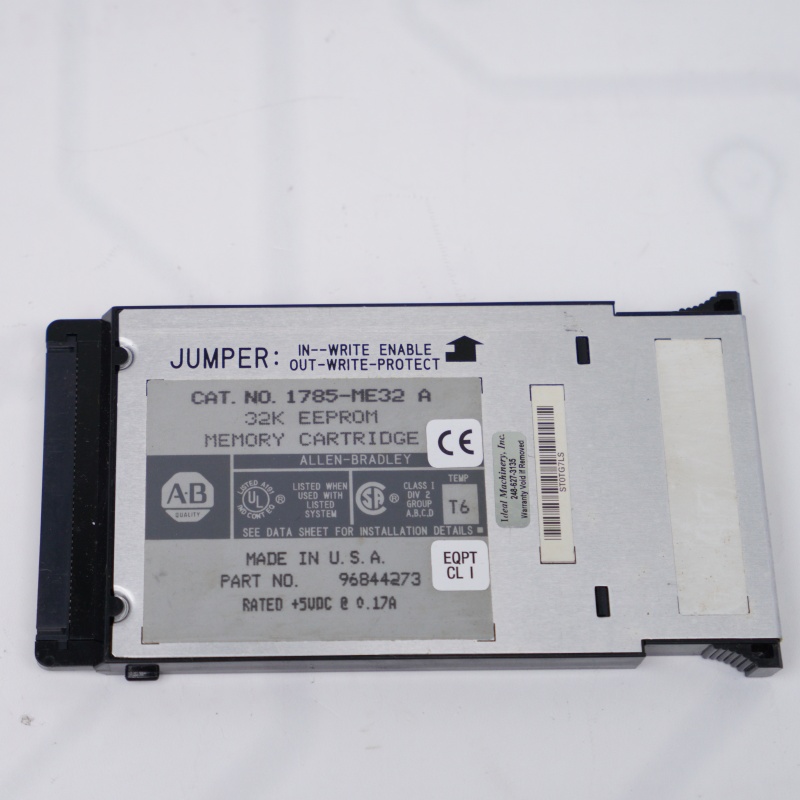

A: Yes, the Allen Bradley 1785-ME32 includes a hardware write-protect mechanism via an onboard physical jumper or circuit path. When this jumper is placed into the "Protect" position, the processor cannot execute any write commands to modify the EEPROM. This creates a physical air-gap that ensures the validated safety code inside the Allen Bradley memory module cannot be altered via network online edits or unauthorized remote software access.
Q7: What is the current lifecycle status of the 1785-ME32, and how can it be sourced today?
A: Rockwell Automation officially classified the Allen Bradley memory module2 as Discontinued and Obsolete. Because it is no longer available as factory-new from the OEM, you can contact our Spare Center to purchase fully tested, certified, and warranted replacement parts to keep your legacy equipment running smoothly. Please reach out to our team with your required quantities for a formal quote on the Allen Bradley memory module.
1785-ME32 Allen Bradley Images

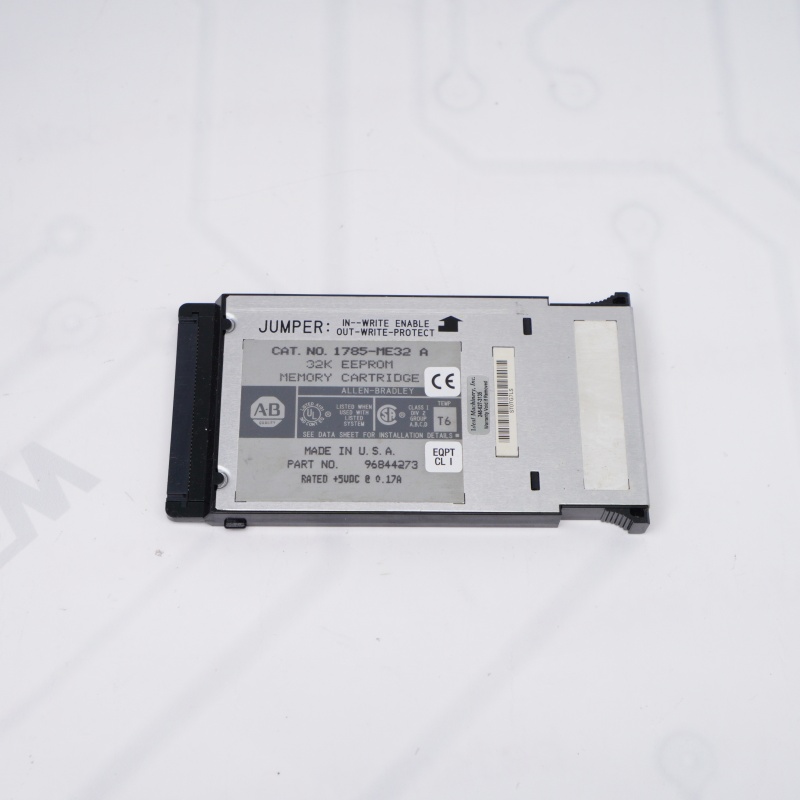

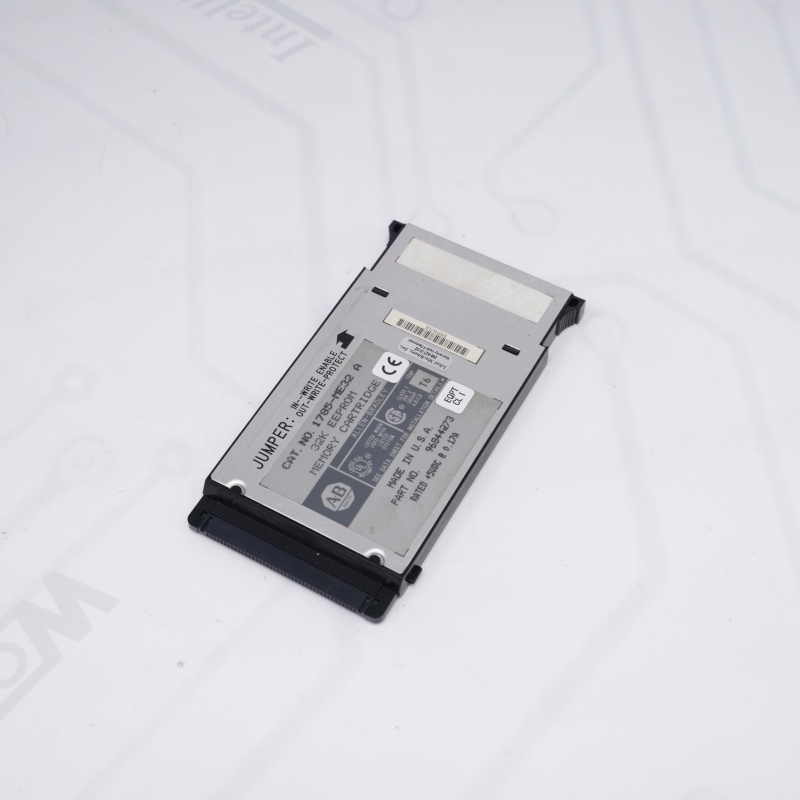

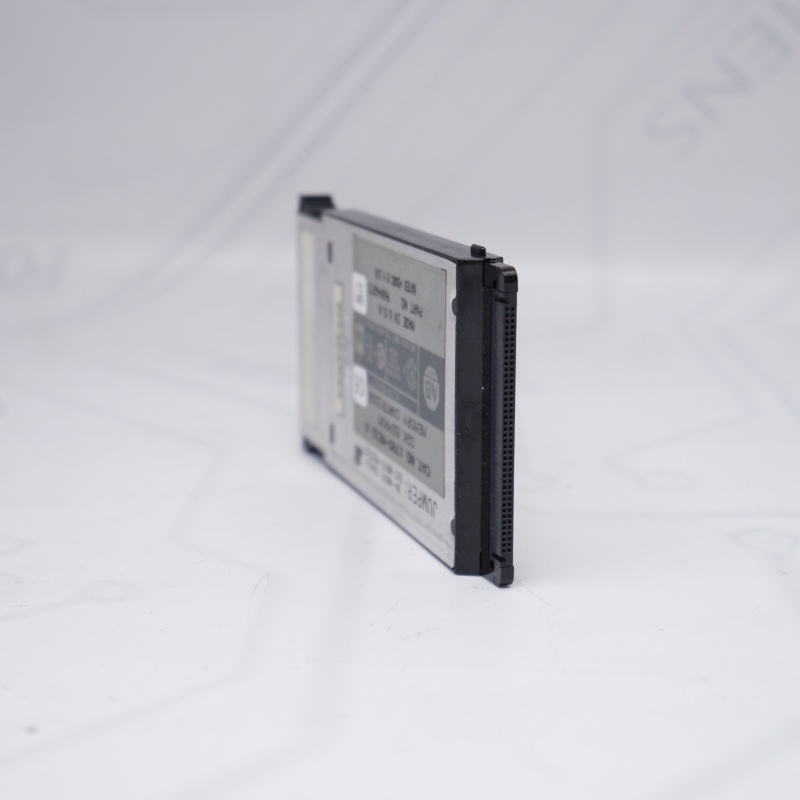

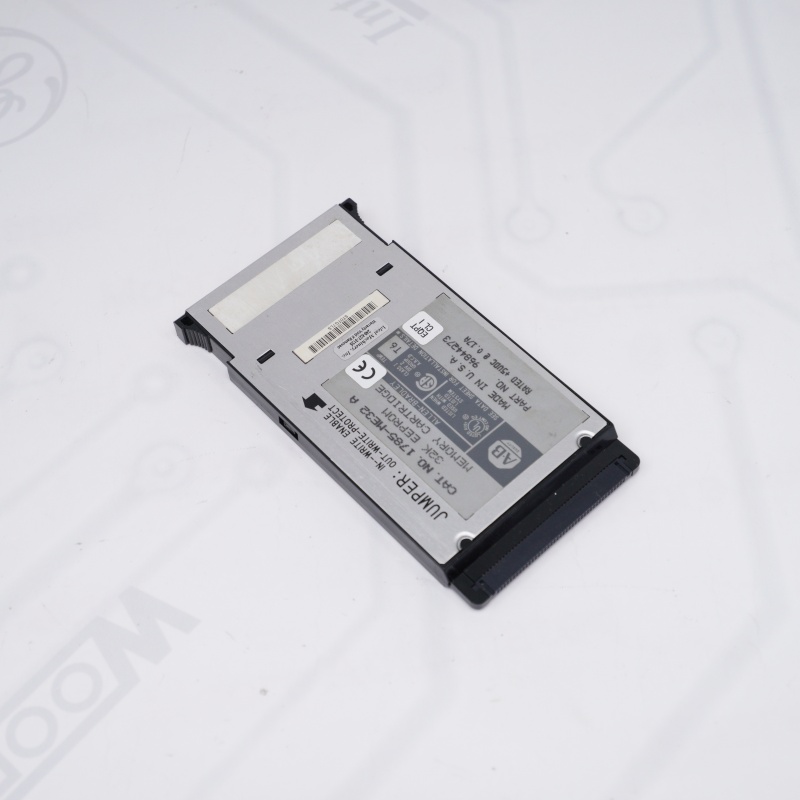

1785-ME32 Allen Bradley(Allen Bradley memory module)
1785-ME32 Allen Bradley(Allen Bradley memory module)
1785-ME32 Allen Bradley(Allen Bradley memory module)
1785-ME32 Allen Bradley(Allen Bradley memory module)
