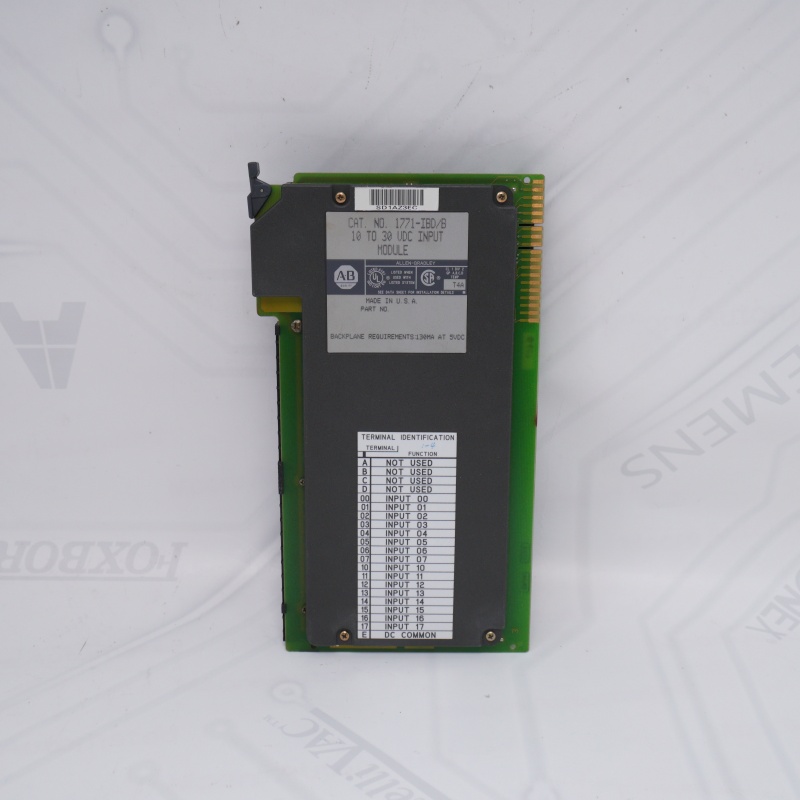

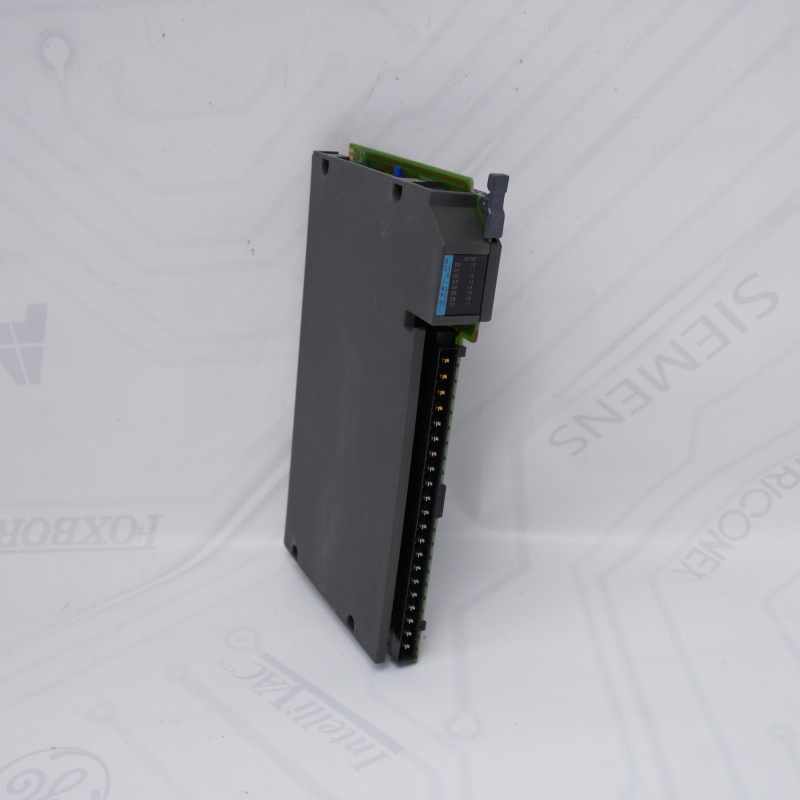

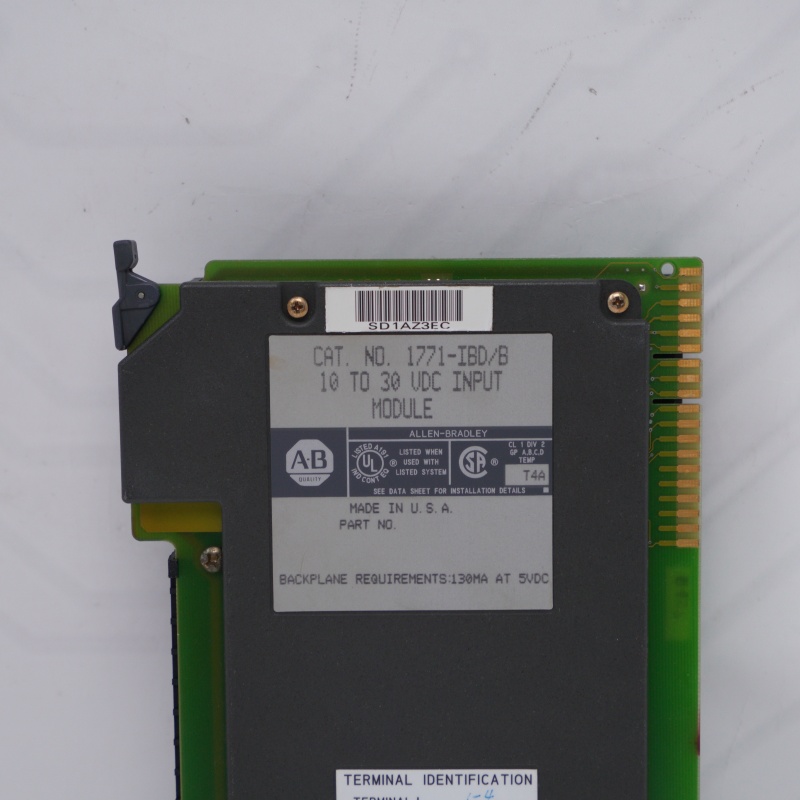

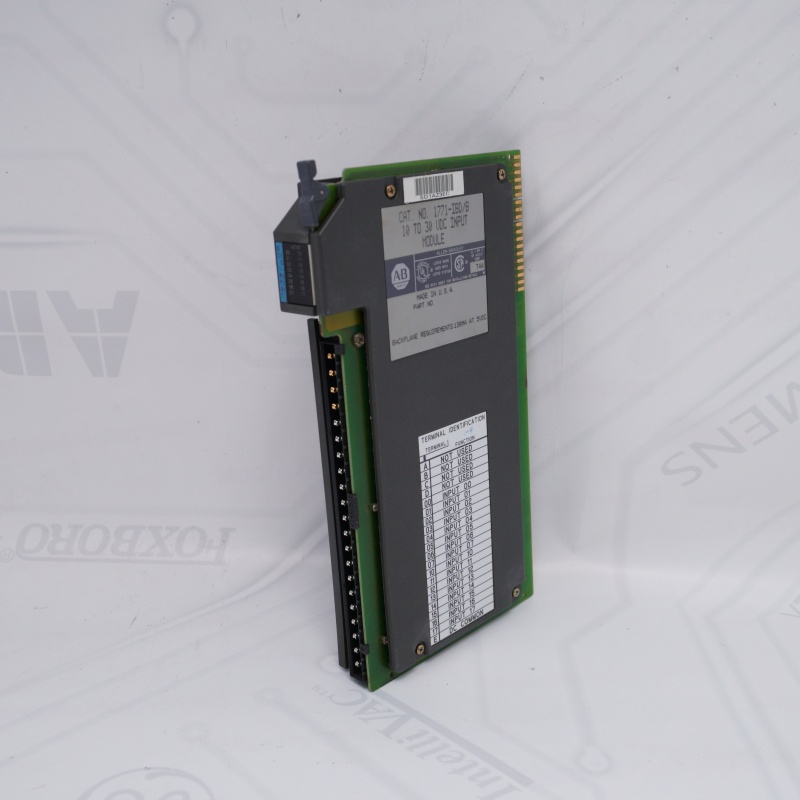

Allen Bradley 1771-IBD-B input module

Module Type: Digital DC Input Module

Number of Inputs: 16

Voltage Category: 10 to 30V DC

Input Type: Sink (Source Load)

Backplane Current: 130 mA

Power Dissipation: 6.0 Watts (Maximum)

Thermal Dissipation: 20.5 BTU/hr (Maximum)

Off-State Current: 1.7 mA (Maximum)

Signal Delay (Standard): 1.3 ms (Typical)

Selectable Filter Times: 1 ms or 6 ms

Wiring Arm: 1771-WH

• Discrete Sensors: 1771-IBD-B input module connects 24V DC inductive proximity sensors and photoelectric eyes for component detection on assembly lines.

• Position Monitoring: 1771-IBD-B input module captures status inputs from mechanical limit switches, travel switches, and valve positioners.

• Operator Controls: 1771-IBD-B input module interfaces manual control signals from pushbuttons, emergency stop buttons, and selector switches.

• Process Switches: 1771-IBD-B input module registers binary on/off alerts from float switches, pressure switches, and temperature thermostats.

• Automotive Manufacturing: Allen Bradley input module monitors fixture clamping, robotic cell doors, and conveyor position verification.

• Packaging and Material Handling: Allen Bradley input module executes fast-response tracking for sorting systems, pick-and-place stations, and sorting gates.

• Machine Tooling: Allen Bradley input module tracks safety guard status, spindle locks, and hydraulic pressure feedback in harsh environments.

• High-Noise Environments: Allen Bradley input module utilizes optical isolation to shield internal PLC logic from heavy industrial electrical noise.

• Contact Bounce Filtering: Allen Bradley input module uses selectable 1ms/6ms filters to prevent false signals from mechanical relay contacts.

• Time-Critical Interlocking: Allen Bradley input module leverages a fast 1.3ms response time for rapid machine interlocks and critical safety chains.

• If you want to more details about Allen Bradley 1771-IBD-B，please contact me without hesitate.Email：sales@sparecenter.com

16 Input Channels: Allen Bradley input module provides high-density discrete I/O inside a single chassis slot.

10-30V DC Range: 1771-IBD-B Allen Bradley accommodates standard 24V DC industrial power distribution networks.

Sink Configuration: 1771-IBD-B Allen Bradley pairs directly with source-type (PNP) field devices and sensors.

1.3ms Fast Delay: 1771-IBD-B Allen Bradley delivers rapid signal propagation for time-critical interlocking control.

Selectable Filter Jumper: 1771-IBD-B Allen Bradley toggles between 1ms and 6ms to eliminate contact bounce.

Optocoupler Isolation: 1771-IBD-B Allen Bradley shields backplane logic from high-voltage field spikes and noise.

16 Status LEDs: 1771-IBD-B Allen Bradley displays front-panel visual indicators for instant channel troubleshooting.

1771-WH Swing-Arm: 1771-IBD-B Allen Bradley allows module replacement without disconnecting field control wiring.

Q: What is the primary function of the 1771-IBD-B module?

A: The 1771-IBD-B is a 16-point digital DC input module that converts 10-30V DC discrete signals from field devices into logic-level signals for PLC-5 processors.

Q: Does the 1771-IBD-B support source or sink wiring configurations?

A: The 1771-IBD-B features a sink input configuration, meaning current flows from a sourcing PNP field device into the input terminal.

Q: How do you configure the hardware filter times on the 1771-IBD-B?

A: You must position the onboard jumpers located on the 1771-IBD-B circuit board to select either a 1 ms or 6 ms filter time.

Q: Can the 1771-IBD-B be hot-swapped during system operation?

A: Yes, the 1771-IBD-B supports RIUP (Removal and Insertion Under Power), allowing module replacement without turning off backplane power in non-hazardous locations.

Q: Which wiring arm is required to connect field signals to the 1771-IBD-B?

A: The 1771-IBD-B requires the 1771-WH edge-connector wiring arm to allow module swaps without disconnecting individual field wires.

Q: What do the front-panel status LEDs on the 1771-IBD-B indicate?

A: The 16 red LEDs on the front face of the 1771-IBD-B provide real-time visual verification of the ON or OFF state of each input channel.

Q: What is the maximum off-state leakage current for sensors wired to the 1771-IBD-B?

A: Connected proximity or photoelectric sensors must not exceed a maximum off-state leakage current of 1.7 mA to prevent the 1771-IBD-B from sticking ON.

Q: Is the 1771-IBD-B compatible with all Allen-Bradley 1771 chassis?

A: The 1771-IBD-B is compatible with standard 1771 I/O chassis but cannot be used in obsolete 1771-A1, 1771-A2, or 1771-A4 models.
