Allen Bradley 1746-BTM Specification
Module Type: SLC 500 Barrel Temperature Control Module
Control Loops: 4 Independent PID Loops (Self-Tuning)
Supported Sensors: Thermocouple Type J and Type K
Processor Compatibility: SLC 5/02, 5/03, 5/04, 5/05 (Not compatible with 5/01)
Control Modes: Heat, Cool, Heat/Cool, or Manual
Backplane Current (5V): 110 mA
Backplane Current (24V): 85 mA
Resolution: 16-bit
Update Time: 100 ms (all 4 channels)
Isolation: 500V DC (Channel-to-Channel and Input-to-Backplane)
Operating Temp: 0°C to 60°C (32°F to 140°F)
Data Interface: Uses M0 and M1 files (8 Input / 8 Output Words)
Product Status: Discontinued (Silver Series)
Allen Bradley 1746-BTM Application
- The 1746-BTM is a specialty module engineered primarily for the plastics and rubber processing industries, where precise thermal management is critical to product quality.
Plastic Injection Molding: 1746-BTM Barrel Temperature control Module Controls multiple heating zones along the barrel to ensure consistent resin melt and prevent material degradation.
Extrusion Processes: 1746-BTM Barrel Temperature Control Module manages temperature profiles for extruders used in pipe, profile, and sheet production to maintain dimensional stability.
Blow Molding: 1746-BTM Barrel Temperature Control Module regulates parison or pre-form temperatures to ensure uniform wall thickness in bottles and containers.
Thermoforming: 1746-BTM Barrel Temperature Control Module controls heater banks to provide even heat distribution across plastic sheets before forming.
Packaging Machinery: 1746-BTM Barrel Temperature Control Module is used in high-speed sealing or shrink-wrapping applications that require fast-acting and accurate PID control.
If you want to more details about Allen Bradley 1746-BTM，please contact me without hesitate.Email：sales@sparecenter.com
Allen Bradley 1746-BTM Features
Four Independent Control Loops: 1746-BTM Allen Bradley supports up to four PID loops per module, which can be configured for Heat-only, Cool-only, or Heat/Cool (dual) control.
Built-in PID & Autotuning: 1746-BTM Allen Bradley includes a specialized PID algorithm with an Autotune feature that automatically calculates optimal tuning constants (P, I, and D) for each zone.
Channel-to-Channel Isolation: 1746-BTM Allen Bradley provides 1000V peak isolation between channels, protecting the system from electrical noise and ground loops common in industrial environments.
Advanced Sensor Diagnostics: Automatically detects open thermocouples, reversed leads, or hardware failures, triggering safe state alarms.
Flexible Output Options:
Time Proportioned Output (TPO): Drives digital outputs to control solid-state relays (SSRs).
Analog Control: Can pass control values to analog output modules for continuous modulating valves or SCRs.
Thermocouple Support: 1746-BTM Allen Bradley is compatible with standard Type J and Type K thermocouples with high-resolution 16-bit processing.
Allen Bradley 1746-BTM FAQ
1. What is the primary function of the 1746-BTM module within an SLC 500 system?
The 1746-BTM is a specialized Barrel Temperature Control module designed to provide four loops of high-precision PID temperature control. 1746-BTM Allen Bradley is specifically optimized for applications with high thermal inertia, such as plastic injection molding and extrusion, allowing the 1746-BTM(AB Barrel Temperature Control Module) to manage complex heating and cooling cycles independently of the PLC processor's scan time.
The 1746-BTM is a specialized Barrel Temperature Control module designed to provide four loops of high-precision PID temperature control. 1746-BTM Allen Bradley is specifically optimized for applications with high thermal inertia, such as plastic injection molding and extrusion, allowing the 1746-BTM(AB Barrel Temperature Control Module) to manage complex heating and cooling cycles independently of the PLC processor's scan time.
2. Which thermocouple types are supported by the 1746-BTM?
The 1746-BTM supports Type J and Type K thermocouples. 1746-BTM Allen Bradley features built-in cold-junction compensation and lead-breakage detection. Users can configure the 1746-BTM to report temperature data in either Celsius (°C) or Fahrenheit (°F) through the module’s configuration software.
The 1746-BTM supports Type J and Type K thermocouples. 1746-BTM Allen Bradley features built-in cold-junction compensation and lead-breakage detection. Users can configure the 1746-BTM to report temperature data in either Celsius (°C) or Fahrenheit (°F) through the module’s configuration software.
3. Does the 1746-BTM require manual PID tuning?
While manual tuning is possible, the 1746-BTM(AB Barrel Temperature Control Module) features an integrated Autotune algorithm. 1746-BTM Allen Bradley allows the 1746-BTM to automatically calculate the proportional, integral, and derivative gains by observing the thermal response of the barrel, significantly reducing setup time and improving control accuracy.
While manual tuning is possible, the 1746-BTM(AB Barrel Temperature Control Module) features an integrated Autotune algorithm. 1746-BTM Allen Bradley allows the 1746-BTM to automatically calculate the proportional, integral, and derivative gains by observing the thermal response of the barrel, significantly reducing setup time and improving control accuracy.
4. How does the 1746-BTM communicate with the SLC 500 processor?
The 1746-BTM communicates using M0 and M1 files. The SLC 500 processor transfers configuration data and setpoints to the 1746-BTM(AB Barrel Temperature Control Module) via the M0 file, while the 1746-BTM sends back status words, process variables (actual temperatures), and error codes via the M1 file.
The 1746-BTM communicates using M0 and M1 files. The SLC 500 processor transfers configuration data and setpoints to the 1746-BTM(AB Barrel Temperature Control Module) via the M0 file, while the 1746-BTM sends back status words, process variables (actual temperatures), and error codes via the M1 file.
5. Can the 1746-BTM control both heating and cooling simultaneously?
Yes, each of the four channels on the 1746-BTM(AB Barrel Temperature Control Module) can be independently configured for Heat/Cool mode. In Allen Bradley 1746-BTM, the 1746-BTM(AB Barrel Temperature Control Module) manages two separate outputs per loop (e.g., one for electric heaters and one for water/air cooling fans) to maintain a stable temperature setpoint.
Yes, each of the four channels on the 1746-BTM(AB Barrel Temperature Control Module) can be independently configured for Heat/Cool mode. In Allen Bradley 1746-BTM, the 1746-BTM(AB Barrel Temperature Control Module) manages two separate outputs per loop (e.g., one for electric heaters and one for water/air cooling fans) to maintain a stable temperature setpoint.
6. What is the isolation rating for the 1746-BTM inputs?
The 1746-BTM provides robust electrical protection with 1000V peak channel-to-channel isolation. Allen Bradley 1746-BTM ensures that electrical noise or ground loops at one thermocouple location do not interfere with the readings of other channels or damage the Allen Bradley 1746-BTM module itself.
The 1746-BTM provides robust electrical protection with 1000V peak channel-to-channel isolation. Allen Bradley 1746-BTM ensures that electrical noise or ground loops at one thermocouple location do not interfere with the readings of other channels or damage the Allen Bradley 1746-BTM module itself.
1746-BTM Allen Bradley Images

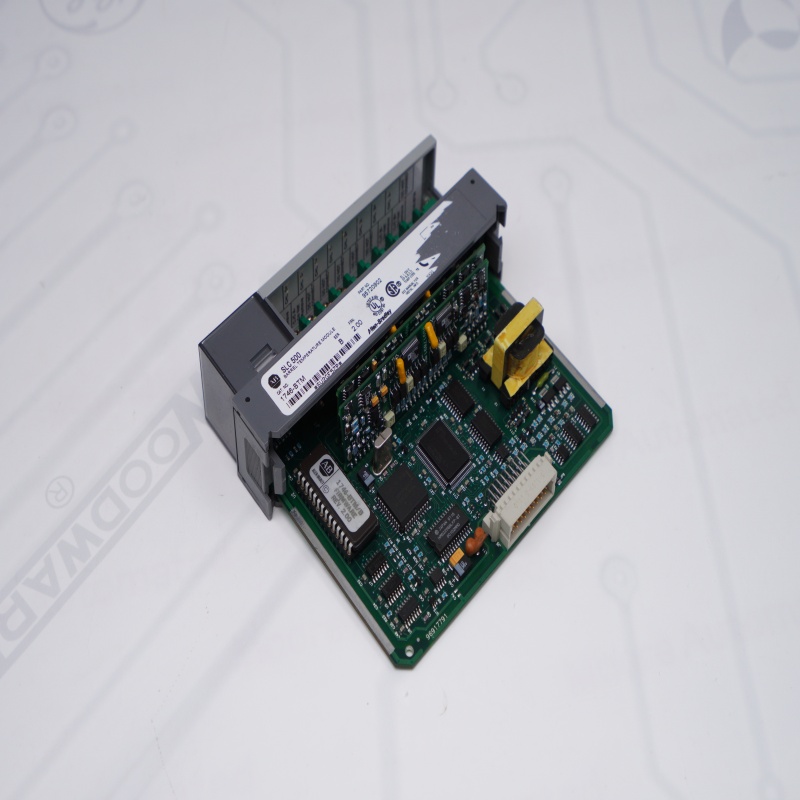

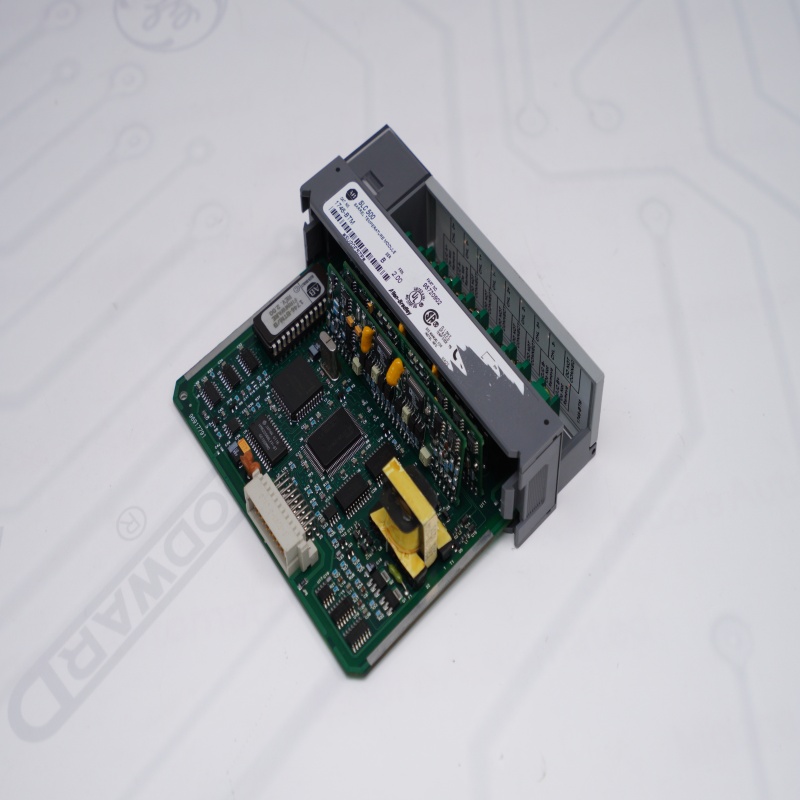

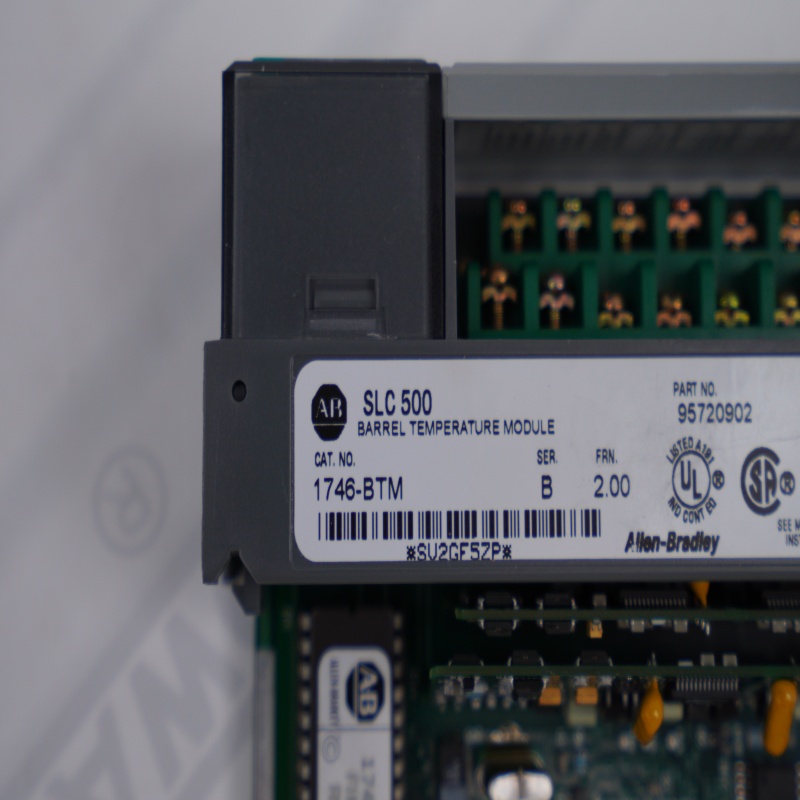

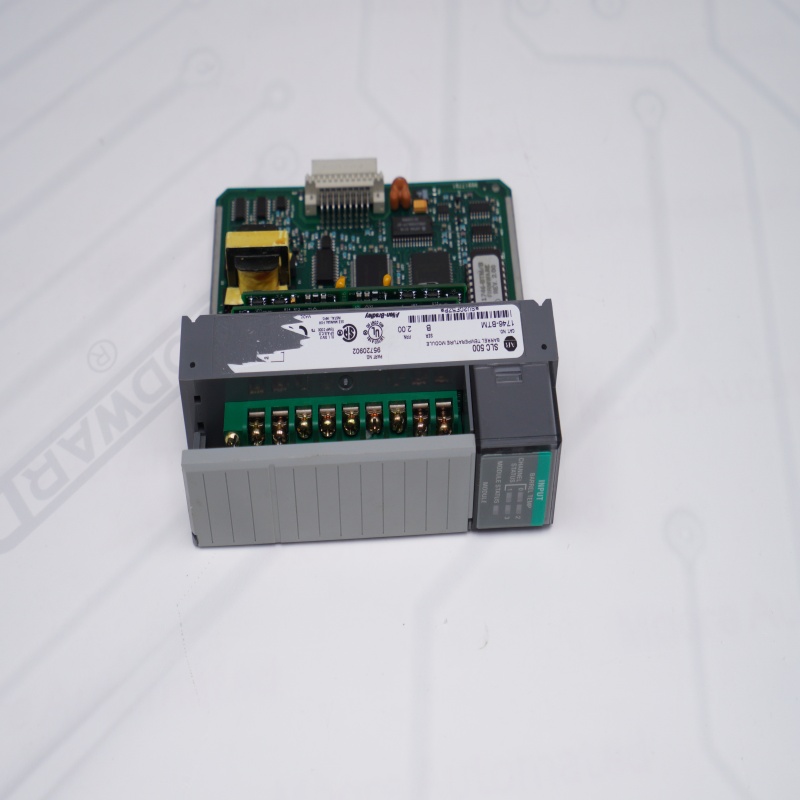

1746-BTM Allen Bradley
