ABB SDCS-POW-H01 3ADT318700R1501 power supply board

  • ABB
  • sweden
  • 2024
  • In Stock
The ABB SDCS-POW-H01 (3ADT318700R1501) is a power supply board primarily used in industrial automation and distributed control systems (DCS), such as the ABB DCS880 series. ABB SDCS-POW-H01 serves as a critical excitation or power panel component for high-speed, accurate control in robotics, machine vision, and data acquisition fields
Annex

ABB SDCS-POW-H01 Specification


Type Power Supply Board for ABB DCS800/DCS880 Drives.Input230V – 500V AC (50/60 Hz).
OutputStabilized DC power (+24V, ±15V, +5V) for control electronics.CapacitySupports systems from 10A up to 100A.
Operating Temp-10°C to +55°C.Main FunctionProvides auxiliary power and voltage monitoring for the drive's control unit.
MountingInternal (IP00 rating).Storage Temperature-40°C to +70°C (-40°F to 158°F)


ABB SDCS-POW-H01 Application

1. Internal Control Power Supply
ABB 3ADT318700R1501 is the "power hub" for the drive's brain. It generates multiple DC voltage levels to power:

  • SDCS-CON-H01: The main control board.

  • Fieldbus Modules: Communication adapters (e.g., PROFINET, Modbus).

  • I/O Extensions: Analog and digital input/output expansion modules.

2. Voltage Adaptation for Large Frames
It is standard equipment for DCS880 Converter Modules in larger frame sizes (H6, H7, and H8). ABB 3ADT318700R1501 features an auto-scaling input that typically supports 115 VAC or 230 VAC auxiliary supply, ensuring the drive remains operational even when the main power is disconnected.
3. Industrial Sector Use Cases
Since ABB 3ADT318700R1501 is part of the DCS880 system, it is found in high-torque, high-precision industrial applications such as:

  • Metals & Mining: Powering DC motors for rolling mills, mine hoists, and crushers.

  • Material Handling: Controlling heavy-duty cranes, winches, and long-distance conveyors.

  • Pulp & Paper: Managing section drives for paper machines where synchronized speed is critical.

  • Non-Motor Applications: Used in high-current systems like electrolysis, large-scale battery charging, and industrial magnets.

4. Modernization & Retrofitting
It is a core component of the DCS880-R Rebuild Kits, used to upgrade older DC drives (like the DCS500 or DCS600) to modern digital control standards without replacing the existing power stacks or motors.

If you want to more details about ABB SDCS-POW-H01(ABB 3ADT318700R1501)，please contact me without hesitate.Email：sales@sparecenter.com


ABB SDCS-POW-H01 Features

  • 1. Dual-Voltage Auxiliary Input

  • Auto-Sensing Supply: ABB 3ADT318700R1501 is designed to handle standard auxiliary AC voltages, typically 115 VAC or 230 VAC.

  • ABB SDCS-POW-H01 Flexible Integration: This allows ABB 3ADT318700R1501 to remain powered even when the high-voltage main power is switched off for safety or maintenance.

  • 2. Multi-Rail DC Output

  • Regulated Power Distribution: ABB 3ADT318700R1501 converts the AC input into several stabilized DC voltage rails (e.g., +5V, +15V, -15V, and +24V).

  • Subsystem Support: These rails provide dedicated power for the processor, encoder interfaces, pulse transformers, and cooling fans.

  • 3. Advanced Protection Circuitry

  • Overvoltage & Short-Circuit Protection: Integrated safeguards prevent damage to the sensitive SDCS-CON-H01 control board in the event of an external power surge or internal component failure.

  • Thermal Monitoring: Built to operate in high-temperature industrial cabinets, typically rated for environments up to 60°C (140°F).

  • 4. Modular Design for Large Frames

  • SDCS-POW-H01 3ADT318700R1501 Optimized for H6–H8 Frames: Specifically tailored for the physical and electrical requirements of larger DCS880 converter modules.

  • SDCS-POW-H01 3ADT318700R1501 Plug-and-Play Maintenance: Features standardized connectors for the "Electronic Tray," allowing for quick replacement during repairs to minimize industrial downtime.

  • 5. Electromagnetic Compatibility (EMC)

  • Noise Filtering: High-quality filtering components reduce electrical noise, ensuring that the control signals remain "clean" even in heavy industrial settings with high electromagnetic interference.

  • 6. Diagnostic Integration

  • Status Indicators: Often equipped with onboard LEDs to provide immediate visual confirmation of power status for troubleshooting.

  • Monitoring Feedback: Communicates status signals back to the main controller to trigger "Power Fail" alarms if the voltage drops below critical thresholds.


ABB SDCS-POW-H01 FAQ



Q1: What is the primary function of the SDCS-POW-H01 3ADT318700R1501?
A: The ABB 3ADT318700R1501 serves as the internal auxiliary power supply board for ABB DCS880 DC drives. It converts the external auxiliary AC voltage into various regulated DC voltages required to run the control electronics, such as the processor board and communication modules.

Q2: Which drive models are compatible with the SDCS-POW-H01 3ADT318700R1501?
A: The ABB 3ADT318700R1501 is specifically designed for the ABB DCS880 series. It is primarily found in larger converter modules with frame sizes H6, H7, and H8, as well as in the DCS880-R modernization and rebuild kits.

Q3: Can the SDCS-POW-H01 3ADT318700R1501 handle different input voltages?
A: Yes, the ABB 3ADT318700R1501 features an auto-scaling or selectable input capability. It typically supports auxiliary power inputs of 115 VAC or 230 VAC (50/60 Hz), allowing it to be used in various international power grid standards.

Q4: What are the symptoms of a failing SDCS-POW-H01 3ADT318700R1501?
A: If the ABB 3ADT318700R1501 malfunctions, the drive may fail to boot, the control panel (CDP) might remain blank, or you may encounter intermittent "Auxiliary Power Failure" faults. In some cases, the drive will shut down completely to protect the control electronics from unstable voltage.

Q5: Is the SDCS-POW-H01 3ADT318700R1501 a user-replaceable part?
A: Yes, the ABB 3ADT318700R1501 is considered a spare part that can be replaced by qualified technical personnel. ABB SDCS-POW-H01 is mounted on the drive's electronic tray; however, standard electrical safety protocols must be followed to ensure all residual energy is discharged before handling the board.

Q6: Where can I find the serial number or revision level on the SDCS-POW-H01 3ADT318700R1501?
A: The part number 3ADT318700R1501 is usually printed on a white barcode sticker located on the surface of the PCB. This label also contains the specific revision code (e.g., Rev A, B, or C) and the manufacturing date code for the SDCS-POW-H01.

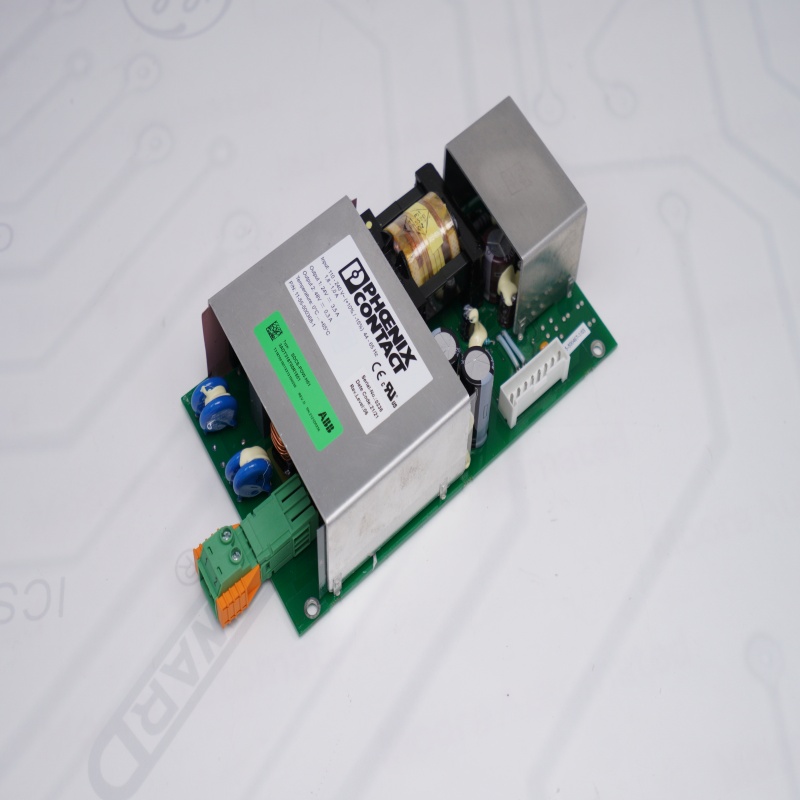

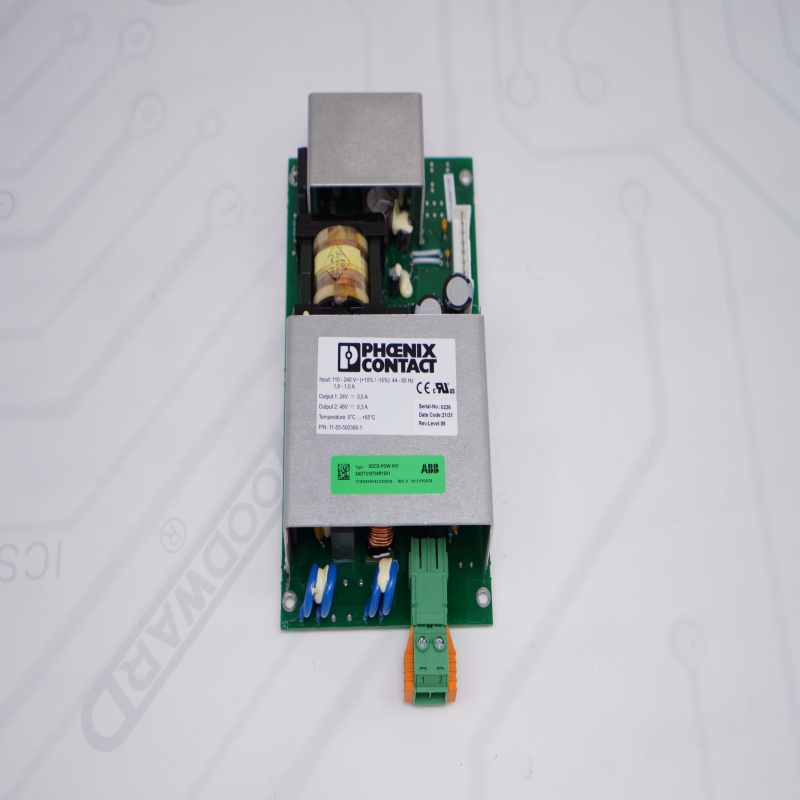

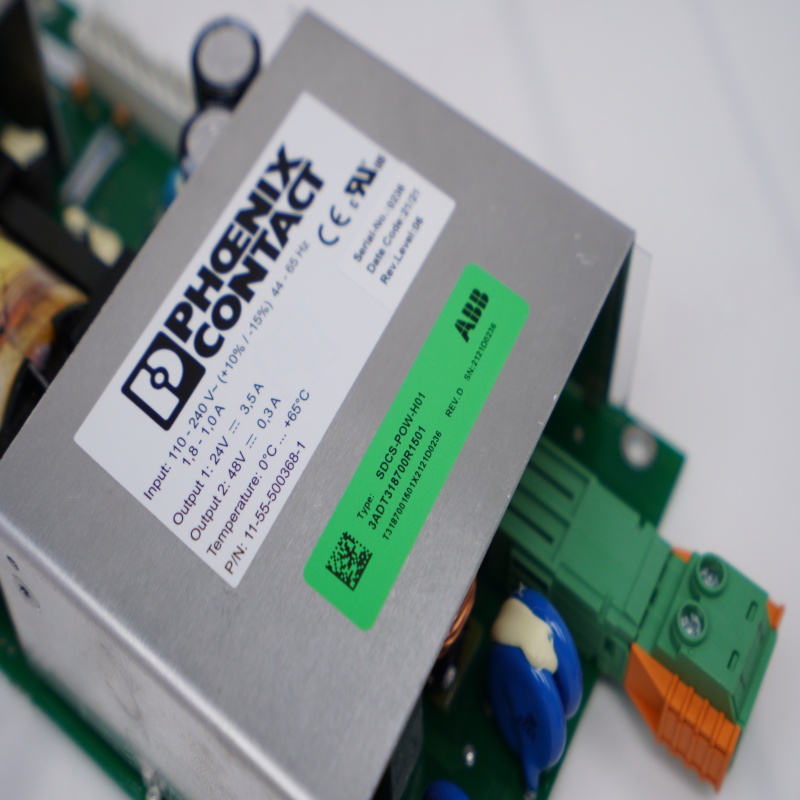

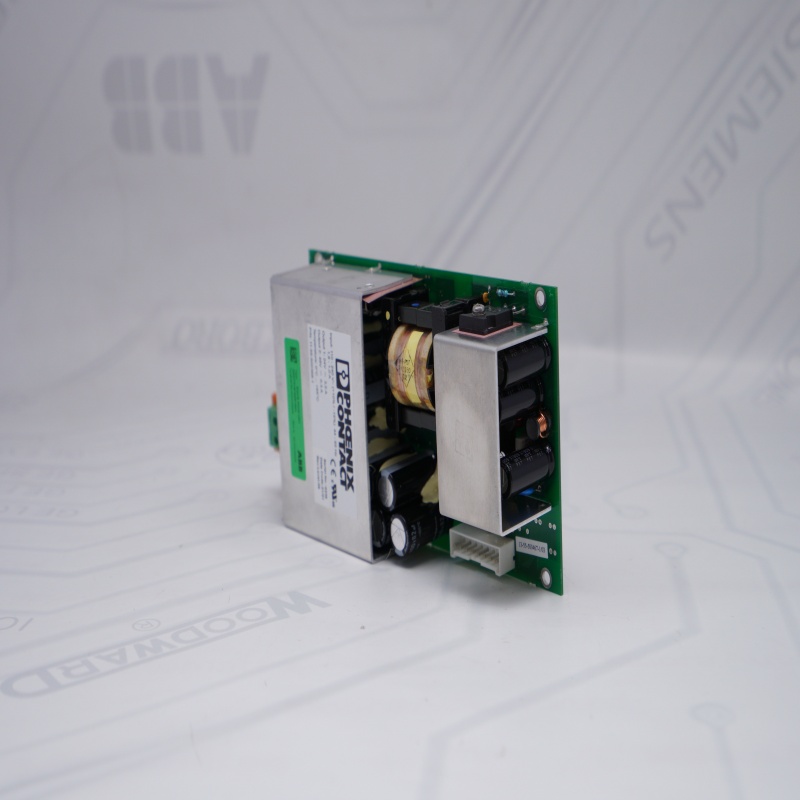

ABB SDCS-POW-H01 Images


ABB SDCS-POW-H01

ABB SDCS-POW-H01

ABB 3ADT318700R1501

ABB SDCS-POW-H01

SDCS-POW-H01 3ADT318700R1501

ABB SDCS-POW-H01

ABB SDCS-POW-H01

ABB SDCS-POW-H01
