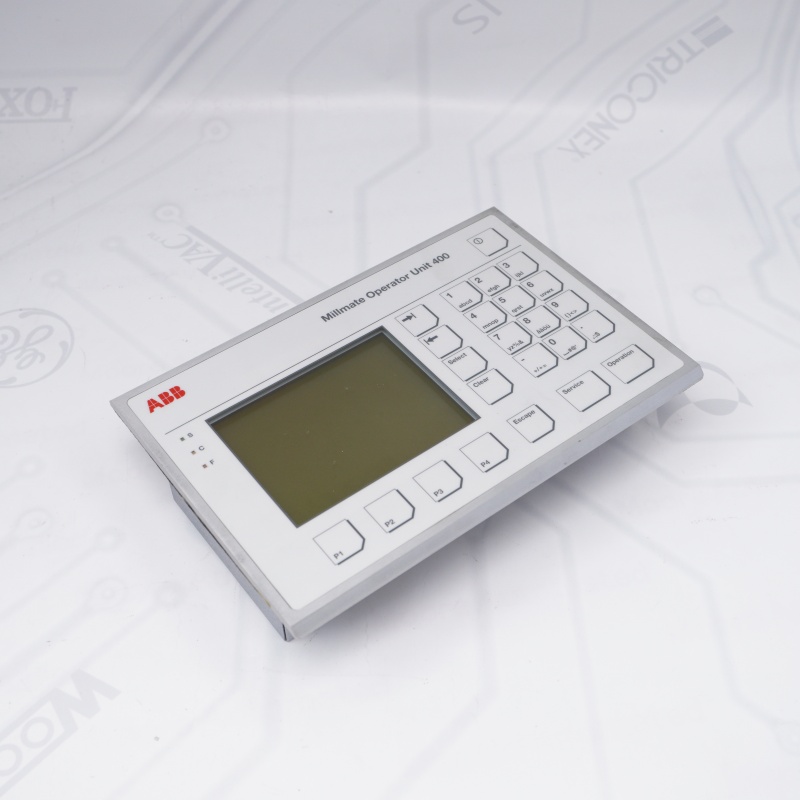

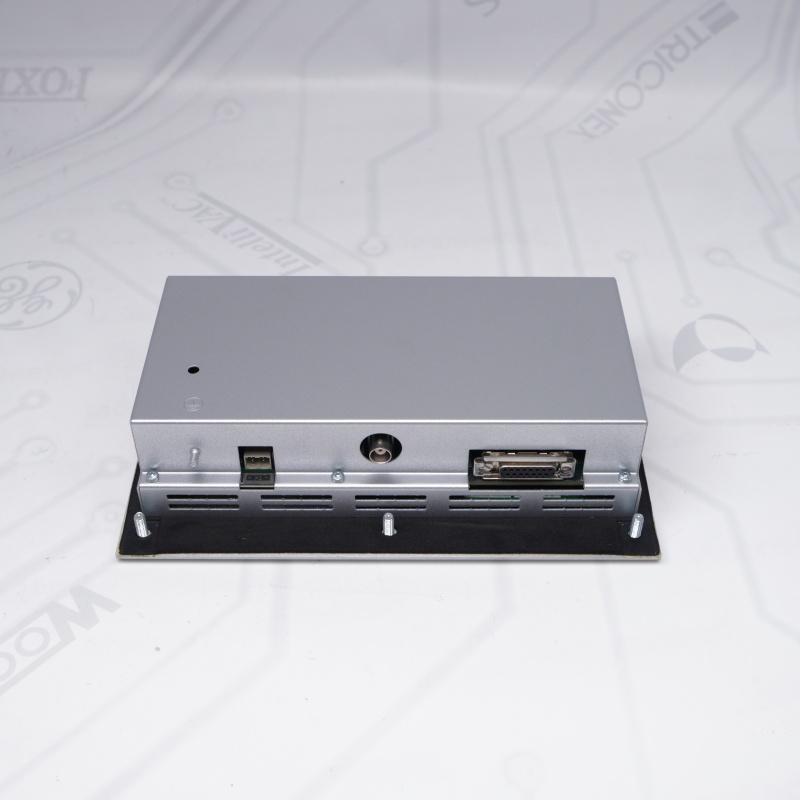

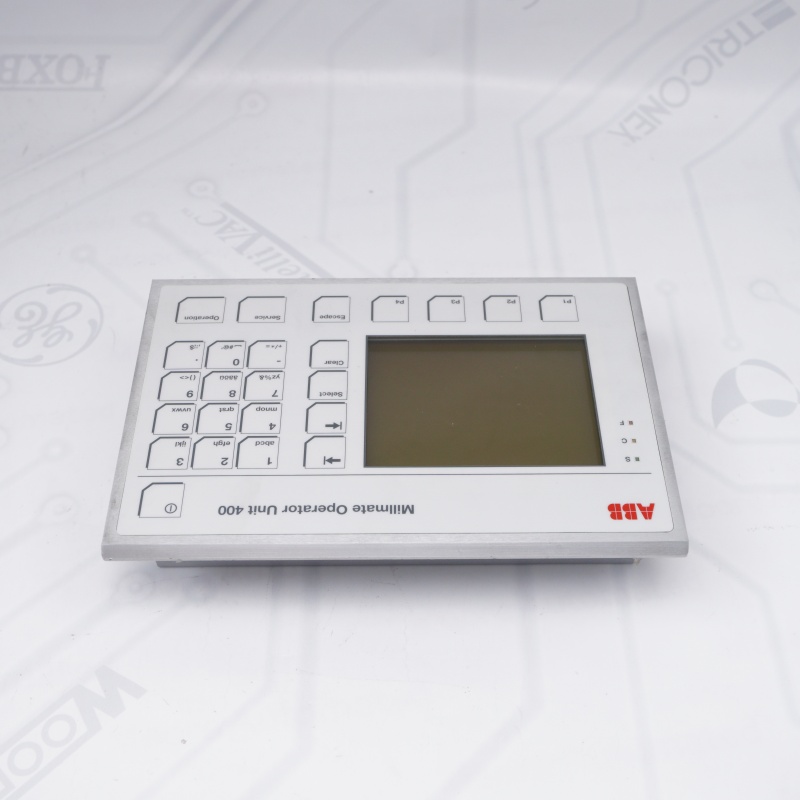

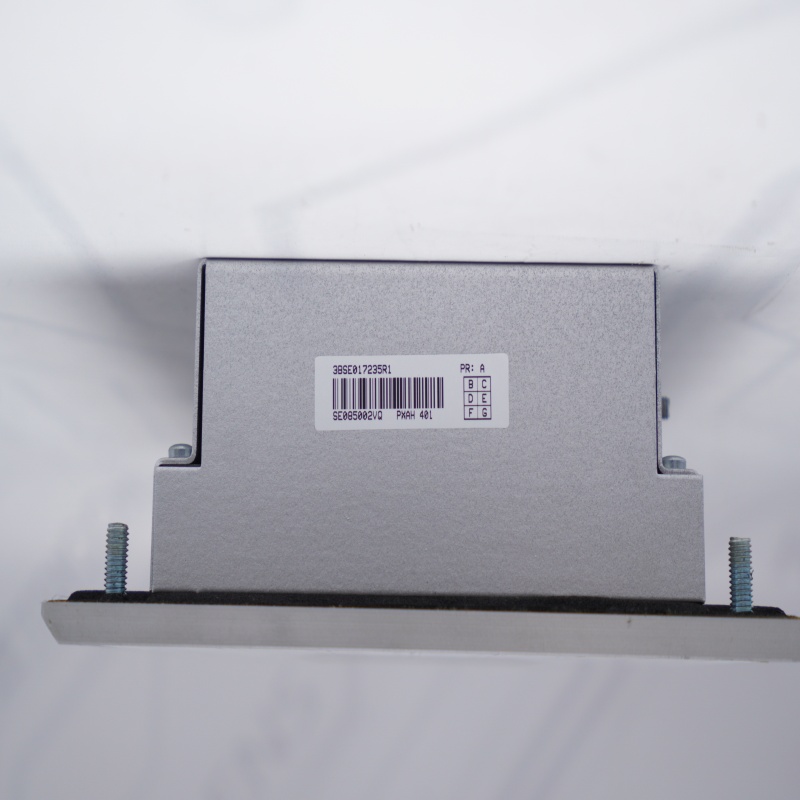

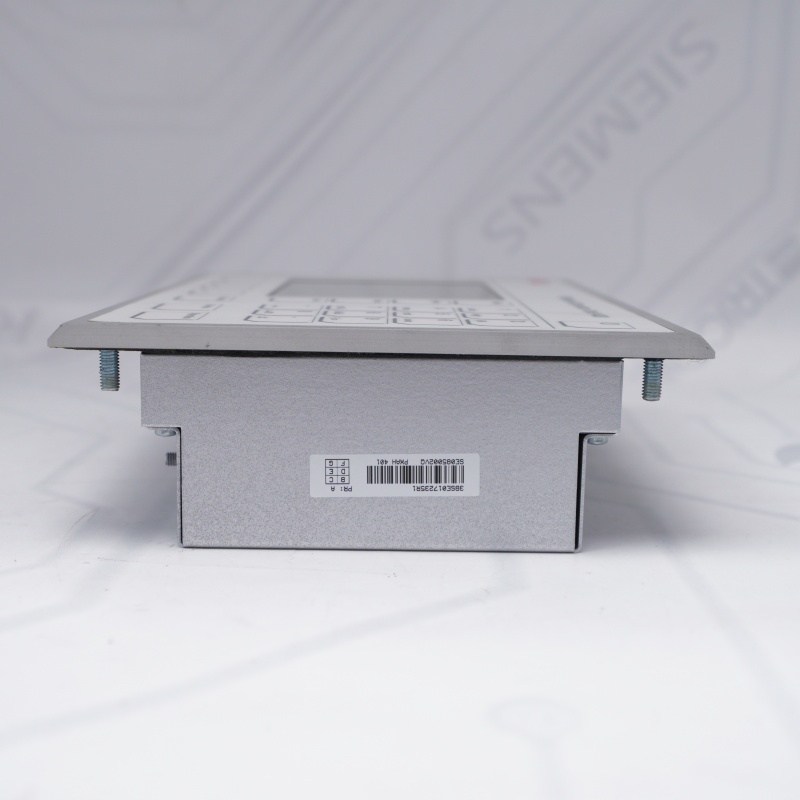

ABB PXAH401 3BSE017235R1 Operator Unit

Manufacturer: ABB

Type Designation: PXAH 401

Product ID: 3BSE017235R1

Catalog Description: PXAH 401 Operator unit

ABB Operator Unit Net Weight: 1.3 kg

ABB Operator Unit Gross Volume: 2.3 dm³

Country of Origin: Sweden (SE)

Customs Tariff Number: 85389091

Degree of Protection: IP20

System Compatibility: ABB Millmate Controller 400 (MC 400)

Part Type: Spare Parts

If you want to more details about ABB PXAH401 3BSE017235R1，please contact me without hesitate. Email：sales@sparecenter.com

Q1: What are the main functions of the ABB PXAH401 3BSE017235R1 in industrial automation?

A1: The 3BSE017235R1 Operator Unit is the main human-machine interface (HMI) operating unit for the Millmate Controller 400 (MC 400) system. The primary function of the 3BSE017235R1 Operator Unit is to provide plant operators with local visualization, real-time diagnostic monitoring, and step-by-step configuration wizards to handle applications such as strip tension, roll force, and strip positioning without complex external programming.

Q2: Which ABB controller systems and hardware components are fully compatible with the 3BSE017235R1 operator panel?

A2: The 3BSE017235R1 Operator Unit operator panel is designed for seamless integration with the ABB Millmate Controller 400 series. In widespread industrial deployments, the 3BSE017235R1 Operator Unit is typically networked with a central processing unit (such as the PXAA 401 central unit), a PFXC141 junction box, and a PFEA series tension amplifier to form a complete rolling force measurement topology.

Q3: What are the specific physical dimensions and shipping specifications of the 3BSE017235R1 Operator Unit?

A3: According to ABB's official product details, the ABB Operator Unit has a net weight of 1.3 kg (approximately 1.24 kg bare weight). The factory package dimensions of the 3BSE017235R1 are approximately 23.6 x 16.1 x 5.6 cm, with a recorded total shipping volume of 2.3 cubic decimeters.

Q4: What is the IP protection rating of the 3BSE017235R1? What mounting hardware is required?

A4: The ABB Operator Unit chassis has an internal/backplane protection rating of IP20. When installing the 3BSE017235R1 onto the heavy-duty control panel or swing arm of the rolling mill, engineers typically use a dedicated ABB mounting bracket (part number 3BSE017172R1) to ensure adequate structural support and vibration isolation.

Q5: How do technicians use the 3BSE017235R1 to troubleshoot field sensor malfunctions on the rolling mill production line?

A5: The PXAH401 3BSE017235R1's interface allows technicians direct access to the MC 400's internal self-diagnostic system. Through the 3BSE017235R1's touch interface, you can trigger real-time sensor loop tests, evaluate raw signal filtering (ranging from 1 ms to 2000 ms), and read dedicated error codes related to load cell health or edge detector misalignment.

Q6: Is the 3BSE017235R1 operating module a custom component? What is its country of origin?

 A6: No, the 3BSE017235R1 Operator Unit is a standard industrial spare part, not a custom product. All genuine PXAH401 3BSE017235R1 products are manufactured and shipped from Sweden (SE), and their standard customs code is 85389091.
