ABB NPCT-01C 64009486D Specification
| Manufacturer | ABB | Model | NPCT-01C |
| Part/Order Number | 64009486D | Device Type | Pulse Count / Timer Control Unit |
| Country of Origin | Sweden | Dimensions | 26.5 cm × 9.8 cm × 5.5 cm |
| Weight | 0.6 kg | Mounting Type | Standard industrial DIN rail or panel mount |
| Signal Processing | High-precision digital pulse inputs for encoders and tachometers. | Timing Control | High-sensitivity time-window configuration for precise process control |
| Remote Management | Built-in web server interface for browser-based configuration and monitoring | System Compatibility | Seamless integration with ABB automation systems and drive buses |
ABB NPCT-01C 64009486D Features
High-Precision Counting: Processes high-speed digital pulse inputs from encoders and tachometers.
Flexible Process Timing: Configures precise automated timing windows for industrial synchronization.
Dual-Function Design: Integrates pulse counting and timing control into one module.
Embedded Web Server: Enables remote browser-based status monitoring and parameter configuration.
Seamless Drive Compatibility: Connects directly with ABB DriveBus systems and CI858 modules.
Real-Time Data Feeding: Transmits critical speed, flow, and acceleration metrics to PLCs.
Industrial-Grade Reliability: Withstands harsh environments, temperature fluctuations, and electrical noise.
Simplified Troubleshooting: Accelerates maintenance via remote diagnostics to minimize downtime.
If you want to more details about ABB NPCT-01C 64009486D，please contact me without hesitate. Email：sales@sparecenter.com
ABB NPCT-01C 64009486D Application
Motor Drive Speed Monitoring: Tracks precise motor speeds via encoder and tachometer feedback.
Industrial Flow Control: ABB industrial Pulse Counter and Timer Unit counts high-frequency pulses from flowmeters to measure liquid volume.
Synchronized Conveyor Systems: ABB industrial Pulse Counter and Timer Unit manages timing intervals for automated assembly and packing lines.
Automated Product Sorting: Triggers sorting hardware based on pulse-calculated distance tracking.
Web Handling & Paper Mills: Monitors tension and roller speeds to prevent material tearing.
Metal & Rolling Mills: Measures continuous material length and speed during steel processing.
Chemical Batch Processing: Coordinates precise timing windows for valve opening and mixing.
Power Plant Automation: Records high-precision acceleration and turbine data for system safety.
ABB NPCT-01C 64009486D Images

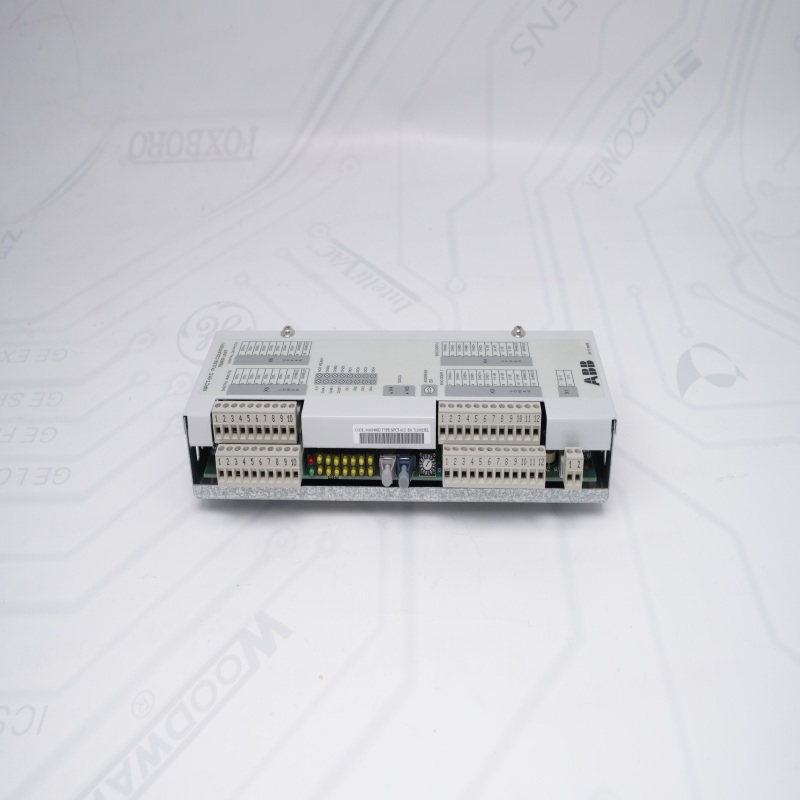

ABB NPCT-01C 64009486D

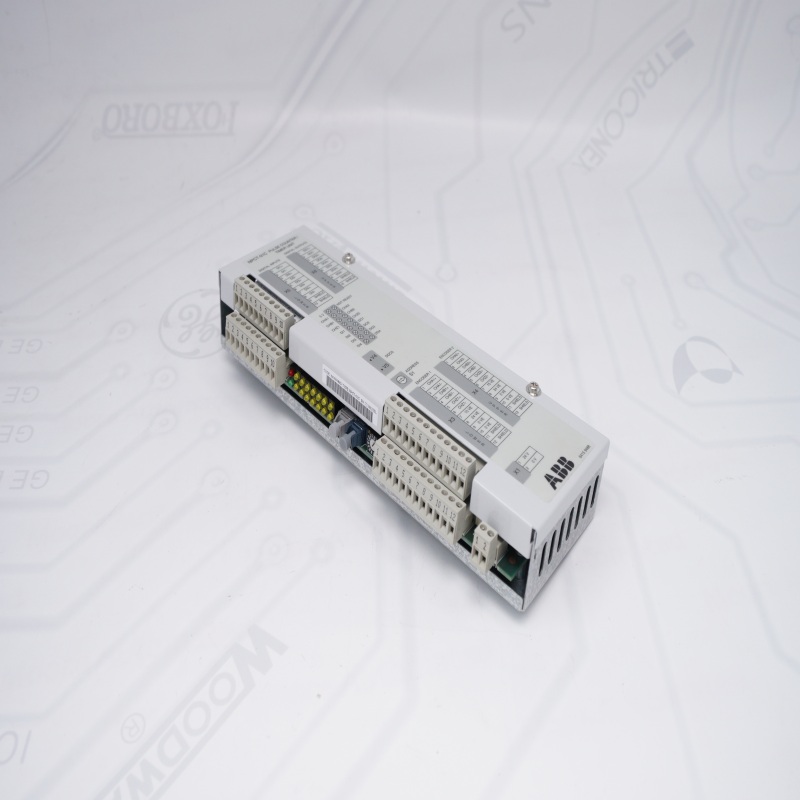

ABB industrial Pulse Counter and Timer Unit

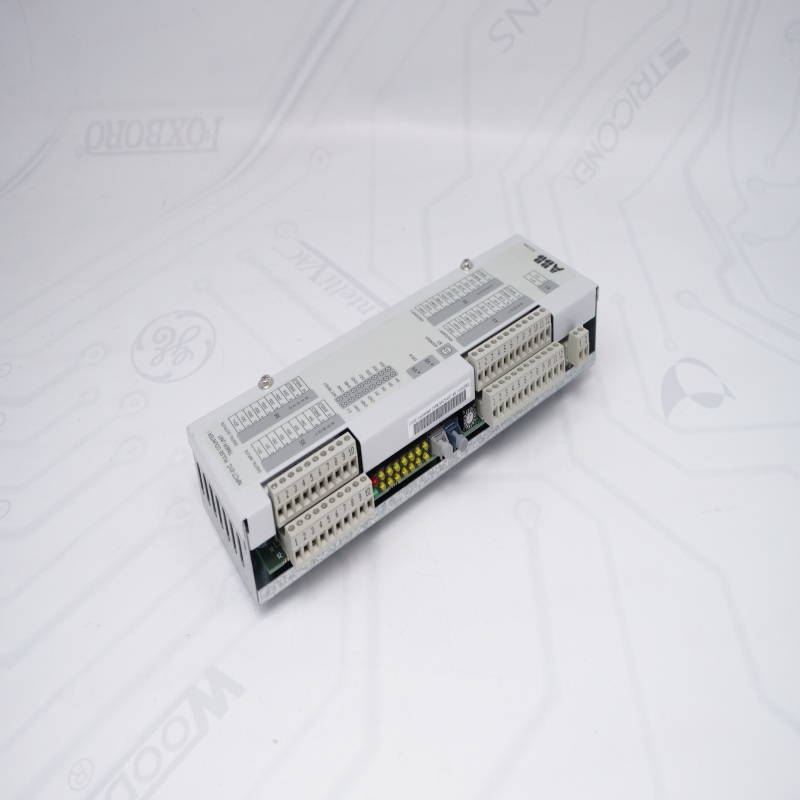

ABB industrial Pulse Counter and Timer Unit

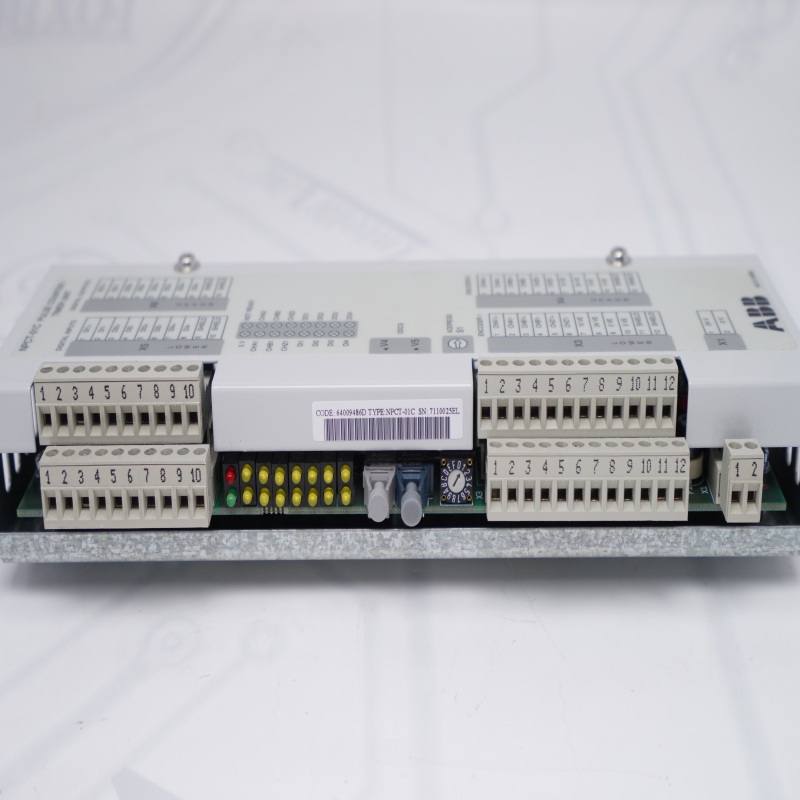

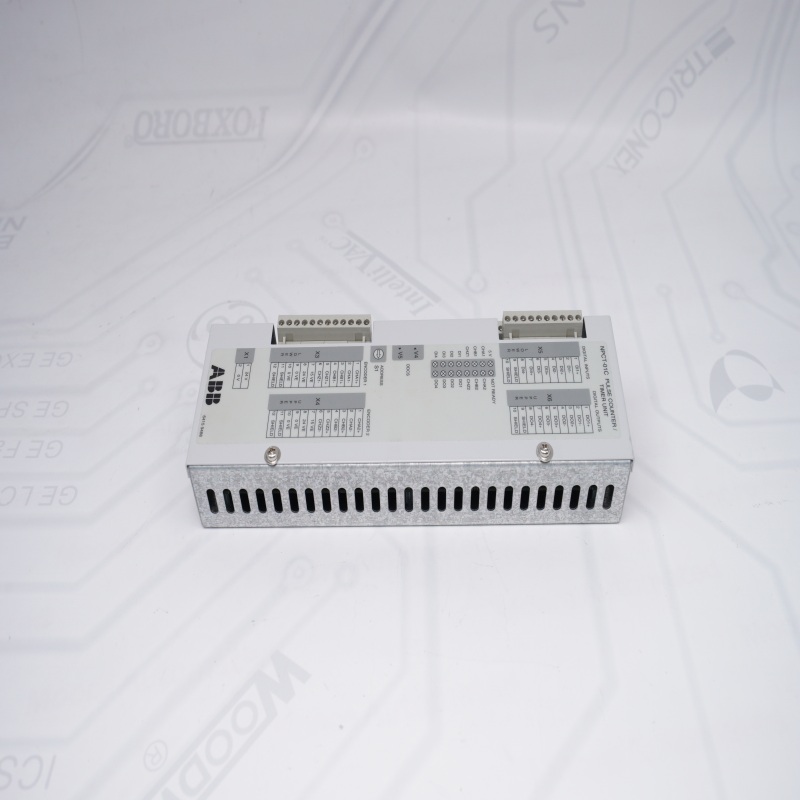

ABB industrial Pulse Counter and Timer Unit
ABB NPCT-01C 64009486D FAQ
Q1: What is the primary function of the ABB NPCT-01C 64009486D in an industrial automation system?
A: The NPCT-01C 64009486D functions as a high-precision Pulse Count and Timer Control Unit. It is specifically designed to acquire high-speed digital pulse signals from field encoders or tachometers, process timing windows for industrial synchronization, and transmit real-time data back to the central PLC or drive controller.
Q2: How can engineers remotely configure or monitor the NPCT-01C 64009486D module?
A: The NPCT-01C 64009486D features an embedded web server interface. This allows engineers and operators to perform remote parameter configuration, execute diagnostics, and view real-time process data through a standard web browser without needing specialized proprietary software.
Q3: Which communication protocols and drive networks is the NPCT-01C 64009486D compatible with?
A: The NPCT-01C 64009486D is engineered for seamless integration within the ABB drive ecosystem. It natively communicates over the ABB DriveBus network, typically interfacing with system hubs such as the CI858 DriveBus communication module to ensure low-latency data transmission.
Q4: What type of sensor feedback is the NPCT-01C 64009486D designed to process?
A: The NPCT-01C 64009486D is optimized to receive and process digital pulse trains from high-resolution incremental encoders, tachometers, proximity switches, and pulse-output flowmeters to measure parameters like speed, distance, and volumetric flow.
Q5: What are the physical dimensions and mounting requirements for installing the NPCT-01C 64009486D?
A: The NPCT-01C 64009486D features a compact hardware footprint measuring exactly 26.5 cm × 9.8 cm × 5.5 cm and weighs approximately 0.5 kg to 0.78 kg. It is built for industrial environments and supports standard DIN rail or direct panel mounting inside electrical control cabinets.
Q6: What diagnostic indicators are available on the NPCT-01C 64009486D to troubleshoot hardware errors?
A: The NPCT-01C 64009486D is equipped with front-panel LED status indicators that provide instant visual feedback on power supply health, module faults, and active communication links. For deeper analysis, the hardware error logs can be retrieved directly through the NPCT-01C 64009486D web management utility.
