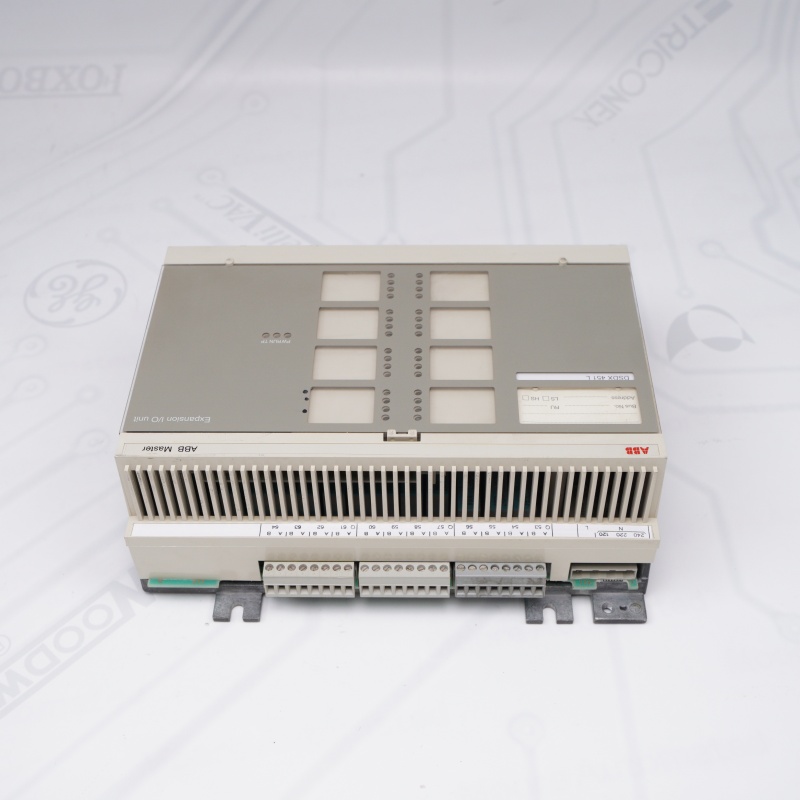

ABB DSDX451L 5716075-AH Overview
The DSDX451L（ABB DSDX451L Expansion Unit) is a high-performance Remote I/O Expansion Unit within the ABB Advant S400 product family. It is designed to extend the I/O capacity of ABB process control systems, providing a reliable interface between the controller and field-level equipment.
Specifically optimized as a low-level signal unit, the DSDX451L(ABB DSDX451L Expansion Unit) is ideal for applications requiring high-precision digital input monitoring and relay switching for currents below 100mA. ABB DSDX451L Expansion Unit’s compact, robust design ensures seamless integration into industrial environments, supporting both standalone expansion and distributed control architectures via the MasterFieldbus protocol.
| Item | Specification |
|---|---|
| Model | DSDX451L |
| Part Number | 5716075-AH |
| Type | Remote I/O Expansion Unit |
| Digital Inputs | 20 Channels (24V DC) |
| Relay Outputs | 12 Channels (Low-level, < 100mA) |
| Series | Advant S400 I/O |
| Dimensions | 229 x 102 x 254 mm |
| Net Weight | 2.4 kg |
ABB DSDX451L 5716075-AH Features
ABB DSDX451L Expansion Unit High-Density I/O Expansion: Provides a compact solution for adding 20 digital inputs and 12 relay outputs to the Advant S400 system without requiring significant cabinet space.
ABB DSDX451L Expansion Unit Low-Level Signal Precision: Specifically engineered for low-current relay switching (below 100mA), ensuring high reliability for sensitive control signals and precision monitoring.
ABB DSDX451L Expansion Unit Seamless System Integration: Fully compatible with ABB Advant Controller 400 (AC400) series and communicates efficiently via the MasterFieldbus protocol.
ABB DSDX451L Expansion Unit Modular Robustness: Features an industrial-grade IP20 protection rating and a durable mechanical design suitable for harsh plant environments.
ABB DSDX451L Expansion Unit Simplified Maintenance: Equipped with clear front-panel LED indicators for quick status diagnostics and I/O channel troubleshooting.
ABB DSDX451L Expansion Unit Flexible Installation: Supports standard DIN-rail or mounting plate configurations, allowing for easy integration into existing distributed I/O architecturesE
If you want to more details about ABB DSDX451L 5716075-AH，please contact me without hesitate.Email：sales@sparecenter.com

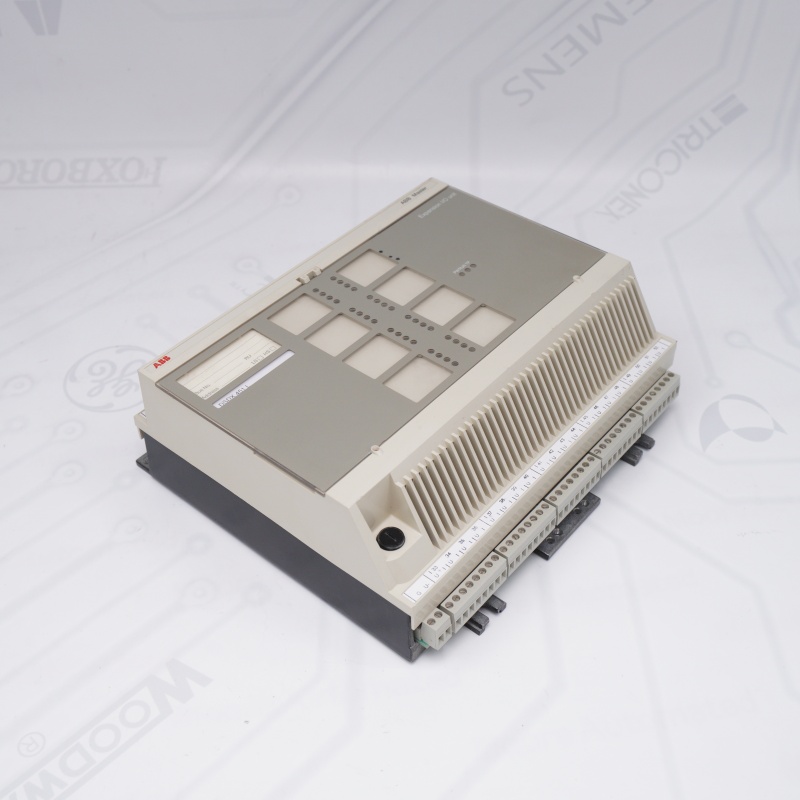

ABB DSDX451L 5716075-AH

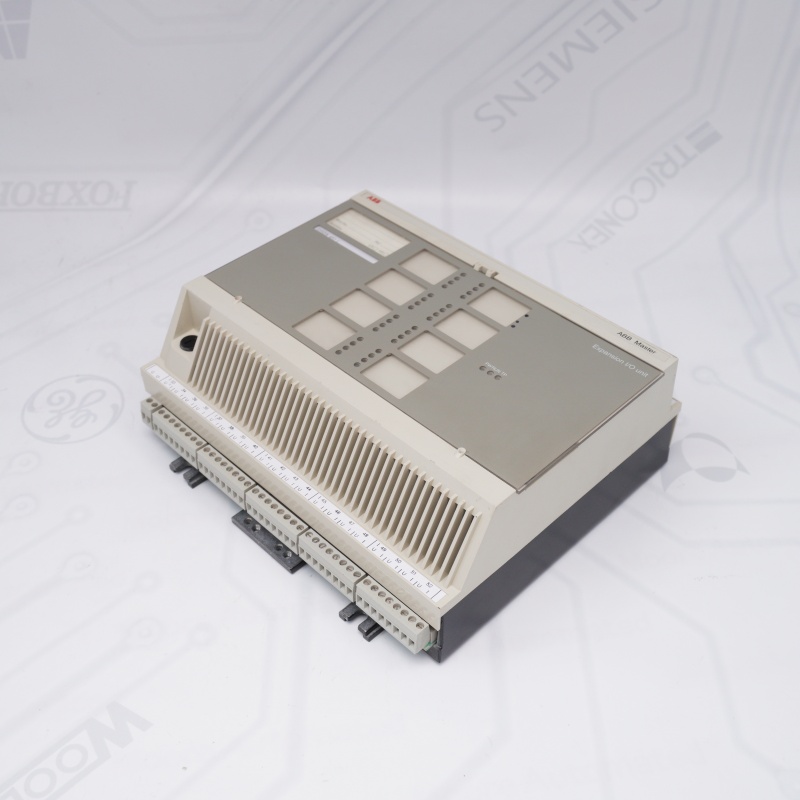

ABB DSDX451L 5716075-AH

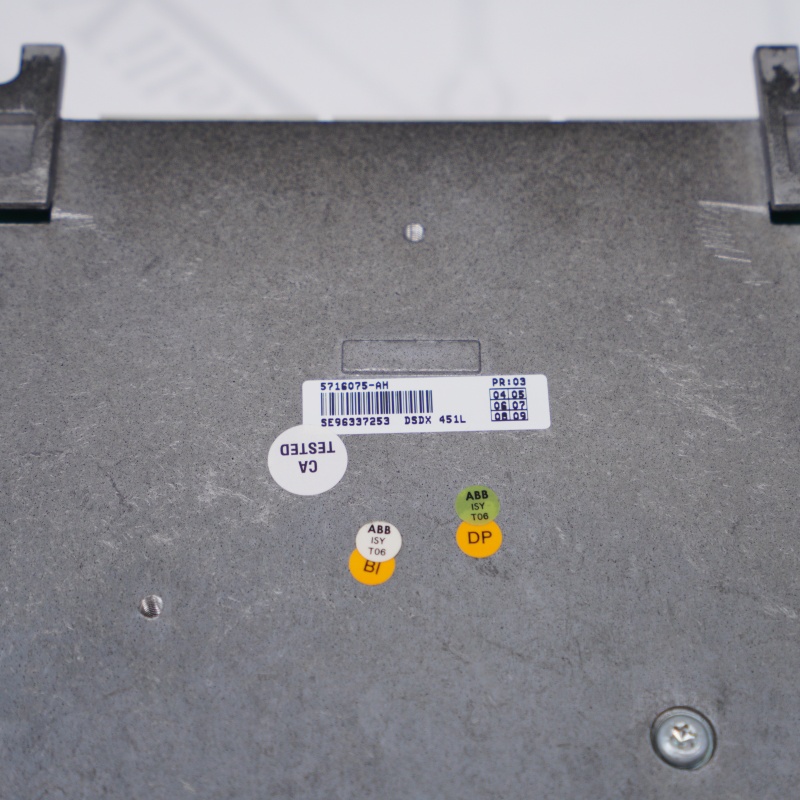

ABB DSDX451L 5716075-AH

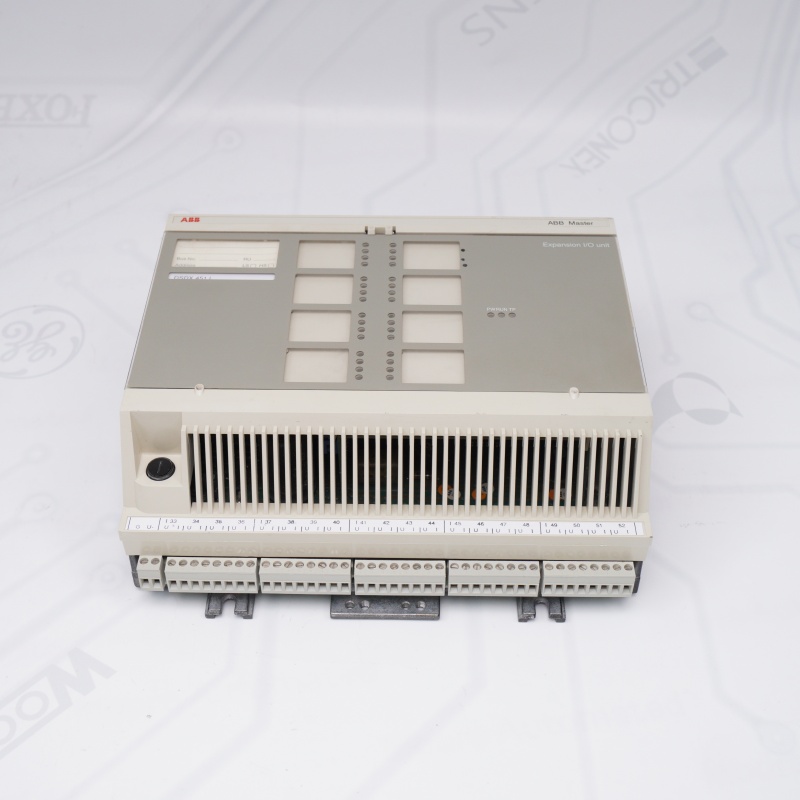

ABB DSDX451L 5716075-AH
ABB DSDX451L 5716075-AH Application
DSDX451L Expansion Unit Distributed Control Systems (DCS): Used as a remote expansion node to gather field signals and execute control commands across large-scale industrial plants.
DSDX451L Expansion Unit Marine & Offshore Automation: Widely utilized in shipboard power management, engine monitoring, and ballast control systems due to its robust vibration-resistant design.
DSDX451L Expansion Unit Power Generation: Monitors auxiliary equipment status and manages low-current interlocking logic in power plant control cabinets.
DSDX451L Expansion Unit Precision Relay Switching: Ideal for interfacing with sensitive electronic devices, PLC-to-PLC signaling, and low-power safety loops where high-current switching is not required.
DSDX451L Expansion Unit Factory Automation & Modernization: Acts as a cost-effective expansion module for upgrading legacy Advant Master systems to increase digital I/O density.
DSDX451L Expansion Unit Process Industries: Suitable for chemical, oil & gas, and pulp & paper industries to handle remote digital monitoring of valves, switches, and sensors.
Our advantage
Extensive Product Range and Brand Coverage
Amikon focuses on the industrial automation sector and maintains a wide selection of products from leading global brands, including PLCs, DCS systems, and drives. This allows them to meet diverse customer requirements, even for obsolete or hard-to-find parts.
Strong Inventory and Fast Delivery
With a large in-stock inventory, Amikon can provide quick order fulfillment and reduce lead times significantly. This ensures minimal downtime for customers and supports urgent operational needs.
Professional Technical Support
Amikon offers expert technical assistance, including product selection, troubleshooting, and alternative solutions. Their experienced team helps customers improve system reliability while reducing maintenance costs.
Global Service Network and Reliable Supply Chain
The company serves clients worldwide with an efficient logistics system and responsive customer service. Strong partnerships with suppliers ensure consistent product quality and reliable sourcing.
ABB DSDX451L 5716075-AH FAQ
Q1: What is the specific role of the DSDX451L 5716075-AH in the Advant S400 system?
A: The DSDX451L 5716075-AH is a Remote I/O Expansion Unit used to increase the I/O density of a master station. DSDX451L Expansion Unit acts as a slave device that gathers 24V DC field signals and executes control commands through its relay outputs, communicating back to the Advant Controller via an extension bus connected to a basic I/O unit.Q2: What are the electrical limitations of the relay outputs on the DSDX451L 5716075-AH?
A: The DSDX451L 5716075-AH（DSDX451L Expansion Unit） is specifically designed for "Low-Level" signaling. Its 12 relay outputs are optimized for switching currents below 100mA. Attempting to drive high-power inductive loads directly with this module may result in contact welding or premature component failure.
A: The DSDX451L 5716075-AH（DSDX451L Expansion Unit） is specifically designed for "Low-Level" signaling. Its 12 relay outputs are optimized for switching currents below 100mA. Attempting to drive high-power inductive loads directly with this module may result in contact welding or premature component failure.
Q3: Does the DSDX451L 5716075-AH feature galvanic isolation for its I/O channels?
A: Yes, the DSDX451L 5716075-AH（DSDX451L Expansion Unit） provides galvanic isolation between the internal logic circuitry and the field-side signals. The 12 relay outputs provide inherent dry-contact isolation, while the 20 digital inputs are opto-isolated to protect the system electronics from field-side voltage spikes and electrical noise.
A: Yes, the DSDX451L 5716075-AH（DSDX451L Expansion Unit） provides galvanic isolation between the internal logic circuitry and the field-side signals. The 12 relay outputs provide inherent dry-contact isolation, while the 20 digital inputs are opto-isolated to protect the system electronics from field-side voltage spikes and electrical noise.
Q4: What are the input voltage thresholds for the digital inputs on the DSDX451L 5716075-AH?
A: The DSDX451L 5716075-AH(DSDX451L Expansion Unit） features 20 digital inputs with a nominal rating of 24V DC. In accordance with standard industrial logic, a signal is typically recognized as "High" (1) between 15V and 30V DC, and "Low" (0) between -3V and +5V DC, ensuring reliable noise immunity.
A: The DSDX451L 5716075-AH(DSDX451L Expansion Unit） features 20 digital inputs with a nominal rating of 24V DC. In accordance with standard industrial logic, a signal is typically recognized as "High" (1) between 15V and 30V DC, and "Low" (0) between -3V and +5V DC, ensuring reliable noise immunity.
Q5: What are the mounting and cooling requirements for the DSDX451L 5716075-AH?
A: The DSDX451L 5716075-AH(DSDX451L Expansion Unit) is designed for vertical mounting on a standard DIN-rail or mounting plate within an IP20-rated (or higher) enclosure. To ensure optimal heat dissipation, a minimum clearance should be maintained above and below the unit to allow for natural convection.
A: The DSDX451L 5716075-AH(DSDX451L Expansion Unit) is designed for vertical mounting on a standard DIN-rail or mounting plate within an IP20-rated (or higher) enclosure. To ensure optimal heat dissipation, a minimum clearance should be maintained above and below the unit to allow for natural convection.
Q6: Can the DSDX451L 5716075-AH be hot-swapped during system operation?
A: No, the DSDX451L 5716075-AH does not support "Hot Swap" functionality. Power to the I/O cluster must be disconnected before removing or installing the module to prevent electrical surges or communication errors on the extension bus that could lead to a system trip.
A: No, the DSDX451L 5716075-AH does not support "Hot Swap" functionality. Power to the I/O cluster must be disconnected before removing or installing the module to prevent electrical surges or communication errors on the extension bus that could lead to a system trip.
