ABB DSAX110A 3BSE018291R1 Specification
| Model Number | ABB DSAX110A 3BSE018291R1 |
| Product Type | I-O_Module |
| Product Net Depth / Length | 324 mm |
| Product Net Height | 18 mm |
| Product Net Width | 234 mm |
| Product Net Weight | 0.5 kg |
| Technical Information | Analog Input / Output Board |
| Channels | Equipped with 8 analog inputs and 8 analog outputs |
| Signal Compatibility | Supports standard signals such as 0-10V voltage or 4-20mA current |
| Power Supply | Requires a standard 24V DC power supply |
| Isolation | Provides galvanic isolation to ensure stable operation and protection in harsh industrial environments |
2
ABB DSAX110A 3BSE018291R1 Details
ABB 3BSE018291R1 Description
ABB 3BSE018291R1 Features
8 analog input channels
8 analog output channels
16-bit signal resolution
0.1% accuracy across full scale
Supports 0 to 10V and 4 to 20mA signals
Galvanic isolation for circuit protection
On-board self-diagnostic functions
Compatible with Advant S100 I/O racks
Standard 24V DC power requirement
ABB 3BSE018291R1 Application
ABB 3BSE018291R1 provides precise monitoring for process variables like temperature, pressure, and flow.
ABB 3BSE018291R1 manages the position and operation of modulating valves and dampers.
ABB 3BSE018291R1 regulates motor speeds through Variable Frequency Drives (VFDs) in industrial setups.
ABB 3BSE018291R1 facilitates high-resolution data acquisition from various field sensors.
ABB 3BSE018291R1 executes closed-loop PID control for complex chemical and oil/gas processes.
ABB 3BSE018291R1 monitors and protects turbine systems within power generation plants.
ABB 3BSE018291R1 controls infrastructure equipment in water treatment and large-scale HVAC systems.
ABB 3BSE018291R1 handles synchronized analog feedback for advanced manufacturing machinery.
ABB 3BSE018291R1 serves as a critical replacement part for maintaining Advant OCS and S100 I/O systems.
3

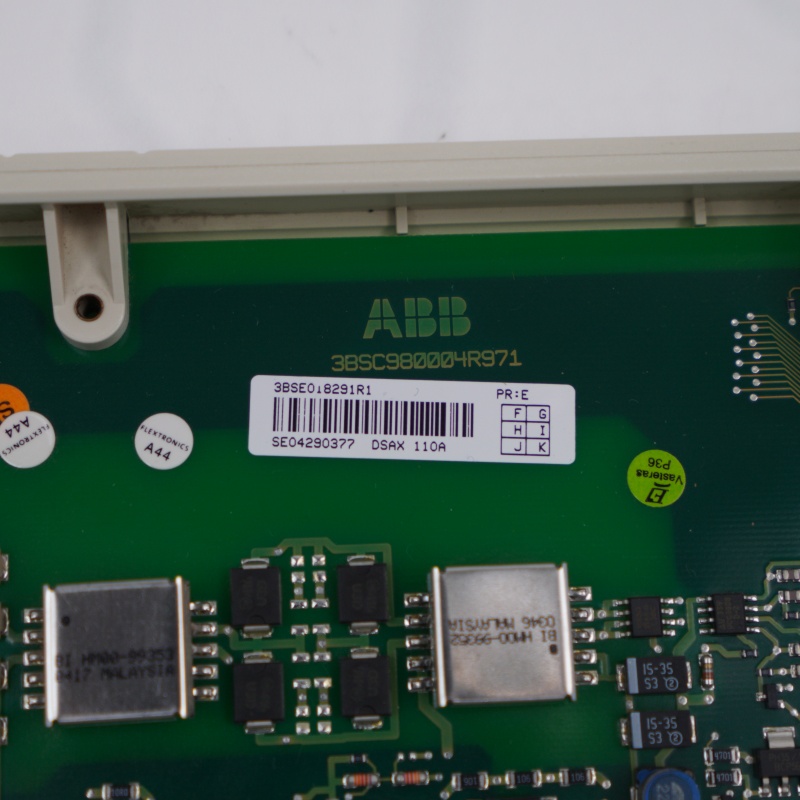

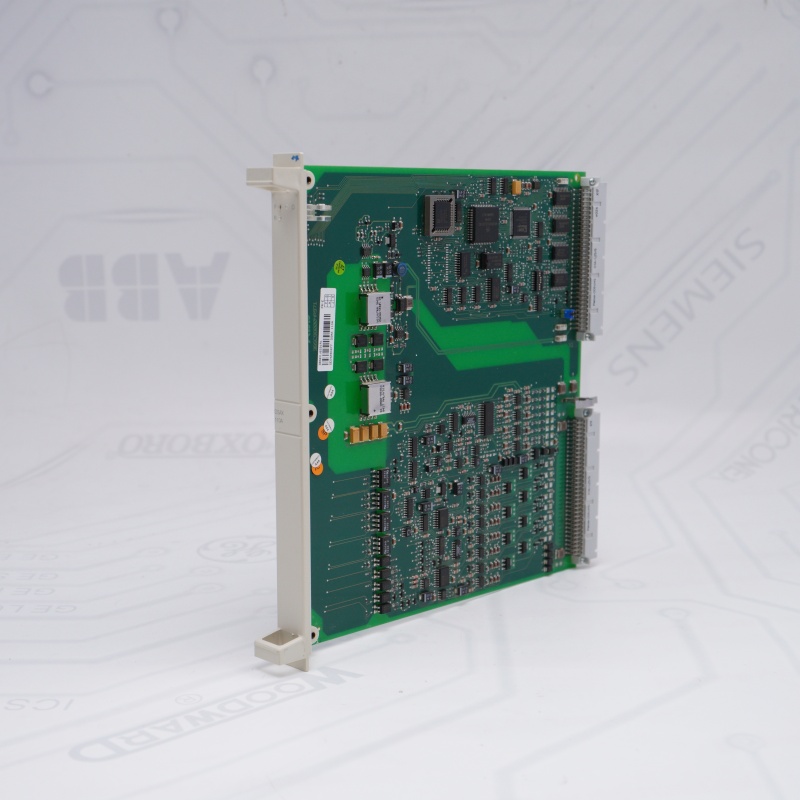

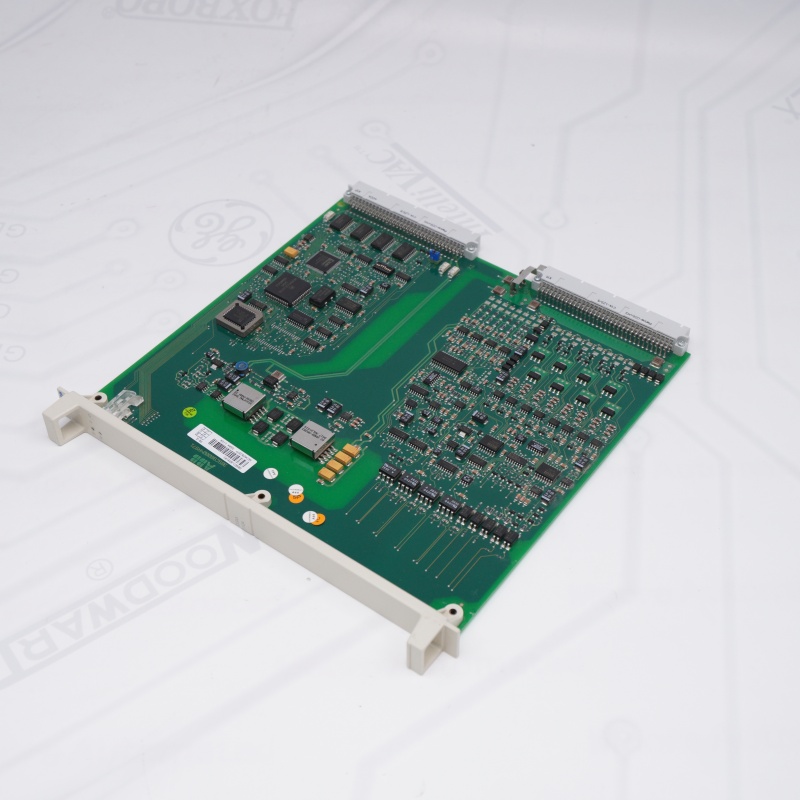

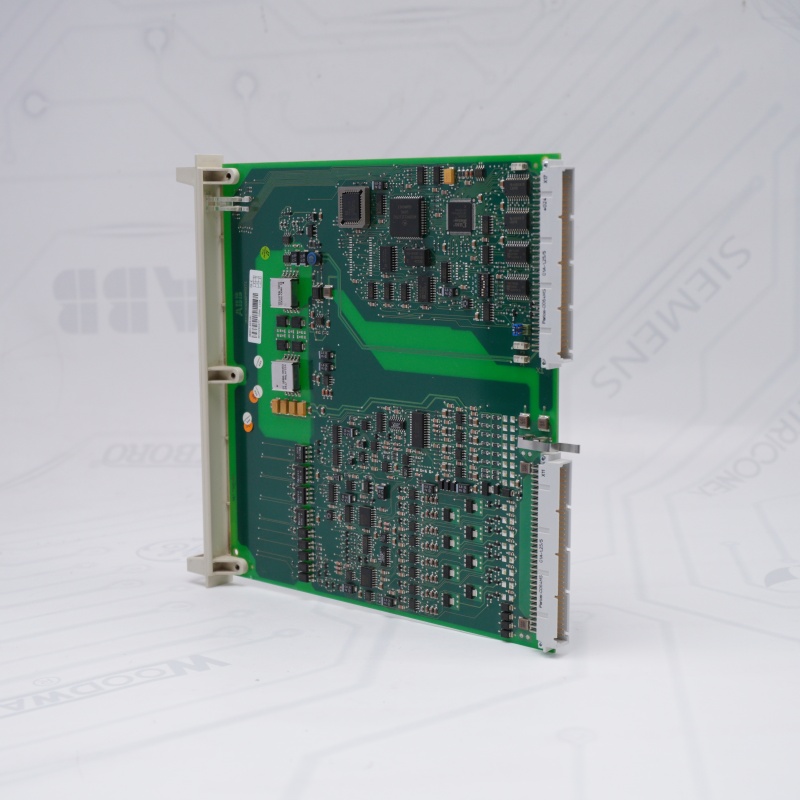

DSAX110A Images
1
2
3
4
3BSE018291R1 Analog Input / Output Board FAQ
1. What is the total channel density of the 3BSE018291R1 Analog Input / Output Board?
3BSE018291R1 Analog Input / Output Board (DSAX110A ) is a high-density hybrid module that features 16 total analog channels, specifically configured as 8 analog inputs and 8 analog outputs on a single board.
3BSE018291R1 Analog Input / Output Board (DSAX110A ) is a high-density hybrid module that features 16 total analog channels, specifically configured as 8 analog inputs and 8 analog outputs on a single board.
2. Which control systems are compatible with the 3BSE018291R1 Analog Input / Output Board?
3BSE018291R1 Analog Input / Output Board is designed for use within the Advant S100 I/O system and is fully compatible with Advant Controller 410 (AC410), Advant Controller 450 (AC450), and legacy MasterPiece 200/1 systems.
3BSE018291R1 Analog Input / Output Board is designed for use within the Advant S100 I/O system and is fully compatible with Advant Controller 410 (AC410), Advant Controller 450 (AC450), and legacy MasterPiece 200/1 systems.
3. What signal types does the ABB DSAX110A 3BSE018291R1 support?
The ABB DSAX110A 3BSE018291R1 supports standard industrial signal ranges, typically configurable for 0 to 10 V voltage signals or 4 to 20 mA current loops, allowing it to interface with a wide variety of field sensors and actuators.
The ABB DSAX110A 3BSE018291R1 supports standard industrial signal ranges, typically configurable for 0 to 10 V voltage signals or 4 to 20 mA current loops, allowing it to interface with a wide variety of field sensors and actuators.
4. What is the conversion resolution of the ABB DSAX110A 3BSE018291R1?
To ensure high precision in process control, the ABB DSAX110A 3BSE018291R1 utilizes 16-bit resolution for both analog-to-digital (A/D) and digital-to-analog (D/A) conversions, maintaining a typical accuracy of ±0.1%.
To ensure high precision in process control, the ABB DSAX110A 3BSE018291R1 utilizes 16-bit resolution for both analog-to-digital (A/D) and digital-to-analog (D/A) conversions, maintaining a typical accuracy of ±0.1%.
5. Does the ABB DSAX110A 3BSE018291R1 provide electrical protection for the controller?
Yes, the ABB DSAX110A 3BSE018291R1(DSAX110A ) features galvanic isolation between the field-side signals and the system backplane, which protects the central processing unit from electrical interference, noise, and potential surges.
Yes, the ABB DSAX110A 3BSE018291R1(DSAX110A ) features galvanic isolation between the field-side signals and the system backplane, which protects the central processing unit from electrical interference, noise, and potential surges.
6. Can the ABB DSAX110A 3BSE018291R1 be replaced while the system is powered?
The ABB DSAX110A 3BSE018291R1 supports hot-replacement capabilities when used in appropriate S100 I/O racks, allowing for maintenance and module exchange without necessitating a complete system shutdown.
The ABB DSAX110A 3BSE018291R1 supports hot-replacement capabilities when used in appropriate S100 I/O racks, allowing for maintenance and module exchange without necessitating a complete system shutdown.
