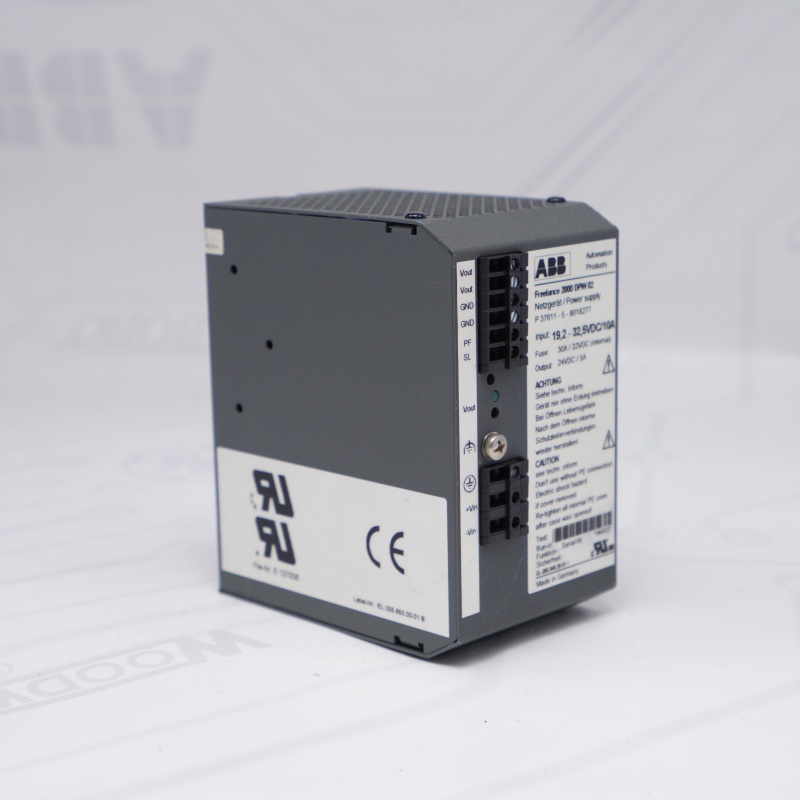

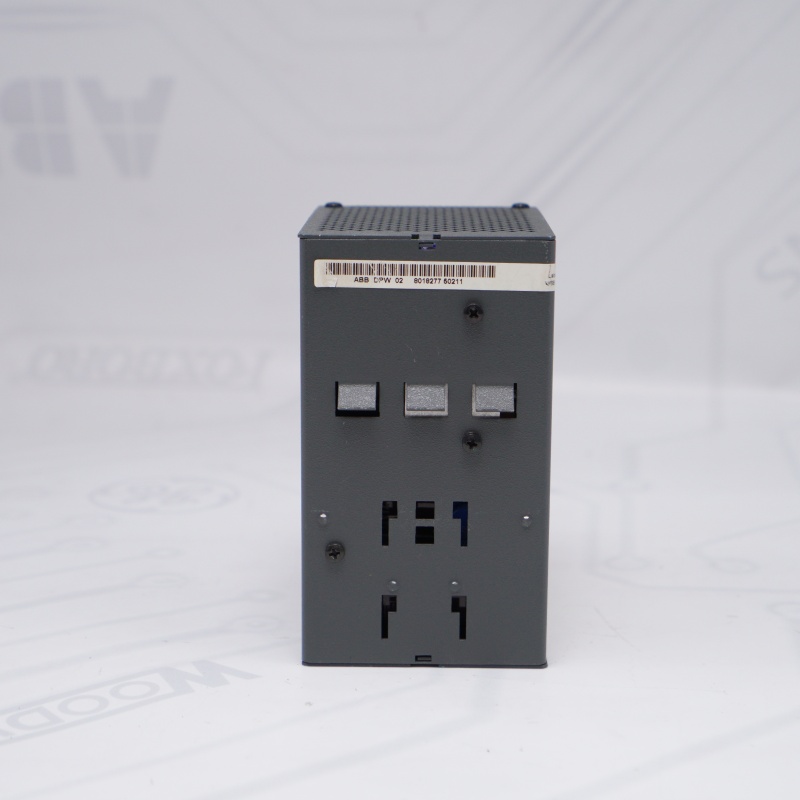

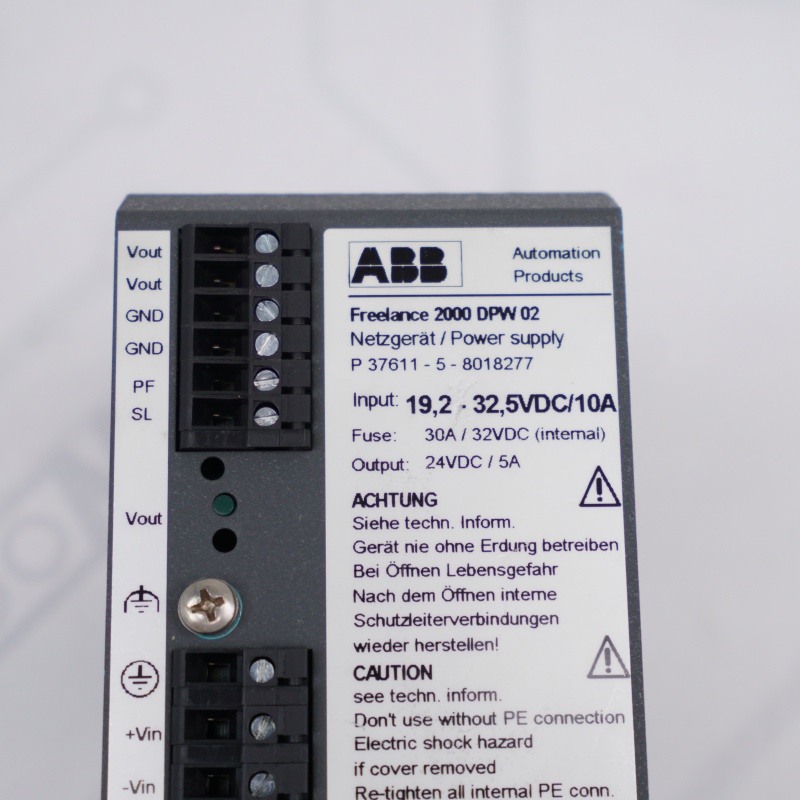

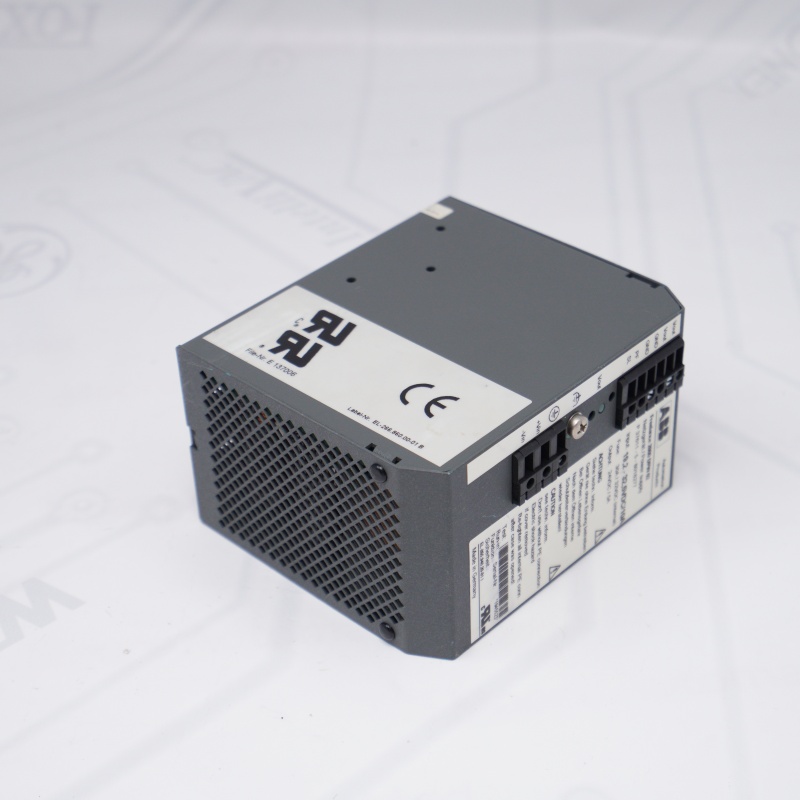

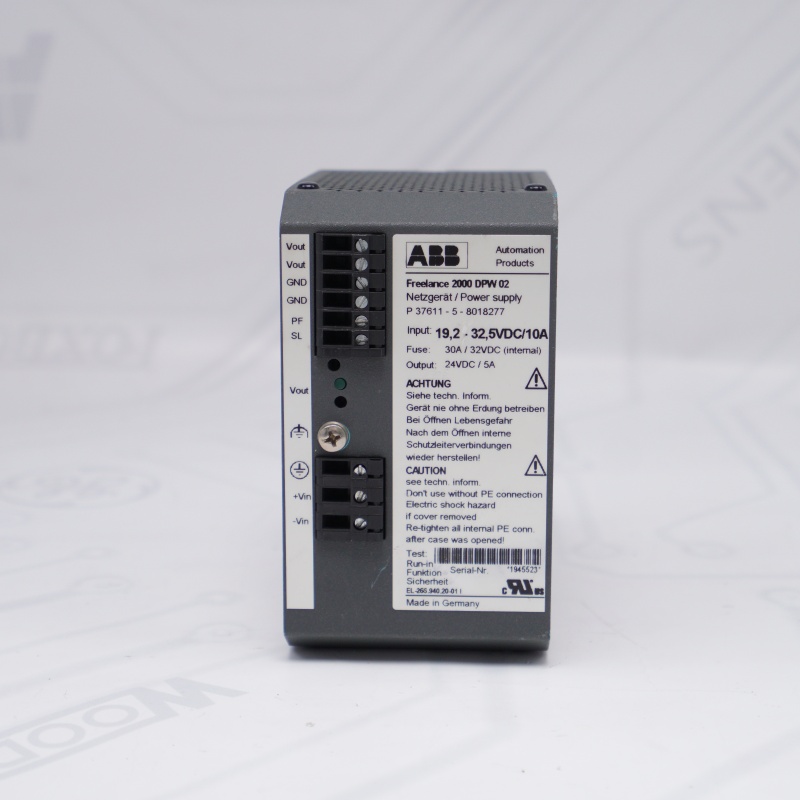

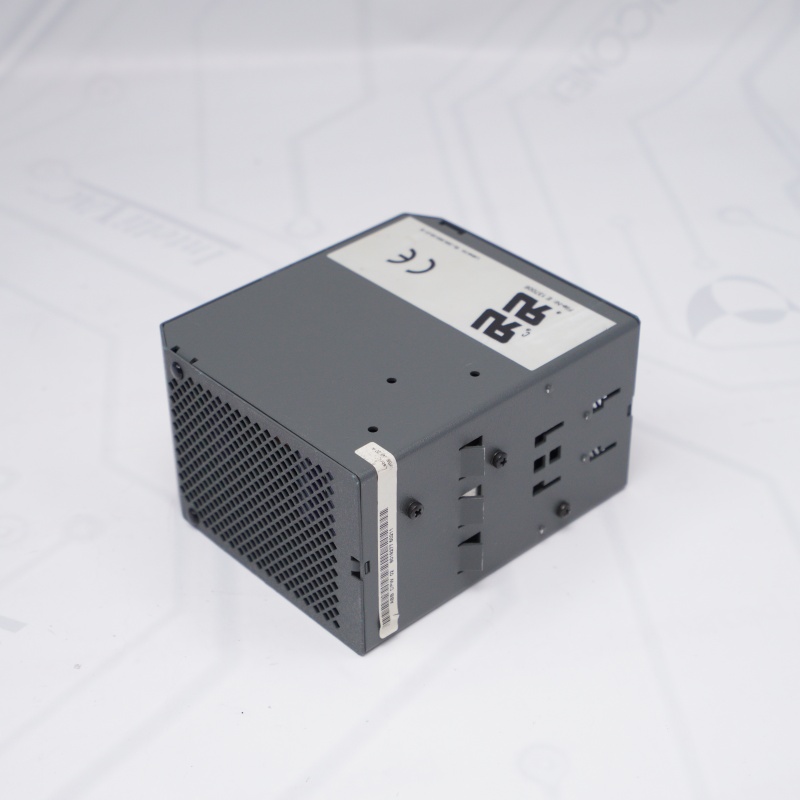

ABB DPW02 Power Supply Module

High-Efficiency Conversion: DPW02 ABB optimizes 24 VDC industrial power down to regulated multi-channel system voltages (5.1V, ±15V).

Galvanic Isolation: DPW02 ABB features 1.5 kVAC electrical isolation between input and output to shield controllers from electrical noise.

Rugged Industrial Housing: DPW02 ABB is built with a compact, metal-reinforced IP20 enclosure suited for harsh cabinet environments.

Passive Convection Cooling: DPW02 ABB operates entirely without mechanical fans, eliminating a common point of hardware failure.

Hot-Swappable Compatibility: DPW02 ABB is engineered for seamless slot-in replacement within the Freelance 2000 subrack architecture.

Integrated Circuit Protection: DPW02 ABB is built-in safeguards against overvoltage, overcurrent, and reverse polarity wiring errors.

Diagnostic Status Indicators: Front-panel LED metrics provide real-time visibility into power status and fault conditions.

If you want to more details about DPW02(DPW02 ABB)，please contact me without hesitate. Email：sales@sparecenter.com

Freelance 2000 System Power: DPW02 Power Supply Module acts as the primary internal power source for legacy ABB Freelance 2000 Distributed Control System (DCS) racks.

Controller Rack Energization: DPW02 Power Supply Module supplies highly regulated, low-noise DC power directly to central processing units (CPUs) and processing nodes.

I/O Module Backbone: DPW02 ABB powers the backplane of industrial rack assemblies to enable stable signal transmission across input and output cards.

Continuous Process Control: Deployed in 24/7 automated plants including chemical processing, oil & gas refining, and water treatment facilities.

Legacy System Lifecycle Extension: DPW02 ABB utilized as a critical drop-in spare part to keep older, commissioned plant infrastructure running without expensive total upgrades.

Subrack Communication Supply: DPW02 ABB provides the necessary voltage rails to power localized fieldbus communication interfaces and gateway modules.

ABB Power Supply Module(DPW02 ABB)

ABB Power Supply Module(DPW02 ABB)

ABB Power Supply Module(DPW02 ABB)

ABB Power Supply Module(DPW02 ABB)

Q1: What is the primary function of the ABB DPW02 module?

A1: The ABB DPW02(DPW02 ABB) converts 24 VDC plant input into stabilized multi-channel DC voltages for Freelance 2000 DCS backplanes.

Q2: Can the ABB DPW02 power supply be hot-swapped safely?

A2: Yes, the ABB DPW02(DPW02 ABB) supports hot-swapping if a parallel redundant DPW02 Power Supply Module module is actively maintaining the subrack load.

Q3: What input voltage limits are accepted by the ABB DPW02?

A3: The ABB DPW02(DPW02 ABB) operates on a 24 VDC nominal input with an allowable tolerance range of 19.2 to 32.5 VDC.

Q4: How do front LEDs assist in troubleshooting the ABB DPW02?

A4: The status LEDs on the ABB DPW02 indicate normal operation, input power loss, or internal faults within the DPW02 Power Supply Module hardware.

Q5: Does the ABB DPW02 provide isolation against electrical spikes?

A5: Yes, the ABB DPW02 features 1.5 kVAC galvanic isolation between the input source and the internal output rails.

Q6: How does the ABB DPW02 handle a short-circuit condition?

A6: The ABB DPW02 utilizes automatic electronic protection that resets the DPW02 Power Supply Module output once the external fault is cleared.

Q7: Is the ABB DPW02 currently available as a brand-new factory product?

A7: No, the ABB DPW02 is a legacy spare part, but you can purchase fully tested and certified DPW02 Power Supply Module units directly from us.

Q8: What cooling method is mandatory for the ABB DPW02 module?

A8: The ABB DPW02 relies on natural air convection and must be mounted vertically to prevent the DPW02 Power Supply Module from overheating.
