ABB CI520V1 3BSE012869R1 Specification
Manufacturer: ABB
Model Name: CI520V1
Product ID: 3BSE012869R1
Product Type: Communication Interface
Protocol Supported: AF100 (Advant Fieldbus 100)
Application: Advant OCS / S800 I/O System
Gross Weight: 0.145 kg
Net Weight: 0.145 kg
Country of Origin: Sweden (SE)
Customs Tariff Number: 85389091
ABB CI520V1 3BSE012869R1 Application
Network Bridging: CI520V1 connects Advant Controller 400 (AC 400) series controllers to the Advant Fieldbus 100 (AF100) communication network.
System Integration: CI520V1 integrates the S800 I/O sub-system components with the central processing unit via fieldbus communication.
Real-Time Data Exchange: CI520V1 manages deterministic transmission of process variables, cyclic data, and time-critical automation commands.
Media Redundancy: Supports dual, redundant fieldbus cable configurations to prevent communication loss in critical processes.
Field Data Collection: Collects sensor, actuator, and instrument signals from the process field to update the controller image.
Diagnostic Reporting: Monitors network health, transmission status, and reports line faults back to the engineering station.
If you want to more details about ABB CI520V1 3BSE012869R1，please contact me without hesitate.Email：sales@sparecenter.com
ABB CI520V1 3BSE012869R1 Features
Deterministic Communication: Ensures high-speed, predictable data transmission over the Advant Fieldbus 100 (AF100) network.
Dual Channel Redundancy: Features two physical bus connections to support redundant media configurations and prevent network downtime.
Direct AC 400 Backplane Slot: Form-factored to plug directly into the module subrack of Advant Controller 400 systems without external mounting kits.
Galvanic Isolation: Built-in electrical isolation protects internal control circuitry from fieldbus line voltage spikes and electrical noise.
Cyclic Data Management: Optimized for high-throughput transmission of time-critical process data and I/O status updates.
Hot-Swappable Design: Supports online module replacement under powered conditions to maximize plant availability and minimize process interruptions.
LED Status Indicators: Integrated front-panel LEDs provide immediate visual diagnostics for module run state, network traffic, and error faults.
ABB CI520V1 3BSE012869R1 FAQ
Q1: What is the primary function of the ABB CI520V1 3BSE012869R1 communication module?
A1: The primary function of the ABB CI520V1 is to serve as a high-speed communication interface between Advant Controller 400 (AC 400) series systems and the Advant Fieldbus 100 (AF100) network. The CI520V1 3BSE012869R1 enables deterministic, real-time data exchange and integrates the remote S800 I/O sub-systems directly into the central processing architecture.
A1: The primary function of the ABB CI520V1 is to serve as a high-speed communication interface between Advant Controller 400 (AC 400) series systems and the Advant Fieldbus 100 (AF100) network. The CI520V1 3BSE012869R1 enables deterministic, real-time data exchange and integrates the remote S800 I/O sub-systems directly into the central processing architecture.
Q2: Does the CI520V1 3BSE012869R1 module support network media redundancy?
A2: Yes, the CI520V1 fully supports dual-channel media redundancy. TheCI520V1 is equipped with two physical ports to connect to redundant AF100 bus lines, ensuring that if one cable link fails, the system automatically switches channels without disrupting process operations or data transmission.
A2: Yes, the CI520V1 fully supports dual-channel media redundancy. TheCI520V1 is equipped with two physical ports to connect to redundant AF100 bus lines, ensuring that if one cable link fails, the system automatically switches channels without disrupting process operations or data transmission.
Q3: Can the CI520V1 3BSE012869R1 interface module be hot-swapped during active system operations?
A3: Yes, the CI520V1 features a hot-swappable hardware design. This allows the CI520V1 to be removed or replaced under powered conditions without stopping the controller or powering down the subrack, maximizing overall plant availability during maintenance.
A3: Yes, the CI520V1 features a hot-swappable hardware design. This allows the CI520V1 to be removed or replaced under powered conditions without stopping the controller or powering down the subrack, maximizing overall plant availability during maintenance.
Q4: What do the front-panel LED indicators on the CI520V1 3BSE012869R1 signify during a fault?
A4: The onboard LED indicators on the ABB Communication Interface Module provide real-time hardware and network visual diagnostics. A steady green light confirms the CI520V1 is powered and running, traffic LEDs indicate active bus transmission, and a solid red LED signals an internal module fault or a complete loss of AF100 communication.
A4: The onboard LED indicators on the ABB Communication Interface Module provide real-time hardware and network visual diagnostics. A steady green light confirms the CI520V1 is powered and running, traffic LEDs indicate active bus transmission, and a solid red LED signals an internal module fault or a complete loss of AF100 communication.
Q5: How is the physical network node address configured on the CI520V1 3BSE012869R1 module?
A5: The network station address for the ABB Communication Interface Module is configured using the physical hardware dip-switches located on the side or rear of the unit. Before inserting the CI520V1 into the subrack slot, engineers must set these switches to assign a unique, non-conflicting station number within the AF100 network segment.
A5: The network station address for the ABB Communication Interface Module is configured using the physical hardware dip-switches located on the side or rear of the unit. Before inserting the CI520V1 into the subrack slot, engineers must set these switches to assign a unique, non-conflicting station number within the AF100 network segment.
Q6: What are the environmental storage and operating conditions required for the CI520V1 3BSE012869R1 module?
A6: The ABB Communication Interface Module is designed for industrial cabinet installation with a standard operating temperature range of 0°C to +55°C and a non-condensing relative humidity up to 95%. For long-term storage, the CI520V1 should be kept in an anti-static bag within an environment ranging from -25°C to +70°C to protect its internal galvanic isolation and solid-state components.
A6: The ABB Communication Interface Module is designed for industrial cabinet installation with a standard operating temperature range of 0°C to +55°C and a non-condensing relative humidity up to 95%. For long-term storage, the CI520V1 should be kept in an anti-static bag within an environment ranging from -25°C to +70°C to protect its internal galvanic isolation and solid-state components.

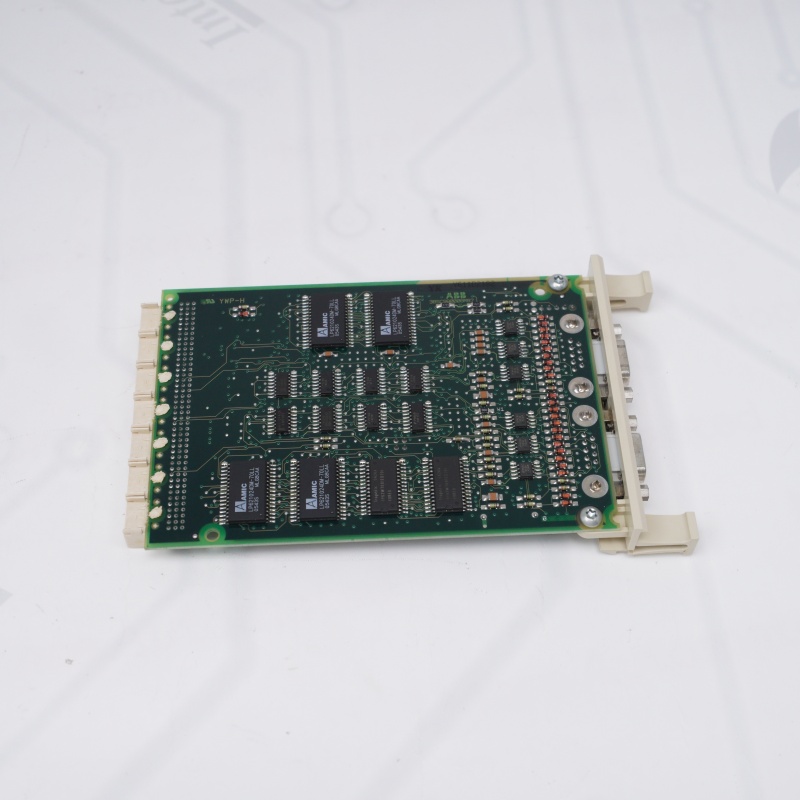

ABB CI520V1 3BSE012869R1 Images
