Supply ABB ACS-AP-I 3AUA0000064885 Assistant Control Panel Wholesale Factory

ABB ACS-AP-I 3AUA0000064885 Specification

Model: ACS-AP-I
Product ID: 3AUA0000064885
Type: Industrial Assistant Control Panel (Non-Bluetooth)
Screen Type: High-resolution graphical LCD with backlight
Language Support: Multi-language (English, Chinese, etc.)
Interface: Softkeys, navigation, Start/Stop, Local/Remote
Input Voltage: 24 V DC (±10%)
Connectivity: RJ-45 (Panel bus) / Mini-USB (PC)
Memory: Parameter backup and restore
Dimensions: 130 x 74 x 26 mm
Weight: Approx. 0.13 kg
IP Rating: IP55 (mounted) / IP20 (standalone)
Operating Temp: -10°C to +60°C
Storage Temp: -40°C to +70°C
Humidity: 5% to 95% (non-condensing)
Supported Drives: ACS880, ACS580, ACS480, ACH580, ACQ580

ABB ACS-AP-I 3AUA0000064885 Features

Industrial Design: Specifically optimized for heavy-duty industrial environments, offering high reliability for mission-critical applications.
High-Resolution Graphical Display: Features a clear, backlit LCD screen that supports icons, graphs, and live monitoring of drive performance.
Intuitive User Interface: Includes dedicated softkeys, navigation buttons, and classic Start/Stop and Local/Remote control buttons for easy operation.
Multi-Language Support: Supports a wide range of languages (including Chinese and English) to ensure global usability.
Parameter Backup & Restore: Built-in memory allows you to save drive parameter sets and easily transfer (clone) them to other drives for fast commissioning or replacement.
Assisted Commissioning: Includes built-in "Wizards" that guide users through the initial setup, tuning, and diagnostic processes step-by-step.
Fault Diagnostics: Provides detailed descriptions of faults and warnings in plain text (not just codes), including timestamps and troubleshooting suggestions.
Multi-Drive Connectivity: ACS-AP-I can be connected to multiple drives simultaneously via a panel bus or an RJ-45 daisy-chain setup.
PC Connection (Mini-USB): Features a Mini-USB port on the side, allowing you to connect the drive to a computer for use with the Drive Composer software.
Real-Time Clock: Includes an internal clock for precise time-stamping of event logs and automated scheduling.
Rugged Protection: Rated at IP55 when mounted on a drive door, protecting it against dust and low-pressure water jets.

If you want to more details about ABB ACS-AP-I 3AUA0000064885 ，please contact me without hesitate. Email：sales@sparecenter.com

ABB ACS-AP-I 3AUA0000064885 Application

Heavy Industrial Process Control

Used with ACS880 drives in demanding sectors like mining, oil & gas, and metals to manage high-torque machinery, including cranes, conveyors, and extruders.

High-Security & Wireless-Free Zones

As a non-Bluetooth model, it is the required standard for sensitive facilities with strict "no wireless" policies, such as data centers, power plants, and military sites.

Centralized Multi-Drive Management

Acts as a master interface in large control cabinets, allowing operators to monitor and configure a network of multiple drives from a single door-mounted location via a panel bus.

Maintenance & Rapid Commissioning

Serves as a portable tool for technicians to backup and clone parameters between drives, and provides a USB bridge for deep diagnostics using PC-based software.

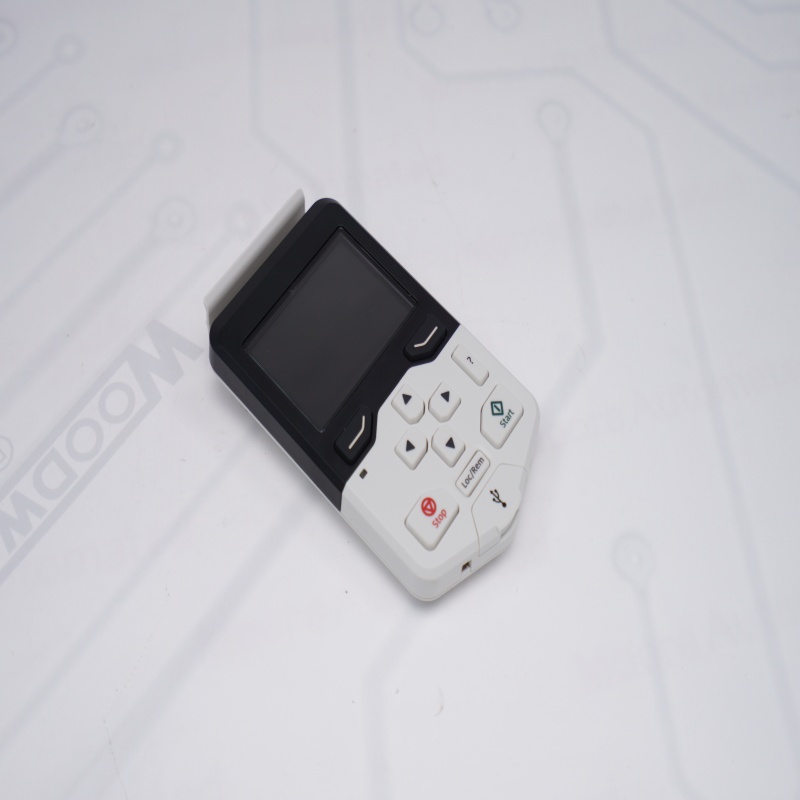

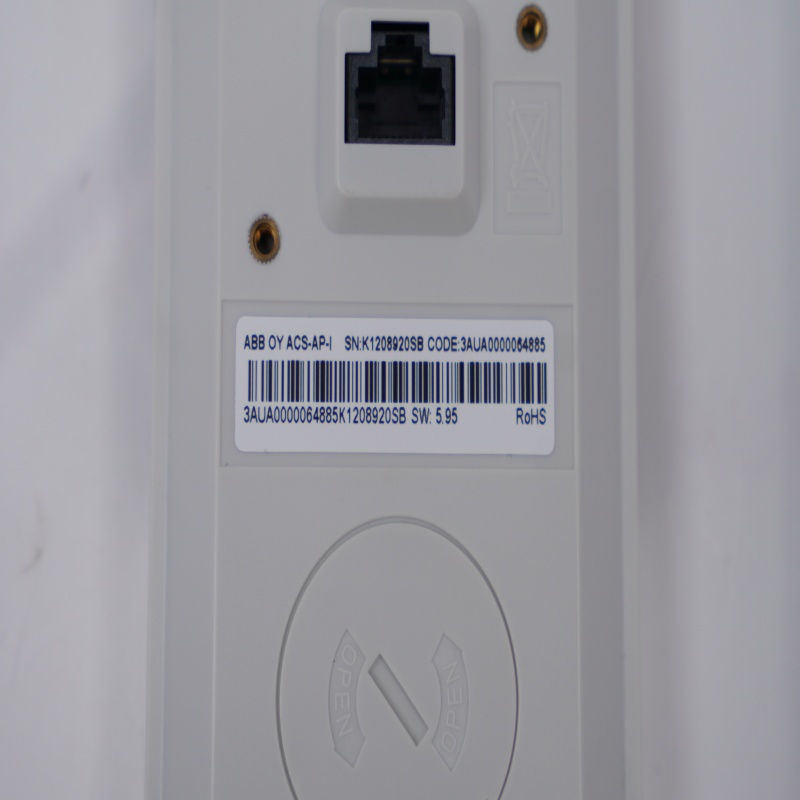

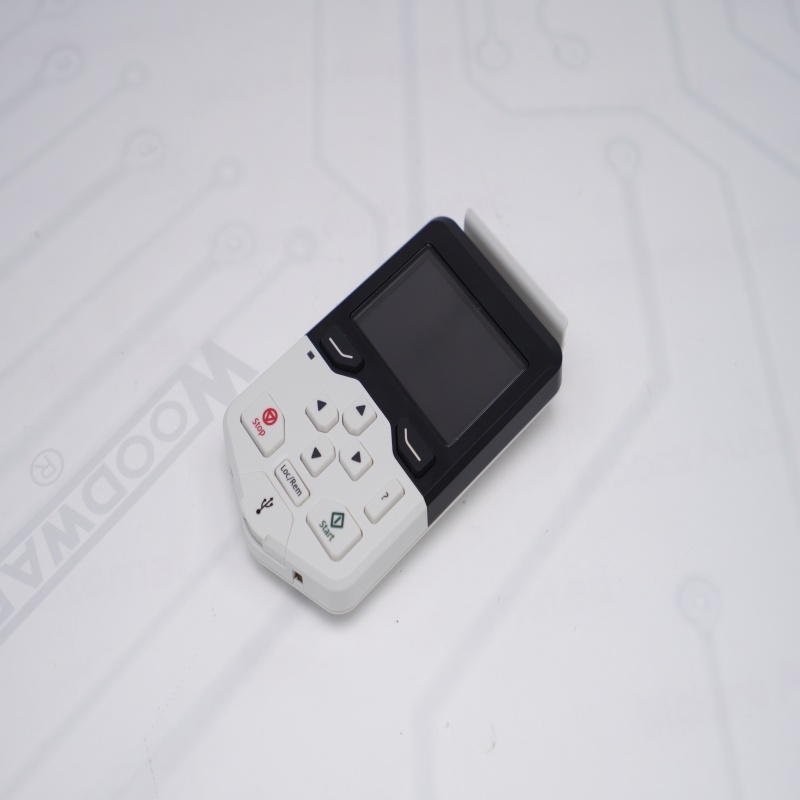

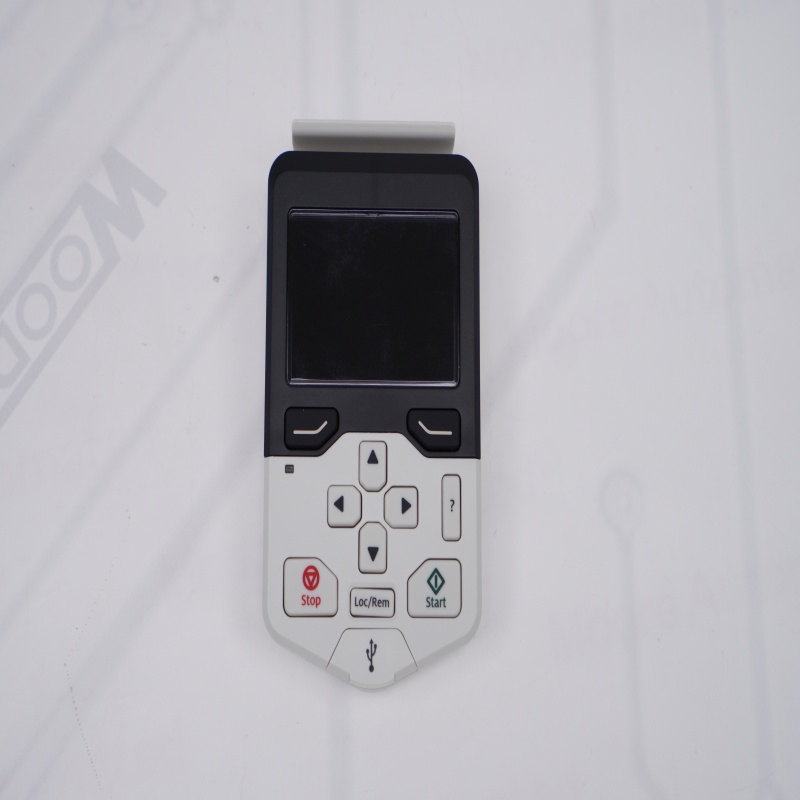

ABB ACS-AP-I 3AUA0000064885 Images

ABB ACS-AP-I 3AUA0000064885

ABB Assistant Control Panel FAQ

Q1: Does the ACS-AP-I 3AUA0000064885 support wireless connectivity for mobile apps?

A: No, the ABB Assistant Control Panel is the "Industrial" non-Bluetooth version. If your application requires wireless connectivity to the Drivetune app, you should opt for the ACS-AP-W model instead of the ACS-AP-I.

Q2: How do I connect the ACS-AP-I 3AUA0000064885 to a PC for configuration?
A: The ABB Assistant Control Panel features a built-in Mini-USB port. By connecting a standard Mini-USB to USB-A cable, you can bridge the ACS-AP-I with a computer running ABB’s Drive Composer software for advanced programming.

Q3: Can the ACS-AP-I 3AUA0000064885 be used to copy settings from one drive to another?
A: Yes, the ABB Assistant Control Panel has a backup and restore function. You can save a full parameter set from a source drive into the internal memory of the ACS-AP-I and then download those settings into a new drive.

Q4: Is the ACS-AP-I 3AUA0000064885 suitable for outdoor or washdown environments?
A: The ABB Assistant Control Panel is rated at IP55 when properly mounted on the drive’s front cover or a cabinet door using a compatible mounting kit. This rating allows the ACS-AP-I to withstand dust and low-pressure water splashes.

Q5: Which ABB drive series are compatible with the ACS-AP-I 3AUA0000064885?
A: The ABB Assistant Control Panel is a "universal" assistant control panel compatible with ABB’s all-compatible drive platform, including the ACS880, ACS580, ACS480, ACH580, and ACQ580 series.

Q6: What should I do if the screen of the ACS-AP-I 3AUA0000064885 remains blank upon power-up?
A: First, verify the RJ-45 cable connection between the drive and the ABB Assistant Control Panel . If the connection is secure, check the drive's 24V DC control power; if the issue persists, the ACS-AP-I may need a firmware flash or hardware replacement.
