ABB 89AS30 Specification
Product ID: GKWN000317R0100
Model Designation: 89AS30
Device Type: Analog Signal Multiplier / Controller Module
System Compatibility: ABB Procontrol P (P13/P14)
Number of Units: 3 Identical, Independent Function Units
Supply Voltage: +24 V DC (Standard Industrial Range)
Current Consumption: Approx. 110 mA (at 24V, excluding outputs)
Input Signal Isolation: Galvanically isolated from internal electronics
Transmitter Feed (Output): Isolated 15V or 24V DC (Field device power)
Operating Temperature: 0°C to +55°C (Standard Operation)
Storage Temperature: -40°C to +70°C
Mounting Type: Rack-mounted (Procontrol P Standard Frame)
ABB 89AS30 Application
The ABB 89AS30 is a specialized component primarily utilized in complex industrial process control systems requiring precise analog signal processing:
Computational Control: In chemical or pharmaceutical industries, the ABB 89AS30 is used to multiply related analog variables (e.g., flow rate and density) to calculate mass flow in real-time.
Signal Isolation & Conditioning: In high-noise power environments, the ABB 89AS30 provides essential galvanic isolation between input and output to protect core DCS controllers.
Energy Management: This module is frequently employed in energy monitoring tasks to calculate power (Voltage x Current), ensuring high accuracy in consumption data.
If you want to more details about ABB 89AS30，please contact me without hesitate.Email：sales@sparecenter.com
ABB 89AS30 Features
High-Precision Arithmetic: The ABB 89AS30 delivers superior multiplication accuracy, ensuring minimal signal distortion during complex arithmetic operations.
Advanced Electrical Isolation: Integrated isolation technology allows the ABB 89AS30 to effectively suppress common-mode interference.
Industrial-Grade Durability: Built for harsh environments, the ABB 89AS30(ABB GKWN000317R0100) features robust vibration resistance and wide operating temperature ranges.
Standardized Integration: Its compact physical design facilitates easy installation within standard industrial control cabinets.
ABB 89AS30 Compatibility & System Integration
The ABB 89AS30 is a critical legacy pillar of ABB’s high-performance automation ecosystem:
Control System Framework: It is primarily designed for the ABB Procontrol P (P13/P14) series, serving as a key module for signal decoupling and arithmetic logic.
System Continuity: The ABB GKWN000317R0100 supports the longevity of existing production lines, ensuring that legacy DCS architectures remain operational without full system overhauls.
Rack Support: ABB GKWN000317R0100 typically mounts within standard Procontrol P racks, adhering strictly to the electrical and communication protocols of the Procontrol bus.
Software Configuration: Functionality for the ABB GKWN000317R0100 is managed via system-specific programming tools, identified as a standard analog processing unit within the control logic.
ABB 89AS30 FAQ
1. What is the primary function of the 89AS30 GKWN000317R0100 module?
The ABB GKWN000317R0100 is an Analog Signal Multiplier module designed for the ABB Procontrol P control system. The ABB GKWN000317R0100 is used to process and scale analog input signals through precise multiplication operations within industrial automation environments.
2. How many channels does the 89AS30 GKWN000317R0100 provide?
The ABB GKWN000317R0100 consists of three identical and independent function units. This allows a single ABB GKWN000317R0100 unit to handle three separate signal paths simultaneously.
3. Are the inputs of the 89AS30 GKWN000317R0100 protected against interference?
Yes, the inputs of the ABB GKWN000317R0100 are electrically isolated from the internal circuitry. This ensures that the 89AS30 GKWN000317R0100 maintains signal integrity and protects the system from field-side electrical noise.
4. Can the 89AS30 GKWN000317R0100 power field transmitters?
Yes, the 89AS30 GKWN000317R0100 provides isolated supply voltages (either 15V or 24V DC) for each input. This allows the ABB GKWN000317R0100 to directly power field transmitters without additional external power sources.
5. What are the technical specifications of the 89AS30 GKWN000317R0100?
The 89AS30 GKWN000317R0100 operates on a +24 V DC supply with a current consumption of approximately 110 mA. Physically, the ABB GKWN000317R0100 weighs about 0.8 kg and measures roughly 160mm x 160mm x 120mm.
6. Is the 89AS30 GKWN000317R0100 compatible with older systems?
The 89AS30 GKWN000317R0100 is specifically designed for the ABB Procontrol P architecture. Before installing the 89AS30 GKWN000317R0100, it is important to verify the hardware revision and system bus compatibility.
7. Is the 89AS30 GKWN000317R0100 still available for purchase?
Yes, we have the ABB GKWN000317R0100 in stock and can provide it to you. We specialize in supplying high-quality industrial parts, including legacy components like the ABB GKWN000317R0100

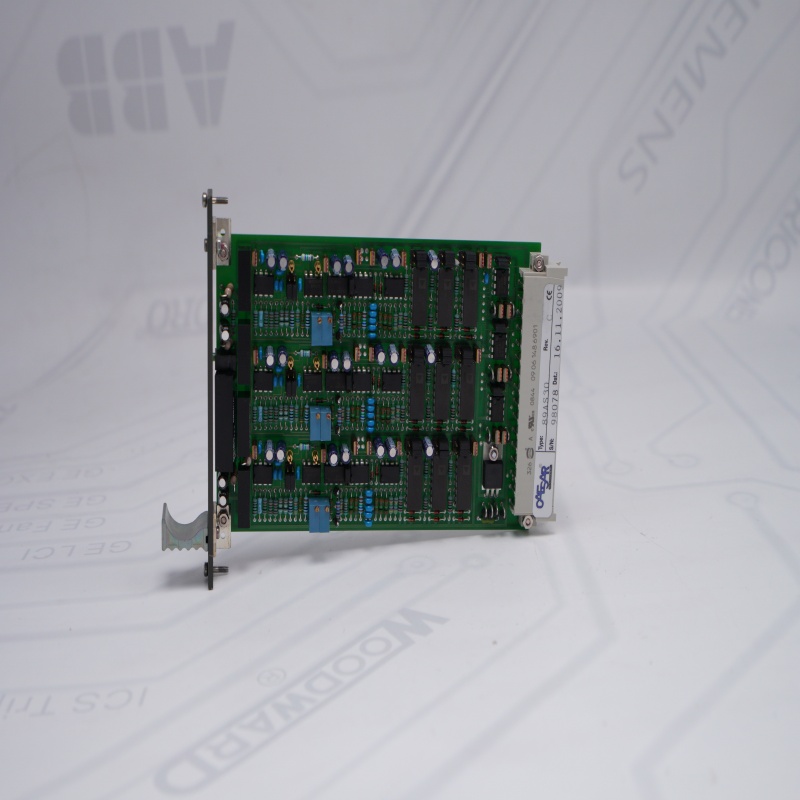

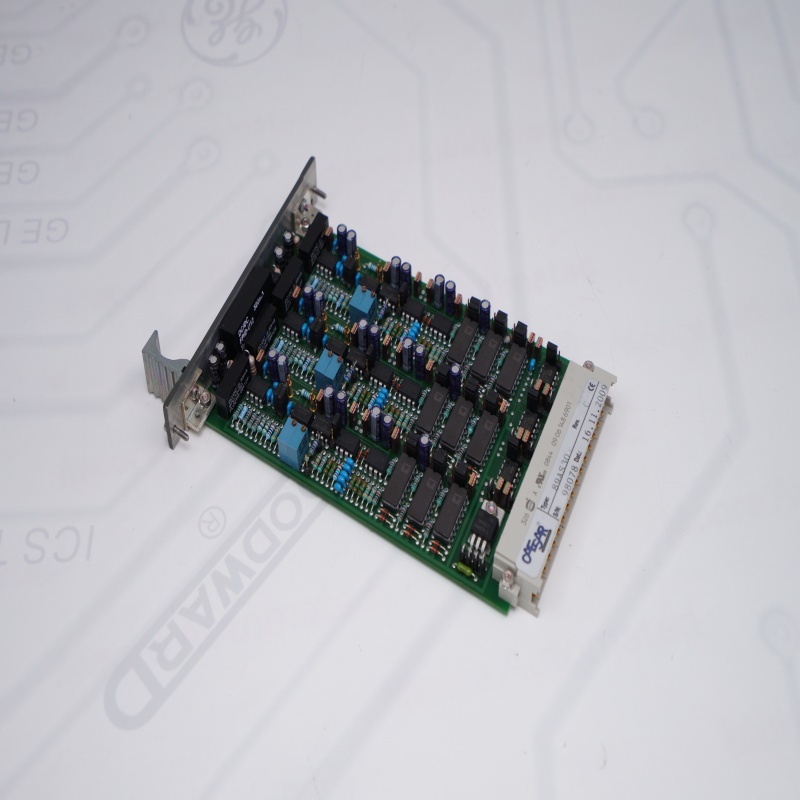

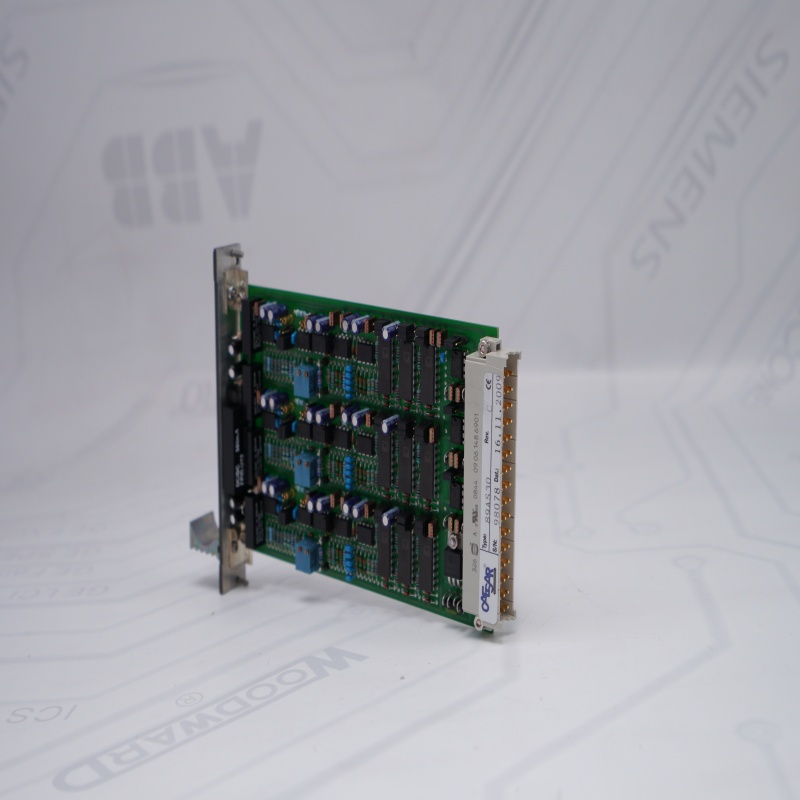

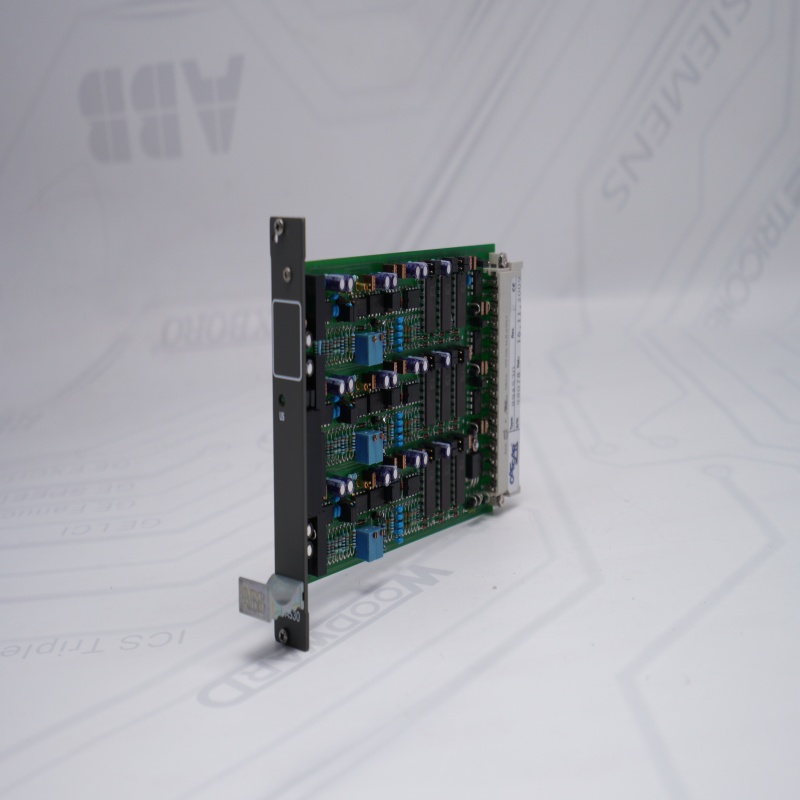

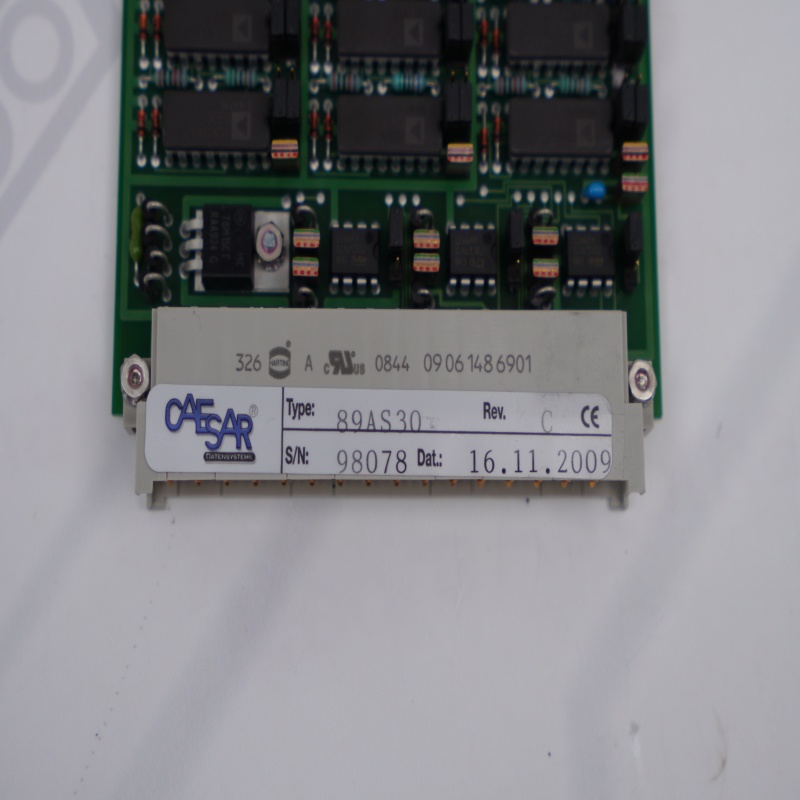

ABB 89AS30 Images
ABB 89AS30
ABB 89AS30
ABB 89AS30
ABB 89AS30
