3BSE019216R1 DSBC176 Specification
| Attribute | Value |
| Product ID | 3BSE019216R1 |
| ABB Type Designation | ABB DSBC 176 |
| Catalog Description | ABB DSBC 176 Bus Extender Board |
| Input / Supply Voltage | +24 V DC (via S800 I/O backplane) |
| Power Consumption | ≦ 2.5 W typical |
| Operating Temperature Range | –20 °C to +60 °C |
| Storage Temperature Range | –40 °C to +70 °C |
3BSE019216R1 Bus Extender Board Details
Description
The 3BSE019216R1 Bus Extender Board （ABB DSBC176）is a communication extension module used in ABB’s industrial automation systems. ABB Bus Extender Board（ABB DSBC176） acts as a link between the S800 I/O system and the control network, allowing for longer bus distances and the integration of more I/O modules into the system.
Key Feature
Dual Redundant Communication Paths: Equipped with dual bus interfaces, the DSBC176 ensures continuous operation by providing automatic failover within 50 milliseconds, making it suitable for mission-critical applications.
High Reliability: Designed with industrial-grade components, the module operates stably in harsh environments, with an operating temperature range of -20°C to +60°C.
Wide Compatibility: Supports multiple industrial communication protocols, including PROFIBUS DP and Modbus RTU, allowing integration with various control systems.
Advantage
ABB Bus Extender Board（ABB DSBC176） Used for network expansion of process control systems in petrochemical, power generation, and metallurgy industries.
ABB Bus Extender Board（ABB DSBC176） Applied in factory automation, extending the communication range of I/O modules within control cabinets.
ABB Bus Extender Board（ABB DSBC176）Used as a bus extender to connect control systems with remote sensors and actuators.
If you want to more details about ABB 3BSE019216R1 DSBC176（ABB DSBC176），please contact me without hesitate.Email：sales@sparecenter.com
3BSE019216R1 Bus Extender Board Images

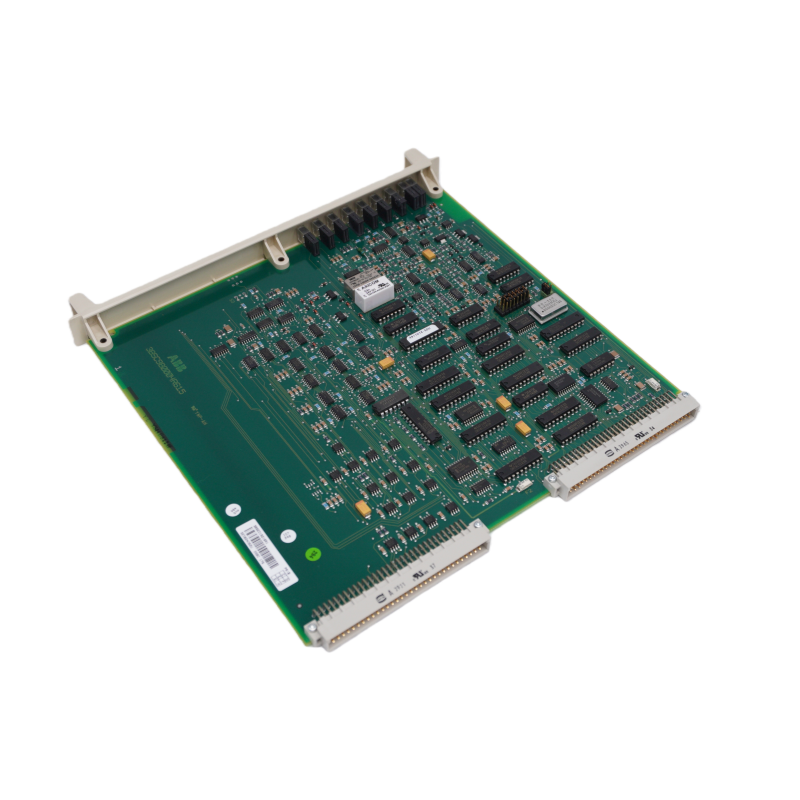

ABB 3BSE019216R1 DSBC176（ABB DSBC176）

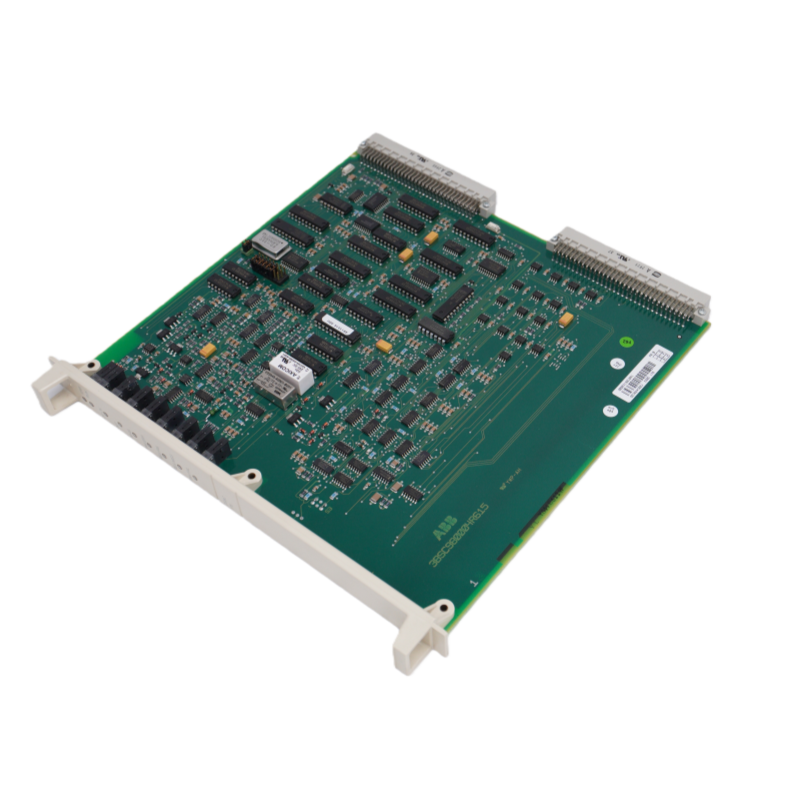

ABB 3BSE019216R1 DSBC176（ABB DSBC176）

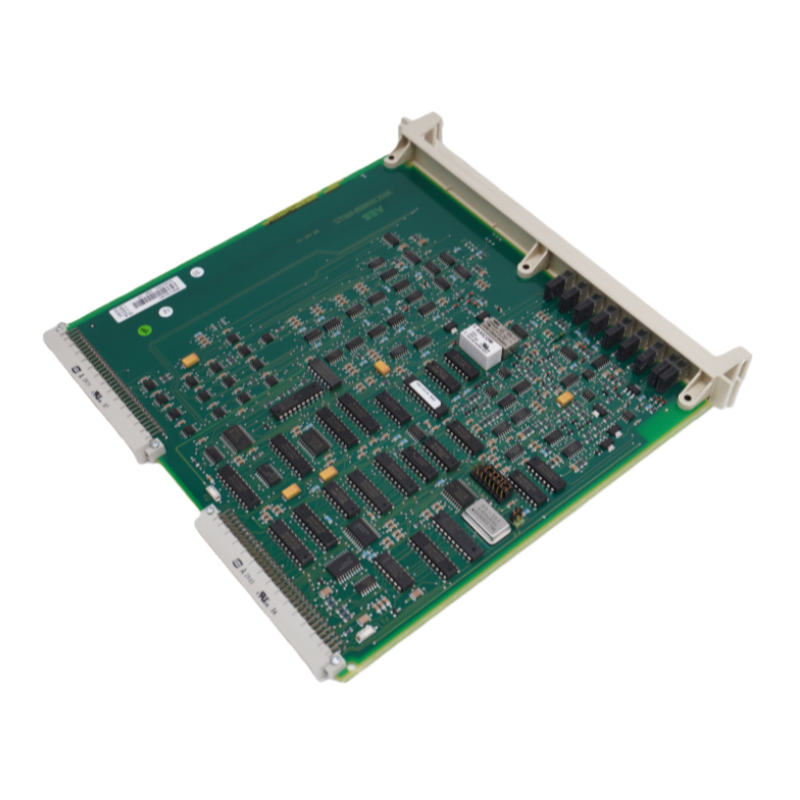

ABB 3BSE019216R1 DSBC176（ABB DSBC176）
