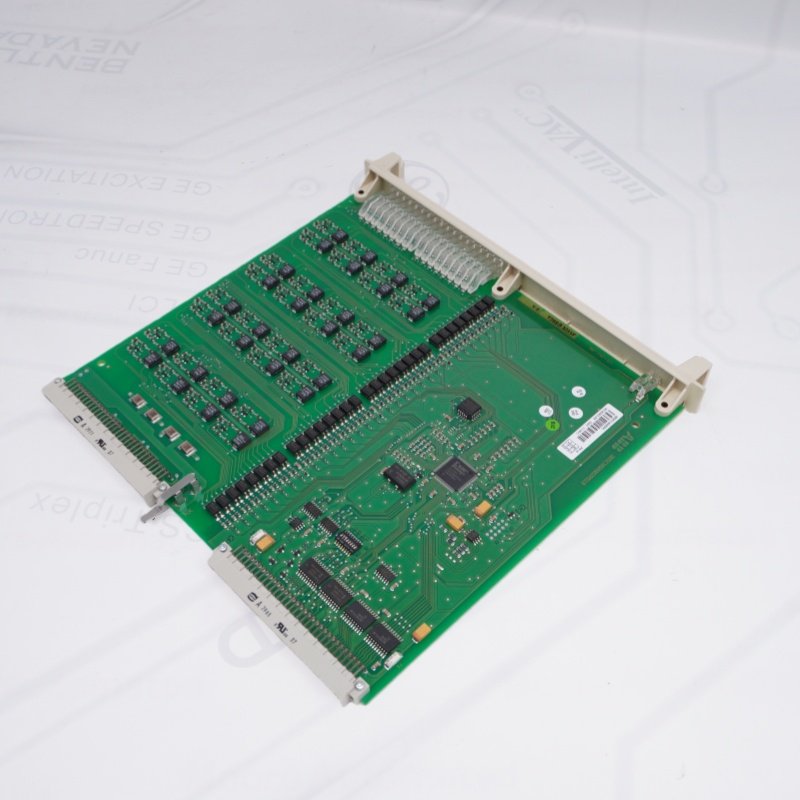

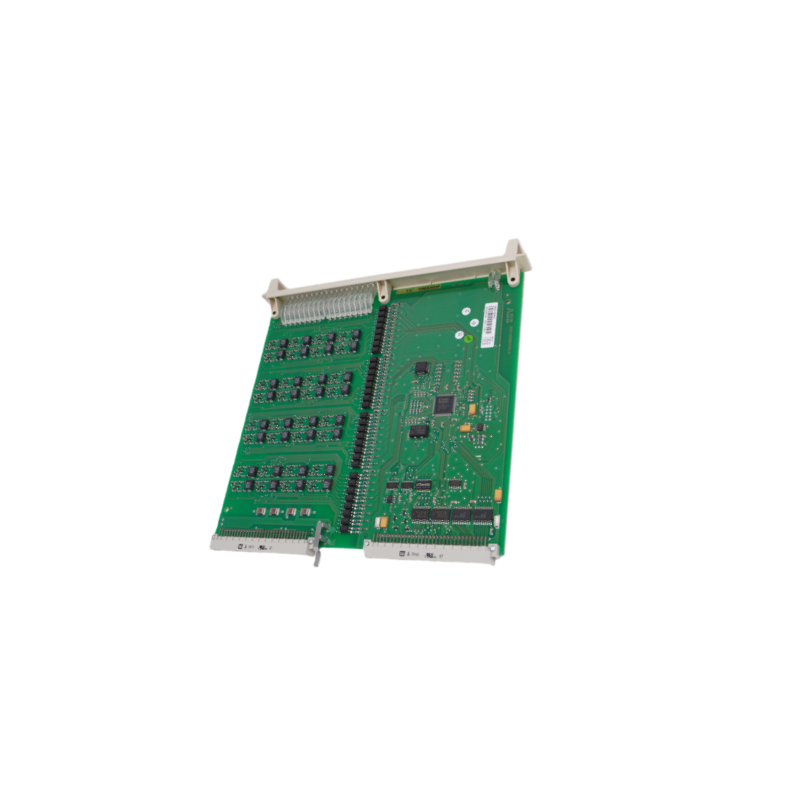

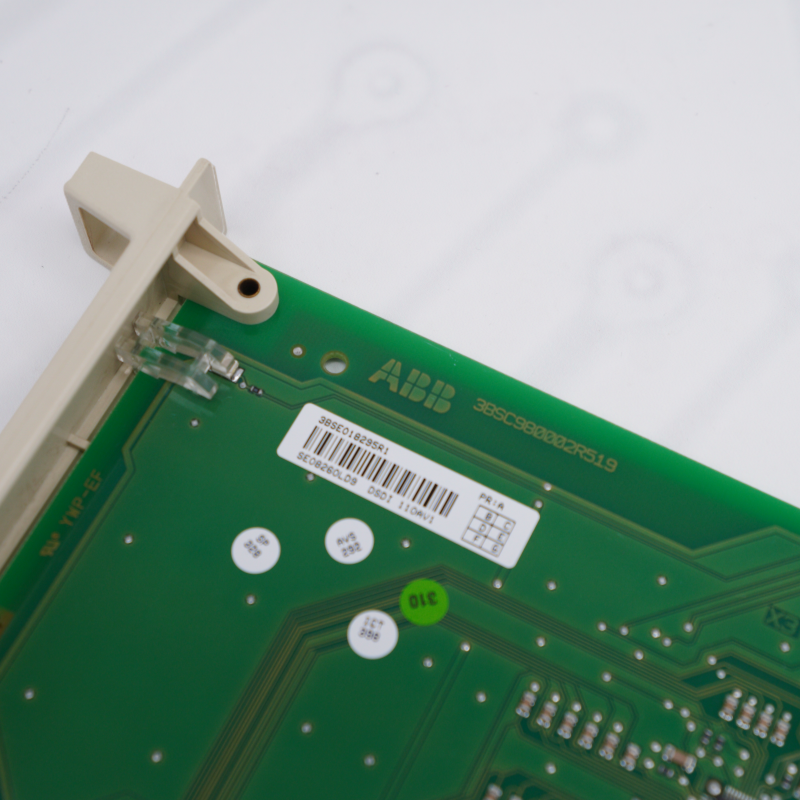

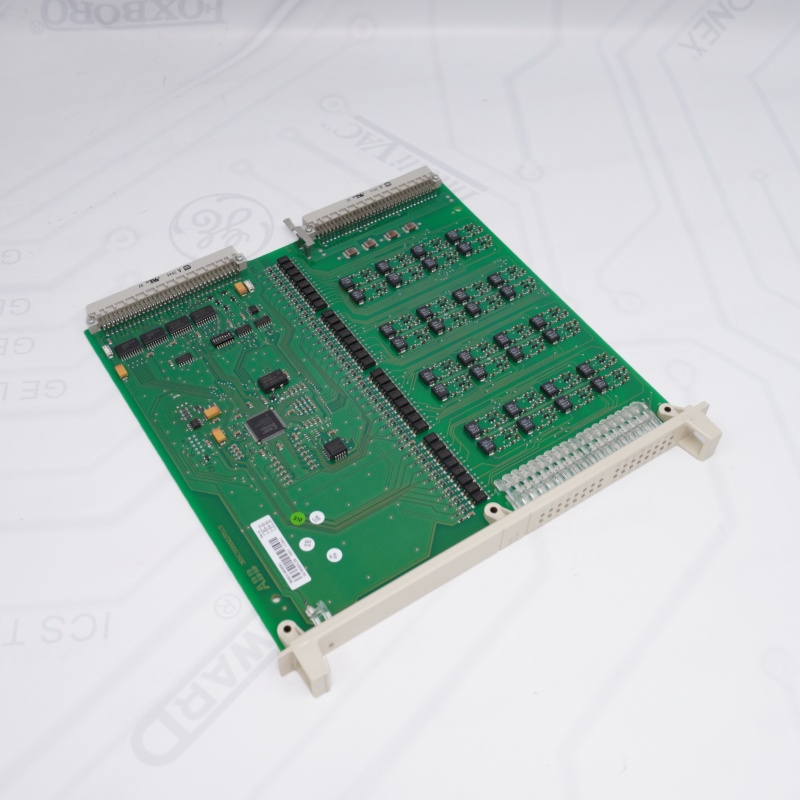

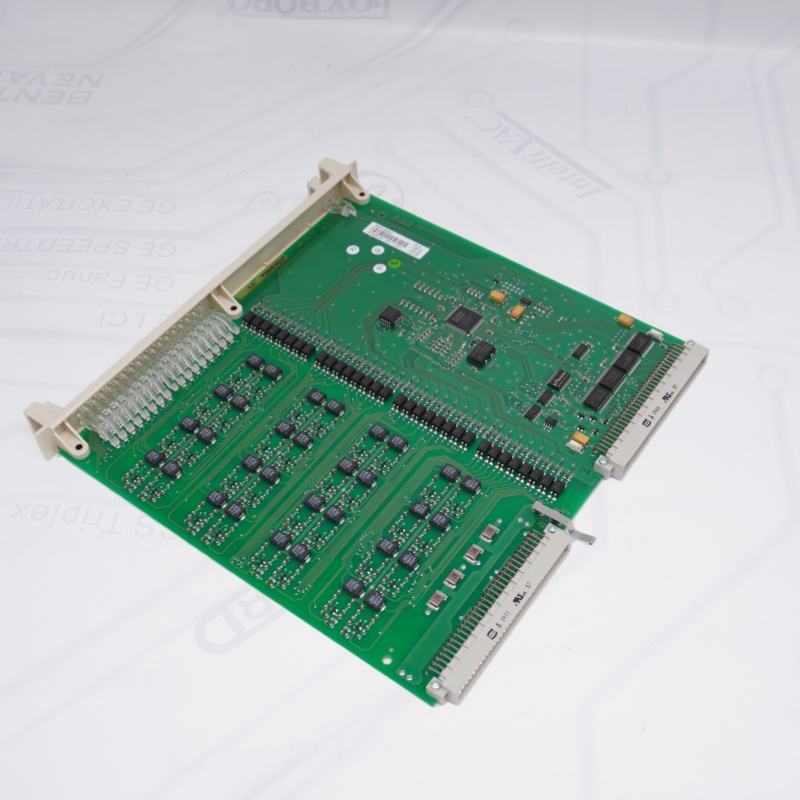

ABB 3BSE018295R1 DSDI110AV1 Digital Signal Input Module

The ABB Digital Signal Input Module is a digital input module designed for industrial automation and control systems.

ABB 3BSE018295R1 DSDI110AV1 features 32 digital input channels, optimized for 24 V DC signal levels.

3BSE018295R1 Digital Signal Input Module supports opto-isolated inputs, providing electrical isolation to protect the system from interference and improve signal integrity.

DSDI110AV1 Digital Signal Input Module is built in a compact format with dimensions approximately 234 mm depth × 18 mm height × 229.5 mm width, and a net weight of about 0.332 kg.

The module is part of ABB’s Advant / Process Control series and interfaces with ABB distributed control systems (DCS).

DSDI110AV1 Digital Signal Input Module is designed for robust industrial use, with features like input event detection (rising/falling edges), and configurable input modes (e.g., sinking or sourcing).

3BSE018295R1 Digital Signal Input Module Operating environment details such as input voltage and current for each channel are cited as 24 V DC and around 7 mA input current.

ABB Digital Signal Input Module is typically used in process automation, control systems, signal acquisition, and similar industrial applications.
