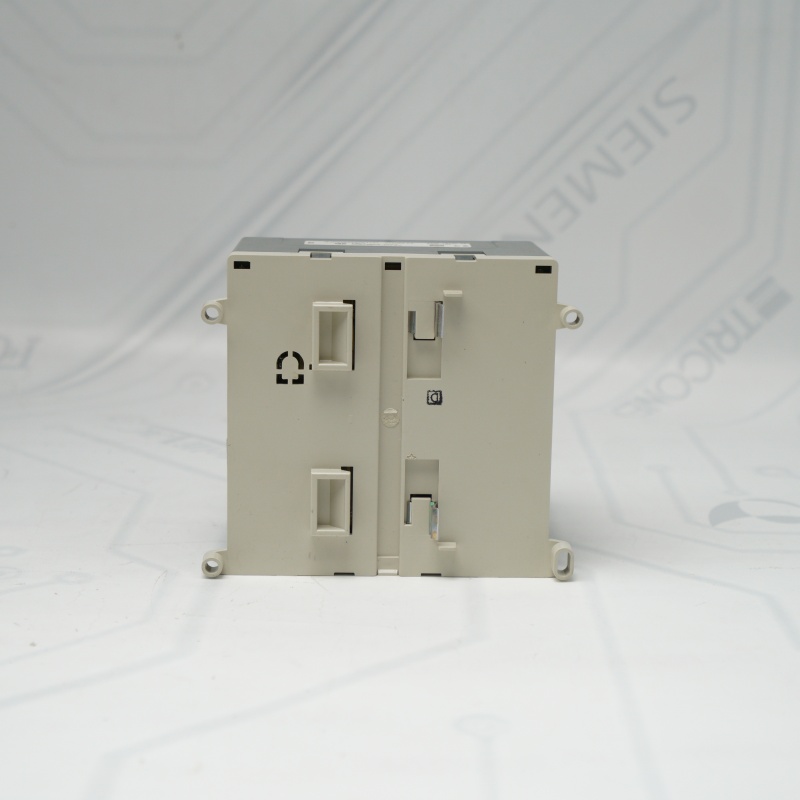

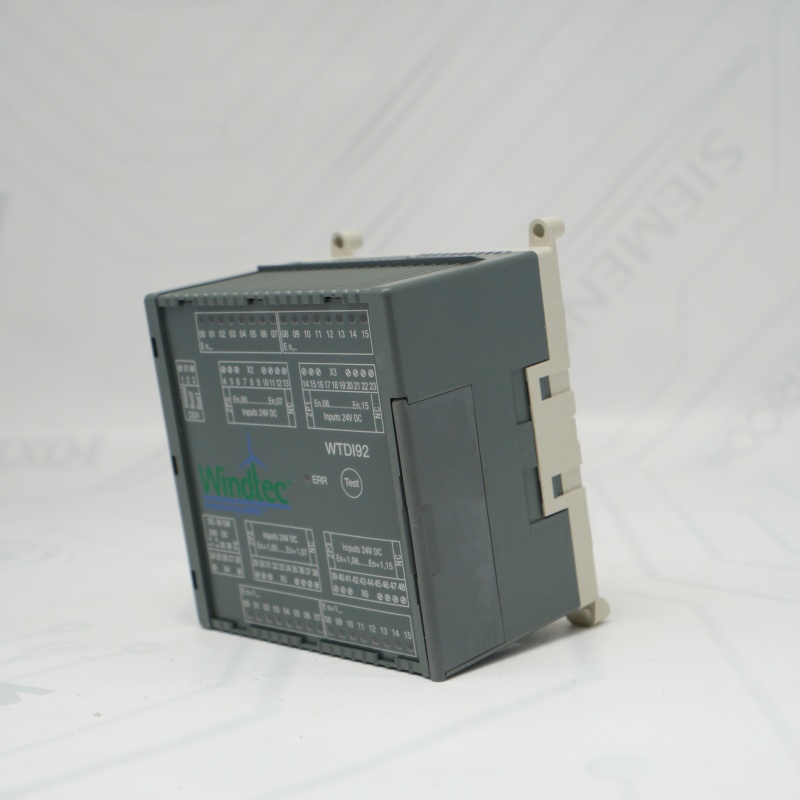

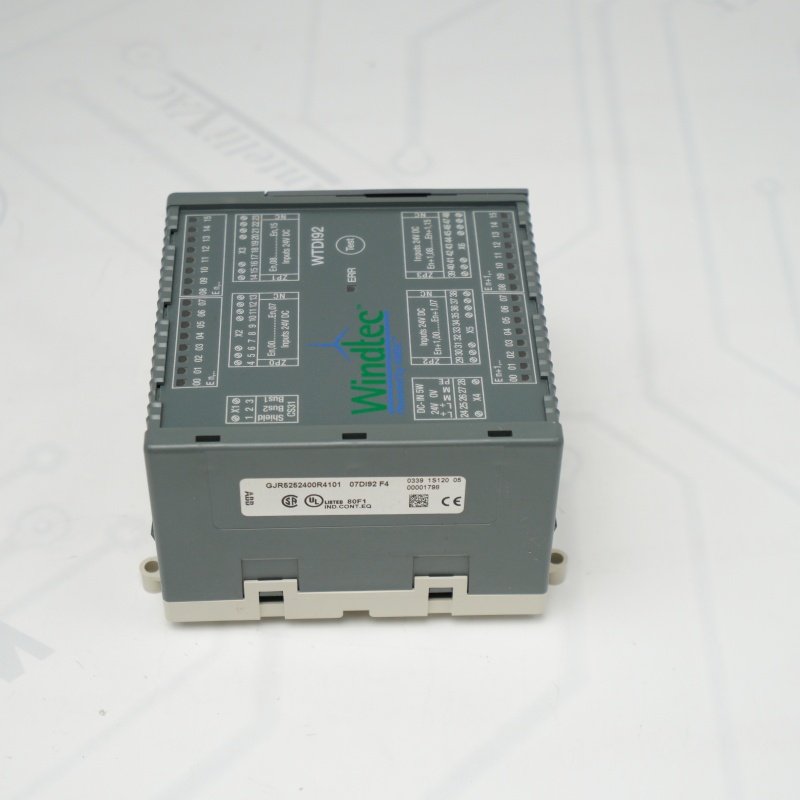

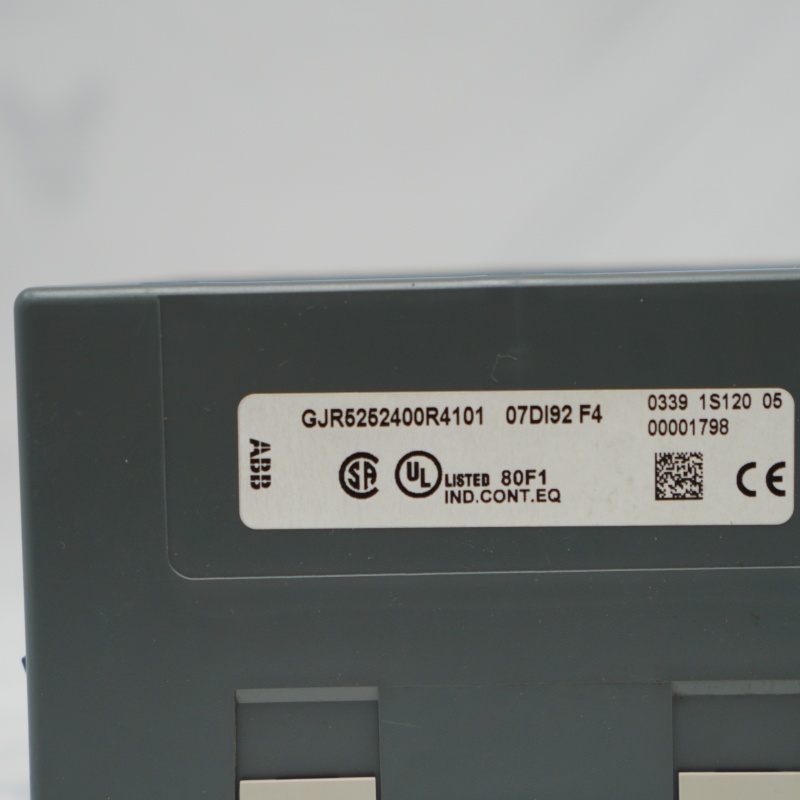

ABB 07DI92 GJR5252400R4101 digital input module

• 07DI92 Signal Input: ABB 07DI92 GJR5252400R4101 provides 32 digital input channels (24 VDC) to collect binary signals from field switches or sensors.

• ABB digital input module Bus Communication: 07DI92 connects directly to the master PLC via the CS31 system bus for real-time data transmission.

• ABB digital input module Electrical Isolation: 07DI92 inputs are divided into 4 isolated groups to protect the internal system from external electrical noise.

• ABB digital input module Status Diagnostics: 07DI92 features 32 green status LEDs, 1 red error LED, and a dedicated Test button for easy troubleshooting.

Q1: What is the main function of the ABB 07DI92 module (part number GJR5252400R4101)?

A1: The ABB digital input module(07DI92) is a distributed 32-channel digital input module designed for traditional Advant Controller 31 (AC31) systems. As a remote I/O unit, it acquires 24VDC binary signals from field devices and transmits them to the central PLC via the CS31 system bus.

Q2: How is electrical isolation achieved in the GJR5252400R4101 hardware architecture?

A2: To prevent electrical noise and voltage spikes from damaging the core system, the 32 input channels of the GJR5252400R4101(07DI92) are divided into four electrically isolated groups (eight channels per group). These groups are completely isolated from each other, from internal electronics, and from the CS31 bus interface.

Q3: What do the onboard diagnostic LEDs on the GJR5252400R4101 module indicate?

A3: The GJR5252400R4101(07DI92) module is equipped with 32 green LEDs to indicate the real-time logic status of each digital input channel. 07DI92 also includes a red error LED to indicate a drop in power supply voltage, hardware failure, or bus communication error, and features a physical test button for local diagnostics.

Q4: How does the GJR5252400R4101 module handle address allocation on the CS31 bus?

A4: The GJR5252400R4101(07DI92) module uses an integrated DIP switch on its housing to set its hardware address. Once configured, it will occupy two consecutive digital input addresses on the CS31 system bus, thus mapping its full 32-channel capacity to the CPU.

Q5: Is the ABB 07DI92 GJR5252400R4101 module still available? Where can I find it?

A5: The 07DI92 is an obsolete product series, and ABB has officially listed it as a discontinued product. However, you can purchase this module directly from our spare parts center. We have a reliable inventory of spare parts like 07DI92 to ensure the smooth operation of your older control systems.
