AB 1336T-GTB-SP1B 1336T-LM1EN 74103-015-51 74101-954-51D PLC Communications Adapter Board

  • Allen Bradley
  • USA
  • 2024
  • In Stock
These part numbers together refer to the Allen-Bradley 1336 FORCE series PLC Communications Adapter Board assembly. Allen Bradley 1336T-GTB-SP1B typically includes a main circuit board, a language module, and sub-components used to provide communication and analog I/O capabilities for industrial AC drives.
Annex

1

Allen Bradley 1336T-GTB-SP1B Specification


ManufacturerAllen-Bradley
Device NamePLC Communications Adapter Board
CompatibilityAllen-Bradley 1336 FORCE Series AC Drives
Comm Channels2 Remote I/O (RIO) / DeviceNet (DG) Channels
Analog Inputs4 Analog Inputs
Analog Outputs4 Analog Outputs
Output Frequency0 – 250 Hz
Main PCB No.74103-015-51 (Revision B)
Sub-Board No.74101-954-51D
ConfigurationIntegrated DIP Jumpers and Switches


2

Allen Bradley 1336T-GTB-SP1B Details


Allen Bradley 1336T-GTB-SP1B Features:

Integrated Communication: 1336T-LM1EN provides direct PLC-to-Drive connectivity via dual RIO or DeviceNet protocols.

High-Density I/O: 1336T-LM1EN features 4 high-precision analog inputs and 4 analog outputs for complex control loops.

Plug-and-Play Firmware: 1336T-LM1EN includes the 1336T-LM1EN module for standardized English firmware and diagnostics.

Adjustable Logic: On-board DIP switches allow for manual configuration of baud rates and node addresses.

Precision Speed Control: 1336T-LM1EN supports fine-tuned motor frequency adjustments ranging from 0 to 250 Hz.

Industrial Durability: 1336T-LM1EN is specifically engineered for the 1336 FORCE series to withstand high-vibration environments.

Modular Architecture: 1336T-LM1EN combines PCB 74103-015-51 and 74101-954-51D for easy component-level troubleshooting.

Allen Bradley 1336T-GTB-SP1B Application:

PLC-to-Drive Integration: 1336T-LM1EN enables seamless data exchange between Allen-Bradley PLC systems (such as PLC-5 or SLC 500) and 1336 FORCE drives.

Coordinated Drive Systems: 1336T-LM1EN is used in multi-drive applications like conveyors or web-handling lines that require synchronized speed control via RIO/DeviceNet.

Analog Process Control: Allen Bradley PLC Communications Adapter Board is Ideal for systems requiring multiple feedback loops, such as pressure, flow, or temperature regulation using its 4 analog I/O ports.

High-Performance Motor Tuning: Allen Bradley PLC Communications Adapter Board is applied in industrial environments requiring precise motor frequency control up to 250 Hz for high-speed machining or pumping.

Retrofitting & Maintenance: Allen Bradley PLC Communications Adapter Board is used as a critical replacement part for maintaining legacy automation cells in automotive, steel, and paper mill industries.

Remote Monitoring: Allen Bradley PLC Communications Adapter Board facilitates remote diagnostics and parameter monitoring from a centralized control room via the communication network.


3

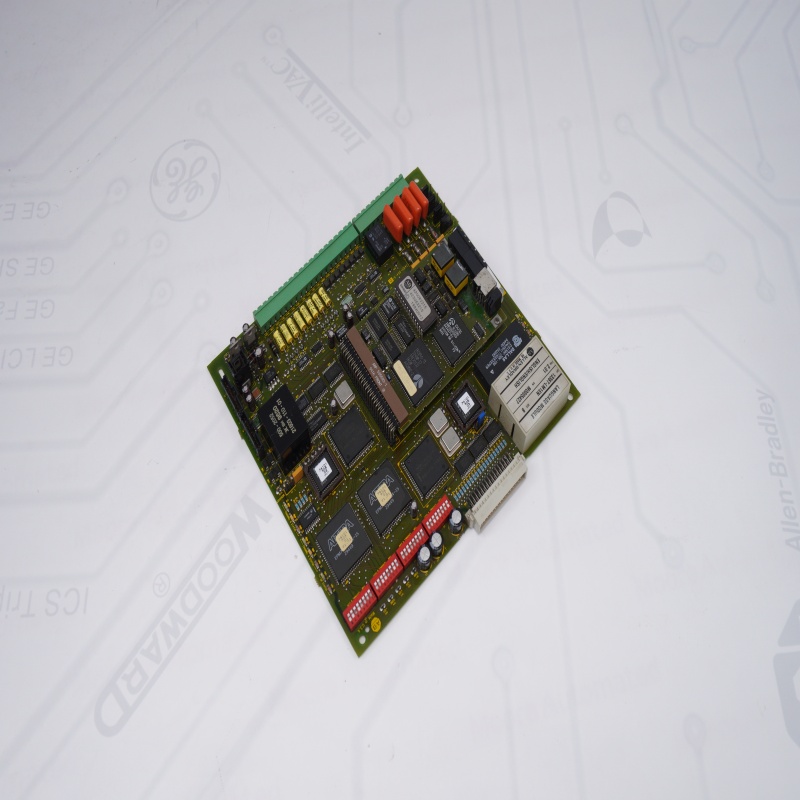

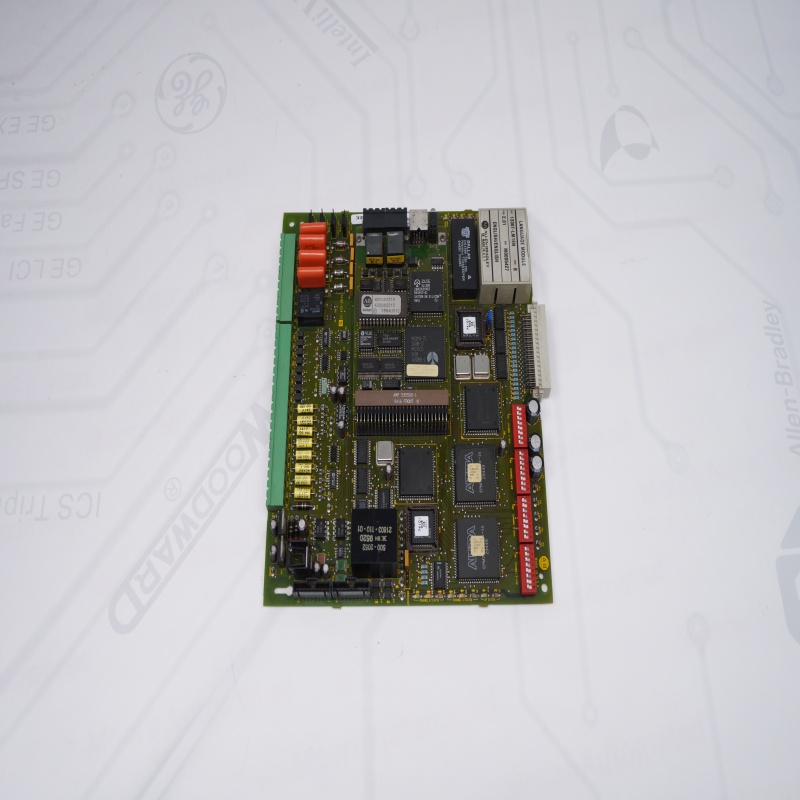

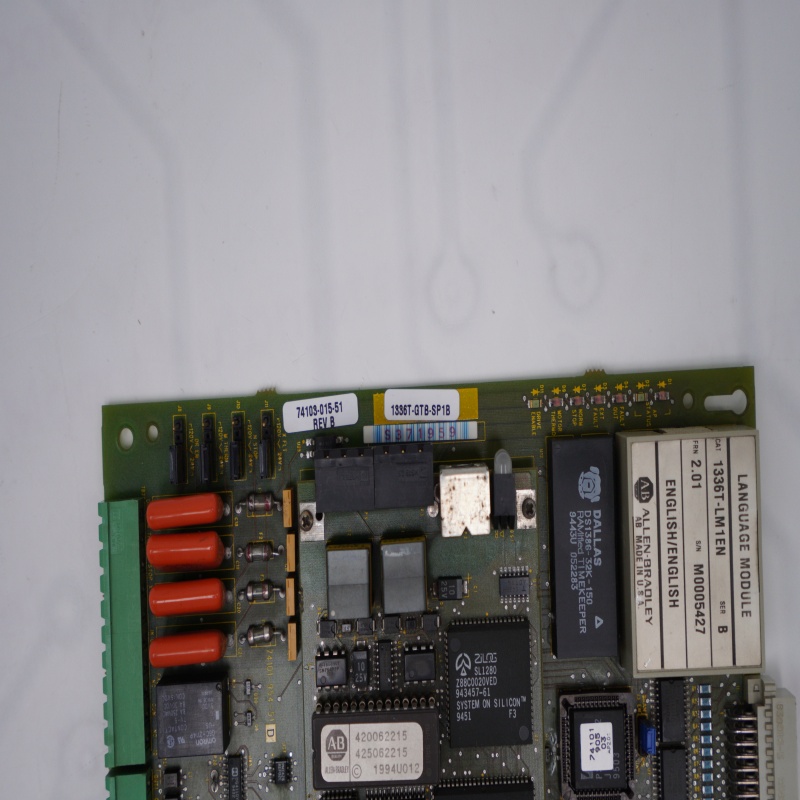

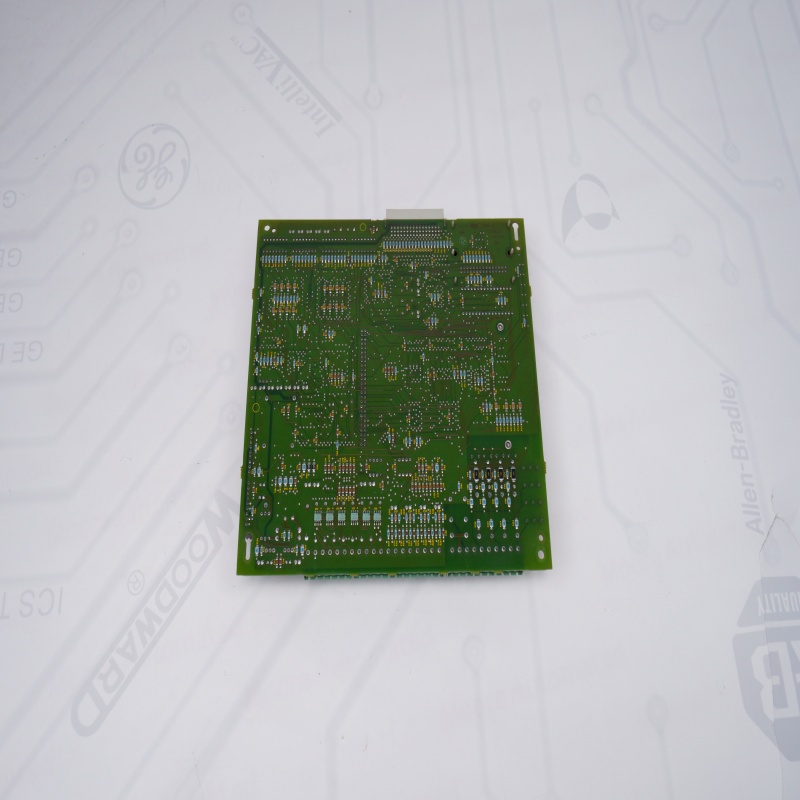

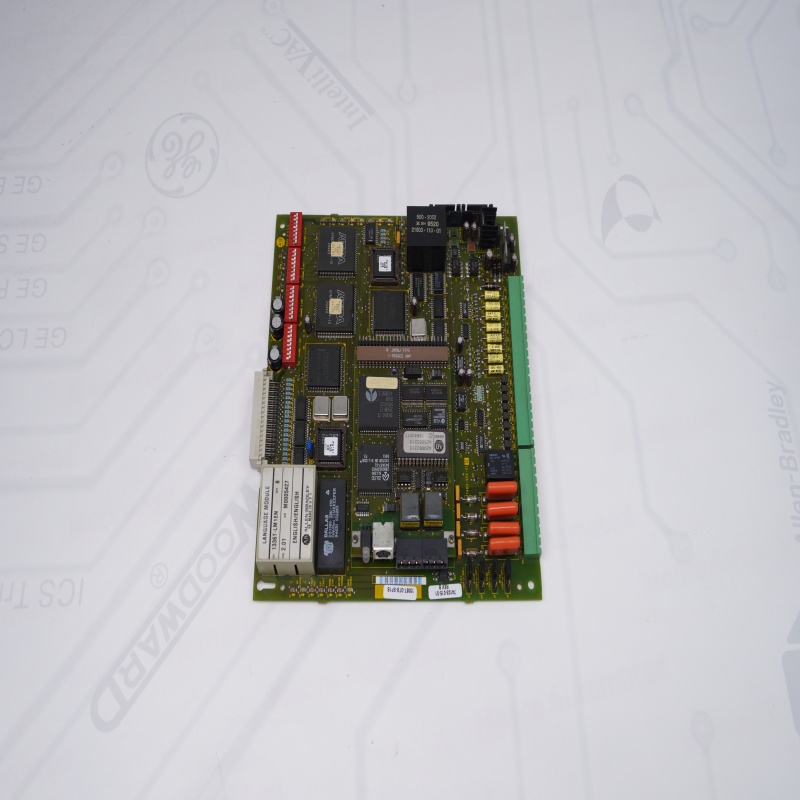

Allen Bradley 1336T-GTB-SP1B Images


Allen Bradley 1336T-GTB-SP1B

1336T-LM1EN

1336T-GTB-SP1B

1336T-LM1EN

1336T-LM1EN

1336T-LM1EN

Allen Bradley 1336T-GTB-SP1B

1336T-LM1EN


4

1336T-LM1EN FAQ


Q: What is the primary function of the 74103-015-51 74101-954-51D in a drive system?

A: The 1336T-GTB-SP1B serves as a PLC Communications Adapter Board, enabling high-speed data exchange and analog control between Allen-Bradley 1336 FORCE drives and industrial controllers.
Q: Which communication protocols are supported by the 74103-015-51 74101-954-51D?
A: The 1336T-GTB-SP1B features two dedicated channels that support Remote I/O (RIO) and DeviceNet (DG) protocols for seamless network integration.
Q: Does the 74103-015-51 74101-954-51D include an interface for language selection?
A: Yes, the 1336T-GTB-SP1B is typically equipped with the 1336T-LM1EN module, which provides a standardized English language interface for firmware diagnostics and parameter editing.
Q: How many analog signals can the 74103-015-51 74101-954-51D handle simultaneously?
A: The 1336T-GTB-SP1B is designed with high-density I/O, offering 4 analog inputs and 4 analog outputs to manage complex feedback loops and process variables.
Q: What is the maximum output frequency supported by the 74103-015-51 74101-954-51D?
A: The 1336T-GTB-SP1B facilitates precise motor speed regulation across an output frequency range of 0 to 250 Hz, suitable for high-performance industrial applications.
Q: Can the 74103-015-51 74101-954-51D be used with 1336 PLUS or IMPACT drives?
A: No, the 1336T-GTB-SP1B is specifically engineered for the 1336 FORCE (1336T) series; using it with other drive families may result in hardware incompatibility or firmware errors.
Q: How is the node address configured on a 74103-015-51 74101-954-51D board?
A: Hardware configuration for the 1336T-GTB-SP1B, including node addresses and baud rates, is performed manually via the integrated DIP switches and jumpers located on the main PCB.
Q: Where can I source a replacement 74103-015-51 74101-954-51D now that it is a legacy item?
A: You can purchase the 1336T-GTB-SP1B directly from us, as we specialize in providing high-quality, reliable surplus and refurbished legacy automation components to keep your operations running.


5

Other Modules



1771-IBD1794-IRT8
1769-IF82711-K3A5L1
1769-OB161756-OB16I
1746-IA161756-OA8E
1783-EMS08T1769-SDN
1746-P31769-OF4CI
1769-OB321769-ASCII
1769-IF41746-OA16
1769-OW161756-OF8I
1769-IT61783-ETAP
1769-IF16C1746-IC16
1794-OB16P1771-OW16
1746-NT81763-L16BBB
1756-CPR21756-IA16
1769-BOOLEAN2094-BM02-S


1336T-GTB-SP1B
