5X00419G01 Westinghouse Technical Details
Core Function & System Role

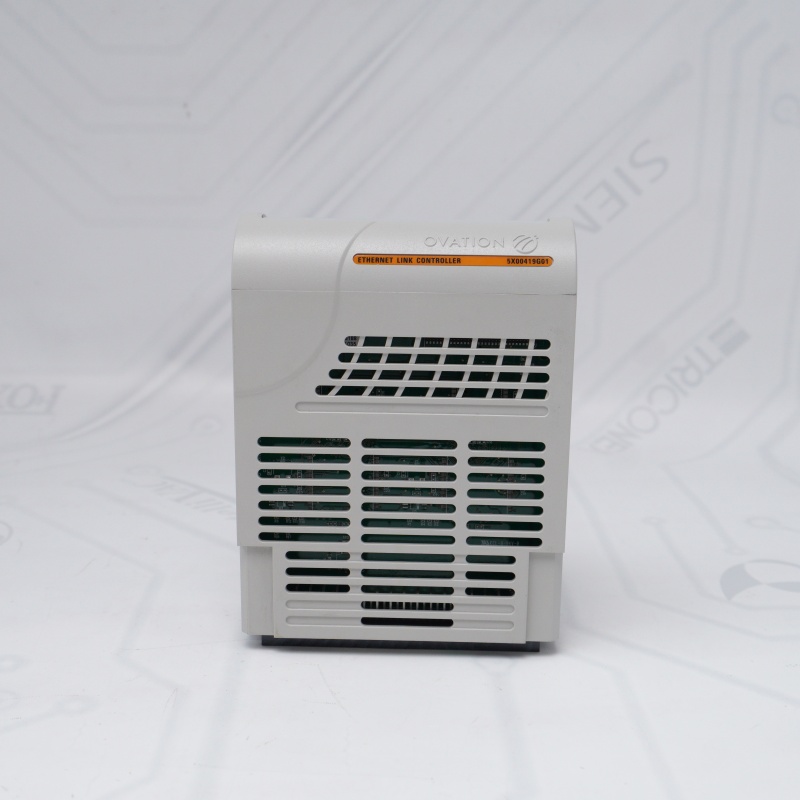

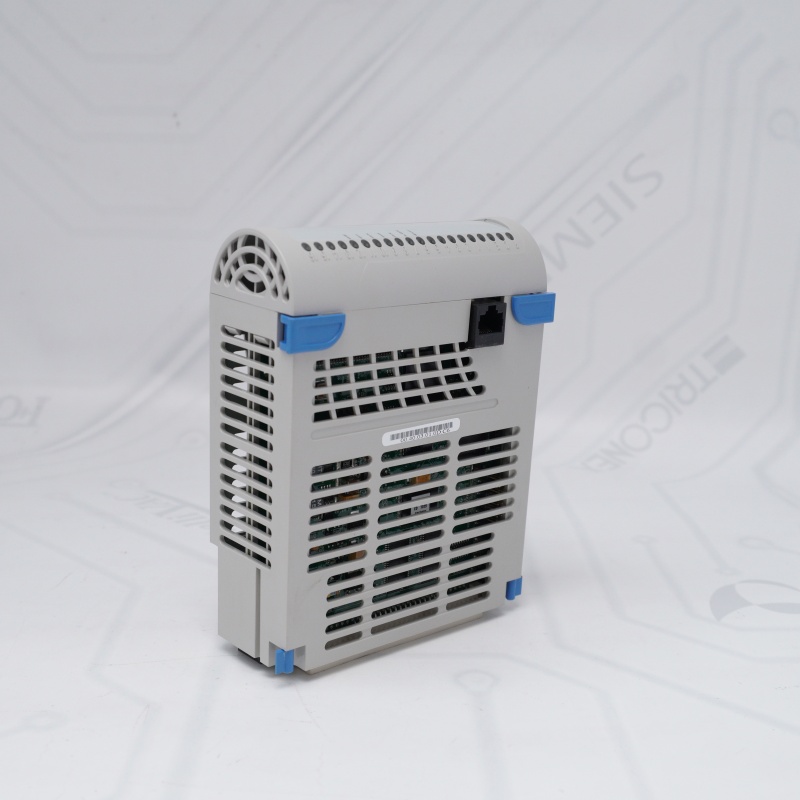

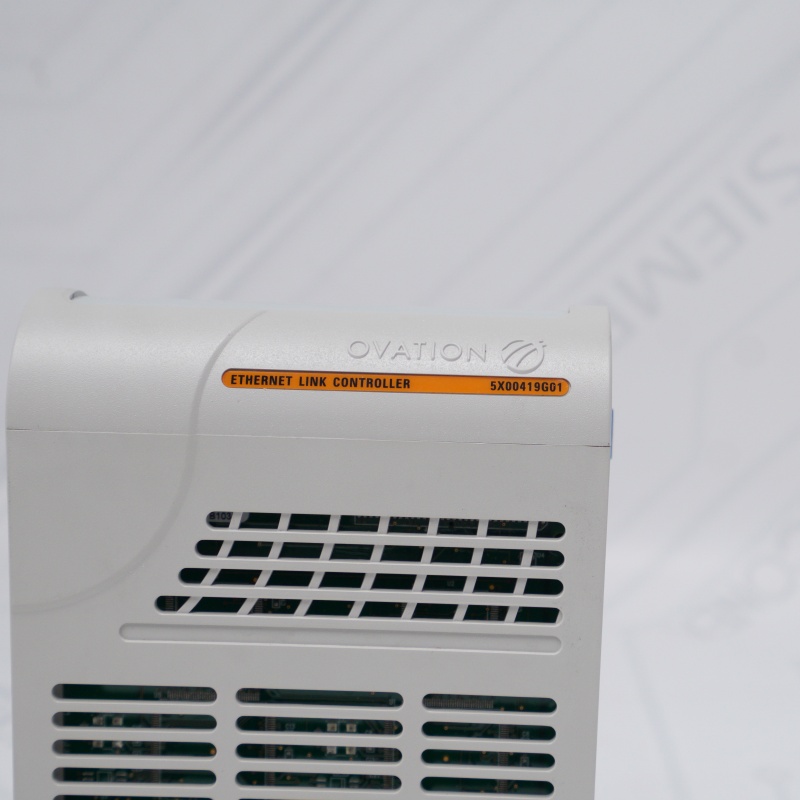

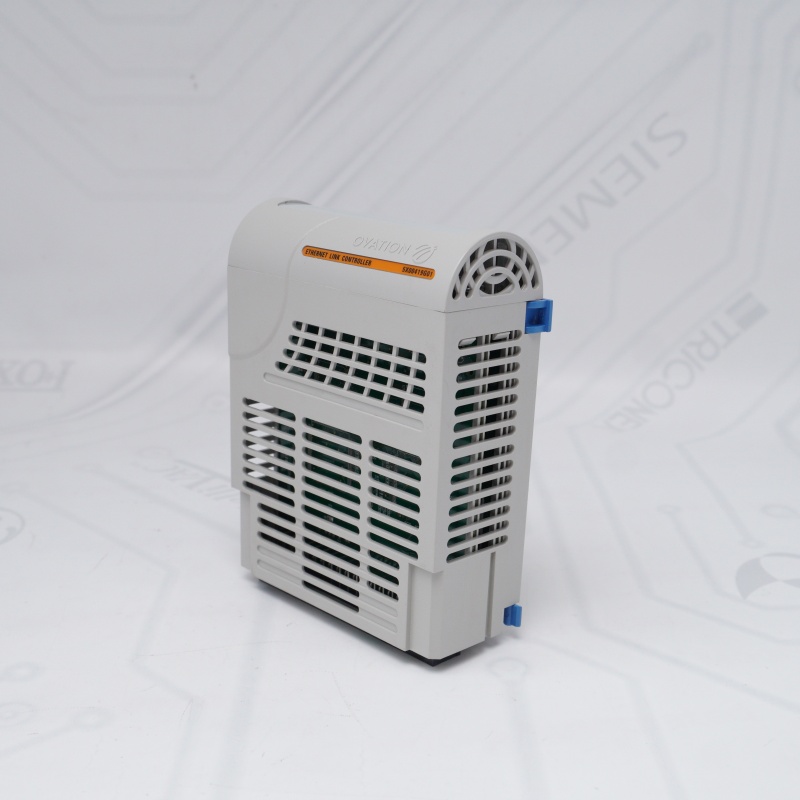

Equipment type is an Ethernet Link Controller.
Designed exclusively for the Westinghouse and Emerson Ovation DCS platforms.
Handles data bridging and ethernet communication between the control system and external devices.
Electrical & Physical Specifications
Operating voltage is 24 VDC.
Physical dimensions are 15.0 x 10.0 x 5.0 cm.
Device weight is 0.19 kg.
Environmental & Safety Standards
Operating temperature range is -20°C to +60°C.
Safety certification complies with the IEC 61508 SIL 2 standard.
If you want to more details about 5X00419G01 Westinghouse，please contact me without hesitate. Email：sales@sparecenter.com
The strength of the Spare Center
Flexible Shipping
Global delivery via DHL, FedEx, TNT, and UPS.
Guaranteed Quality
Original origin testing with third-party verification.
Global Support
Multilingual team serving 100+ countries.
Massive Stock
Over 1M products ready for same-day shipping.
5X00419G01 Westinghouse Application
The 5X00419G01 Westinghouse module interfaces third-party subsystems with the main Ovation DCS network.
The 5X00419G01 Westinghouse hardware manages auxiliary equipment communication in power plant automation.
The 5X00419G01 Westinghouse controller processes continuous network data streams in chemical and water facilities.
The 5X00419G01 Westinghouse component links critical communication nodes in safety-instrumented systems.
Westinghouse 5X00419G01 FAQ
Q1: How is data communication mapped within the software for a new Westinghouse 5X00419G01 unit?
A1: Engineers map data using the standard Ovation Developer Studio, where the Ethernet Link Controller Module configuration is defined via standard software protocol packages and database schemas.
A1: Engineers map data using the standard Ovation Developer Studio, where the Ethernet Link Controller Module configuration is defined via standard software protocol packages and database schemas.
Q2: What database preparation is required before commissioning a Westinghouse 5X00419G01 module?
A2: The specific software driver and licenses for the Ethernet Link Controller Module must be loaded onto the server, and controller memory may require clearing to accept the initial firmware download.
A2: The specific software driver and licenses for the Ethernet Link Controller Module must be loaded onto the server, and controller memory may require clearing to accept the initial firmware download.
Q3: How do field technicians diagnose a Westinghouse 5X00419G01 module without using a workstation?
A3: Local diagnostics are performed by reading the front-panel LED indicators on the Ethernet Link Controller Module , which signal hardware status, network synchronization, and data transmission faults.
A3: Local diagnostics are performed by reading the front-panel LED indicators on the Ethernet Link Controller Module , which signal hardware status, network synchronization, and data transmission faults.
Q4: Is it safe to hot-swap a Westinghouse 5X00419G01 assembly during active plant operations?
A4: Yes, the Ethernet Link Controller Module architecture supports hot-swapping, allowing technicians to replace the module without interrupting power or communication on adjacent I/O slots.
A4: Yes, the Ethernet Link Controller Module architecture supports hot-swapping, allowing technicians to replace the module without interrupting power or communication on adjacent I/O slots.
Q5: Does updating protocols on a 5X00419G01 Ethernet Link Controller Module require a full DCS software upgrade?
A5: No, protocol packages are independent, allowing new communication drivers to be loaded to the 5X00419G01 Ethernet Link Controller Module without upgrading the core Ovation operating system.
A5: No, protocol packages are independent, allowing new communication drivers to be loaded to the 5X00419G01 Ethernet Link Controller Module without upgrading the core Ovation operating system.
Q6: How does data from the 5X00419G01 Ethernet Link Controller Module travel to the main control system?
A6: The 5X00419G01 Ethernet Link Controller Module routes mapped variables to the host controller via either the local backplane bus or an external network interface to update the global database.
A6: The 5X00419G01 Ethernet Link Controller Module routes mapped variables to the host controller via either the local backplane bus or an external network interface to update the global database.
