330708-00-10-90-02-00 BENTLY NEVADA Details

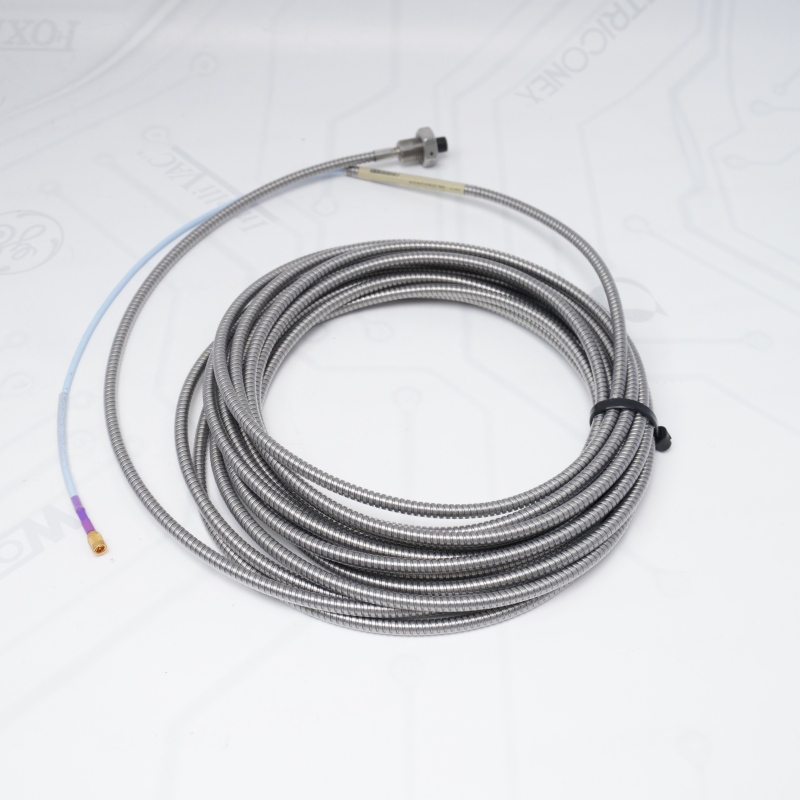

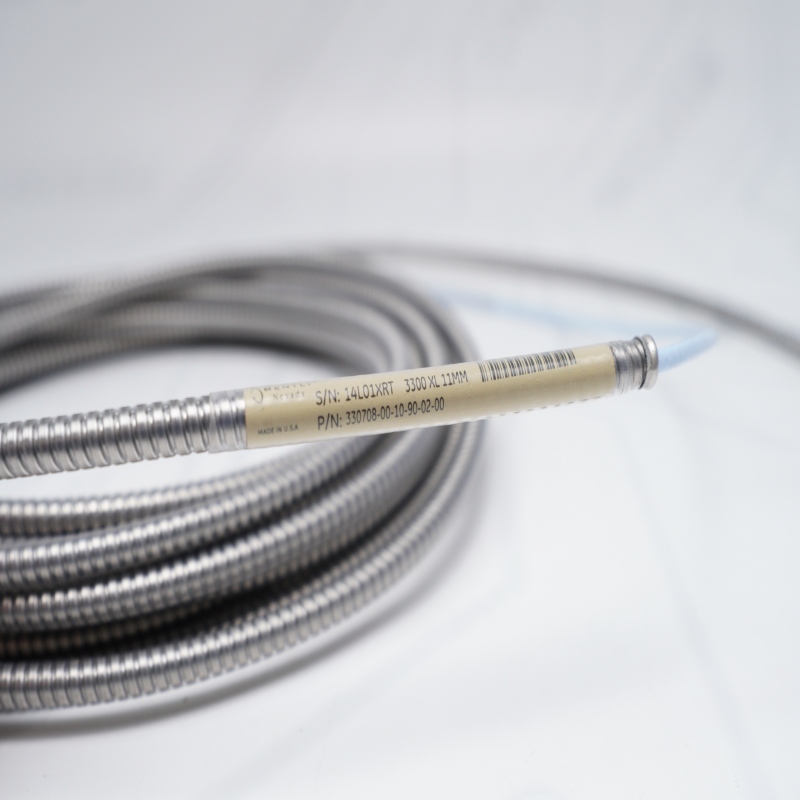

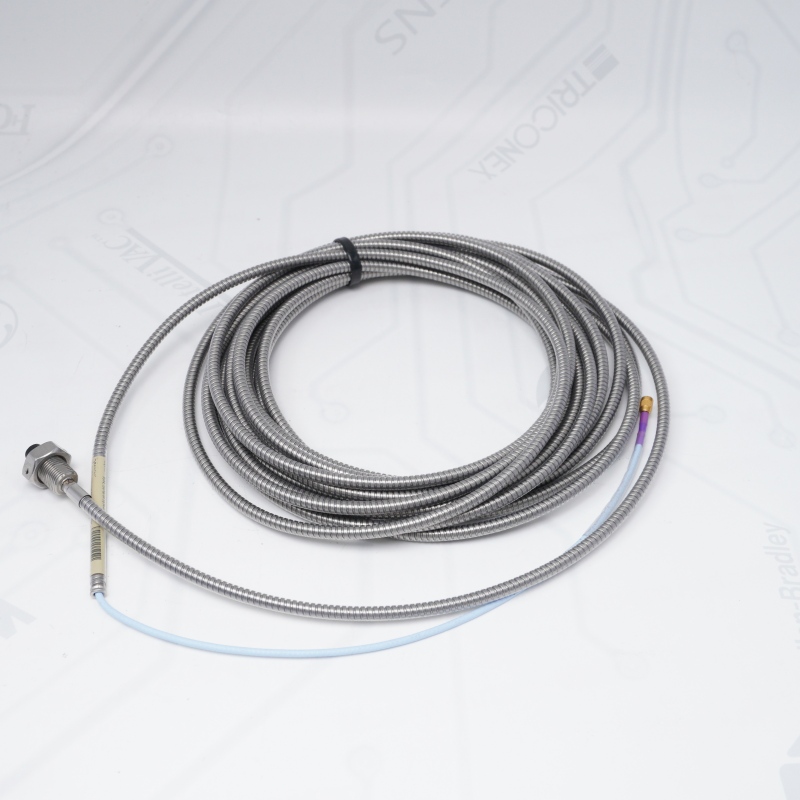

330708: 3300 XL 11 mm Probe, 5/8-18 UNF thread, with armor.
-00 (Option A - Unthreaded Length): 0.0 inches (fully threaded case).
-10 (Option B - Overall Case Length): 1.0 inch.
-90 (Option C - Total Length): 9.0 meters (29.5 feet) integral cable. (Note: Five-meter probes are for 5m systems, whereas this 9.0m probe integrates into a 9m total system layout).
-02 (Option D - Connector and Cable-Type): Miniature coaxial ClickLoc connector, standard cable (without connector protector).
-00 (Option E - Agency Approval): Not required (Standard configuration).
BENTLY NEVADA Proximity Probe Tip Diameter: 11 mm.
BENTLY NEVADA Proximity Probe Linear Range: 4.0 mm (160 mils), beginning at approximately 0.5 mm (20 mils) from the target.
BENTLY NEVADA Proximity Probe Incremental Scale Factor (ISF): 3.94 V/mm (100 mV/mil) ±10% under standard calibration.
330708-00-10-90-02-00 Proximity Probe Case Material: AISI 304 stainless steel (SST).
330708-00-10-90-02-00 Proximity Probe Tip Material: Polyphenylene sulfide (PPS).
330708-00-10-90-02-00 Proximity Probe Cable Armor: Flexible AISI 302 SST with an FEP outer jacket.
Operating Temperature: -52°C to +177°C (-62°F to +351°F).
Installation Details: Supplied with a 15/16 inch locknut featuring pre-drilled safety wire holes, and 9/16 wrench flats on the case.
If you want to more details about 330708-00-10-90-02-00 BENTLY NEVADA，please contact me without hesitate.Email：sales@sparecenter.com
330708-00-10-90-02-00 BENTLY NEVADA Compatible System
1. Loop Setup
Proximitor Sensor: Use the 330780-90-XX (Panel mount) or 330780-91-XX (DIN mount) to pair with the 330708-00-10-90-02-00 BENTLY NEVADA.
Extension Cable: None (Not needed for this configuration).
2. Monitoring Hardware
Bently Nevada 3500: Connects the 330708-00-10-90-02-00 BENTLY NEVADA to 3500/40M or 3500/42M modules.
Bently Nevada Orbit 60: Connects via proximity input cards.
DCS / PLC: Accepts standard -24 Vdc analog proximity inputs.
3. Legacy Drop-in
Replaces old 7200-series 11mm/14mm systems using the new BENTLY NEVADA Proximity Probe (requires full-loop replacement).
The Spare Center Advantage: Speed, Scale, and Reliability
Massive On-Hand Inventory: Holds a vast warehouse network in Asia containing over 1 million in-stock automation and MRO products.
Same-Day Express Logistics: Guarantees same-day dispatch for in-stock items with global rush shipping via DHL, FedEx, TNT, and UPS.
Obsolete & Surplus Sourcing: Specializes in locating rare, hard-to-find, and discontinued legacy spare parts (like older Bently Nevada modules).
Verified Quality Assurance: Mandates that all components pass original origin testing and fully supports independent third-party verification.
Global Support Network: Serves clients across more than 100 countries backed by a multilingual technical sales team.
330708-00-10-90-02-00 Proximity Probe FAQ
Q1: What are the target machine applications for the 330708-00-10-90-02-00 Proximity Probe probe configuration?
A1: The BENTLY NEVADA Proximity Probe is designed for long-range, non-contacting displacement measurements on fluid film bearing machinery. It is primarily used for axial (thrust) position monitoring, ramp differential expansion, rod drop measurements, and capturing Keyphasor signals.
Q2: What are the target size limits and shaft cross-talk restrictions for the 330708-00-10-90-02-00 probe?
A2: The BENTLY NEVADA Proximity Probe requires a minimum target surface diameter of 30.5 mm (1.2 in) or a minimum shaft diameter of 152 mm (6.0 in). Operating the 3300 XL 11 mm Proximity Probe below these limits requires a minimum probe tip separation of 58 mm to 64 mm to prevent electromagnetic cross-talk.
Q3: What are the dynamic frequency response bounds and field wiring distance constraints for the 330708-00-10-90-02-00?
A3: The BENTLY NEVADA Proximity Probe measures high-frequency vibration within a functional spectrum of 0 to 8 kHz. The field wiring paired with the 3300 XL 11 mm Proximity Probe must use a shielded triad cable restricted to a maximum length of 305 meters (1,000 feet) to prevent severe signal rolloff.
Q4: What material construction parameters govern the structural endurance of the 330708-00-10-90-02-00 Proximity Probe body?
A4: The 3300 XL 11 mm Proximity Probe features a Polyphenylene Sulfide (PPS) tip, an AISI 304 stainless steel case, and a flexible AISI 302 stainless steel armor jacket with an FEP outer layer. This design grants the 3300 XL 11 mm Proximity Probe a case-to-lead tensile pull strength rating of 330 Newtons (75 pounds).
Q5: What are the thread engagement limits and physical weight profiles for the 330708-00-10-90-02-00 assembly?
A5: The 5/8-18 UNF case of the 3300 XL 11 mm Proximity Probe has a strict maximum thread engagement limit of 0.938 inches to prevent binding during installation. Due to its 9.0-meter integral cable, the 3300 XL 11 mm Proximity Probe adds 1120 grams (40 oz) of mass over standard 1-meter armored versions.
