8mm Proximity Probe Description
TM0180: Core series designation for the 8mm Proximity Probe Transducer (fully compatible with Bently Nevada 3300 XL series electrical standards).
A08: Unthreaded Length of the probe is exactly 80 mm.
B00: Case Length is 0 mm (This specific configuration designates a Reverse Mount probe, meaning it features no external casing threads and is intended for sleeve/housing bracket installations).
C12: Total Cable Length attached directly to the probe is 1.2 meters.
D10: Connector and Armor Option specifying a standard API 670 miniature coaxial connector and without stainless steel armor.

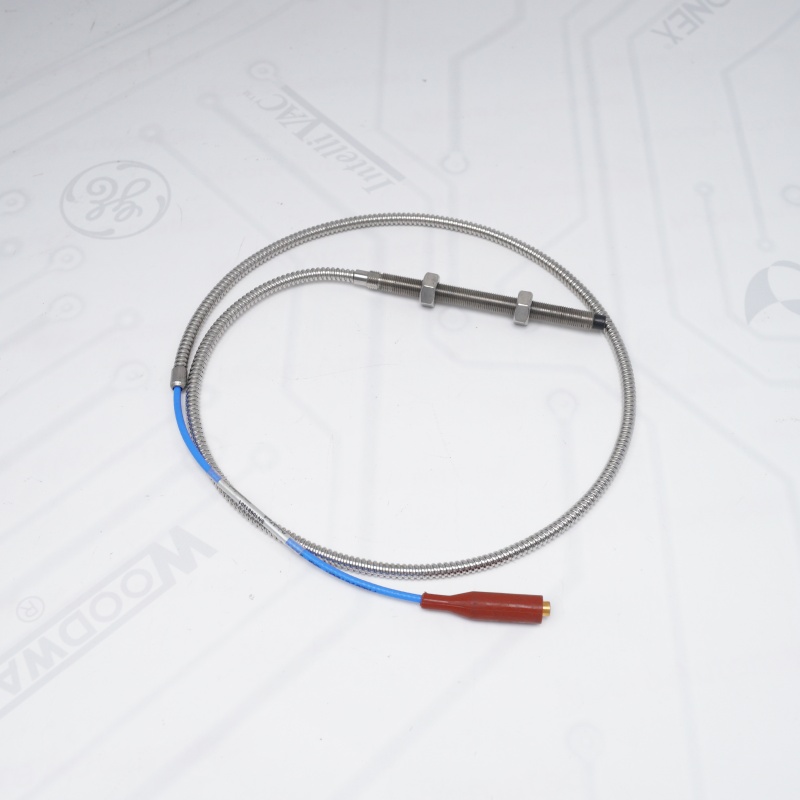

BENTLY NEVADA Proximity Probe Images

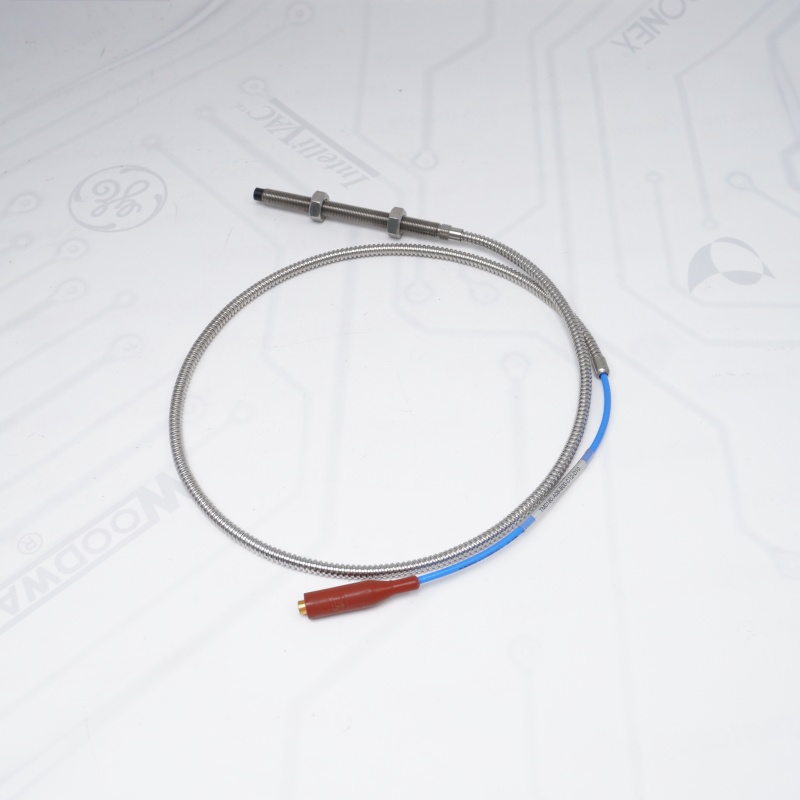

BENTLY NEVADA Proximity Probe

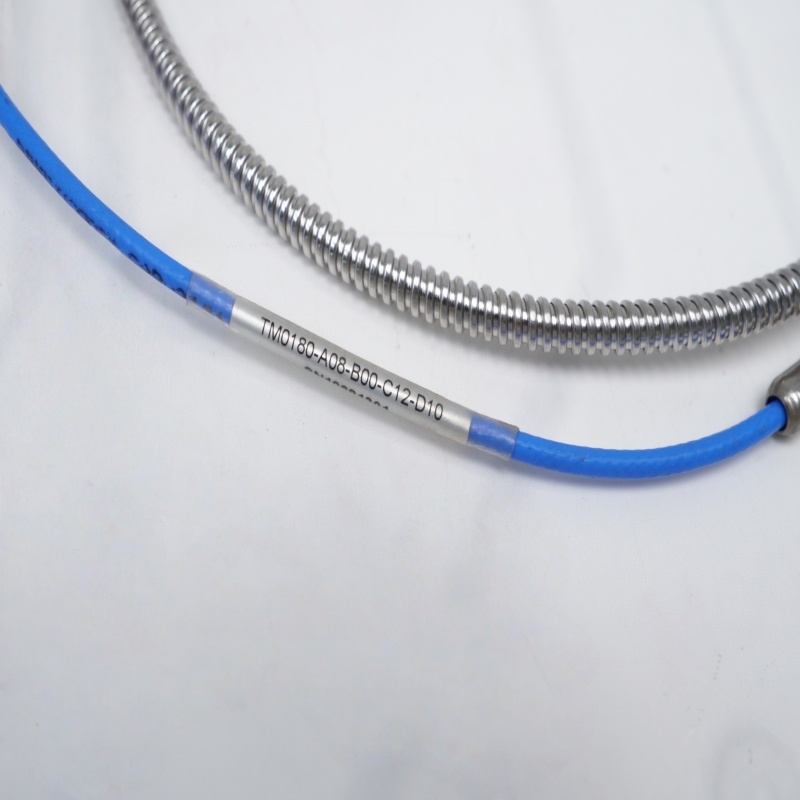

BENTLY NEVADA Proximity Probe

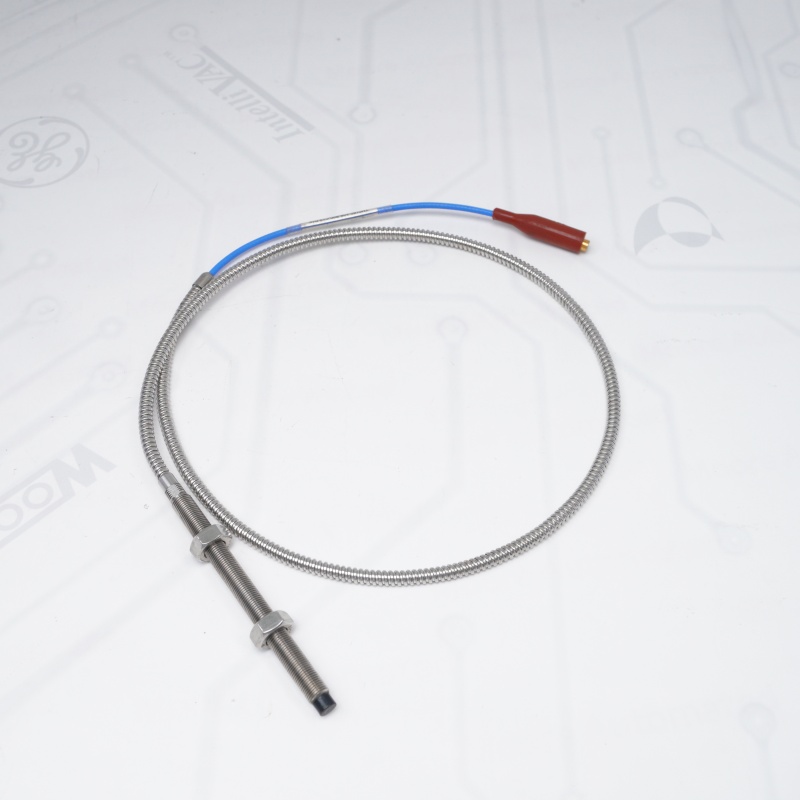

BENTLY NEVADA Proximity Probe
8mm Proximity Probe Key Application
Core Industrial Sectors
Power Generation: Deploys it compatible systems on steam turbines.
Petrochemical: Uses it equivalent probes on centrifugal compressors.
Heavy Machinery: Protects large pumps using the 8mm Proximity Probe standard configuration.
Machinery Condition Monitoring
Radial Vibration: Applies 8mm Proximity Probe interchangeable sensor parameters to detect misalignment.
Axial Position: Prevents rotor-stator contact via 8mm Proximity Probe thrust displacement monitoring.
Field Installation Applications
Reverse-Mount: Fits 8mm Proximity Probe style reverse-mount sleeves seamlessly.
8mm Proximity Probe FAQ
Q1: How do you gap a TM0180-A08-B00-C12-D10 BENTLY NEVADA style probe?
A1: Slide the threadless TM0180-A08-B00-C12-D10 Proximity Probe manually inside an external mounting sleeve, then lock it with set-screws when the target DC voltage matches.
A1: Slide the threadless TM0180-A08-B00-C12-D10 Proximity Probe manually inside an external mounting sleeve, then lock it with set-screws when the target DC voltage matches.
Q2: Does shaft material affect the TM0180-A08-B00-C12-D10 BENTLY NEVADA loop accuracy?
A2: Yes, the TM0180-A08-B00-C12-D10 Proximity Probe is tuned for AISI 4140 steel; using stainless steel or custom alloys requires modifying the driver calibration curve.
A2: Yes, the TM0180-A08-B00-C12-D10 Proximity Probe is tuned for AISI 4140 steel; using stainless steel or custom alloys requires modifying the driver calibration curve.
Q3: Can the TM0180-A08-B00-C12-D10 BENTLY NEVADA probe seal high-pressure areas?
A3: No, the smooth TM0180-A08-B00-C12-D10 Proximity Probe casing lacks an O-ring groove, making it unsuitable for pressurized process boundaries without a separate sealing gland.
A3: No, the smooth TM0180-A08-B00-C12-D10 Proximity Probe casing lacks an O-ring groove, making it unsuitable for pressurized process boundaries without a separate sealing gland.
Q4: What causes signal noise in a TM0180-A08-B00-C12-D10 BENTLY NEVADA field installation?
A4: Ground loops happen if the TM0180-A08-B00-C12-D10 Proximity Probe coaxial connector touches the machine metal housing. Always isolate the junction using the supplied rubber boot.
A4: Ground loops happen if the TM0180-A08-B00-C12-D10 Proximity Probe coaxial connector touches the machine metal housing. Always isolate the junction using the supplied rubber boot.
Q5: How do you bench-test a stored TM0180-A08-B00-C12-D10 BENTLY NEVADA component?
A5: Check connector pin-to-shield resistance for a stable coil reading; verify that resistance from the shield to the TM0180-A08-B00-C12-D10 Proximity Probe outer shell is infinite.
A5: Check connector pin-to-shield resistance for a stable coil reading; verify that resistance from the shield to the TM0180-A08-B00-C12-D10 Proximity Probe outer shell is infinite.
