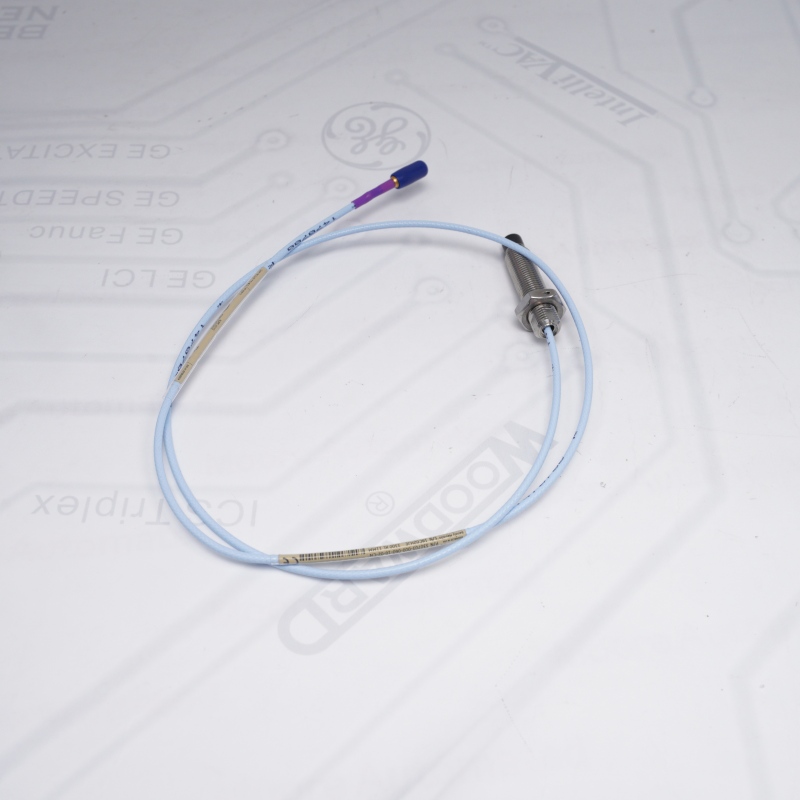

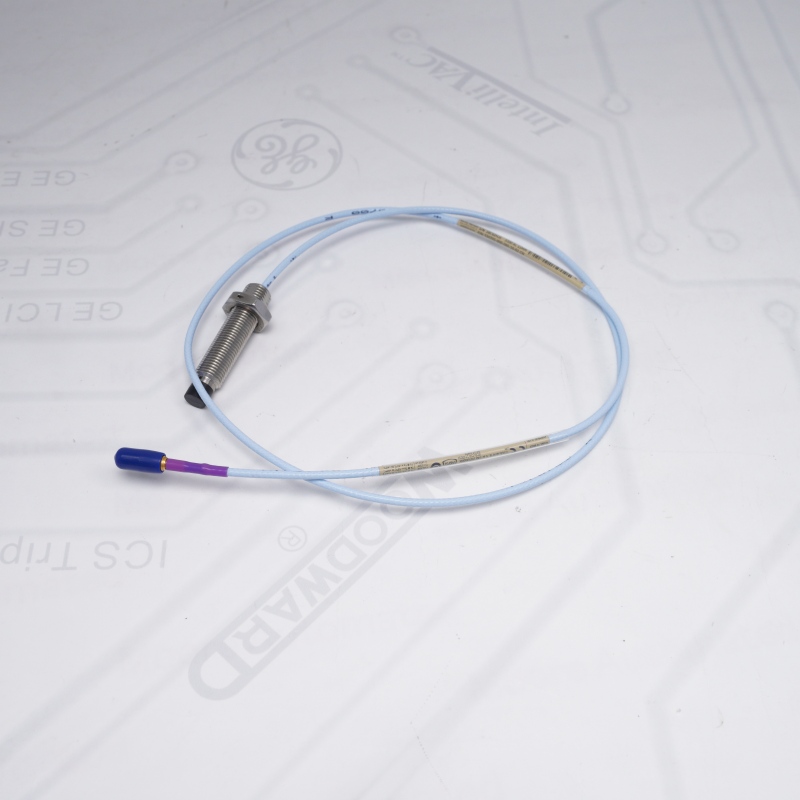

330703-000-060-10-02-CN BENTLY NEVADA 3300 XL 11 mm Proximity Probes

Non-contact sensor: Measures vibration and displacement in critical rotating machinery.

Extended reach: Provides a wide 4.0 mm linear range for high-accuracy tracking.

Complete kit: Includes a 60 mm fully threaded case and a 1.0-metre cable.

Certified build: Features a rugged ClickLoc connector and regional CN hazardous area approvals.

Manufacturer: Bently Nevada

Series: 3300 XL 11mm Proximity Probe

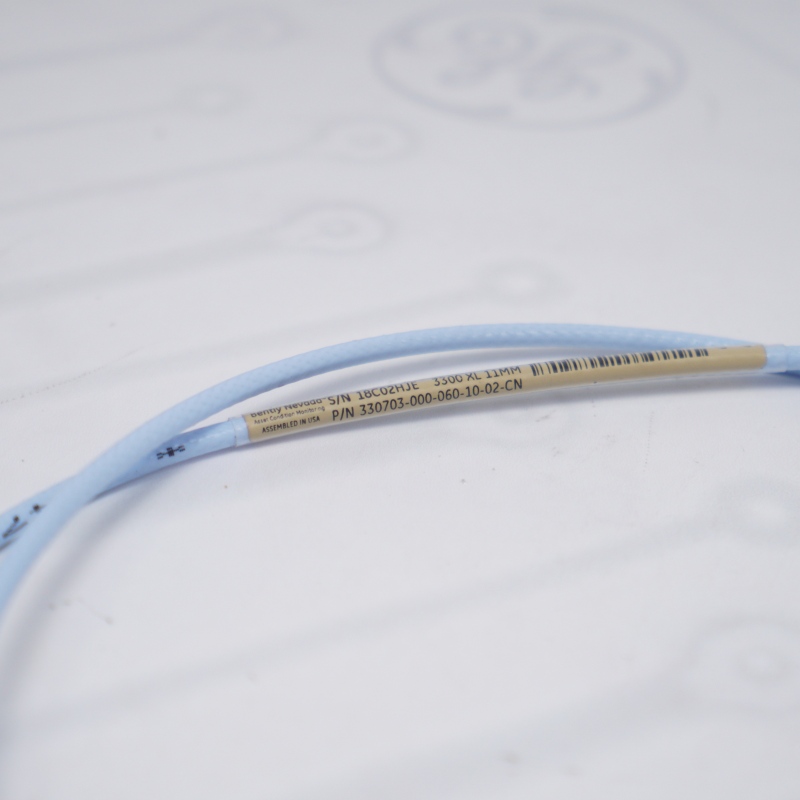

Part Number: 330703-000-060-10-02-CN

Tip Diameter: 11 mm

Thread Type: Standard English thread (M14×1.5 pitch)

3300 XL 11 mm Proximity Probes Unthreaded Length: 0 mm (fully threaded case)

3300 XL 11 mm Proximity Probes Case Length: 60 mm

3300 XL 11 mm Proximity Probes Total Cable Length: 1.0 metre (3.3 feet)

Connector Type: ClickLoc miniature coaxial connector (standard cable)

Agency Approval: CN (China regional hazardous area certifications / NEPSI)

If you want to more details about 330703-000-060-10-02-CN Proximity Probes，please contact me without hesitation.Email：sales@sparecenter.com

Torque Limit: Tighten the 3300 XL 11 mm Proximity Probes to 21.1 N·m (187 in·lb); absolute maximum is 63.3 N·m (560 in·lb).

Thread Depth: Limit engagement of the 3300 XL 11 mm Proximity Probes housing to 21 mm maximum to prevent binding.

Vibration Lock: Secure the 22 mm locknut included with the 3300 XL 11 mm Proximity Probes using standard safety wire.

Cable Pairing: Match this 1.0m 330703-000-060-10-02-CN Proximity Probes only with 4.0m or 8.0m 3300 XL extension cables.

Target Material: The factory calibration for the BENTLY NEVADA 330703-000-060-10-02-CN applies strictly to AISI 4140 steel.

Probe Spacing: Separate multiple 330703-000-060-10-02-CN Proximity Probes tips by 64 mm (axial) or 58 mm (radial) to block cross-talk.

Seal Freeze: Running the BENTLY NEVADA 330703-000-060-10-02-CN below -34°C risks degrading the internal Viton pressure seal.

Joint Sealing: Wrap the bare ClickLoc connector of the BENTLY NEVADA Proximity Probes in silicone tape to exclude oil and moisture.

Massive Stock: Large regional inventory of rare and current industrial automation parts.

Global Shipping: Same-day dispatch via major couriers (DHL, FedEx, UPS).

Guaranteed Quality: 100% genuine products backed by full testing and warranty.

Technical Support: Multilingual product support for seamless cross-border ordering.

Premium Brands: Authorized supply for major lines like Bently Nevada and ABB.

Q1: What are the exact physical dimensions of the Bently Nevada 330703-000-060-10-02-CN proximity probe?

A: The BENTLY NEVADA Proximity Probes is configured with an 11 mm sensor tip diameter and an M14 x 1.5 metric casing thread. The "000-060" designator means it features a 0 mm unthreaded length (fully threaded case) and a 60 mm overall case length. It comes with an integrated 1.0-metre (3.3 feet) non-armored cable.

Q2: What is the calibrated measurement range and scale factor for the 330703-000-060-10-02-CN?

A: As an 11 mm sensor system, the BENTLY NEVADA Proximity Probes delivers a wide 4.0 mm (160 mils) linear range, starting at approximately 0.5 mm (20 mils) from the target surface. It operates at an Incremental Scale Factor (ISF) of 3.94 V/mm (100 mV/mil) when target-calibrated to standard AISI 4140 steel.

Q3: Which extension cables and Proximitor sensors are compatible with the 330703-000-060-10-02-CN probe?

A: The BENTLY NEVADA Proximity Probes must be matched with other 3300 XL 11 mm series components to form a calibrated 5-meter or 9-meter system. Since this probe has a 1.0-meter integrated cable, it requires either a 4.0-meter extension cable (330730-040) for a 5m system, or an 8.0-meter extension cable (330730-080) for a 9m system, paired with the corresponding 330780 Proximitor Sensor.

Q4: What does the "CN" suffix indicate on the part number 330703-000-060-10-02-CN?

A: The "CN" designation at the end of BENTLY NEVADA Proximity Probes signifies that this probe carries regional China hazardous area approvals and certifications (such as NEPSI standards). This guarantees regulatory compliance and legal installation within restricted explosion-proof or intrinsically safe industrial zones inside China.

Q5: Can the 330703-000-060-10-02-CN be used as a direct replacement for legacy 7200-series 11mm probes?

A: While the 3300 XL system is designed to replace legacy 7200-series 11mm installations, you cannot swap just the probe. If you introduce the BENTLY NEVADA Proximity Probes, you must replace all loop components (including the extension cable and Proximitor sensor) with 3300 XL 11 mm hardware. Rack configuration software (e.g., for the 3500 system) must also be updated to recognize the new transducer type.

Q6: What are the environmental and mechanical limits of the 330703-000-060-10-02-CN under field operation?

A: The BENTLY NEVADA Proximity Probes features an operating and storage temperature rating of -52°C to +177°C. Its mechanical build provides a patented CableLoc design offering up to 330 N (75 lb) of tensile pull strength between the probe case and the lead. The tip is constructed from high-strength Polyphenylene Sulfide (PPS) to resist fluid-film bearing environments.
