330173-00-18-10-02-05 BENTLY NEVADA Particulars
Manufacturer Bently Nevada produces the 330173-00-18-10-02-05(330173-00-18-10-02-05 BENTLY NEVADA) under the 3300 5mm Proximity Probe System series as a non contact eddy current transducer designed for industrial asset protection and this specific displacement and vibration sensor is primarily used to measure radial vibration track axial position and provide Keyphasor speed measurements on critical rotating machinery.
| Configuration Options | 3300 5mm Probe Description |
| 330173 | Base Model 3300 5mm Probe M8 x 1 metric thread without stainless steel armor |
| 00 | Unthreaded Length 0 mm meaning full thread construction across the entire case length |
| 18 | Overall Case Length 180 mm |
| 10 | Total Cable Length 1.0 meter or approximately 3.3 feet |
| 02 | Connector Option Miniature coaxial ClickLoc connector with standard cable |
| 05 | Agency Approval Multiple Approvals including ATEX IECEx and CSA hazardous area certifications |
If you want to more details about 330173-00-18-10-02-05 BENTLY NEVADA (3300 5mm Probe)，please contact me without hesitation.Email：sales@sparecenter.com
Spare Center Company Profile
Spare Center is a leading global supplier in the field of industrial automation and control system components specializing in high quality spare parts. The company maintains a massive inventory of both obsolete and newly released modules from premier brands including Bently Nevada, ABB, Allen Bradley, Honeywell, and Westinghouse. Through an extensive international supply chain and robust logistics network, Spare Center provides rapid shipping worldwide to minimize operational downtime for power plants, oil refineries, and heavy industrial facilities.
More Data About 330173-00-18-10-02-05 BENTLY NEVADA
| BENTLY NEVADA Probe Linear Range | 2.0 mm or 80 mils | 3300 5mm Probe Standard Scale Factor | 7.87 V per mm or 200 mV per mil |
| 3300 5mm Probe Operating Temperature Range | Minus 35 degrees Celsius to plus 177 degrees Celsius or minus 31 degrees Fahrenheit to plus 351 degrees Fahrenheit | 3300 5mm Probe Tip Material | Polyphenylene sulfide PPS high performance engineering plastic |
| 3300 5mm Probe Case Material | AISI 304 Stainless Steel SST | 3300 5mm Probe Recommended Installation Gap | 1.27 mm or 50 mils |
| System Matching Notes: This BENTLY NEVADA Probe(3300 5mm Probe) is designed for a 1.0 meter system length and it must be paired with a compatible 3300 5mm extension cable and a 3300 XL Proximitor Sensor configured for the same system length to ensure correct impedance matching and accurate calibration. | |||

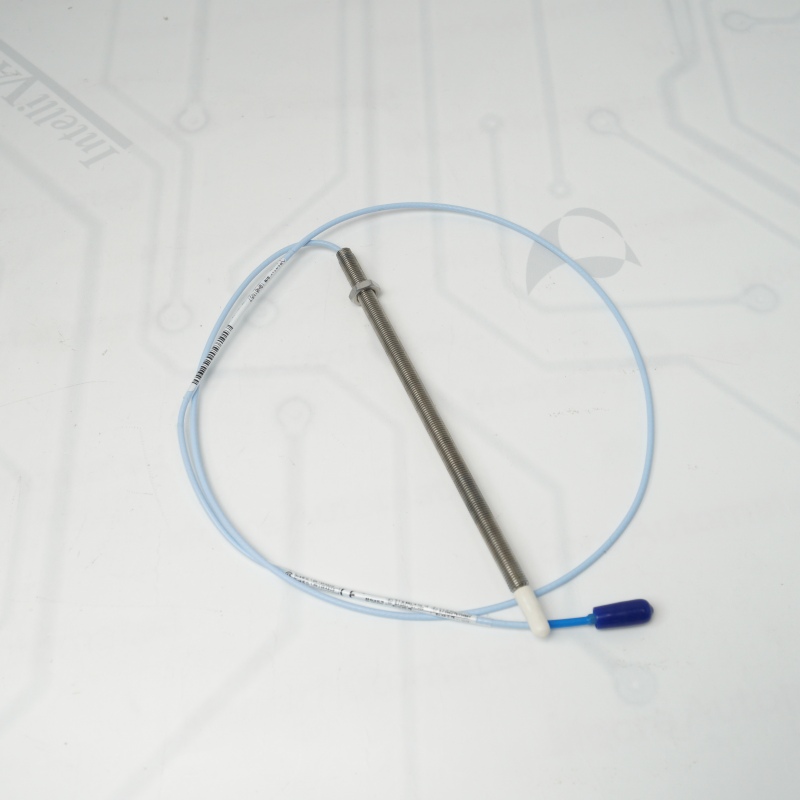

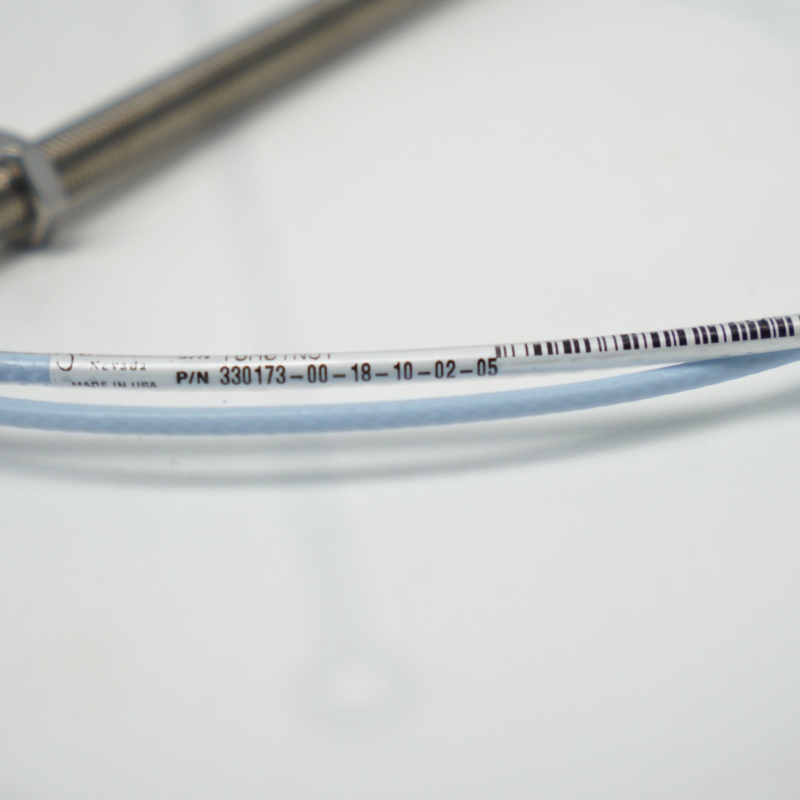

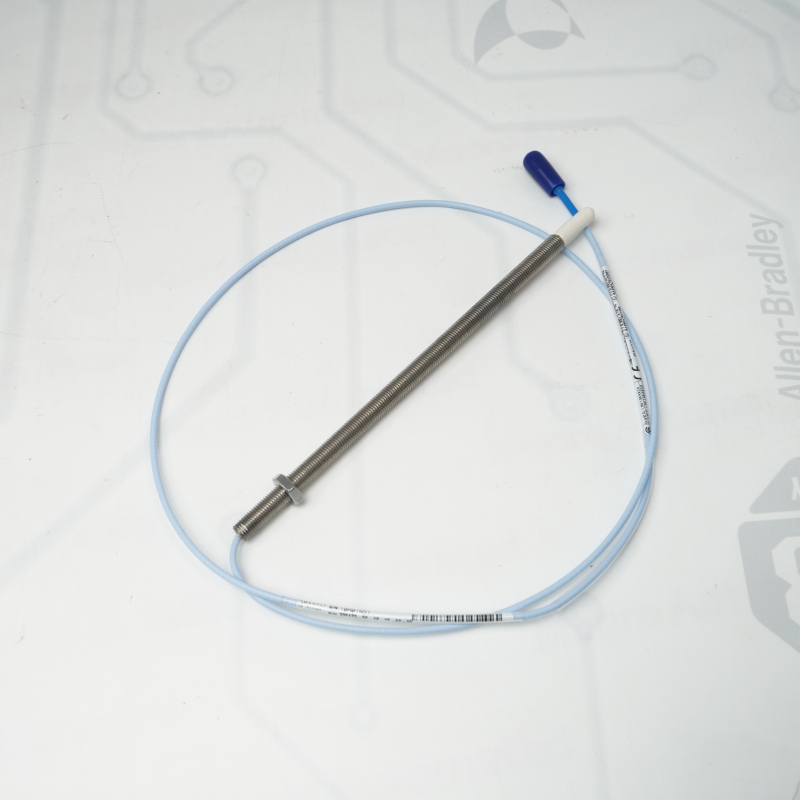

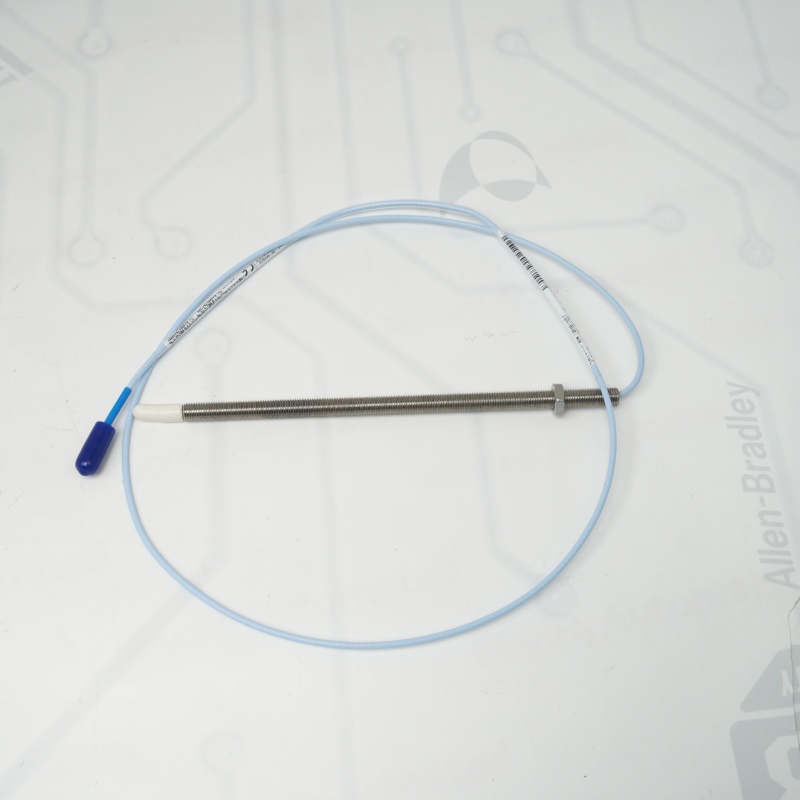

3300 5mm Probe Images
3300 5mm Probe
3300 5mm Probe
BENTLY NEVADA 330173-00-18-10-02-05
BENTLY NEVADA Probe(BENTLY NEVADA 330173-00-18-10-02-05) FAQ
Q1 What is the primary industrial application for the BENTLY NEVADA 330173-00-18-10-02-05?
A1 The BENTLY NEVADA Probe operates as a non contact eddy current sensor designed for critical machinery protection where it continuously measures radial vibration shaft axial position and Keyphasor speed on high speed rotating assets.
A1 The BENTLY NEVADA Probe operates as a non contact eddy current sensor designed for critical machinery protection where it continuously measures radial vibration shaft axial position and Keyphasor speed on high speed rotating assets.
Q2 What do the specific configuration digits mean in the BENTLY NEVADA 330173-00-18-10-02-05?
A2 For the model BENTLY NEVADA Probe the code 330173 indicates a 3300 series 5mm probe with an M8 x 1 metric thread while 00 means zero unthreaded length 18 indicates a 180 mm case length 10 defines a 1.0 meter cable 02 selects a miniature coaxial ClickLoc connector and 05 specifies multiple hazardous area agency approvals.
A2 For the model BENTLY NEVADA Probe the code 330173 indicates a 3300 series 5mm probe with an M8 x 1 metric thread while 00 means zero unthreaded length 18 indicates a 180 mm case length 10 defines a 1.0 meter cable 02 selects a miniature coaxial ClickLoc connector and 05 specifies multiple hazardous area agency approvals.
Q3 What type of thread configuration and mounting dimensions does the 330173-00-18-10-02-05 feature?
A3 The BENTLY NEVADA Probe features an M8 x 1 metric thread structure with an overall case length of 180 mm and it has zero unthreaded length meaning the full length of the sensor case is threaded.
A3 The BENTLY NEVADA Probe features an M8 x 1 metric thread structure with an overall case length of 180 mm and it has zero unthreaded length meaning the full length of the sensor case is threaded.
Q4 What is the exact linear range and scale factor for the 330173-00-18-10-02-05 proximity probe?
A4 The BENTLY NEVADA Probe delivers a total linear sensing range of 2.0 mm or 80 mils and provides a standard nominal scale factor calibration of 7.87 V per mm or 200 mV per mil when observing standard target steel.
A4 The BENTLY NEVADA Probe delivers a total linear sensing range of 2.0 mm or 80 mils and provides a standard nominal scale factor calibration of 7.87 V per mm or 200 mV per mil when observing standard target steel.
Q5 Does the 330173-00-18-10-02-05 carry international certifications for hazardous locations?
A5 Yes the 05 option code at the end of 330173-00-18-10-02-05(BENTLY NEVADA Probe) designates Multiple Approvals which provides international certifications including ATEX IECEx and CSA for safe installation in intrinsically safe and dangerous environments.
A5 Yes the 05 option code at the end of 330173-00-18-10-02-05(BENTLY NEVADA Probe) designates Multiple Approvals which provides international certifications including ATEX IECEx and CSA for safe installation in intrinsically safe and dangerous environments.
Q6 Which extension cable and proximitor sensor must be used to complete the loop with the 330173-00-18-10-02-05?
A6 Because the BENTLY NEVADA Probe has an integrated total cable length of 1.0 meter it must be connected to a matching 3300 5mm extension cable and a 3300 XL Proximitor Sensor calibrated specifically for a total system length of either 5.0 meters or 9.0 meters.
A6 Because the BENTLY NEVADA Probe has an integrated total cable length of 1.0 meter it must be connected to a matching 3300 5mm extension cable and a 3300 XL Proximitor Sensor calibrated specifically for a total system length of either 5.0 meters or 9.0 meters.
