330103-05-15-05-02-00 BENTLY NEVADA Overview

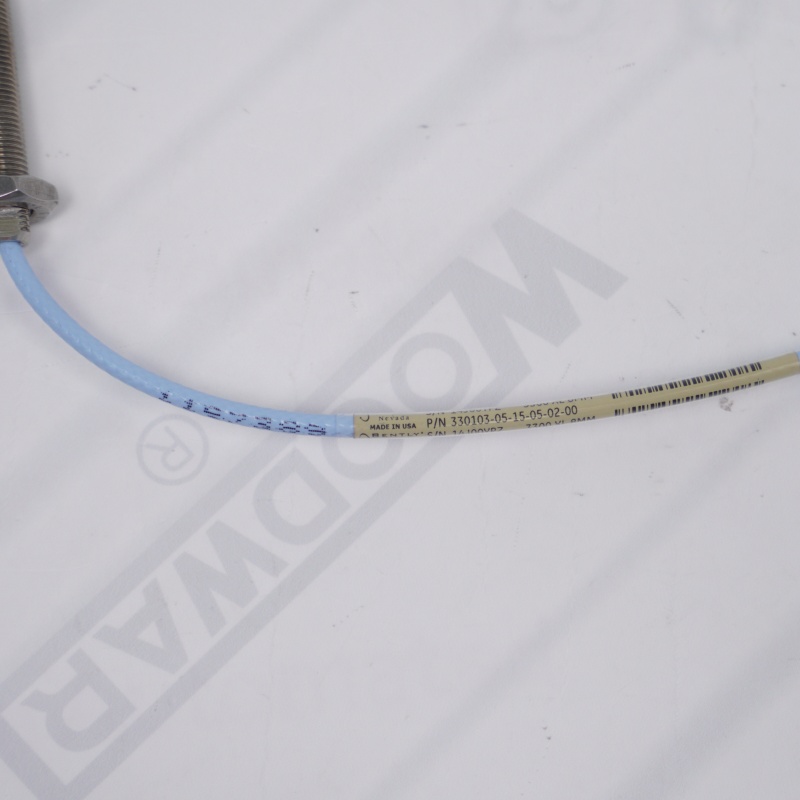

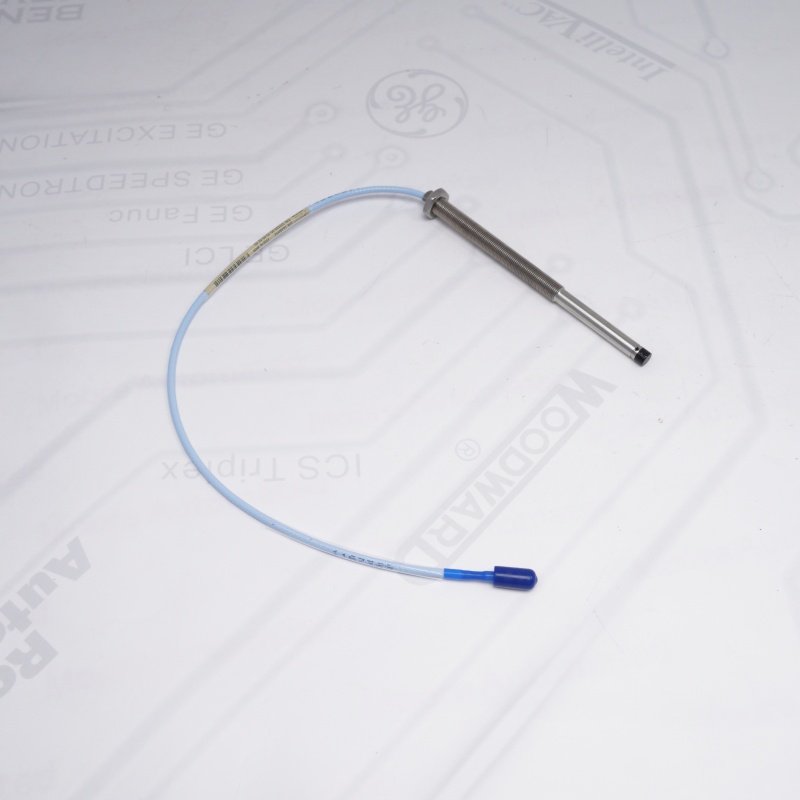

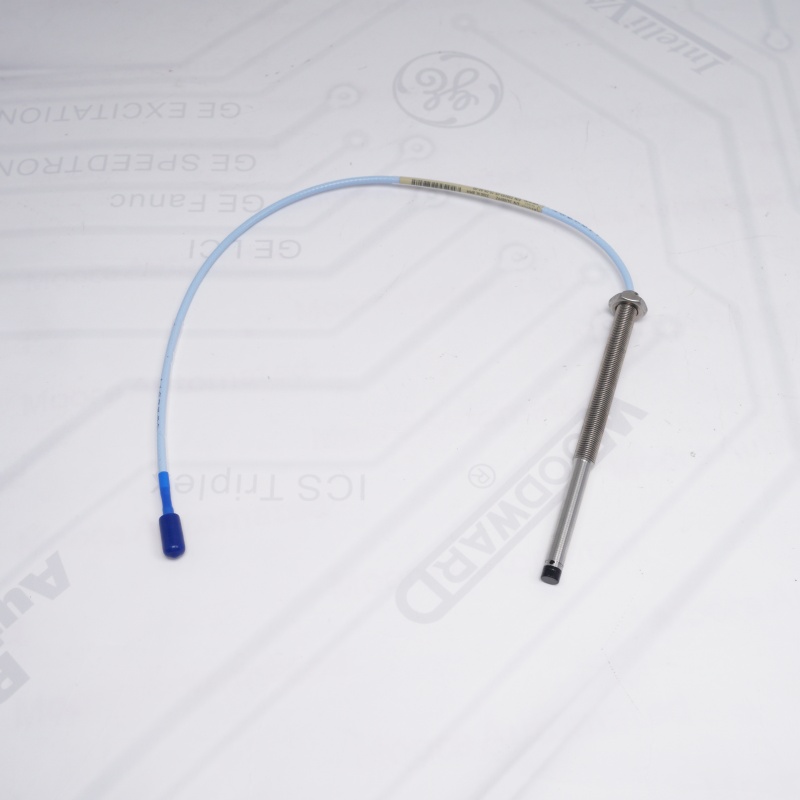

Bently Nevada 330103-05-15-05-02-00 is an industrial-grade 3300 XL 8 mm Eddy Current Proximity Probe. BENTLY NEVADA Proximity Probes is engineered for the continuous online condition monitoring of critical rotating machinery—such as turbines, compressors, and pumps—by precisely measuring dynamic shaft vibration and static position.
330103-05-15-05-02-00 BENTLY NEVADA Key Product Overview
Precision Monitoring: BENTLY NEVADA Proximity Probes is specifically designed to measure radial vibration, axial thrust position, and Keyphasor speed signals on fluid-film bearing machines.
Mechanical Specification: BENTLY NEVADA Proximity Probes features an M10 x 1 metric thread stainless steel case without armor, configured with a 50 mm unthreaded length and a 150 mm overall case length.
Short Cable Configuration: BENTLY NEVADA Proximity Probes is equipped with a 0.5-metre (1.6-foot) standard probe cable terminated with a gold-plated ClickLoc coaxial connector that resists loosening from machine vibration.
General Purpose Rating: The "-00" suffix denotes that this specific variant carries no hazardous area (explosion-proof) approvals, making it suitable for safe-area installations.
Rugged Construction: BENTLY NEVADA Proximity Probes utilizes a patented TipLoc molding process to form a highly resilient bond between the polyphenylene sulfide (PPS) tip and the probe case, ensuring chemical resistance and fluid-tight sealing.
If you want to more details about 330103-05-15-05-02-00 BENTLY NEVADA(BENTLY NEVADA Proximity Probes)，please contact me without hesitation.Email：sales@sparecenter.com
330103-05-15-05-02-00 BENTLY NEVADA Key Function
Radial Vibration Measurement: 330103-05-15-05-02-00 Proximity Probe tracks real-time, dynamic shaft movement inside fluid-film bearings to detect unbalance, misalignment, or rotor instability.
BENTLY NEVADA Proximity Probes Axial Thrust Positioning: 330103-05-15-05-02-00 Proximity Probe measures continuous changes in the axial (lengthwise) position of the shaft to prevent catastrophic internal metal-to-metal contact.
Keyphasor & Speed Timing: 330103-05-15-05-02-00 Proximity Probe provides a precise once-per-turn reference pulse from the spinning shaft to calculate exact RPM and phase angles for diagnostic balancing.
Core Brand We offer
Bently Nevada (3500 System / Proximity Probes)
ABB (AC800M / Bailey INFI 90)
Allen-Bradley (ControlLogix 1756 Series)
Honeywell (TDC3000 / Experion PKS)
Emerson (DeltaV / Ovation)
Triconex (Safety Redundant Systems)
GE (Mark VI / IS200 Series)
330103-05-15-05-02-00 Proximity Probe FAQ
Q1: What is the primary application of the Bently Nevada 330103-05-15-05-02-00 proximity probe?
A: The 3300 XL 8 mm Proximity Probe is primarily used for non-contacting static and dynamic measurements on critical rotating machinery. Specifically, the 330103-05-15-05-02-00 measures radial shaft vibration, axial thrust position, and RPM/Keyphasor timing on fluid-film bearing machines like steam turbines, centrifugal compressors, and large industrial pumps.
Q2: What do the physical dimensions embedded in the part number 330103-05-15-05-02-00 mean for installation?
A: The 3300 XL 8 mm Proximity Probe dictates precise mechanical dimensions. The base code defines an M10 x 1 metric thread without flexible armor. The internal modifiers specify that the 3300 XL 8 mm Proximity Probe has an unthreaded case length of 50 mm, an overall case length of 150 mm, and a short 0.5-metre integral cable.
Q3: Can the 330103-05-15-05-02-00 probe be installed directly into hazardous or explosion-prone environments?
A: No, the 3300 XL 8 mm Proximity Probe is configured with the "-00" agency approval option. This means the 330103-05-15-05-02-00 carries no hazardous area certifications (such as ATEX, IECEx, or CSA intrinsic safety). It must only be installed in safe, non-hazardous industrial areas unless specialized external isolation barriers are utilized.
Q4: How do I select a compatible extension cable and Proximitor sensor for the 330103-05-15-05-02-00?
A: Because the 3300 XL 8 mm Proximity Probe has an integrated 0.5-metre cable, it must be paired with a 3300 XL extension cable and Proximitor sensor configured for a total system length of either 5.0 metres or 9.0 metres. For example, to achieve a standard 5-metre system, the 330103-05-15-05-02-00 must connect to a 4.5-metre extension cable and a 5.0-metre Proximitor sensor.
Q5: What calibration target material is required for the 330103-05-15-05-02-00 to perform accurately?
A: The 3300 XL 8 mm Proximity Probe is factory-calibrated by Bently Nevada using standard AISI 4140 steel. If the target shaft material differs from this standard, the voltage-to-gap linear scale factor of the 330103-05-15-05-02-00 will change, requiring custom cross-calibration or target error compensation within the monitoring system.
