330103-00-05-20-02-CN BENTLY NEVADA Details

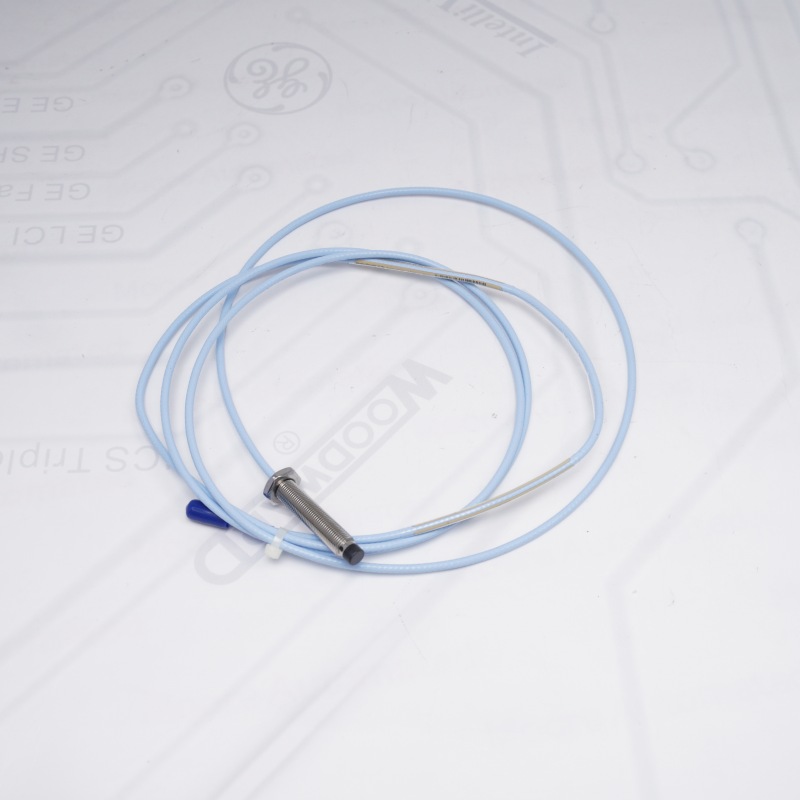

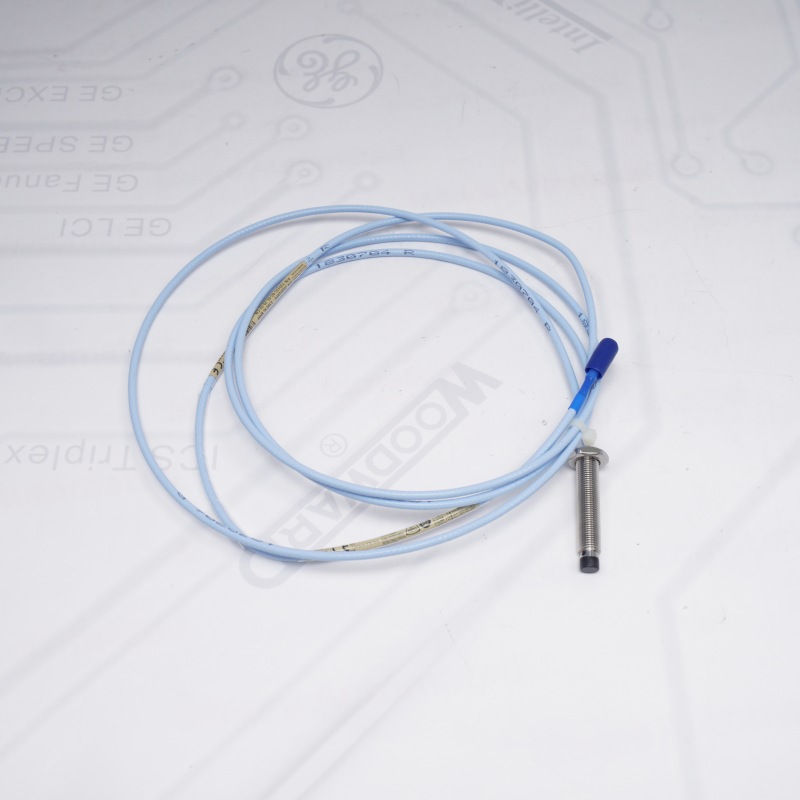

This part number is a Bently Nevada 3300 XL 8 mm Proximity Probe with an M10x1 metric thread. Utilizing non-contact eddy current technology, 3300 XL 8 mm Proximity Probes generates an electromagnetic field to sense micro-movements of a machine shaft and converts them into precise electrical signals.
As an industrial-grade hardware baseline, 3300 XL 8 mm Proximity Probes is custom-built for the continuous online monitoring of critical rotating machinery (such as turbines, compressors, and pumps). It delivers high-accuracy data required for machinery protection and early fault diagnosis under extreme operating environments, including high temperatures, oil, and moisture.
If you want to more details about 330103-00-05-20-02-CN BENTLY NEVADA(3300 XL 8 mm Proximity Probes)，please contact me without hesitation.Email：sales@sparecenter.com
330103-00-05-20-02-CN BENTLY NEVADA Key Features
330103-00-05-20-02-CN Proximity Probes Fully Threaded Case: 50 mm overall length with 0 mm unthreaded area.

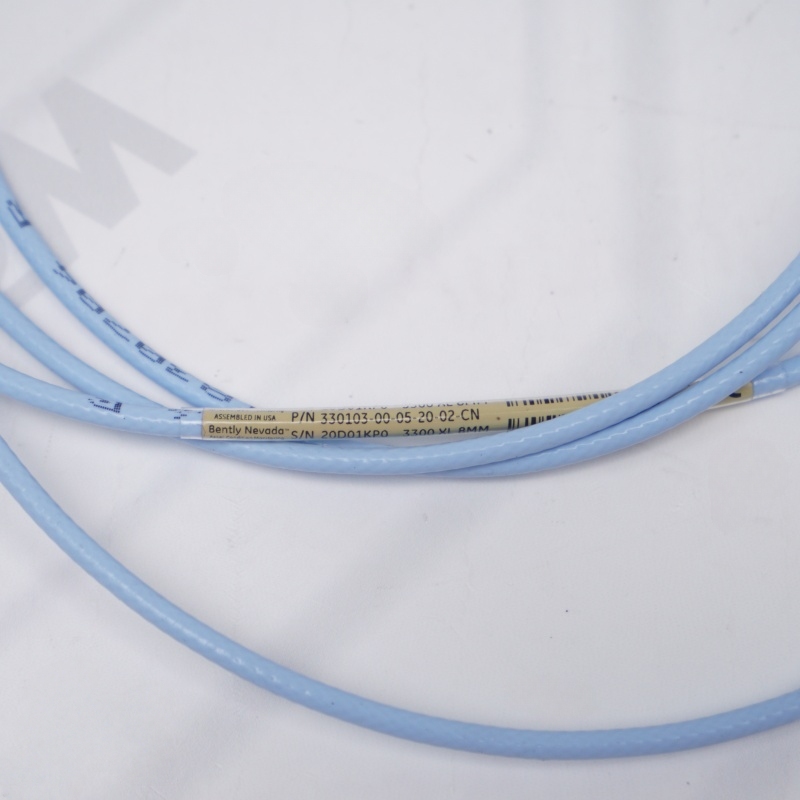

330103-00-05-20-02-CN Proximity Probes Integrated Cable: 2.0-meter length with a standard miniature coaxial ClickLoc connector.
330103-00-05-20-02-CN Proximity Probes High Durability: Polyphenylene sulfide (PPS) tip and stainless steel case resist oil, water, and harsh chemical environments.
330103-00-05-20-02-CN Proximity Probes Gold-Plated Connectors: BENTLY NEVADA Proximity Probes requires only finger-tight torque and resists corrosion.
330103-00-05-20-02-CN Proximity Probes CN Approval: Certified for explosion-proof and hazardous area environments (typically NEPSI/China Ex).
About Spare Center
Global Parts Supply: Fast sourcing of PLC, DCS, and TSI components from top brands like Bently Nevada.
Obsolete Parts Specialist: Locates discontinued, rare, and end-of-life (EOL) industrial hardware.
Rapid Delivery: Ships worldwide from massive inventory to minimize plant downtime.
Quality Guarantee: Provides 100% original, fully inspected parts backed by a 12-month warranty.
330103-00-05-20-02-CN BENTLY NEVADA FAQ
Q1: What exactly is the Bently Nevada 330103-00-05-20-02-CN(3300 XL 8 mm Proximity Probes) and what are its physical dimensions?
A: The BENTLY NEVADA Proximity Probes is a 3300 XL 8 mm proximity probe used for non-contact machinery displacement measurements. Specifically, this configuration features an M10x1 metric thread, a 50 mm overall case length with 0 mm of unthreaded length (meaning it is fully threaded), and a 2.0-meter integrated cable equipped with a miniature coaxial ClickLoc connector.Q2: What is the meaning of the "CN" suffix in the part number 330103-00-05-20-02-CN(3300 XL 8 mm Proximity Probes)?
A: The "CN" suffix at the end of BENTLY NEVADA Proximity Probes designates country-specific agency approvals for hazardous areas. It typically indicates compliance with NEPSI (China Explosion Status) and local Ex certifications, ensuring the probe can be safely installed in Zone 0, Zone 1, or Division 1 explosive atmospheres when paired with appropriate barriers.
A: The "CN" suffix at the end of BENTLY NEVADA Proximity Probes designates country-specific agency approvals for hazardous areas. It typically indicates compliance with NEPSI (China Explosion Status) and local Ex certifications, ensuring the probe can be safely installed in Zone 0, Zone 1, or Division 1 explosive atmospheres when paired with appropriate barriers.
Q3: Can the 330103-00-05-20-02-CN probe be connected directly to a machinery protection monitor?
A: No, the BENTLY NEVADA Proximity Probes cannot be wired directly to a monitor. It requires a complete 3300 XL Transducer System. Because this probe has a 2.0-meter integrated cable, it must be paired with a 3.0-meter matching 3300 XL Extension Cable to create a standard 5.0-meter system, which then plugs into a 5-meter 3300 XL Proximitor Sensor.
A: No, the BENTLY NEVADA Proximity Probes cannot be wired directly to a monitor. It requires a complete 3300 XL Transducer System. Because this probe has a 2.0-meter integrated cable, it must be paired with a 3.0-meter matching 3300 XL Extension Cable to create a standard 5.0-meter system, which then plugs into a 5-meter 3300 XL Proximitor Sensor.
Q4: What are the target material and calibration requirements for the 330103-00-05-20-02-CN?
A: By default, the BENTLY NEVADA Proximity Probes is factory-calibrated for AISI 4140 low-alloy steel targets to achieve its standard linear range of 2 mm (80 mils) and a Scale Factor of 7.87 V/mm (200 mV/mil). If your machine shaft uses a different material (e.g., stainless steel or Inconel), the system will experience a shift in scale factor and must be recalibrated or compensated for within the monitor.
A: By default, the BENTLY NEVADA Proximity Probes is factory-calibrated for AISI 4140 low-alloy steel targets to achieve its standard linear range of 2 mm (80 mils) and a Scale Factor of 7.87 V/mm (200 mV/mil). If your machine shaft uses a different material (e.g., stainless steel or Inconel), the system will experience a shift in scale factor and must be recalibrated or compensated for within the monitor.
Q5: What is the torque specification for installing the 330103-00-05-20-02-CN into a machine casing?
A: When mounting the BENTLY NEVADA Proximity Probes using its M10x1 threads, the maximum recommended installation torque is 6.8 N·m (60 in·lb). Exceeding this torque rating risks distorting the stainless steel case or damaging the internal sensor coils. For the miniature coaxial ClickLoc connector on the cable, it should only be tightened finger-tight.
A: When mounting the BENTLY NEVADA Proximity Probes using its M10x1 threads, the maximum recommended installation torque is 6.8 N·m (60 in·lb). Exceeding this torque rating risks distorting the stainless steel case or damaging the internal sensor coils. For the miniature coaxial ClickLoc connector on the cable, it should only be tightened finger-tight.
