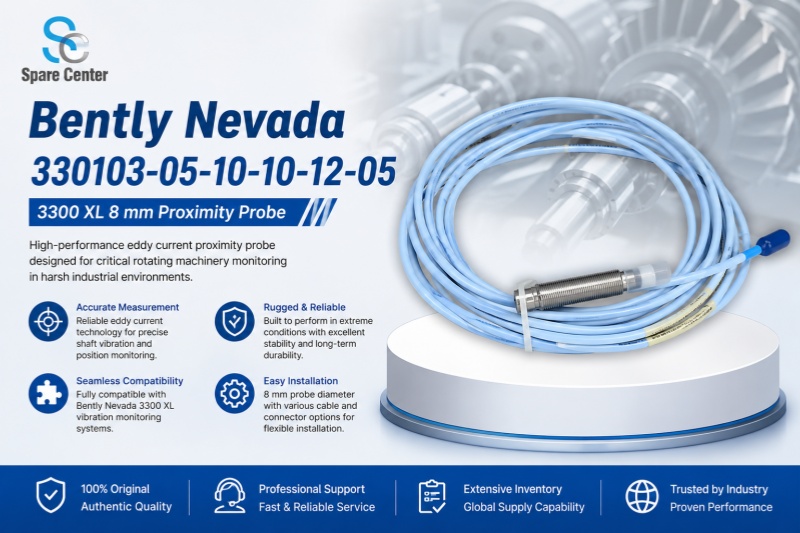

Introduction Of BENTLY NEVADA 330103-05-10-10-12-05
A proximity probe in a turbine system is not just a sensor—it is part of the machine’s safety decision-making loop.
A properly configured Bently Nevada 330103-05-10-10-12-05 Proximity Probe is used to monitor shaft vibration, axial displacement, and phase reference signals inside high-speed rotating equipment like turbines, compressors, and industrial motors.
In real power plants, operators rely on this signal to decide whether a machine is stable, drifting, or approaching failure conditions.
We’ve noticed something very consistent in industrial maintenance projects:
Many unexpected shutdowns are not caused by mechanical failure itself, but by incorrect probe configuration, wrong gap setting, or mismatched monitoring systems.
Here’s the thing. On paper, two proximity systems may look identical. In actual turbine environments, temperature, oil immersion, EMI noise, and mechanical tolerance change everything.
Common Customer Concerns Of BENTLY NEVADA 330103-05-10-10-12-05
Q1: What Is Bently Nevada 330103-05-10-10-12-05 Used For?A: The Bently Nevada 330103 Proximity Probe belongs to the 3300 XL 8mm proximity transducer system, widely used in critical machinery condition monitoring. It is designed for non-contact measurement using eddy current displacement sensing technology, where shaft movement is converted into voltage variation. Core industrial applications:
In many refinery and power generation environments, this probe is directly connected to protection logic inside the Bently Nevada 3300 XL vibration monitoring system, which can trigger alarms or shutdown signals. What many buyers overlook is this: |  |
Q2: Why 3300 XL System Still Dominates Industrial Monitoring? A: Even with modern IoT vibration sensors, the Bently Nevada 3300 XL system remains widely used. Reasons are simple:
In power plants, decisions are not based on “new technology preference,” but on risk control. Replacing a stable monitoring system introduces more risk than maintaining it. |
Engineering Structure and Configuration Logic Of BENTLY NEVADA 330103-05-10-10-12-05
The model number 330103-05-10-10-12-05 is not random—it defines a full engineering configuration.
330103-05-10-10-12-05 BENTLY NEVADA Key mechanical configuration:
Thread type: M10 × 1 metric thread
Probe case length: 100 mm total
Unthreaded housing: 50 mm
Cable length: 1.0 meter integrated system
Connector type: ClickLoc (no protector)
Cable type: FluidLoc
Certifications: CSA / ATEX / IECEx
What FluidLoc actually solves in real plants
In oil-lubricated turbine systems, one common failure mode is lubricant migration through cable insulation layers.
FluidLoc cable design blocks this phenomenon by sealing internal voids inside the cable structure.
Honestly, this is where many engineers underestimate the system. They think cable is just “signal wire.” In reality, it is part of the sealing system of the machine.
Working Principle Of BENTLY NEVADA 330103-05-10-10-12-05: Eddy Current Displacement Sensor
Real Field Applications in Industrial Plants Of BENTLY NEVADA 330103-05-10-10-12-05
1. Radial Vibration Monitoring
The probe measures shaft movement inside journal bearings. This is critical for detecting imbalance, misalignment, or lubrication issues.
2. Axial Thrust Control
It tracks rotor movement along the shaft axis to prevent contact between rotating and stationary components.
3. Keyphasor Signal Generation
Used for rotational speed reference. Without this signal, vibration phase analysis becomes unreliable.
4. Hazardous Area Deployment
Because of CSA, ATEX, and IECEx certification, the probe is used in explosive environments such as oil refineries and gas processing plants.
In real projects, certification is often the deciding factor—not performance specs.
Real Engineering Problems We See in the Field Of BENTLY NEVADA 330103-05-10-10-12-05
This is where things get interesting.
Case 1: Incorrect installation gap
A turbine site installed probes slightly outside recommended gap.
Result:
false vibration alarms
unstable shutdown triggers
unnecessary maintenance cycles
Case 2: Cable damage during routing
During installation, bending radius exceeded specification.
Result:
intermittent signal noise after 2–3 weeks
unstable shaft orbit plots
Case 3: System mismatch
Probe installed with incompatible proximitor module.
Result:
incorrect voltage scaling
misleading vibration diagnostics
Honestly, this is where many buyers get confused. They think “part number match = system compatibility.” In reality, signal chain compatibility matters more.
OEM Manufacturing & Quality Control Insight Of BENTLY NEVADA 330103-05-10-10-12-05
From an OEM engineering perspective, proximity probes are precision analog devices, not simple sensors.
Typical manufacturing steps include:
coil winding under controlled tension
epoxy vacuum sealing for vibration resistance
thermal cycling tests (-52°C to +177°C range)
calibration against certified steel targets
signal linearity verification across full range
Packaging engineering (often ignored but critical)
Industrial probes are typically packaged with:
anti-static sealed bags
foam shock isolation
batch traceability labels
calibration certificates
What many buyers overlook is transport vibration damage. Even micro-shifts in coil alignment can affect sensitivity in high-precision turbine applications.
Procurement Reality: What Buyers Actually Ask About 330103-05-10-10-12-05
In real B2B procurement meetings, questions are rarely about specs alone.
Buyers ask:
Will this integrate with our existing 3300 XL system?
What happens if cable length changes?
Can we replace only probe without recalibration?
How stable is signal under oil immersion?
What many buyers overlook is lifecycle cost.
A cheaper probe with unstable calibration can increase maintenance cost significantly over time.
Q1: What is the 330103-05-10-10-12-05 used for?
330103-05-10-10-12-05 BENTLY NEVADA is used for monitoring shaft vibration, axial displacement, and rotor position in turbines and compressors.
Q2: How does the 330103-05-10-10-12-05 work?
330103-05-10-10-12-05 BENTLY NEVADA uses eddy current displacement sensing to convert shaft movement into voltage signals.
Q3: What makes FluidLoc cable important?
It prevents oil migration inside cable structures in submerged turbine environments.
Q4: Can 330103-05-10-10-12-05 BENTLY NEVADA work without extension cable?
Yes. This configuration uses a 1.0 meter integrated system design.
Q5: What causes signal drift in 330103-05-10-10-12-05 BENTLY NEVADA?
Improper gap setting, cable damage, or system mismatch.
Q6: What is the typical measurement range of 330103-05-10-10-12-05 BENTLY NEVADA?
Approximately 2 mm linear range with high sensitivity output.
Q7: Is 330103-05-10-10-12-05 BENTLY NEVADA suitable for hazardous environments?
Yes, 330103-05-10-10-12-05 BENTLY NEVADA is certified for CSA, ATEX, and IECEx zones.
Q8: Why is AISI 4140 steel used for calibration?
Because it provides stable and standardized electromagnetic response for eddy current calibration.
