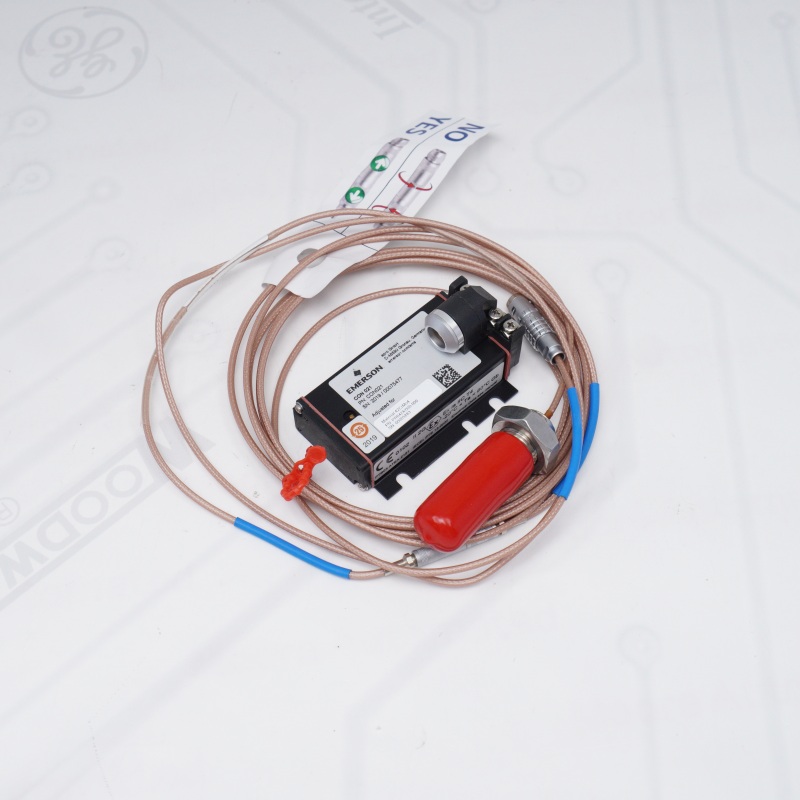

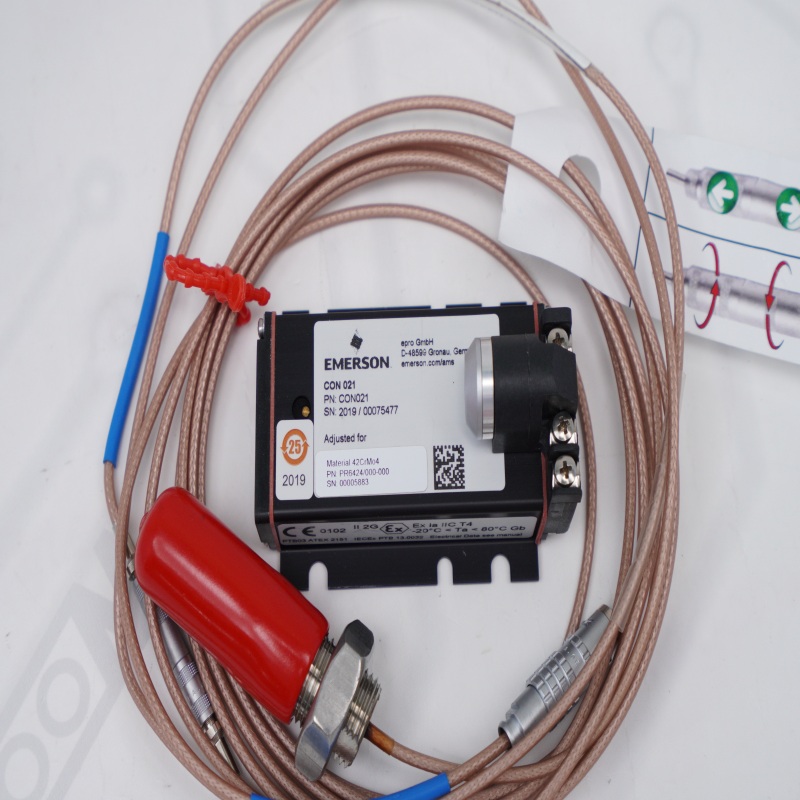

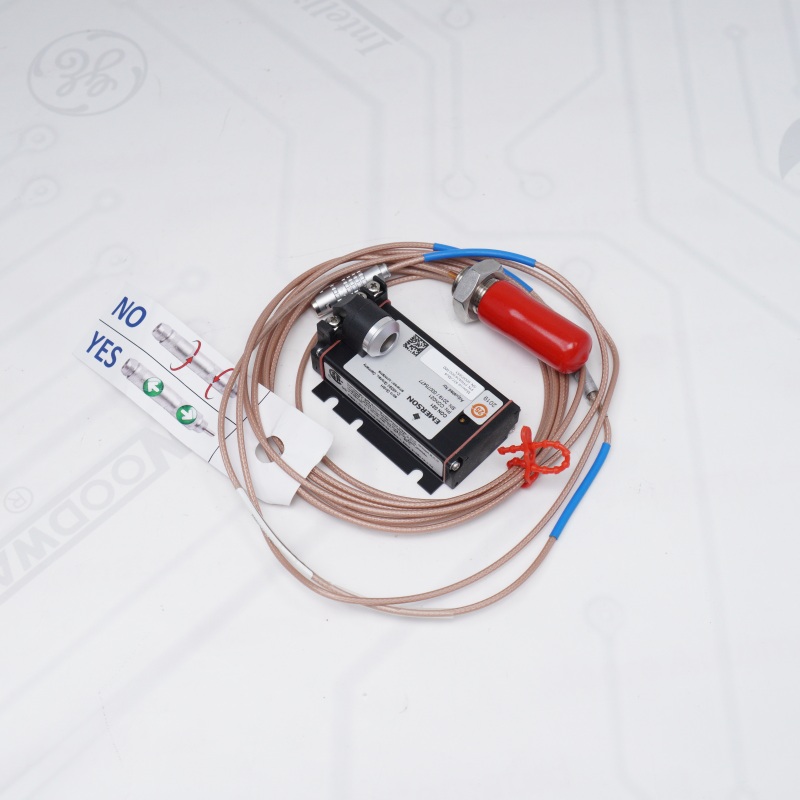

EMERSON eddy current sensor system Specification
PR6424/000-000 Proximity Probe
Tip Diameter: 16 mm
Thread Size: M18 × 1.5
Linear Measuring Range: 4.0 mm
Integral Cable: 1-meter PTFE cable (without stainless steel armor)
Connector Type: LEMO plug
Operating Temperature: -35°C to +180°C
CON021 Signal Converter (Driver)
Output Voltage Range: -4V to -20V (with -23V to -32V DC power supply)
Frequency Response: 0 to 20,000 Hz
Operating Temperature: -30°C to +100°C
Protection Class: IP20 (requires cabinet installation)
If you want to more details about EMERSON eddy current sensor system，please contact me without hesitate.Email：sales@sparecenter.com
EMERSON eddy current sensor system Features
Non-Contact Sensing: CON021 PR6424-000-000 EMERSON utilizes eddy current technology to prevent physical wear.
4 mm Linear Range: The CON021 PR6424-000-000 EMERSON is perfectly optimized for shaft vibration and displacement.
0–20 kHz Frequency: High-speed rotating machinery is accurately tracked by the CON021 PR6424-000-000 EMERSON sensor network.
Robust Probe Design: The CON021 PR6424-000-000 EMERSON probe tip withstands harsh environments from -35°C to +180°C.
Standard Output: A reliable -4V to -20V analog signal is delivered by the CON021 PR6424-000-000 EMERSON to fit PLC/DCS systems.
Choose Spare Center
Massive Stock: Large regional inventory of rare and current industrial automation parts.
Global Shipping: Same-day dispatch via major couriers (DHL, FedEx, UPS).
Guaranteed Quality: 100% genuine products backed by full testing and warranty.
Technical Support: Multilingual product support for seamless cross-border ordering.
Premium Brands: Authorized supply for major lines like Bently Nevada and ABB.
EMERSON eddy current sensor system FAQ
Q1: What is the primary industrial application of the EMERSON CON021 PR6424-000-000 sensor system?
A1: The EMERSON CON021 PR6424-000-000 is designed for critical non-contact machinery protection, specifically monitoring radial shaft vibration, axial shaft displacement, and eccentricities in high-speed turbomachinery such as steam turbines, gas compressors, and industrial pumps.
A1: The EMERSON CON021 PR6424-000-000 is designed for critical non-contact machinery protection, specifically monitoring radial shaft vibration, axial shaft displacement, and eccentricities in high-speed turbomachinery such as steam turbines, gas compressors, and industrial pumps.
Q2: What are the target material and measuring range specifications for the EMERSON CON021 PR6424-000-000?
A2: The EMERSON CON021 PR6424-000-000 is calibrated against standard ferromagnetic steel (such as 42CrMo4) and delivers a 4.0 mm total linear measuring range with a standardized sensitivity for precise micro-displacement tracking.
A2: The EMERSON CON021 PR6424-000-000 is calibrated against standard ferromagnetic steel (such as 42CrMo4) and delivers a 4.0 mm total linear measuring range with a standardized sensitivity for precise micro-displacement tracking.
Q3: What type of output signal does the EMERSON CON021 PR6424-000-000 provide to plant control networks?
A3: When supplied with a standard -23V to -32V DC input, the driver loop of the Eddy current sensor system outputs a proportional analog voltage signal of -4V to -20V, matching standard DCS, PLC, and AMS machinery health monitoring platforms.
A3: When supplied with a standard -23V to -32V DC input, the driver loop of the Eddy current sensor system outputs a proportional analog voltage signal of -4V to -20V, matching standard DCS, PLC, and AMS machinery health monitoring platforms.
Q4: Can the EMERSON CON021 PR6424-000-000 probe be installed in high-temperature environments?
A4: Yes, the 16mm proximity probe head of the Eddy current sensor system features a rugged design capable of continuous operation in extreme process temperatures ranging from -35°C up to +180°C.
A4: Yes, the 16mm proximity probe head of the Eddy current sensor system features a rugged design capable of continuous operation in extreme process temperatures ranging from -35°C up to +180°C.
Q5: Does the integral cable of the EMERSON CON021 PR6424-000-000 include flexible armor conduit?
A5: No, the specific suffix on the EMERSON eddy current sensor system configuration designates a 1-meter unarmored PTFE integral cable terminating in a LEMO connector, suitable for standard conduit routing or internal machine casings.
A5: No, the specific suffix on the EMERSON eddy current sensor system configuration designates a 1-meter unarmored PTFE integral cable terminating in a LEMO connector, suitable for standard conduit routing or internal machine casings.
