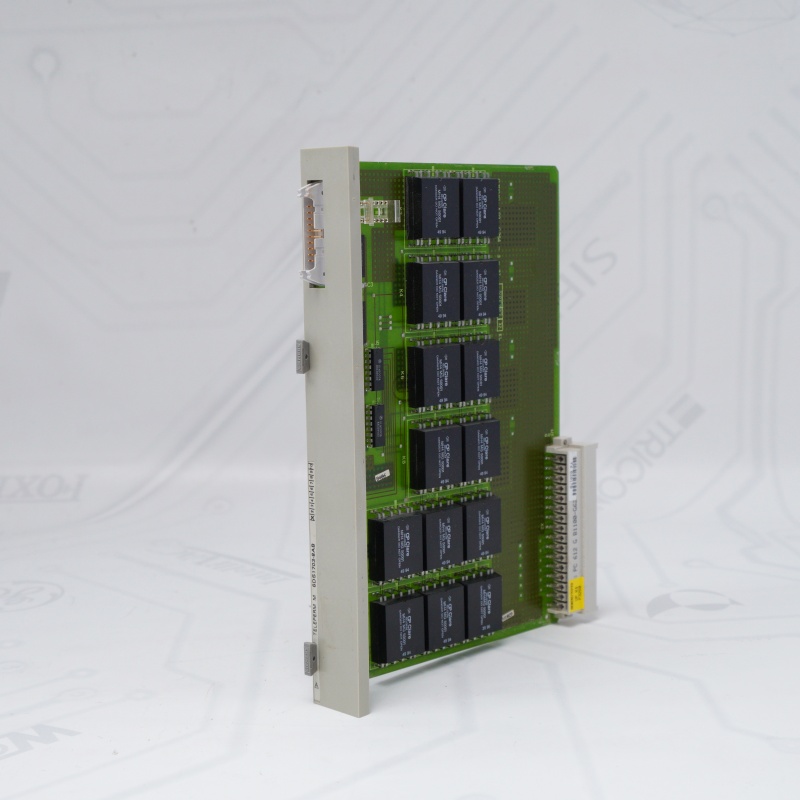

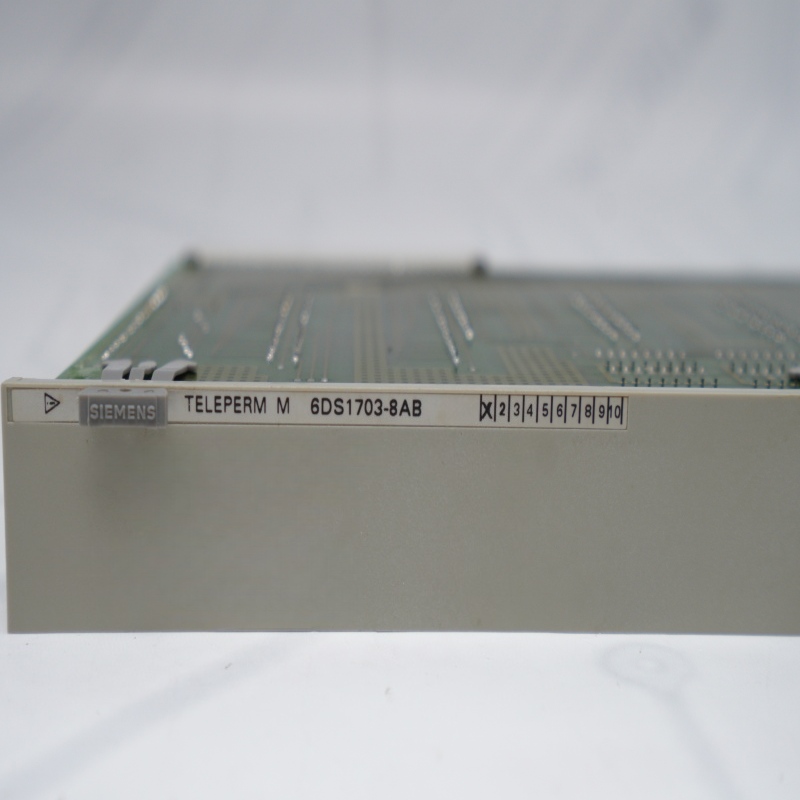

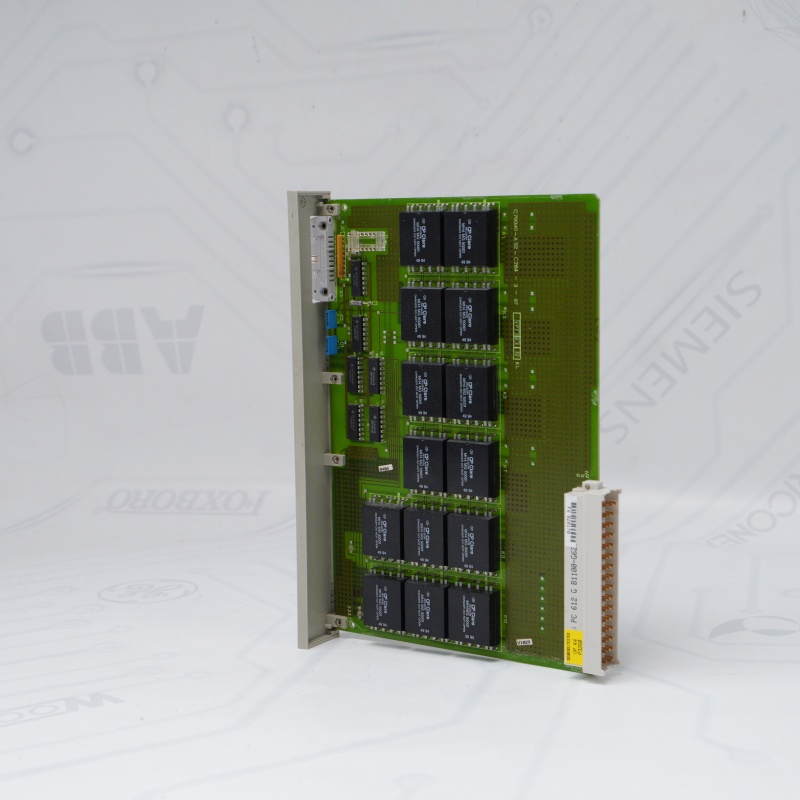

6DS1703-8AB SIEMENS Measurement Point Extension Module Teleperm M

  • SIEMEN
  • Germany
  • 2024
  • In Stock
The Siemens 6DS1703-8AB is a legacy Measurement Point Extension Module belonging to the classic Siemens Teleperm M / ME distributed control system (DCS) line. SIEMENS 6DS1703-8AB was officially discontinued by the manufacturer on December 31, 2020, meaning it is now primarily available as surplus, refurbished, or used stock for maintaining existing industrial systems.
Annex

SIEMENS Measurement Point Extension Module Overview


SIEMENS Teleperm M/ME Measurement Point Extension Module, 14-Channel

Function: Signal acquisition extension module for the legacy Siemens Teleperm M/ME Distributed Control System (DCS).

Compatibility: Equipped with 14 input channels, designed for Thermocouples and Pt100 RTD temperature sensors. Works as an extension for the Teleperm 1731 module.

Status: Obsolete/Discontinued by manufacturer (Dec 2020), available as a surplus or refurbished spare part.

If you want to more details about SIEMENS Measurement Point Extension Module，please contact me without hesitate.Email：sales@sparecenter.com


SIEMENS Measurement Point Extension Module Core Parameters


Product Designation: Measuring Point Extension Adapter (MEA)

System Compatibility: Exclusively designed for the legacy SIEMENS Teleperm M / ME Distributed Control System (DCS).

Required Base Module: Must be paired with the 6DS1731-8AA or 6DS1731-8RR analog input master module (it acts as a daughterboard/extension channel expansion).

Number of Channels: 14 differential input channels.

Supported Sensor Types:

  • Thermocouples (TC): Type J, K, S, etc. (with built-in cold-junction compensation).

  • Resistance Temperature Detectors (RTD): Pt100, Ni100 (supports 2-wire, 3-wire, or 4-wire connection methods).

  • Low-Level DC Voltage: Millivolt (mV) analog signals.

Electrical & Isolation Features

Galvanic Isolation: Full galvanic isolation between the field inputs and the internal system bus to protect control hardware from industrial noise and surges.

Signal Processing: Multiplexed differential sampling via the 1731 master module's A/D converter.


Reasons For Choosing Spare Center


Massive Stock

Over 1M products ready for same-day shipping.

Global Support

Multilingual team serving 100+ countries.

Guaranteed Quality

Original origin testing with third-party verification.

Flexible Shipping

Global delivery via DHL, FedEx, TNT, and UPS.


SIEMENS Measurement Point Extension Module FAQ


Q1: What is the function of the SIEMENS 6DS1703-8AB?

A1: The 6DS1703-8AB SIEMENS is a 14-channel differential input extension adapter used to route and isolate thermocouple and RTD signals in legacy Teleperm M/ME DCS networks.
Q2: Can the SIEMENS 6DS1703-8AB operate as a standalone module?
A2: No, the 6DS1703-8AB SIEMENS must be paired with a master analog input module, such as the 6DS1731-8AA or 6DS1731-8RR, to process signals.
Q3: What sensors are supported by the SIEMENS 6DS1703-8AB?
A3: The 6DS1703-8AB SIEMENS natively supports standard thermocouples (Types J, K, S) and RTDs (Pt100, Ni100) using 2, 3, or 4-wire connections.
Q4: Does the SIEMENS 6DS1703-8AB provide system protection?
A4: Yes, the 6DS1703-8AB SIEMENS features galvanic isolation to block field electrical faults and surges from reaching the master control rack.
Q5: Is the SIEMENS 6DS1703-8AB discontinued, and where is it available?
A5: Yes, the 6DS1703-8AB SIEMENS was discontinued in December 2020, but you can purchase fully tested and certified refurbished units directly from our Spare Center.
Q6: What is required when replacing a 6DS1703-8AB SIEMENS?
A6: You must power down the master rack and configure the jumpers on the new 6DS1703-8AB SIEMENS to match the original unit's sensor settings.
