Maximum Performance for Discontinued Systems: The Siemens 6DD1600-0AK0 SIMADYN D PM6 Processor

    Written by Tina Jiang , Director of Spare Center

  Tina Jiang has accumulated several years of experience in industrial sales and technical support, with a strong focus on automation systems and machine condition monitoring. In her daily work, she communicates closely with customers, prepares quotations, and recommends appropriate solutions for industrial control and monitoring needs.

  She also assists clients in sourcing replacement components, including hard-to-find or discontinued parts. Additionally, she coordinates with engineering teams and suppliers to ensure smooth project progress—helping maintain timely deliveries and competitive pricing so customers can minimize equipment downtime and keep operations running efficiently.

The Siemens 6DD1600-0AK0, also known as the PM6 Processor Module, is a cornerstone of the SIMADYN D control system. Engineered for high-end applications requiring extreme computational speed, SIMADYN D PM6 Processor excels where standard automation reaches its limits.

Key Features

• SIMADYN D PM6 Processor RAPID 64-Bit Architecture: Unlike standard 16 or 32-bit controllers, the 6DD1600-0AK0 utilizes a 64-bit CPU to process complex mathematical algorithms in real-time, essential for dynamic drive controls.

• SIMADYN D PM6 ProcessorDual Bus Support: It integrates seamlessly into the SIMADYN D subrack, communicating via the L-bus (local bus) for high-speed data exchange between neighboring modules and the C-bus (communication bus) for system-wide coor dination.

• SIMADYN D PM6 Processor Onboard I/O & Memory: Equipped with 8 digital inputs and dedicated interfaces for incremental and absolute encoders, the module handles signal processing directly on the CPU. It also features 8 MB of DRAM, providing ample space for sophisticated user programs.

• Siemens SIMADYN D PM6 Processor Forced Ventilation Design: To maintain Siemens SIMADYN D PM6 Processor's high processing power, the 6DD1600-0AK0 is specifically designed for use in subracks with forced-ventilation, ensuring thermal stability during 24/7 operation.

• 6DD1600-0AK0 SIMADYN D PM6 Processor Bus Communication: Siemens 6DD1600-0AK0 utilizes a high-speed backplane bus system (the C-bus and P-bus) to communicate with other CPU modules or I/O cards within the same subrack. Siemens 6DD1600-0AK0 allows for distributed processing, where multiple PM6 modules can work in parallel to manage different parts of a complex machine (e.g., a rolling mill or a large-scale converter).

• 6DD1600-0AK0 SIMADYN D PM6 Processor Memory Structure: The architecture includes 8MB of DRAM and supports specialized plug-in memory submodules (Flash or SRAM) to store the user program and project data, ensuring data persistence even during power loss.

• 6DD1600-0AK0 SIMADYN D PM6 Processor Integrated Connectivity: Siemens 6DD1600-0AK0 features a built-in PROFIBUS DP interface, allowing it to act as a master or slave in a wider industrial network, bridging the gap between high-level technological control and field-level devices.

• 6DD1600-0AK0 SIMADYN D PM6 Processor Hardware Compatibility: Siemens 6DD1600-0AK0 is designed for use in SR12, SR24, and UR5213 subracks. Siemens 6DD1600-0AK0 can coexist with other SIMADYN D modules, such as the PM5 or PM6 predecessors/successors, provided the rack power supply can handle the load.

• 6DD1600-0AK0 SIMADYN D PM6 Processor Software Compatibility: Engineering is performed via STEP 7 combined with the CFC (Continuous Function Chart) and D7-SYS library. The module is compatible with the "block-oriented" programming style, where complex control loops are built by connecting function blocks visually.

• 6DD1600-0AK0 SIMADYN D PM6 Processor Migration Path: While the SIMADYN D line is legacy, the PM6 is architecturally the predecessor to the SIMATIC TDC CPU551/555 modules. Many programs written for the PM6 can be migrated to newer TDC hardware with minimal logic changes, though physical hardware interfaces may differ.

Primary Application Fields

The 6DD1600-0AK0 is predominantly found in heavy industries where precision and speed are non-negotiable:

• Siemens SIMADYN D PM6 Processor Steel & Rolling Mills: Managing high-speed motor synchronization and tension control.

• Siemens SIMADYN D PM6 Processor Paper & Converting: Controlling complex winder systems and multi-drive coordination.

• Siemens SIMADYN D PM6 Processor Power Generation: Used in excitation systems and turbine controls where millisecond-level response is required.

• Siemens SIMADYN D PM6 Processor High-Dynamic Hydraulic Drives: Precise positioning and force control in industrial presses.

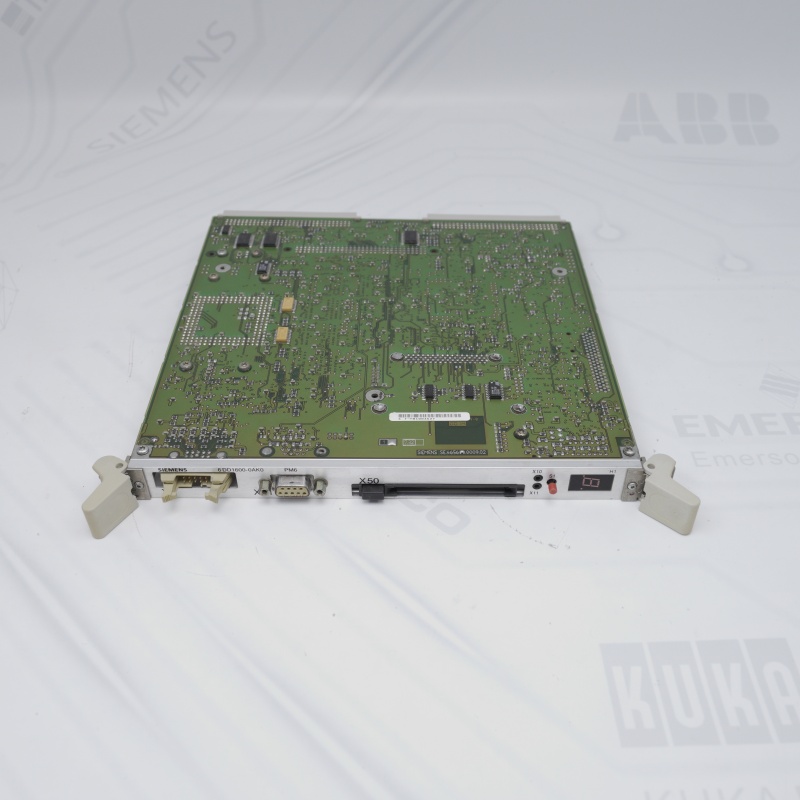

SIMADYN D PM6 Processor(Siemens SIMADYN D PM6 Processor)

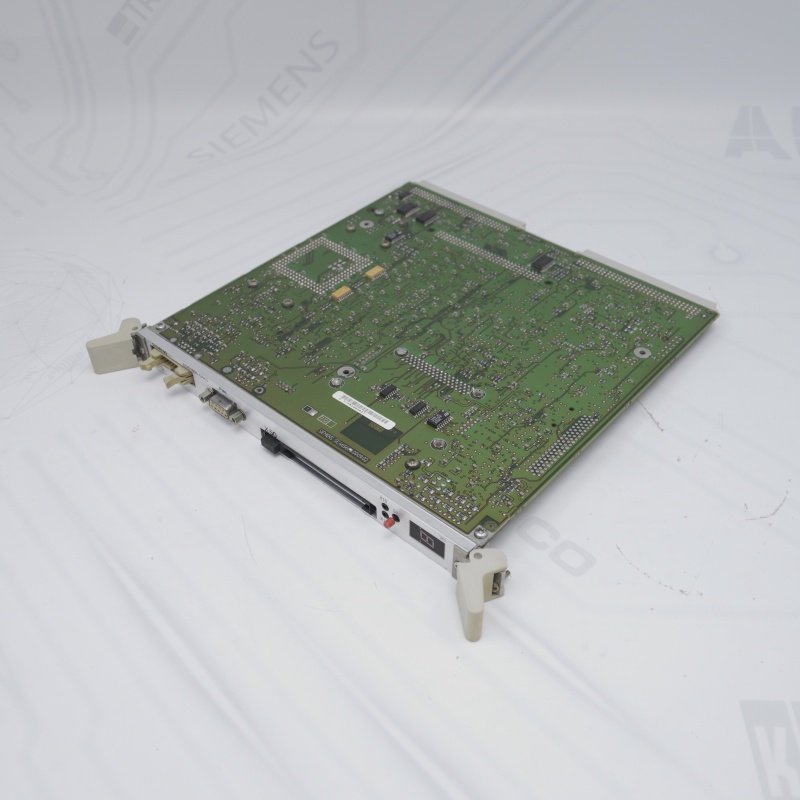

SIMADYN D PM6 Processor(Siemens 6DD1600-0AK0)

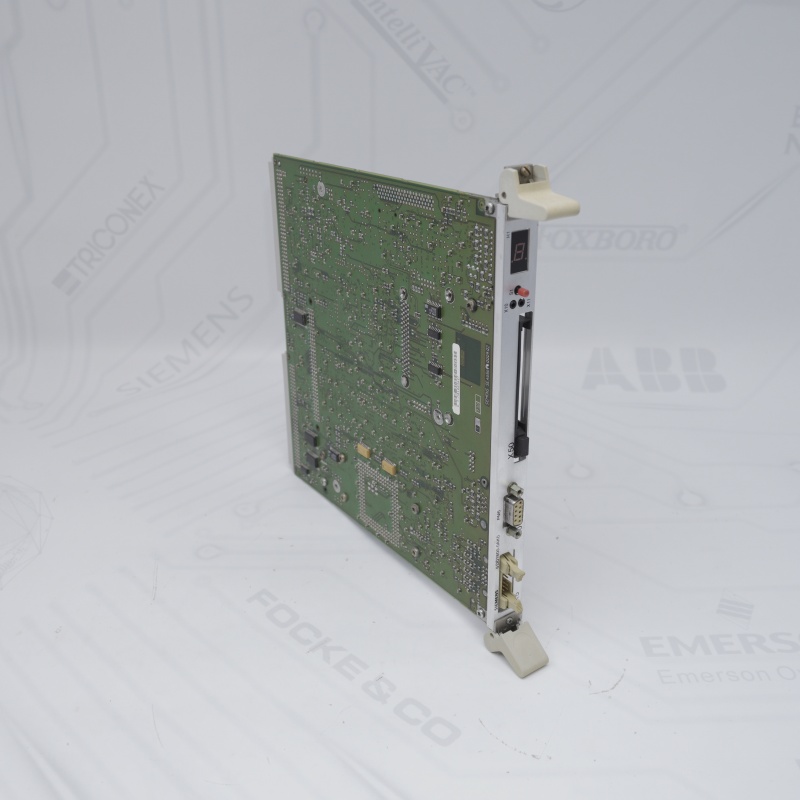

SIMADYN D PM6 Processor(6DD1600-0AK0 SIMADYN D PM6 Processor)

Siemens SIMADYN D PM6 Processor Specifications

• Quality Assurance: Every 6DD1600-0AK0 (Siemens 6DD1600-0AK0) we supply undergoes rigorous testing to guarantee it performs to original manufacturer specifications.

• Competitive Pricing: We provide cost-effective alternatives to expensive system migrations, helping you maintain your existing equipment at a fraction of the cost.

• Rapid Response: We prioritize urgent requests for the 6DD1600-0AK0 (Siemens 6DD1600-0AK0) to help you resolve downtime issues immediately.

If you want to more details，please contact me without hesitate. Email：sales@sparecenter.com
