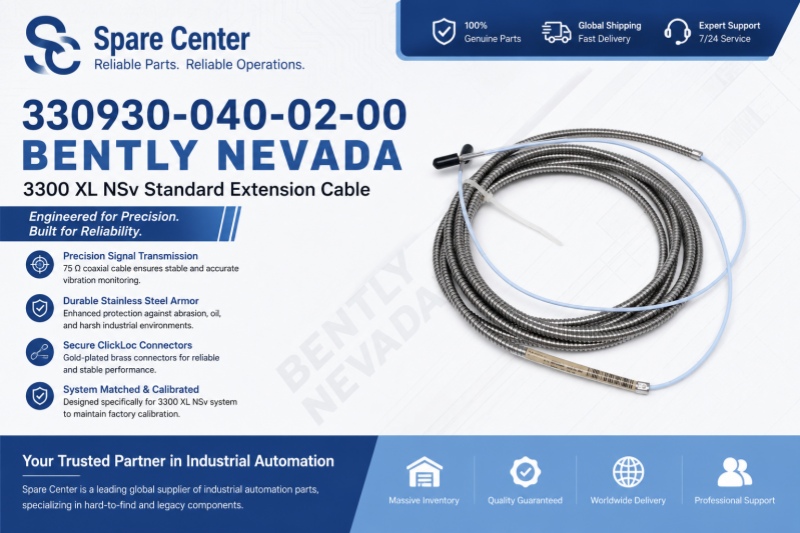

The 330930-040-02-00 Bently Nevada extension cable is a dedicated 3300 XL NSv Standard Extension Cable used in proximity transducer systems for vibration and position monitoring of rotating machinery.

In simple terms, it connects the proximity probe to the Proximitor sensor while keeping the electrical calibration stable. It is widely used in turbines, compressors, pumps, and other critical rotating equipment where turbine vibration monitoring is required.

Here’s the key point most engineers already know:

If the cable is wrong, the measurement is wrong.

And in vibration monitoring, “slightly wrong” is still wrong enough to trigger false alarms or miss real mechanical issues.

Q1: What is 330930-040-02-00 Bently Nevada used for? A: The 330930-040-02-00 Bently Nevada Extension Cable is used in the 3300 NSv System to transmit signals between the proximity probe and the Proximitor sensor. It is designed for shaft vibration and axial position monitoring in compact rotating machinery such as turbines and compressors. In real applications, it ensures the vibration signal remains stable and accurately calibrated across the full measurement loop.

Q2: Can 330930-040-02-00 replace a standard 3300 XL cable? A: No, it cannot be directly replaced with a standard 3300 XL 8mm cable. Although connectors may look similar, the NSv system uses different electrical tuning, capacitance, and impedance behavior. Mixing cable types will disturb calibration and can cause inaccurate vibration readings. This is one of the most common mistakes in maintenance procurement.

The 330930-040-02-00 Bently Nevada belongs to the 3300 NSv Extension Cable series, designed specifically for narrow side-view proximity systems.

Breaking down the part number helps avoid selection errors:

• 330930 → NSv extension cable family

• -040 → 4.0 meter cable length

• -02 → stainless steel armored design, no outer FEP jacket

• -00 → no hazardous area certification requirement

On paper, it looks like a simple cable.

In real machinery systems, it is part of a calibrated measurement chain.

That distinction matters.

Honestly, this is where things usually go wrong.

Most procurement teams focus only on:

• “Does it fit?”

• “Is the connector the same?”

• “Is the price lower?”

But in Bently Nevada NSv systems, physical compatibility is not enough.

Here’s a typical failure scenario:

A maintenance team replaces a damaged cable with a similar-looking extension cable from a standard 3300 XL system.

The machine starts normally.

No alarms.

Everything looks fine.

Two weeks later, vibration readings slowly drift.

The system begins generating inconsistent trends.

Then the question comes:

“Is the sensor failing?”

In many cases, the real issue is the wrong cable electrical profile, not the probe.

The 3300 XL NSv system is calibrated as a complete loop:

• Proximity probe

• Extension cable

• Proximitor sensor

All three work as one electrical system.

The loop depends on:

• Fixed cable length

• Defined capacitance

• Controlled impedance

• Stable shielding behavior

If one component changes, the entire calibration shifts.

That is why 330930-040-02-00 Bently Nevada extension cable must be matched exactly.

In turbine vibration monitoring systems, even small signal distortion can affect:

• Alarm thresholds

• Trend accuracy

• Machine protection decisions

And that is not something you want to guess.

In one compressor installation scenario, a technician replaced a damaged cable during a shutdown window.

The replacement was:

• Same connector type

• Similar length

• Visually identical armor

The system restarted successfully.

But the cable was not NSv-specific.

Within one month:

• Vibration baseline shifted slightly

• Alarm thresholds triggered intermittently

• Operators suspected bearing wear

After inspection, the bearing was fine.

The issue was traced back to incorrect cable selection affecting signal calibration.

This kind of problem is more common than most people expect.

Even the correct 330930-040-02-00 extension cable can fail if installed incorrectly.

Key mechanical limits:

• Minimum bend radius: 25.4 mm

• Maximum tensile load: 220 N

• Operating temperature: -52°C to +177°C

Here’s what happens in real plants:

Technicians often pull cables through tight conduits using connectors.

That puts stress directly on the ClickLoc interface.

It may not fail immediately.

But over time, micro-damage builds up.

Later, signal instability appears.

And it rarely gets traced back to installation practice.

Q1: What system is 330930-040-02-00 used in?

It is used in the Bently Nevada 3300 XL NSv System for vibration and position monitoring of rotating machinery.

Q2: What is the cable length of 330930-040-02-00?

It is a 4.0 meter extension cable, designed for calibrated NSv loop configurations.

Q3: Is this cable compatible with standard 3300 XL systems?

No. It is specifically designed for the NSv system and is not interchangeable with standard 8mm 3300 XL cables.

Q4: What is the function of the stainless steel armor?

The armor protects the cable from mechanical stress, abrasion, and industrial fluid exposure.

Q5: What is the connector type used with Bently Nevada 330930-040-02-00?

It uses gold-plated brass ClickLoc miniature coaxial connectors (male and female).

Q6: What happens if the wrong cable is installed?

It can cause signal distortion, calibration drift, and inaccurate vibration readings, potentially affecting machine protection decisions.
