51201557-150 Honeywell Details
Brand / Manufacturer: Honeywell
Model / Part Number: 51201557-150

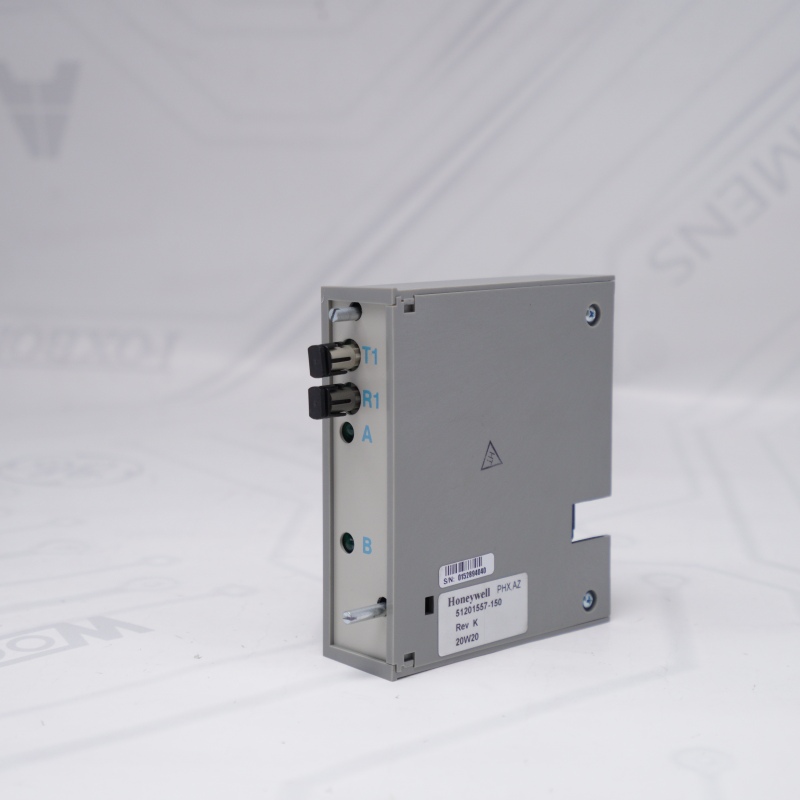

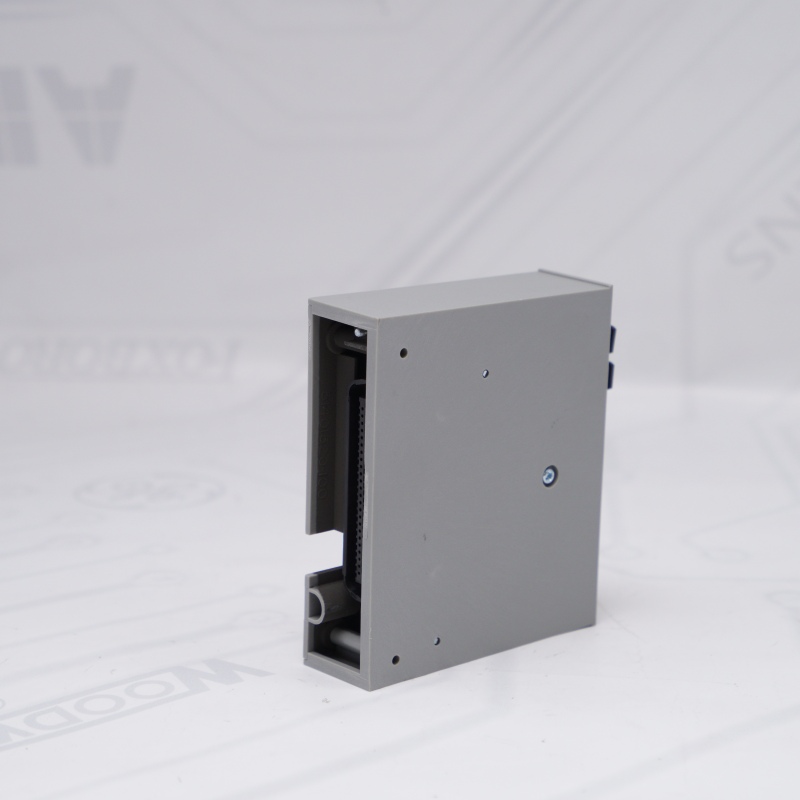

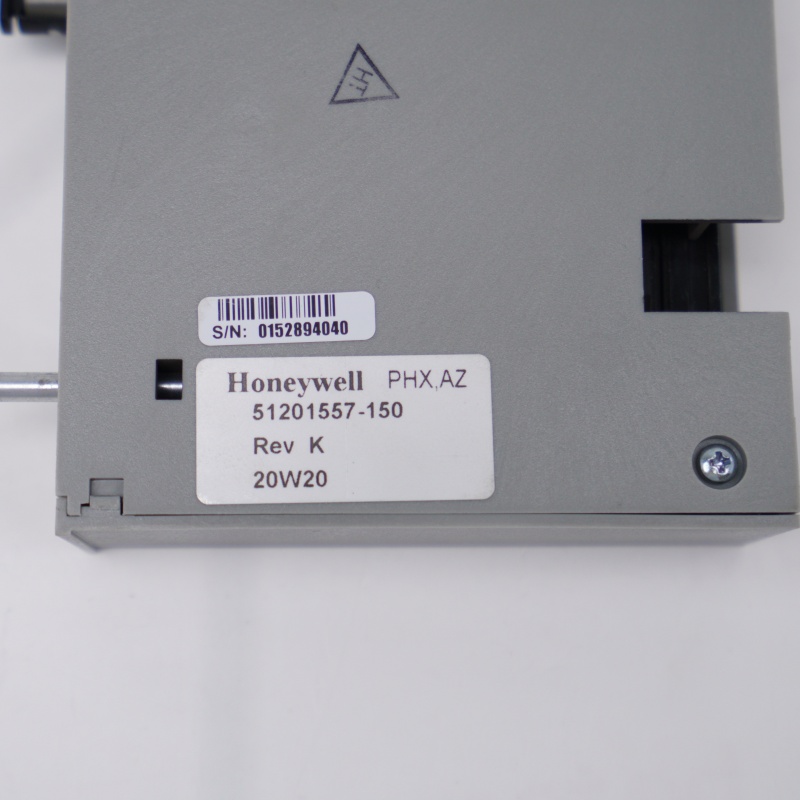

51201557-150 Honeywell Name: Standard Fiber Optic I/O Link Extender Coupler
System Compatibility: Suitable for Honeywell TDC 3000 / Experion PKS systems (HPM / APM management modules)
Core Function: Used for signal extension between local and remote I/O processing racks, utilizing fiber optic technology to achieve electrical isolation and high-performance communication.
Technical Highlights: Employs standard ST fiber optic interfaces; supports A/B dual-link redundant architecture; ideal for standard-distance (typically within 1.3 km) industrial field network topologies.
If you want to more details about 51201557-150 Honeywell，please contact me without hesitate.Email：sales@sparecenter.com
51201557-150 Honeywell Installation Notes
Power Safety: Never hot-swap the module; ensure system power is completely shut down before replacing the Honeywell 51201557-150.
Port Protection: Keep the ST dust caps on the module until wiring; maintain clean fiber end-faces to prevent signal loss.
Model Matching: Both ends of the link must use identical hardware; do not mix the 51201557-150 standard range with long-distance modules.
Correct Wiring: When connecting the Honeywell 51201557-150 redundant links, strictly match Link A to A and Link B to B; do not cross-connect.
ESD Protection: Technicians must wear anti-static wrist straps to avoid static damage to the internal components of the 51201557-150.
Spare Center | Core Capabilities
Global Reach: Supplying industrial automation parts to 100+ countries.
Massive Inventory: Housing one of Asia's largest PLC warehouses (500㎡).
Same-Day Shipping: Over 1,000,000 products ready for immediate dispatch.
Multilingual Team: Expert support in English, Japanese, German, and Spanish.
Quality Assured: All parts pass origin tests and support third-party inspection.
Global Express: Fast delivery via DHL, FedEx, TNT, and UPS.
51201557-150 Honeywell FAQ
Q1: Where exactly does this Honeywell 51201557-150 sit in a DCS network?
A1: Think of the Honeywell standard I/O Link Extender Coupler as a bridge. It is a Standard Fiber Optic I/O Link Extender Coupler used in legacy HPM or APM cabinets. When your I/O racks are located too far from the main controller file, you mount the Honeywell standard I/O Link Extender Coupler to convert electrical signals to fiber, keeping the data link fast and immune to plant electrical noise.
Q2: What fiber cabling and connectors do we need for the Honeywell 51201557-150?
A2: The 51201557-150 I/O Link Extender Coupler uses standard ST fiber connectors. Depending on how your HPM subsystem topology is designed for redundancy, you will run a 1-cable, 2-cable, or 3-cable fiber setup straight into the Honeywell standard I/O Link Extender Coupler ports.
Q3: Can we use a Honeywell 51201557-150 on one end and a long-distance extender on the other?
A3: Absolutely not. This is a common field mistake that will drop your link. The 51201557-150 Honeywell is rated for standard distances (up to 1.3 km). If you install a Honeywell standard I/O Link Extender Coupler on the local rack side, the remote rack endpoint must use the exact same standard-range hardware. Never mix it with long-distance modules on the same run.
Q4: What are the actual cabinet footprint and mounting details for the Honeywell 51201557-150?
A4: It is a very small, lightweight panel-mount unit. The 51201557-150 I/O Link Extender Coupler measures roughly 3.0 x 11.0 x 11.2 cm and weighs just 0.2 kg. You can easily mount the 51201557-150 I/O Link Extender Coupler in tight cabinet spaces right next to your I/O files.
Q5: How does the Honeywell 51201557-150 handle system redundancy?
A5: It fully supports Honeywell's dual-link safety design. You run separate Link A and Link B lines through the 51201557-150 I/O Link Extender Coupler setup. If one fiber line gets damaged out in the plant, the 51201557-150 I/O Link Extender Coupler network framework ensures the backup link takes over instantly without dropping your process data.
