330100-50-02 BENTLY NEVADA Overview
The Bently Nevada 330100-50-02 is a legacy, panel-mount, 5.0-meter eddy-current Proximitor Sensor designed for precise, non-contact measurement of shaft vibration and position in rotating machinery. It carries multiple agency approvals (ATEX, CSA, CE) for safe operation in hazardous, critical industrial environments.
330100-50-02 BENTLY NEVADA Series: Bently Nevada 3300
BENTLY NEVADA Proximitor Sensor Model: 330100-50-02
330100-50-02 BENTLY NEVADA Type: Panel Mount, 5.0m System
Input: -24 VDC
Sensitivity: 200 mV/mil (7.87 V/mm)
Approvals: Multiple (ATEX, CSA, CE)

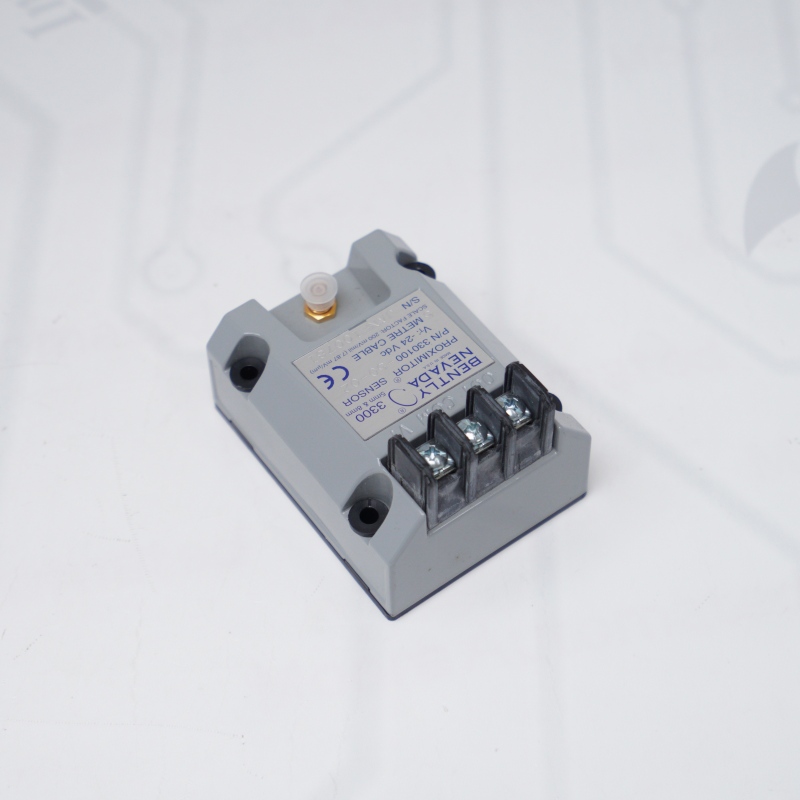

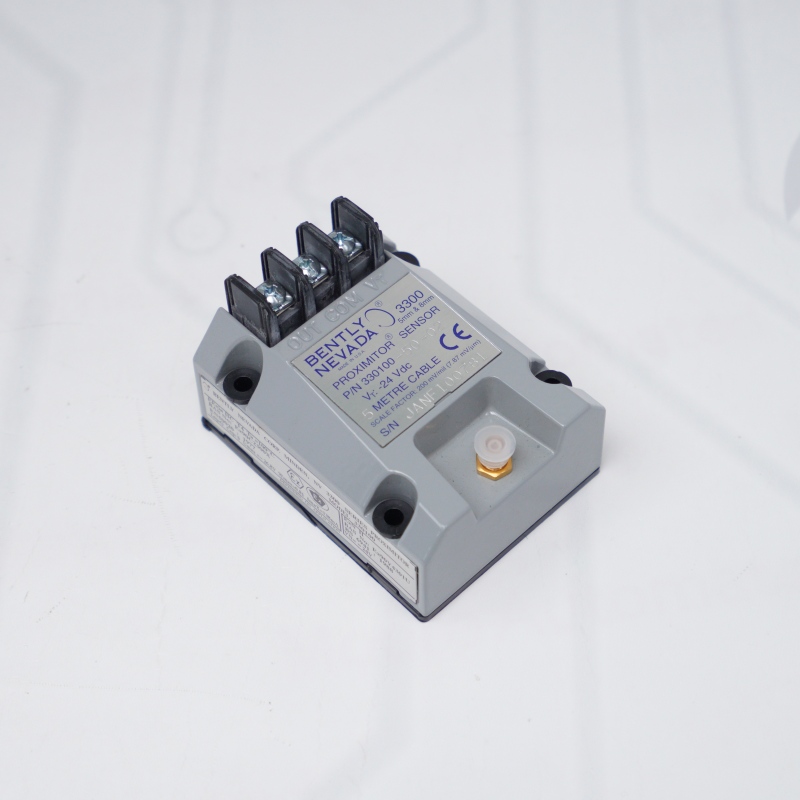

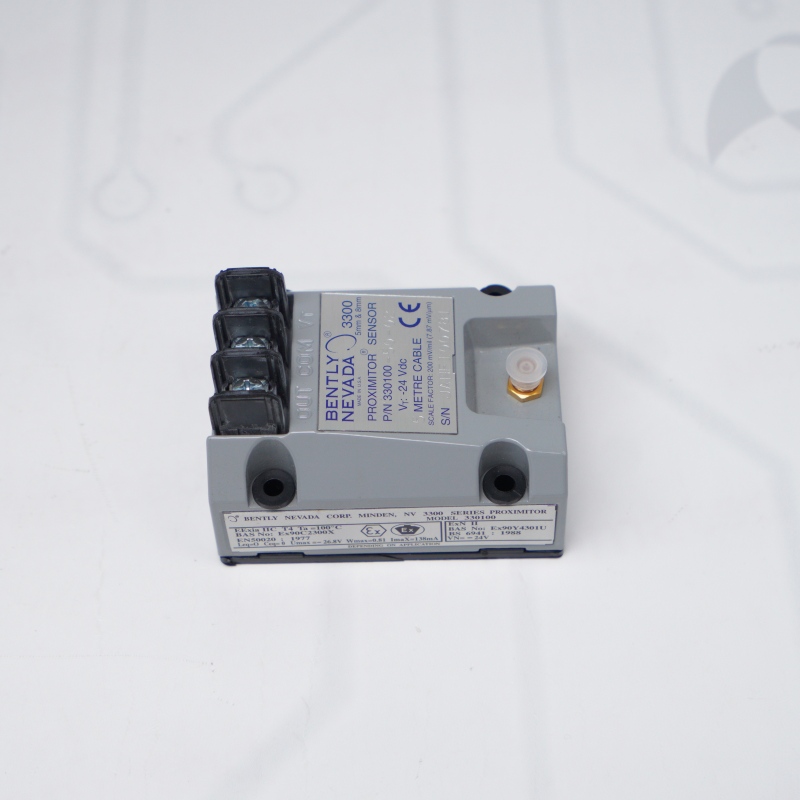

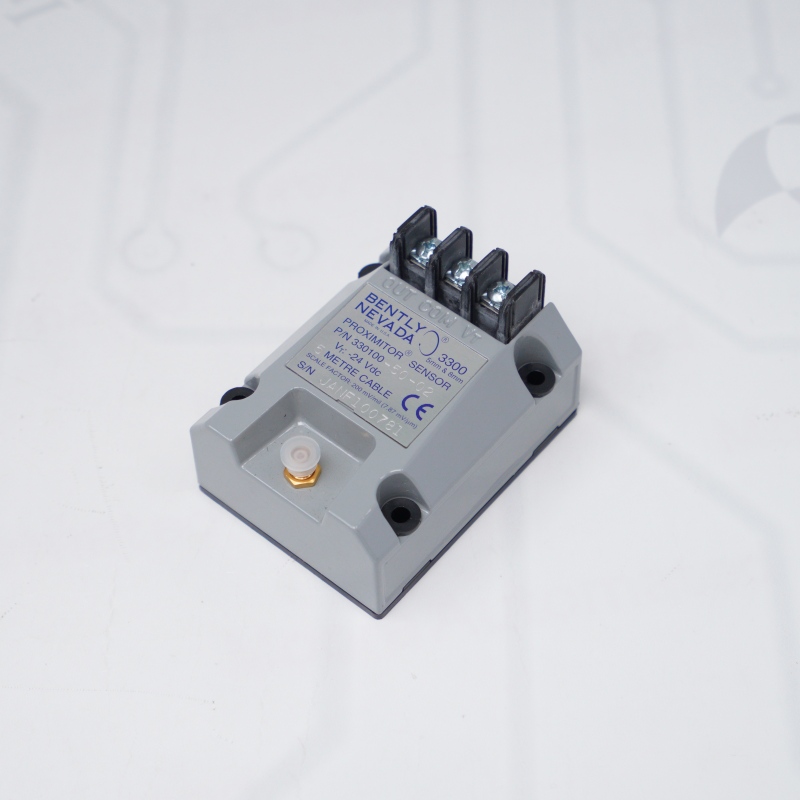

Proximitor Sensor Images
330100-50-02 BENTLY NEVADA
330100-50-02 BENTLY NEVADA
330100-50-02 BENTLY NEVADA
BENTLY NEVADA Proximitor Sensor FAQ
Q: How do you wire the Bently Nevada 330100-50-02 terminals?
A: The Bently Nevada 330100-50-02 has three screw terminals: VT, OUT, and COM. Connect your -24 VDC power supply to VT, route the monitor signal from OUT, and bridge the common ground to COM.
Q: Can you use a 7-meter cable with the Bently Nevada 330100-50-02?
A: No. The Bently Nevada 330100-50-02 is factory-tuned for a strict 5.0-meter electrical system length. Mixing mismatching cable lengths shifts the calibration curve and ruins measurement accuracy.
Q: What is the correct mounting setup for the Bently Nevada 330100-50-02?
A: The BENTLY NEVADA Proximitor Sensor uses a standard panel-mount baseplate. Bolt it directly onto a clean, low-vibration backpanel inside your instrument enclosure to protect the internal electronics.
Q: What should you check if a Bently Nevada 330100-50-02 throws an error?
A: First, verify the DC gap voltage at the BENTLY NEVADA Proximitor Sensor output terminals to see if the probe is out of range. If the sensor hardware itself is dead, swap it out for an identical surplus unit or upgrade the loop to a 3300 XL series equivalent.
